Selecting the right diaphragm pump for your specific medium is a crucial decision that directly impacts your system’s performance and longevity. Whether you are working with air, liquids, or a combination of both, understanding the unique characteristics of your medium will guide you in making an informed choice. At JSG DC PUMP, we offer customized diaphragm pumps designed to meet the specific needs of various applications.
In this article, I will explain the key factors to consider when selecting a diaphragm pump and how to ensure the right match between your pump and the medium you’re handling.
Do You Need a Different Pump for Air and Liquid?
We often hear this question from customers: “Can one diaphragm pump handle both air and liquid?” On the surface, it might sound like a simple query, but the answer is more nuanced. Air and liquids behave very differently, and their specific requirements dictate the design and materials of the diaphragm pump.
Although some diaphragm pumps are designed to handle both air and liquid, there are trade-offs. For example, liquid diaphragm pumps usually require stronger sealing and more robust construction, as liquids are incompressible. On the other hand, air diaphragm pumps can tolerate some leakage and pressure fluctuations because air is compressible.
Understanding the characteristics of your medium is crucial to ensuring that you select the pump that will perform efficiently and reliably.

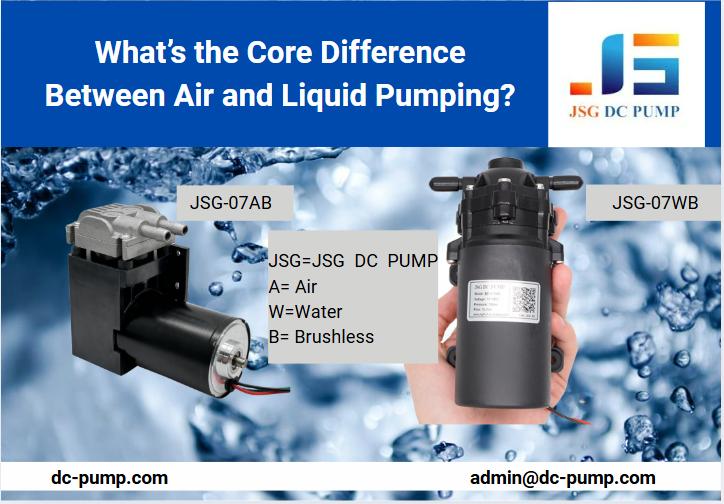

What’s the Core Difference Between Air and Liquid Pumping?
The primary difference between air and liquid when it comes to diaphragm pumps is their compressibility.
– Air is compressible, meaning it can expand and contract with slight pressure fluctuations. This allows air diaphragm pumps to tolerate small amounts of leakage and flow variation.
– Liquid, however, is incompressible, requiring tight sealing, precise flow control, and minimal backflow. Even small leaks or cavitation can impact pump performance.
Therefore, when selecting the right diaphragm pump, you need to ensure that it is designed to handle either air or liquid, as each medium has its own set of requirements in terms of sealing, pressure tolerance, and flow stability.
Key Technical Differences in Diaphragm Pump Design
| Design Element | Air-Focused Pumps | Liquid-Focused Pumps |
| Valve Structure | Light flapper or reed valves | Precision seat-valve combinations |
| Diaphragm Material | EPDM, FKM, silicone | PTFE, FKM, multilayer film |
| Pump Head Material | PPS, ABS, Nylon | PPS, PVDF, stainless steel |
| Seal Requirements | Moderate sealing | Tight, pressure-tolerant sealing |
| Flow Stability | Flow fluctuations acceptable | Requires smooth, ripple-free output |
| Leak Tolerance | Tolerates a slight internal bypass | Requires leak-free operation |

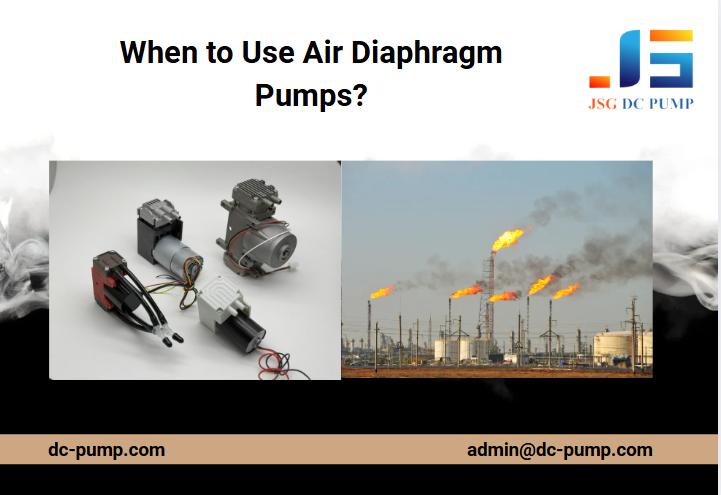

When to Use Air Diaphragm Pumps?
Air diaphragm pumps are ideal for applications where gas or air needs to be transferred. Some common applications include:
– Gas Sampling: Used in VOC detection, CO₂ monitoring, and other environmental analysis.
– Vacuum Generation: In compact systems like pick-and-place machines and IC handling, air pumps are used to generate suction.
– Pneumatic Control: These pumps are often used in small-scale automation devices or analytical instruments where they control pneumatic signals.

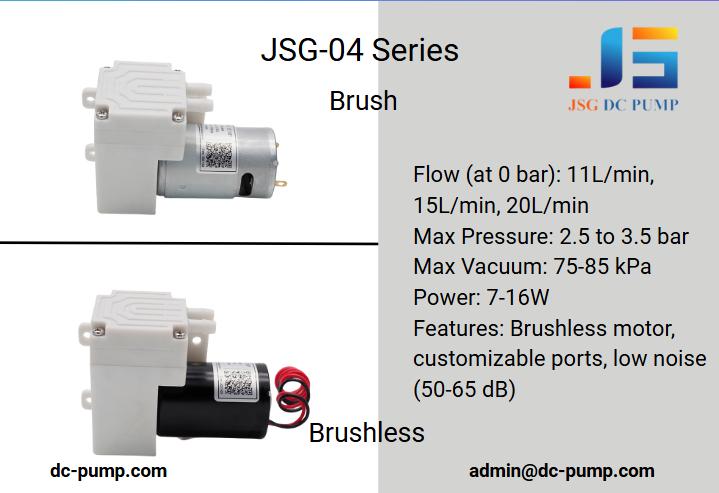

Our JSG-04 Series is well-suited for these applications, offering a compact, lightweight design that ensures quiet, efficient operation with low maintenance.
JSG-04 Series Features:
– Flow (at 0 bar): 11L/min, 15L/min, 20L/min
– Max Pressure: 2.5 to 3.5 bar
– Max Vacuum: 75-85 kPa
– Power: 7- 16W
– Noise: 50-65 dB

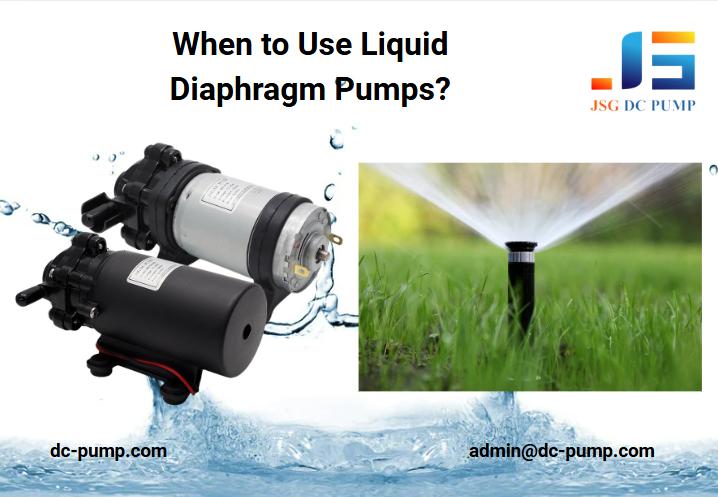

When to Use Liquid Diaphragm Pumps?
On the other hand, liquid diaphragm pumps are best suited for applications where precise fluid control and tight sealing are required. These include:
– Liquid Sampling: Used in medical diagnostics, biochemical fluid analysis, and laboratory automation.
– Precision Dosing: In vitro diagnostic (IVD) systems need exact fluid measurement with minimal cross-contamination.
– Fluid Transfer: Diaphragm pumps are used to move fluids in chemical processing, laboratory automation, and food safety systems.

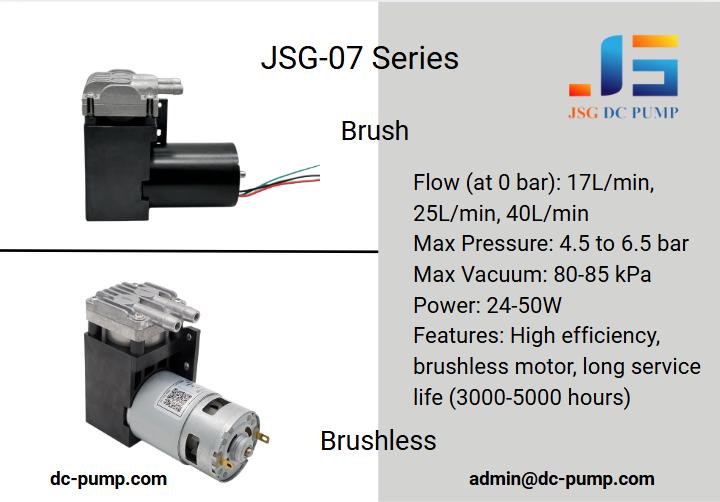

For these applications, we recommend our JSG-07 Series, which provides high flow and pressure capabilities while ensuring reliable, leak-proof fluid transfer.
JSG-07 Series Features:
– Flow (at 0 bar): 17L/min, 25L/min, 40L/min
– Max Pressure: 4.5 to 6.5 bar
– Max Vacuum: 80-85 kPa
– Power: 24-50W
– Noise: 60-70 dB

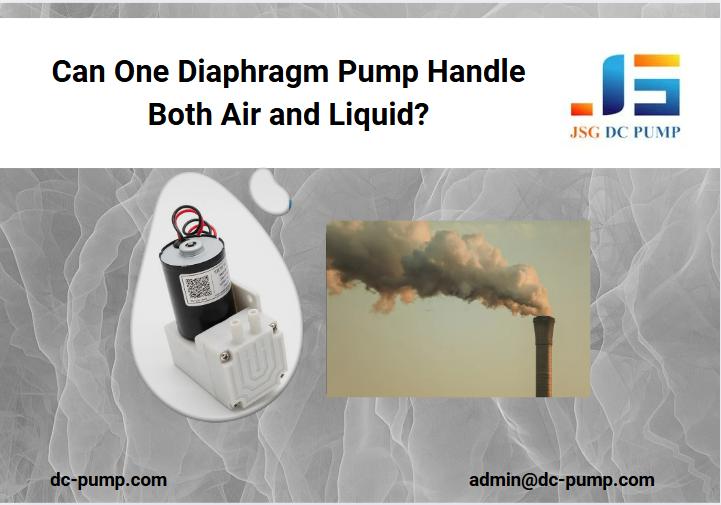

Can a Single Pump Handle Both Air and Liquid?
While it is possible to design a diaphragm pump that can handle both air and liquid, such hybrid pumps generally sacrifice performance for versatility. For instance, some portable humidifiers or dual-function analyzers use pumps that can handle both air and clean, non-corrosive liquids intermittently.
However, for more demanding environments, especially in medical, chemical, or food processing applications, it is always recommended to use media-optimized pumps. These pumps are engineered specifically to handle either air or liquid, ensuring higher performance and reliability.

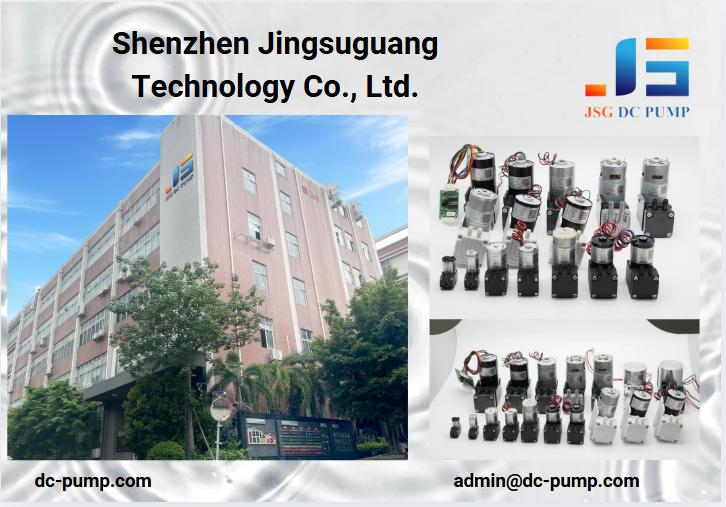

Shenzhen Jingsuguang Technology Co., Ltd.
JSG DC PUMP Technology Co., Ltd. is a leading manufacturer of high-quality diaphragm pumps, specializing in customized solutions for a wide range of industries. Our pumps are trusted by companies in medical devices, industrial automation, laboratory equipment, and more, offering precision, durability, and optimal performance.
With years of expertise in diaphragm pump technology, we are committed to delivering tailored solutions that meet your specific needs. Whether you are handling air, liquid, or both, we will work closely with you to select the right pump for the job.
Real Customer Case Study
One of our key customers, a medical equipment manufacturer, faced a challenge: they needed a compact pump that could handle both liquid waste (residual reagents) and air (tube clearing) within their diagnostic equipment without using multiple pumps or compromising the layout.

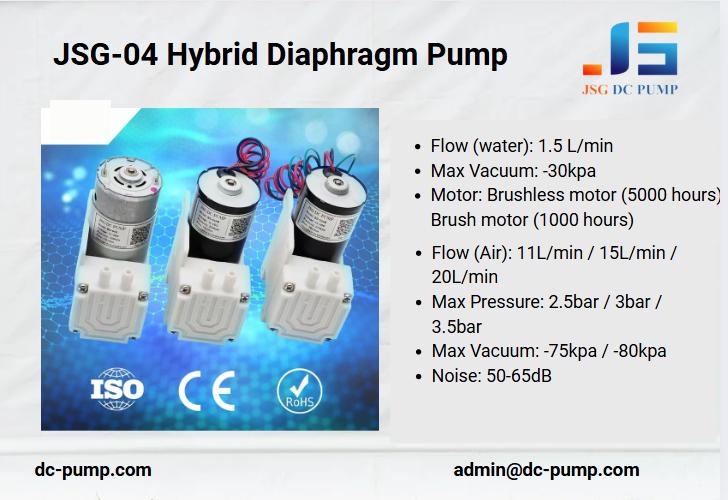

We provided the JSG-04 Hybrid Diaphragm Pump, which features:
– Dual-channel design for both liquid suction and air evacuation.
– FKM diaphragms for biocompatibility and chemical resistance.
– Brushless motor for long-lasting, low-noise operation.
This solution allowed the customer to streamline their design, reduce system complexity, and ensure over 5,000 hours of reliable operation in continuous duty.
FAQ (Frequently Asked Questions)
Q: Can one diaphragm pump handle both air and liquid?
A: Yes, some hybrid diaphragm pumps are designed to handle both air and liquid. However, they may not perform as efficiently as pumps optimized for a specific medium. It’s always better to use media-specific pumps for critical applications.
Q: What are the advantages of using air diaphragm pumps?
A: Air diaphragm pumps are ideal for low-pressure systems, especially in applications like gas sampling, vacuum generation, and pneumatic control. They are compact, efficient, and tolerate minor fluctuations in flow.
Q: How do I know if I need a liquid diaphragm pump?
A: If your application requires precise fluid control, minimal backflow, and a leak-proof system, then a liquid diaphragm pump is the best choice. These pumps are used in medical diagnostics, IVD systems, and fluid transfer processes.
What should I consider when choosing a diaphragm pump?
A: Factors such as flow rate, pressure requirements, sealing, chemical compatibility, and whether you are dealing with air or liquid are crucial when selecting a diaphragm pump.
Conclusion
Choosing the right diaphragm pump for your medium is essential to ensuring the success of your system. By considering factors such as flow, pressure, sealing requirements, and medium compatibility, you can make an informed decision that will optimize performance, reliability, and longevity.
At JSG DC PUMP, we offer a variety of diaphragm pumps designed to handle both air and liquid applications. For expert guidance on selecting the right pump, please don’t hesitate to contact us.
