Feeling limited by bulky air compressors or pumps that always need a nearby power outlet? You require a dependable method for inflating items or managing airflow, but current solutions seem cumbersome. A DC air pump offers a portable, efficient answer for many diverse tasks.
A DC air pump is a compact device driven by direct current (DC) electricity. It employs a motor to move air, making it perfect for inflation, aeration, or generating pressure/vacuum in various situations where portability and efficiency are crucial.
These pumps are surprisingly potent for their modest size and can truly revolutionize how you approach certain challenges. Over my years at JSG DC PUMP, I’ve witnessed them resolve countless issues for innovators and designers. Let’s delve into what makes them so beneficial and how you can select the ideal one for your project.

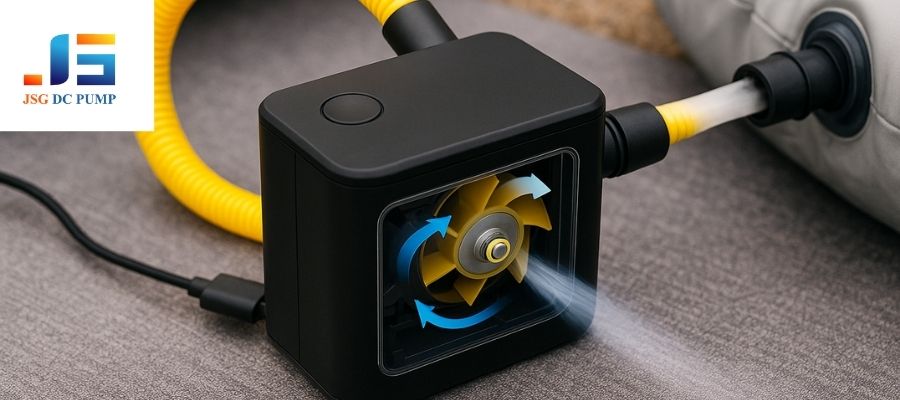

How Does a DC Air Pump Actually Generate Airflow?
Ever been curious about the inner workings of that small pump? Understanding its mechanics might appear complex. Not knowing the operational principles can make choosing the best model or diagnosing problems difficult.
A DC air pump functions by utilizing a direct current motor to power a mechanism, commonly a diaphragm or a miniature piston. This mechanism induces changes in air pressure, either expelling air or drawing it in, based on the pump’s specific design.
The heart of any DC air pump is its electric motor, which operates on direct current. This power can originate from batteries, a vehicle’s electrical system, or a DC power adapter. The motor’s primary job is to convert electrical energy into mechanical movement. This movement is then transmitted to an air-moving component, which is where the magic happens. I remember when we were first developing a new line of miniature pumps at JSG DC PUMP; refining the motor-to-diaphragm linkage was key to achieving the quiet operation and efficiency our clients needed for noise-sensitive medical devices. It’s this deep understanding of the core mechanics that allows us to help product designers anticipate performance and integrate these pumps seamlessly.

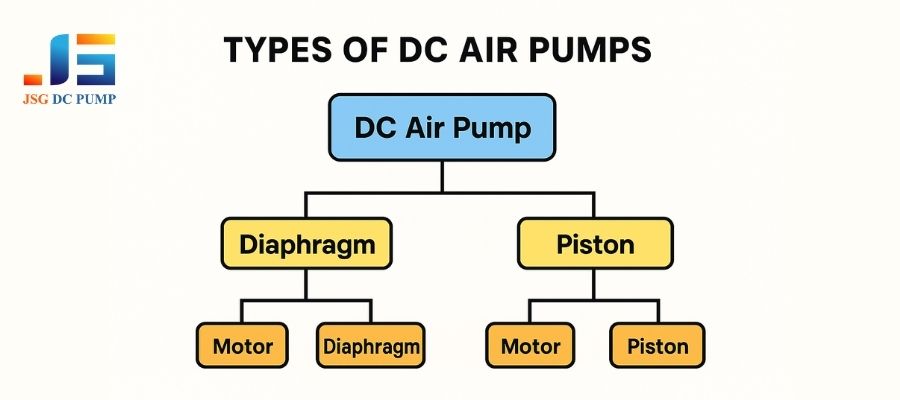

What Are the Different Types of DC Air Pumps Available?
Feeling overwhelmed by the sheer number of pump choices on the market? Different pump mechanisms offer distinct advantages. Understanding these types will greatly clarify your selection process for your specific application.
Common DC air pumps include diaphragm pumps, favored for general-purpose use and good flow; piston pumps, chosen for their ability to achieve higher pressures; and occasionally rotary vane pumps for specific smooth flow characteristics, each type being better suited to different tasks.
Let’s look closer at the main types you’ll encounter:
- Diaphragm Pumps: These are workhorses. An eccentric cam, driven by the motor, causes a flexible diaphragm to move back and forth. This motion alternately expands and contracts a chamber, drawing air in through an inlet valve and pushing it out through an outlet. They are great for continuous flow, can handle minor particulates, and are relatively quiet. However, their pressure capabilities are usually moderate. At JSG DC PUMP, a large part of our R&D has focused on optimizing diaphragm materials and designs for a superb balance of consistent performance and extended operational life.
- Piston Pumps: Think of a tiny engine. A piston moves within a cylinder. This action draws air in on one stroke and expels it under pressure on the other. Piston pumps can achieve significantly higher pressures than diaphragm pumps, making them suitable for tasks like inflating high-pressure items. The trade-off can sometimes be increased noise and mechanical complexity.
- Rotary Vane Pumps: Though less common in very small DC applications, these use a rotor with sliding vanes inside a specially shaped cavity to move air. They can offer very smooth, pulse-free flow and are good for generating vacuum. They are often more sensitive to contaminants.
Understanding these types helps you narrow down options based on your primary needs—be it flow volume, pressure, or noise level.

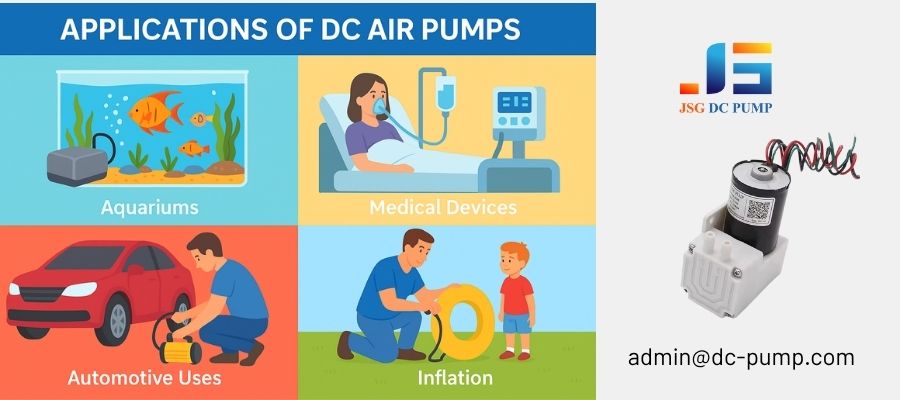

Where Can You Use DC Air Pumps Most Effectively?
You have a versatile component, but are you sure you’re leveraging it to its fullest potential? Using a DC air pump for an unsuitable task can result in suboptimal performance or even damage. Knowing its prime applications helps you maximize its utility.
DC air pumps are extensively employed in aquariums for water aeration, medical apparatus like blood pressure monitors and nebulizers, automotive uses such as portable tire inflators, and for convenient inflation of items like air mattresses or sports equipment.
The adaptability of DC air pumps is one of their strongest suits. Because they operate on DC power, they are perfect for portable or battery-powered devices, opening up a world of possibilities. Here are some fields where they truly excel:
- Aquatics: Essential for providing oxygen in fish tanks and during fish transport. Their small size, low energy use, and quiet operation are big pluses.
- Medical Devices: You’ll find them in nebulizers delivering medication, the cuffs of blood pressure monitors, therapeutic air mattresses, and even some compact respiratory aids. Reliability and precision are paramount here. I recall a client at JSG DC PUMP developing a portable oxygen concentrator; our challenge was to provide a pump that was not only efficient but also met stringent medical noise standards.
- Automotive Sector: Portable tire inflators are a classic example. Some vehicles also incorporate small DC pumps for adjustable seat lumbar supports or other pneumatic comfort systems.
- Consumer Inflation: From air beds for camping to inflatable kayaks and sports balls, their convenience is undeniable.
- Product Integration: For product designers, DC air pumps can be integrated into all sorts of innovative products. Consider devices needing small-scale pneumatic actuation, targeted airflow for cooling electronics, or creating a gentle vacuum for pick-and-place arms in compact automated systems.
The range of applications we see at JSG DC PUMP is astonishing, highlighting their versatility.

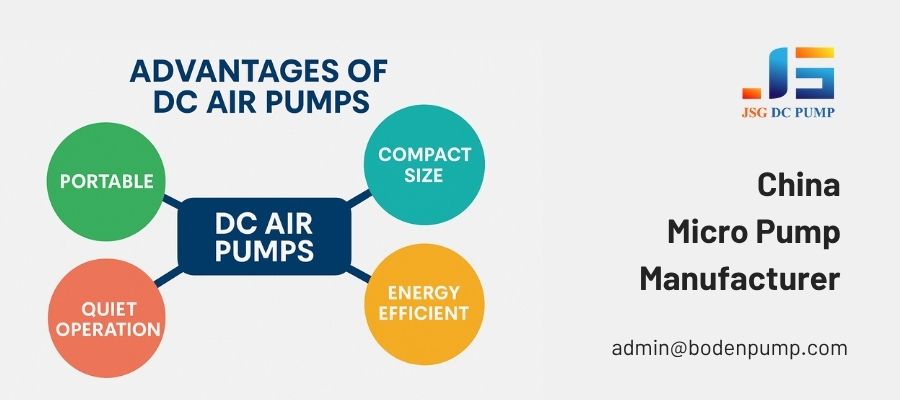

What Are the Key Advantages of Using DC Air Pumps in Product Design?
Are you designing innovative products but find yourself constrained by power availability or space limitations? DC air pumps can offer remarkably compact and energy-efficient solutions, overcoming these common hurdles.
DC air pumps provide significant design advantages, including very low power consumption, a compact physical size for easier integration into products, true portability due to battery operation capability, and precise controllability for a wide array of applications.
As someone who has been involved with these pumps for years at JSG DC PUMP, I can tell you these benefits are not just theoretical; they translate into real-world product improvements.
- Energy Efficiency: DC motors, especially modern brushless types, are inherently efficient. This is absolutely critical for battery-powered devices where every milliamp matters. Less energy wasted means longer operational times.
- Compact Size & Lightweight: These pumps can be tiny! This allows for smaller, more ergonomic, and aesthetically pleasing product designs. Their light weight also reduces the overall mass of the end product.
- Portability: The ability to run reliably on batteries or low-voltage DC sources (like USB or car adapters) makes them the go-to choice for any application that needs to be mobile or operate away from mains power.
- Controllability: The speed of a DC motor can often be easily adjusted, for instance, using Pulse Width Modulation (PWM). This allows designers to implement variable flow or pressure, tailoring the pump’s output precisely to the application’s needs.
- Quiet Operation: While not all DC pumps are silent, many designs, particularly diaphragm pumps, can operate at very low noise levels, which is crucial for medical devices or consumer products used in quiet environments.
- Cost-Effectiveness: For many small-scale air or vacuum requirements, DC air pumps often present a more economical solution than larger AC pumps or complex pneumatic systems.
I remember a client developing a handheld air quality sensor. They chose one of our miniature JSG DC PUMP models specifically for its tiny footprint and minimal power draw. This allowed them to create a device that could be used for extended periods in remote locations, a key selling point.
How Do You Pick the Perfect DC Air Pump for Your Needs?
With such a vast array of DC air pumps on the market, the selection process can feel quite overwhelming. Choosing an unsuitable pump can lead to poor performance, potential damage to your equipment, or a pump that simply doesn’t last. Making an informed decision is absolutely key.
To choose the right DC air pump, you must carefully consider factors like the required voltage, the necessary airflow rate and output pressure, the anticipated duty cycle (continuous or intermittent use), acceptable noise level, and the physical size constraints for your specific application.
Selecting the ideal DC air pump is all about meticulously matching the pump’s specifications to your application’s unique demands. Let’s break down the essential factors:
- Operating Voltage (V): DC pumps are available in various standard voltages (e.g., 3V, 5V, 6V, 12V, 24V). This must align with your power supply.
- Required Flow Rate (LPM or CFM): This measures the volume of air the pump can move per unit of time (Liters Per Minute or Cubic Feet per Minute).
- Pressure/Vacuum Level (PSI, kPa, bar, mmHg): This indicates the force of the delivered air or the strength of the suction. High pressure is vital for tasks like tire inflation, while gentle flow is fine for simple aeration.
- Duty Cycle: Can the pump run non-stop (continuous duty), or does it require periodic rests (intermittent duty)? Ignoring this can lead to overheating and failure.
- Noise Level (dB): For applications in quiet settings (e.g., medical equipment, home use), a low decibel rating is a critical parameter.
- Size and Form Factor: The pump’s physical dimensions and weight are important if it needs to fit into a constrained space or be part of a portable device.
- Expected Lifespan and Reliability: Consider the pump’s construction, motor type (brushless often lasts longer), and bearing quality, especially for critical applications.
- Media Compatibility: What is the pump moving? Air, gas, or even liquids (for some specialized pumps). Ensure materials are compatible.
At JSG DC PUMP, we often guide clients through this. A product engineer needed a very quiet 12V pump with precise flow control for a new laboratory analysis instrument. We reviewed the target pressure, minimum flow, noise limits, and expected operational life to pinpoint the exact model. Getting this right saved considerable development time.
What Should You Consider for Longevity and Reliability in DC Air Pumps?
Concerned about potential product failures stemming from pump malfunctions? Ensuring the durability and reliability of the chosen DC air pump is critical for product success. Selecting for longevity from the outset avoids costly issues down the line.
For optimal pump longevity and reliability, focus on the motor type (brushless designs typically offer longer service life), the quality of diaphragm or piston materials, bearing specifications, the intended operating environment (temperature, humidity), and strict adherence to the pump’s specified duty cycle.
Ensuring a long and trouble-free life for a DC air pump integrated into your product involves several key considerations:
- Motor Technology: This is fundamental.
- Brushed DC Motors: Simpler and often less expensive initially, but the carbon brushes wear down over time, limiting lifespan and creating dust.
- Brushless DC Motors (BLDC): More complex electronically but offer significantly longer operational lives due to the absence of brushes. They also tend to be more efficient and quieter. For any application demanding high reliability and extended use, BLDC is usually the preferred choice at JSG DC PUMP.
- Material Quality: The components doing the work matter immensely.
- Diaphragms/Seals: Materials like EPDM, Viton, or specialized elastomers are chosen based on chemical compatibility, temperature resistance, and fatigue life. A poorly chosen diaphragm will fail prematurely.
- Valves: Precision-molded valves made from durable materials are crucial for maintaining efficiency and preventing leaks over millions of cycles.
- Bearings: High-quality motor bearings reduce friction, heat, and wear, directly contributing to a longer lifespan.
- Operating Environment:
- Temperature: Pumps have optimal operating temperature ranges. Exceeding these can degrade lubricants, plastics, and electronics.
- Humidity and Ingress Protection (IP Rating): Moisture and dust can cause corrosion, blockages, or electrical shorts if the pump isn’t adequately protected for its environment.
- Adherence to Duty Cycle: Running an intermittent-duty pump continuously will almost certainly lead to overheating and a drastically shortened life. Always respect the manufacturer’s specifications.
A significant portion of our R&D at JSG DC PUMP is dedicated to life-testing and failure analysis. We push our pumps to their limits to understand wear mechanisms and continuously improve our designs for robustness.
Conclusion
DC air pumps are incredibly versatile, providing compact and efficient solutions for moving air or creating vacuum. Understanding their mechanics, types, applications, and selection criteria empowers you to choose wisely for your projects.
