1. Introduction
Accurate gas analysis is vital in industrial emission monitoring, environmental testing, and laboratory gas detection. A well-designed gas sampling system depends not only on the analyzer but also on the pump that delivers the sample. Without the right gas analysis pump, results can be inconsistent, leading to regulatory non-compliance, increased maintenance costs, and compromised system reliability.
As the product manager at Shenzhen Jingsuguang Technology Co., Ltd. (JSG DC PUMP), I’ve worked with engineers across sectors who underestimated the importance of gas sampling pumps. Whether for continuous emission monitoring systems (CEMS), portable gas detectors, or laboratory analysis, selecting the wrong pump can cause issues like unstable flow rates, sample contamination, and shortened equipment life.
This comprehensive guide explores the most frequently asked questions about gas analysis pumps, common applications, and why diaphragm pump technology, especially our JSG series, is the preferred solution across industries. We’ll dive deep into how these pumps work, the advantages they offer over other pump types, and how to ensure you select the right one for your unique application.
2. What is a Gas Analysis Pump?
A gas analysis pump is a specialized device designed to draw gas samples from a source and deliver them to an analyzer for measurement. These pumps are crucial in various fields, including:
Industrial emissions testing
Environmental air quality monitoring
Laboratory gas chromatography (GC)
Gas leak detection in HVAC and refrigeration
The pump ensures a steady, clean, and controlled gas flow. It helps prevent dilution or contamination, ensuring that sensors receive representative samples to accurately detect components like CO₂, NOx, SO₂, CH₄, and volatile organic compounds (VOCs). Without a reliable pump, analyzers might receive skewed or inconsistent samples, undermining the integrity of the testing process.
3. How Do Gas Sampling Pumps Work?
Gas sampling pumps operate by creating either vacuum suction or pressure to move gas from the sampling point to the analyzer. The mechanics behind these pumps involve the motion of diaphragms or pistons that alternate between suction and discharge phases, ensuring a steady flow.
Vacuum pumps draw gas through tubing into the analytical system. This is particularly useful for remote or confined sampling where gas must be extracted over a distance.
Pressure pumps push gas into the detection unit. These are ideal when the analyzer requires pressurized inputs for optimal functionality.
In both cases, diaphragm pumps are favored due to their:
Consistent, pulse-free flow
Chemical compatibility
Maintenance-free, oil-free design
The design of diaphragm pumps makes them a sustainable and robust option for a wide range of gas sampling tasks.
4 . Why Diaphragm Pumps are the Best Choice for Gas Sampling
Compared to piston pumps, peristaltic pumps, and rotary vane pumps, diaphragm pumps offer key advantages that make them ideal for gas sampling applications. Here’s a closer look:
Contamination-free sampling: Diaphragm pumps feature a sealed flow path that eliminates any risk of contamination from lubricants or external air sources.
Consistent flow rates: Especially in systems where analyzer sensitivity depends on stable sample introduction, diaphragm pumps maintain superior consistency.
Long service life: With fewer moving parts and high-quality materials, these pumps last longer, especially when powered by brushless motors.

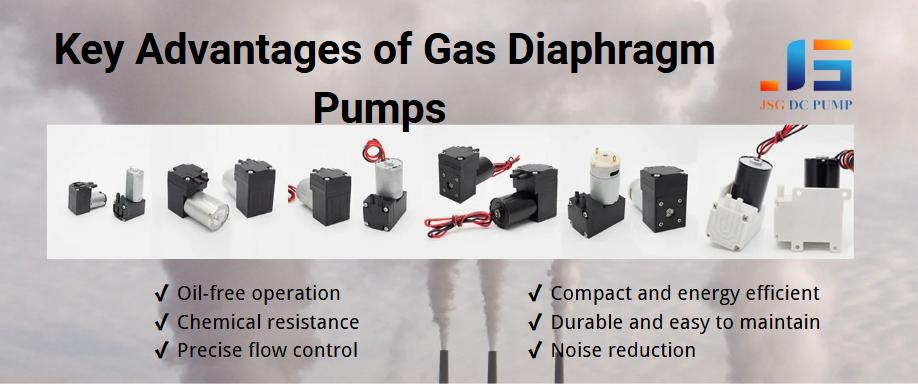

4.1 Key Advantages of Gas Diaphragm Pumps
Let’s break down the specific benefits:
Oil-Free Operation – JSG diaphragm pumps do not require lubrication, eliminating the risk of sample contamination from oils—a crucial factor for cleanroom, laboratory, and environmental applications.
Chemical Resistance – Our pumps utilize chemically inert materials such as PTFE, PPS, and FKM, allowing them to handle reactive or corrosive gases like SO₂, NOx, and VOCs without degradation.
Precise Flow Control – Gas analysis demands consistent and adjustable flow rates. JSG pumps offer fine-tuned control across a wide range (0.3–60 L/min), ensuring high-resolution and reliable data collection.
Compact and Energy-Efficient – Miniature diaphragm pumps are lightweight and small, making them ideal for portable devices. Our models with brushless DC motors consume minimal power for extended field operation.
Durable and Low Maintenance – The sealed diaphragm mechanism ensures minimal wear. JSG models typically achieve lifespans of 3,000–10,000 hours, depending on the use case.
Noise Reduction – Many gas analysis operations occur in laboratory or field settings where quiet performance matters. Our pumps are engineered for low-noise operation (<60 dB), supporting user comfort and compliance with industrial workplace standards.
5 . Typical Applications of Gas Analysis Pumps
Gas analysis pumps from JSG DC PUMP are deployed across diverse sectors. Let’s explore some specific use cases:
Air Quality Monitoring: Our pumps are used by municipal governments and environmental watchdogs to sample air in cities, industrial zones, and rural areas, helping track pollutants such as carbon monoxide (CO), sulfur dioxide (SO₂), ozone (O₃), and volatile organic compounds.
Industrial Emission Testing: Factories, incinerators, and power stations must comply with strict environmental limits. JSG pumps help facilitate real-time monitoring of flue gases and exhaust streams to ensure compliance.
Gas Leak Detection: Detecting gas leaks in storage facilities, pipelines, or HVAC systems requires sensitive, portable equipment. JSG’s miniature diaphragm pumps enable accurate leak detection in handheld devices.
Medical and Laboratory Use: Our compact pumps power gas chromatographs and breath analyzers in healthcare and research institutions. The low-flow precision and chemical compatibility make them ideal for critical measurements.
HVAC & Refrigeration: Refrigerant gas monitoring and indoor air quality assessments rely on sampling pumps that can operate for hours unattended and deliver high-precision results.
6. Technical Specifications of JSG Diaphragm Pumps
JSG DC PUMP offers a wide range of diaphragm pump models tailored to various gas analysis requirements. The following specifications reflect the standard performance and design characteristics across our product families:
| Specification | Typical Range |
| Flow Rate | 0.3 – 60 L/min |
| Vacuum Level | -30 to -100 kPa |
| Pressure Output | 100 – 1000 kPa |
| Motor Type | Brushed or Brushless DC (with PWM control) |
| Wetted Materials | PTFE, PPS, EPDM, FKM |
| Lifespan | 2,500 – 10,000 hours |
| Noise Level | < 60 dB |
| Weight | 150g – 650g (depending on model) |
| Operating Temperature | -20°C to +60°C |
| Power Consumption | 3W – 50W |
Each JSG diaphragm pump is rigorously tested for performance and durability. Our brushless motor versions provide longer service life and lower maintenance, while the brushed models offer cost-effective solutions for short-term applications.
7. Key Factors to Consider When Choosing a Gas Analysis Pump
Selecting the ideal pump involves balancing technical requirements with environmental and application-specific constraints. Here are the top parameters to evaluate:
Flow Rate: Ensure the pump delivers enough volume to meet the minimum flow needs of your analyzer. Undersized pumps can lead to under-sampling and unreliable data.
Vacuum and Pressure Capabilities: Depending on whether your application relies on suction or pressure-driven sampling, choose a model that can comfortably achieve the required pressure range.
Chemical Compatibility: Match the materials of construction (e.g., PTFE, FKM) to the gases being sampled. Incompatible materials can degrade, affecting accuracy and safety.
Energy Efficiency: Opt for models with brushless motors and PWM (pulse width modulation) control to reduce power usage, especially for battery-operated or solar-powered systems.
Compactness and Weight: Portable analyzers and field devices require compact, lightweight pumps without compromising performance.
Maintenance Requirements: Select pumps that require minimal service, ideally oil-free with corrosion-resistant components for long-term operation.
Choosing the right combination of these factors can dramatically improve the reliability and longevity of your gas analysis system.
8 . How Gas Analysis Pumps Improve Environmental Air Monitoring
Governments and research institutions are increasingly tasked with monitoring air quality to ensure public health and regulatory compliance. In these critical applications, gas analysis pumps are central to accurate data collection.
Here’s how JSG DC PUMP contributes to this mission:
✅ Reliable Sampling in Harsh Conditions: Our pumps are used in remote weather stations, roadside sensors, and mobile labs. They maintain stable performance across wide temperature ranges and variable humidity levels.
✅ Integration with Smart Monitoring Systems: JSG pumps support continuous and time-resolved measurements. Many of our models feature PWM-enabled motors, making them easily integrable into digital monitoring platforms.
✅ Support for Wide Gas Profiles: From common pollutants (CO, NO₂, O₃) to complex VOC mixtures, our diaphragm pumps provide consistent flow without chemical interference, enhancing measurement accuracy.
✅ Scalability and Portability: Whether deployed in permanent installations or drone-based sampling units, the size and power efficiency of JSG pumps allow for flexible deployment.
These benefits make JSG pumps an integral component in environmental surveillance systems that protect public health.
9. Maintenance Tips for Extending the Life of Gas Sampling Pumps
To maximize the performance and longevity of your gas analysis pump, proper maintenance is essential. Even though JSG DC PUMP designs pumps for durability and minimal upkeep, adopting a few best practices can significantly extend their operational life and efficiency.
🛠 Routine Maintenance Tips:
Use Chemically Compatible Materials: Ensure that all pump components exposed to gases (diaphragms, valves, seals) are compatible with the sampled media. PTFE, FKM, and PPS are excellent choices for aggressive gases.
Regular Filter Replacement: Replace inline air filters at set intervals to prevent debris from damaging the diaphragm or entering the analyzer.
Avoid Over-Pressurization: Operating the pump beyond its rated vacuum or pressure range can lead to premature wear or failure.
Keep the Pump Clean: Periodically clean the pump housing and internal chambers to prevent residue buildup that could restrict flow or contaminate samples.
Monitor Motor Health: For brushless DC motors, monitor PWM signals and current draw to detect any irregularities indicating electrical wear.
Schedule Preventative Service: Depending on the duty cycle, schedule servicing every 6 to 12 months to inspect key wear parts and validate calibration.
By implementing these steps, you can maintain high sampling fidelity while minimizing unplanned downtime and costly repairs.
10. Why Choose JSG DC PUMP for Your Gas Analysis Pump Needs?
JSG DC PUMP has become a trusted name in precision micro pump solutions due to our commitment to engineering excellence and application-specific customization.
🌟 What Sets Us Apart:
Industry-Leading Engineering: Our R&D team leverages over 15 years of design experience in diaphragm pump systems, working closely with OEM partners in environmental, medical, and industrial fields.
Custom Configurations: We understand every application is unique. That’s why we offer tailored pump solutions—including port size modifications, motor control interfaces, and mounting systems—to match your device specifications.
Global Compliance: JSG products meet RoHS, CE, and ISO standards, making them ready for deployment worldwide.
Proven Track Record: Our pumps are used in over 40 countries by major instrument manufacturers, research institutes, and environmental agencies.
📌 Popular Product Series:
JSG-02 Series: For compact analyzers needing low flow and ultra-quiet operation.
JSG-03 Series: Balanced flow and chemical compatibility for portable detectors.
JSG-07 Series: High-pressure and high-vacuum performance for fixed installations.
We also provide free application consultations to help you optimize your sampling systems from the ground up.
📬 Contact us at admin@dc-pump.com or visit www.dc-pump.com to explore the full JSG diaphragm pump portfolio.
11 . Conclusion
Whether you’re managing an environmental monitoring station, building a portable gas analyzer, or operating a lab-based GC system, choosing the right gas analysis pump is vital.
Diaphragm pump technology offers unmatched precision, reliability, and contamination-free performance, and JSG DC PUMP brings this technology to life with innovation and quality.
From field-ready portability to industrial-grade robustness, our pumps empower accurate, long-term gas detection—helping you meet your goals in safety, compliance, and operational excellence.
Make the smart choice. Choose JSG DC PUMP.
