Are unstable suction pressures a risk to patient safety in medical devices? Fluctuations can cause harm or ineffective treatment. Mini diaphragm pumps offer reliable, stable, constant-pressure suction.
Mini diaphragm pumps are ideal for medical constant-pressure suction. They provide precise, stable negative pressure, oil-free operation, and a compact design. These features are crucial for sensitive medical applications and patient safety.
At JSG DC PUMP, we’ve spent years refining our mini diaphragm pump technology for the demanding medical field. We know that constant pressure suction is not just a feature; it’s a critical requirement for many medical procedures. Maintaining that precise, gentle vacuum can be the difference between a successful outcome and a complication. Many device designers I talk to are looking for ways to achieve this stability reliably. Let’s explore why mini diaphragm pumps have become such a trusted solution in these systems.

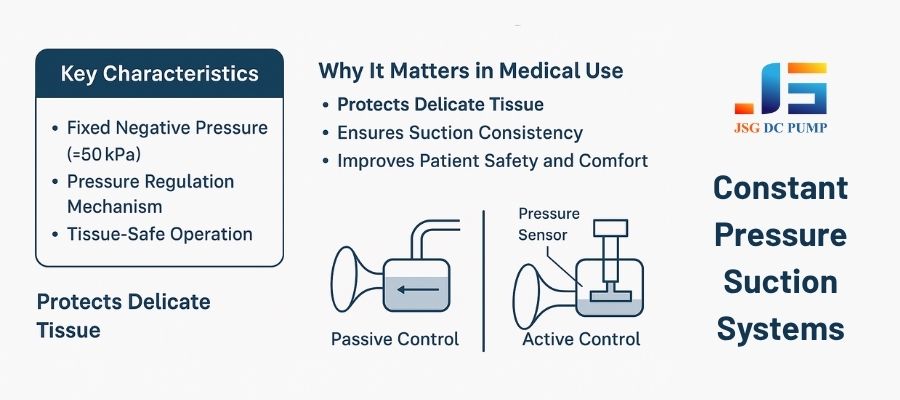

What Is a Constant Pressure Suction System in Medical Applications?
A constant pressure suction system is a vacuum control setup used in medical devices to maintain a preset level of negative pressure over time. It is essential in applications where gentle and steady suction is required, such as wound drainage or airway clearance, without causing damage to delicate tissues.
✅ Key Characteristics:
| Feature | Description |
|---|---|
| Fixed Negative Pressure | Maintains a stable vacuum (e.g., -50 kPa) once set |
| Pressure Regulation Mechanism | Achieved via pump characteristics or feedback-controlled motor |
| Tissue-Safe Operation | Prevents harmful pressure spikes or ineffective suction |
🩺 Why It Matters in Medical Use
-
Protects Delicate Tissue
Prevents sudden increases in vacuum that could damage wounds or mucous membranes. -
Ensures Suction Consistency
Essential for effective therapy, especially when fluid flow varies during operation. -
Improves Patient Safety and Comfort
Stability ensures gentle operation, especially critical in neonatal or chronic care settings.
⚙ How Is Pressure Kept Constant?
There are typically two design approaches:
-
Passive Control (Pump Design):
The pump itself, like a diaphragm pump, offers s smooth, self-regulating vacuum due to its operating mechanism. -
Active Control (Sensor + Motor Feedback):
A pressure sensor monitors vacuum level and adjusts the motor speed (e.g., using PWM) in real time to stabilize pressure.
🔍 Use Case Example:
In negative pressure wound therapy (NPWT), a stable vacuum promotes faster healing by continuously removing exudate without harming healthy tissue.
How Do Mini Diaphragm Pumps Work in These Systems?
Mini diaphragm pumps generate vacuum through the controlled movement of an elastic diaphragm, offering a compact and efficient solution for medical suction devices.
🔧 Operating Principle of a Mini Diaphragm Pump
| Component | Function |
|---|---|
| Diaphragm | The flexible membrane that moves up and down to change internal volume |
| Eccentric Cam | Converts rotary motion of the motor into reciprocating diaphragm motion |
| Motor | Drives the cam; speed can be regulated for pressure control |
| Inlet & Outlet Valves | Direct the airflow during suction and discharge cycles |
⚙ Step-by-Step Operation:
-
Suction Phase:
The motor drives the eccentric cam, pulling the diaphragm downward.
→ The internal chamber expands → A vacuum is created → Air or fluid is drawn in through the inlet valve. -
Discharge Phase:
The diaphragm is pushed upward by the rotating cam.
→ The chamber contracts → The contents are pushed out through the outlet valve. -
Continuous Cycling:
This rapid reciprocation produces a stable, pulsation-controlled negative pressure.
🔄 Pressure Regulation in Constant Pressure Systems
To achieve medical-grade suction stability, JSG DC PUMP often integrates:
| Control Method | Role in System |
|---|---|
| PWM Motor Control | Adjusts motor speed dynamically to maintain the target vacuum level |
| Pressure Sensor Feedback | Monitors real-time pressure and communicates with control electronics |
| Brushless Motor Option | Ensures long life, precise control, and reduced maintenance requirements |
✅ Key Advantage:
This simple yet powerful mechanism offers smooth airflow with minimal pulsation—ideal for sensitive applications such as neonatal suction or wound drainage.

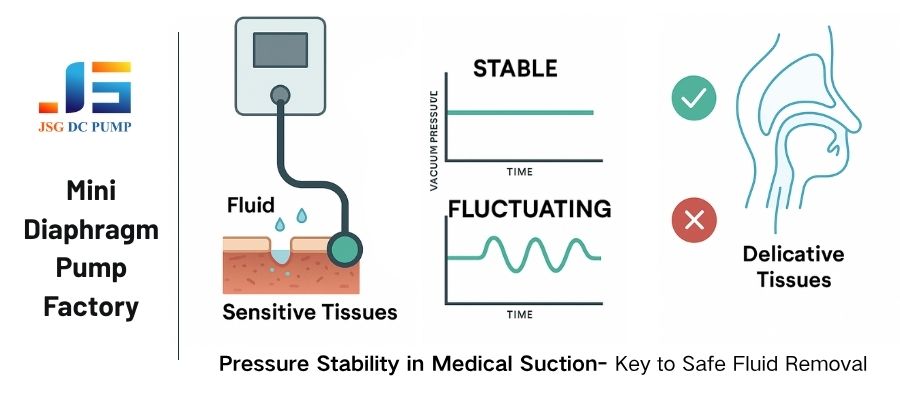

Why Is Pressure Stability So Important in Medical Suction Devices?
In medical suction systems, pressure stability is not optional—it’s essential. Fluctuating vacuum pressure can compromise both patient safety and clinical effectiveness.
🚨 Risks of Unstable Suction Pressure
| Situation | Clinical Consequence |
|---|---|
| Excessive suction (too high) | Tissue trauma, bleeding, patient discomfort, and delayed healing |
| Insufficient suction (too low) | Incomplete fluid removal, infection risk, therapy failure |
| Pressure fluctuation | Inconsistent treatment delivery, device unreliability, and clinician distrust |
🔍 Real-World Scenarios Where Stability Matters
-
Neonatal Airway Suctioning
Fragile tissues in newborns require gentle, constant suction to prevent trauma. -
Negative Pressure Wound Therapy (NPWT)
A consistent vacuum is needed to stimulate granulation tissue formation and manage wound exudate. -
Surgical Fluid Management
Erratic suction can interfere with visibility and prolong procedures.
✅ What Pressure Stability Ensures:
| Benefit | Description |
|---|---|
| Predictable Performance | The device maintains the exact vacuum setpoint during operation |
| Patient Safety | Prevents accidental over-suction or under-suction of sensitive tissues |
| Clinical Confidence | Healthcare professionals can rely on the device under critical conditions |
| Therapy Effectiveness | Promotes healing by maintaining an optimal therapeutic vacuum environment |
🩺 Clinicians rely on suction systems they can trust. A stable, well-regulated pump is the foundation of that trust.
What Makes Mini Diaphragm Pumps Better Than Other Pump Types for This?
Mini diaphragm pumps are often better due to their oil-free operation (no contamination), good controllability for stable pressure, compact size, generally low noise, and long operational lifespan.
When designing medical suction devices, we often choose mini diaphragm pumps over other types for several good reasons. Their key advantages make them particularly suitable for sensitive medical environments.
| Pump Type | Oil-Free | Quiet | Compact | Stable Vacuum | Medically Compatible |
|---|---|---|---|---|---|
| Diaphragm Pump | ✅ | ✅ | ✅ | ✅ | ✅ |
| Peristaltic Pump | ✅ | ✅ | ❌ | ⚠️ (tubing wear) | ✅ |
| Piston Pump | ❌ | ❌ | ❌ | ✅ | ⚠️ (requires filtering) |
| Rotary Vane | ❌ | ❌ | ❌ | ✅ | ❌ |
At JSG DC PUMP, we’ve found that for many medical suction applications requiring moderate, stable vacuum and clean operation, the mini diaphragm pump offers the best balance of these beneficial features.
What Key Features Should You Look for in a Medical Suction Pump?
Look for a precise pressure/vacuum range, stable output, medically compatible wetted materials (parts touching fluid), low noise, long operational life, and appropriate certifications for the pump or manufacturer.
When I advise engineers on selecting a pump for a medical suction device, I tell them to focus on a few critical features. These ensure the pump meets the rigorous demands of medical applications.
Key features include:
-
Pressure/Vacuum Range: Should achieve and maintain the required suction level.
-
Flow Rate: Suitable for the intended application.
-
Wetted Materials: Use biocompatible, chemically resistant materials.
-
Motor Type & Lifespan: Brushless DC motors preferred.
-
Noise & Vibration: Should be low for patient comfort.
-
Certifications: ISO 9001, ISO 13485, RoHS compliance.
-
Size & Power: Must match device design constraints.
Are Mini Diaphragm Pumps Quiet and Safe Enough for Clinical Use?
Yes — modern mini diaphragm pumps are engineered to meet the strict performance, safety, and noise standards required in clinical and patient-care environments.
🔇 Quiet Operation for Sensitive Settings
Noise control is critical in hospitals, home care, and neonatal environments. High-quality mini diaphragm pumps, such as those from JSG DC PUMP, incorporate several design elements to ensure quiet function:
| Noise Reduction Design Element | Effect |
|---|---|
| Brushless DC Motor | Smooth, quiet rotation with minimal electrical noise |
| Eccentric Balance Tuning | Reduces mechanical vibration during reciprocation |
| Precision Bearings | Minimizes friction and operating noise |
🎧 Typical Noise Level: Under 50 dB(A) — comparable to a quiet conversation, ideal for patient-facing devices.
✅ Safety Built Into Every Component
Patient and operator safety is equally important. Mini diaphragm pumps are designed to address key clinical risk factors:
| Safety Feature | Description |
|---|---|
| Oil-Free Operation | Prevents contamination from aerosolized oil or leaks |
| Biocompatible Materials | Wetted parts made from medical-grade EPDM, FKM, or PPS |
| Leak-Proof Design | Reinforced housing and seals prevent fluid or gas leaks |
| Electrical Safety Compliance | Meets IEC 60601-1 standards for medical electrical equipment |
| Thermal Management | Pump runs cool under continuous operation, preventing overheating risks |
🩺 Whether in a surgical aspirator, wound drainage unit, or diagnostic device, mini diaphragm pumps deliver safe, quiet, and dependable performance trusted by medical professionals worldwide.
How Does JSG DC PUMP Customize Pumps for Medical Suction Applications?
Medical suction devices often require highly specific vacuum performance, materials, and integration formats. At JSG DC PUMP, we specialize in customizing mini diaphragm pumps to precisely match the unique requirements of medical OEMs.
🔧 What Can Be Customized?
| Customization Aspect | Options and Purpose |
|---|---|
| Performance Tuning | Adjust motor speed, flow, and vacuum via PWM control to meet precise pressure profiles. |
| Material Selection | Choose compatible diaphragm/valve materials such as EPDM, FKM, or PPS for chemical resistance and biocompatibility. |
| Port Configuration | Modify port size, angle, or orientation for seamless fluid path integration. |
| Mounting Adaptation | Design custom brackets, hole placements, or damping systems to fit device housings |
| Electrical Integration | Provide tailored wire lengths, connectors (e.g., JST, Molex), or plug-and-play assemblies. |
🤝 A Collaborative Engineering Process
-
You share the application details: suction pressure target, duty cycle, environment, fluids involved, and design constraints.
-
We analyze and recommend: the best pump platform and possible modifications.
-
We prototype and iterate, ensuring real-world performance matches your medical device needs.
-
You receive a fully integrated, OEM-ready pump module.
✅ Whether you need silent operation for a neonatal unit or chemical compatibility for wound fluid evacuation, JSG DC PUMP will co-engineer the right solution with you.
🧩 Conclusion
Mini diaphragm pumps play a pivotal role in ensuring medical constant pressure suction systems operate with the precision, safety, and reliability that today’s healthcare environments demand. Their oil-free design, compact structure, stable vacuum generation, and compatibility with sensitive materials make them the preferred solution for a wide range of medical applications—from neonatal aspirators to wound drainage systems.
At JSG DC PUMP, we don’t just deliver pumps—we deliver engineering solutions tailored to your device. Whether you’re designing a new medical suction product or optimizing an existing one, our technical team is ready to help you select or customize the ideal mini diaphragm pump for your exact performance needs.
