How Does Vacuum Leakage Affect the Performance and Reliability of Micro Vacuum Pumps?

Micro vacuum pumps losing power or failing unexpectedly? This can disrupt your precise operations and lead to costly setbacks. Understanding vacuum leakage is crucial.

Vacuum leakage significantly degrades micro pump performance by reducing achievable vacuum levels and flow rates. It also compromises reliability, leading to inconsistent operation and potential premature failure of the pump.

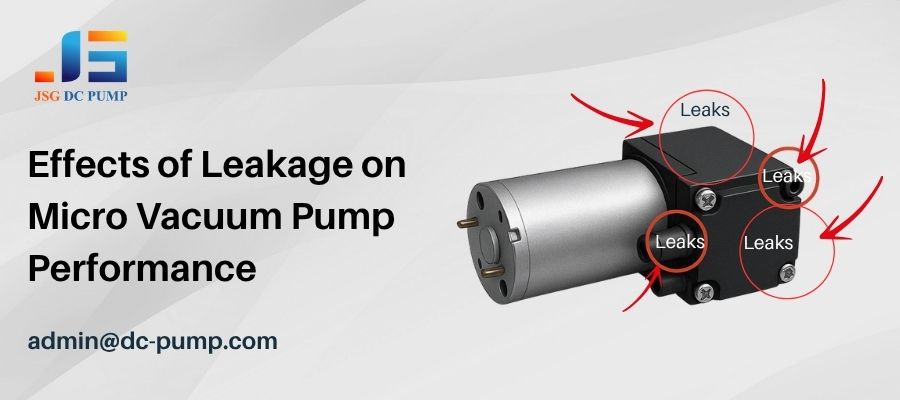

Effects of Leakage on Micro Vacuum Pump Performance

I’ve seen this issue cause real headaches in manufacturing and laboratory setups. A tiny, undetected leak can quietly sabotage your entire process, undermining consistency, suction force, or test accuracy. Let’s break down what happens when a micro vacuum pump loses its seal.

What Happens When a Vacuum Pump Leaks?

Is your micro vacuum pump struggling to hit its target vacuum? Are your processes feeling sluggish? Leaks could be silently undermining your entire system.

When a vacuum pump leaks, its core job of removing air or gas from a closed system is directly hindered. This means lower vacuum levels, longer times to reach the desired vacuum, and increased energy use.

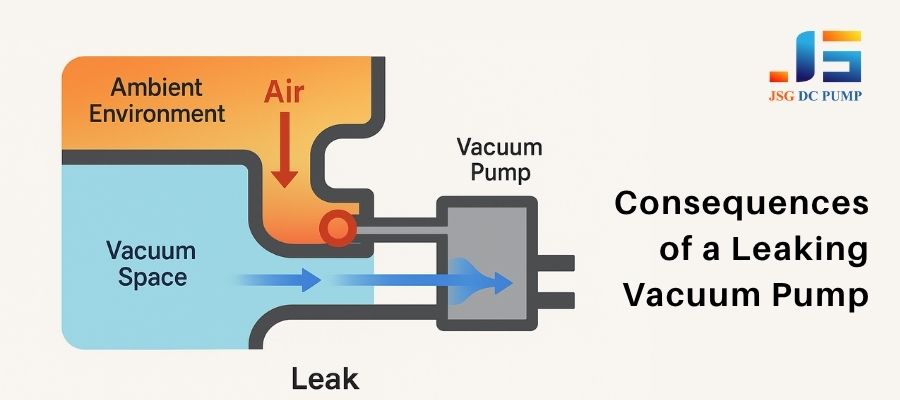

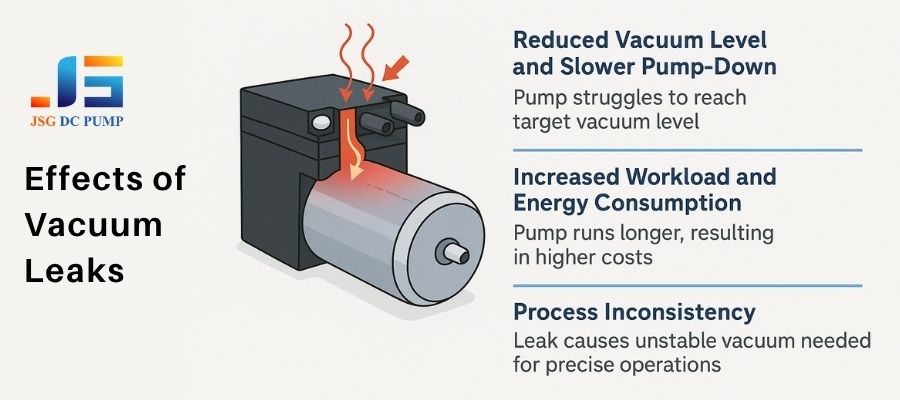

Consequences of a Leaking Vacuum Pump

When a leak occurs in a micro vacuum pump system, air or ambient gases seep back into the area you’re trying to evacuate. This has several immediate effects. I remember a client whose miniature assembly line for medical devices started failing quality checks. The tiny pick-and-place system, reliant on a micro vacuum pump, was dropping delicate components. After much investigation, we found a minuscule leak in a connector – almost invisible. But it was enough to reduce the holding force just below the critical threshold.

Reduced Vacuum Level and Slower Pump-Down

The most obvious result is that the pump cannot achieve the deep vacuum it’s designed for. The leak constantly works against the pump. This means your pump-down times increase significantly. What should take seconds might stretch into minutes, or the target vacuum might never be reached at all.

Increased Workload and Energy Consumption

The pump has to work harder and longer to try and overcome the leak. This continuous effort can lead to the pump drawing more power than usual, increasing operational costs. For micro pumps, which are often chosen for their efficiency, this negates one of their key benefits.

Process Inconsistency

If the leak rate fluctuates, the vacuum level will also be unstable. This is a disaster for processes requiring precise, repeatable vacuum conditions, like those in OEM medical devices or electronics manufacturing.

This experience taught me that even the smallest leak in a micro system can have significant operational consequences.

What Are the Factors Affecting Vacuum Efficiency?

Is your vacuum system underperforming even with a good pump? Several hidden factors can drain its power and slow down your operations significantly.

Beyond just leaks, vacuum efficiency is impacted by system volume, piping conductance (diameter and length), material outgassing, and ambient temperature. Smart design and material choices are vital for optimal performance.

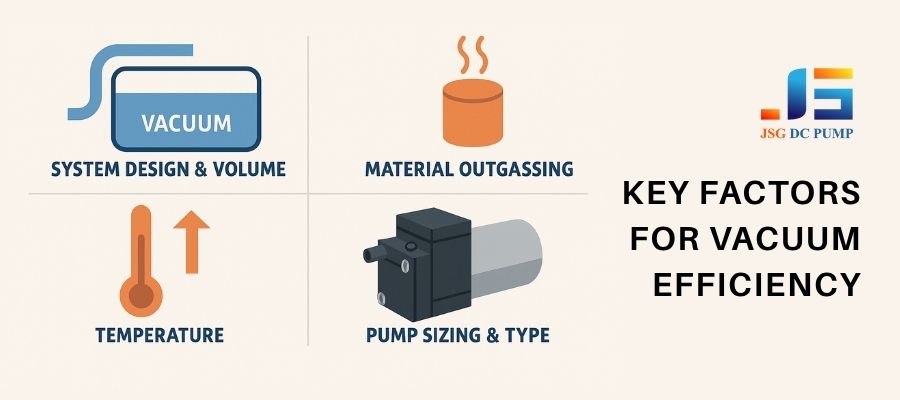

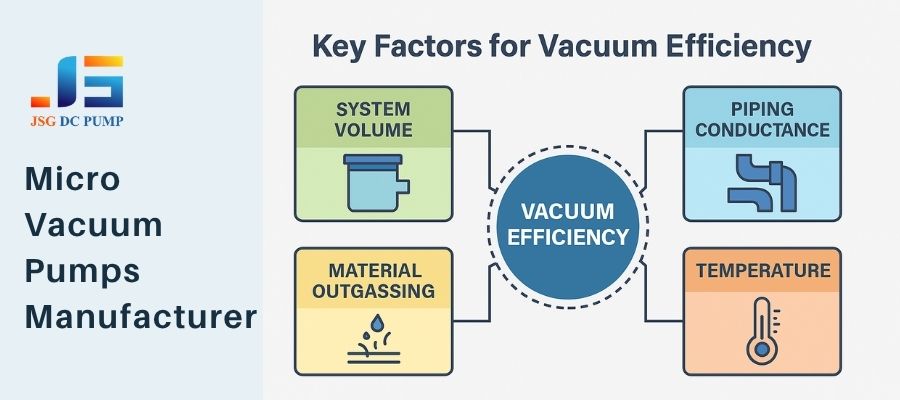

Key Factors for Vacuum Efficiency

Achieving good vacuum efficiency² isn’t just about having a powerful micro pump; the entire system design plays a critical role. I recall a project early in my career where we were setting up a system for vacuum-assisted molding of small, intricate plastic parts. The micro pump we selected was more than capable on paper, but we struggled to hit the target vacuum levels quickly. It turned out the tubing we used was too narrow and had several unnecessary bends, severely restricting conductance.

System Design and Volume

The internal volume of your vacuum chamber and piping directly affects pump-down time. Larger volumes naturally take longer to evacuate. The layout of your pipework is also crucial. Long, narrow tubes, or tubes with many bends and fittings, will significantly reduce conductance, effectively choking the pump.

Material Outgassing

Many materials, especially plastics and elastomers commonly used in vacuum systems, release trapped gases or vapors when exposed to vacuum. This phenomenon, called outgassing, adds to the gas load the pump must handle. Selecting materials with low outgassing rates is important.

Temperature Influences

Temperature affects gas behavior and outgassing rates. Higher temperatures generally increase outgassing and can also affect the performance characteristics of the pump itself.

Pump Sizing and Type

Of course, the pump must be correctly sized for the application, considering the volume, desired vacuum level, and gas load. Using a pump that’s too small will always result in poor efficiency.

That experience with the molding setup taught me a valuable lesson: the vacuum pump is just one part of a system. Optimizing the entire pathway for gas flow is essential for true efficiency.

What Is the Main Cause of Vacuum Pump Failure?

Worried about your micro vacuum pump suddenly giving up? Unexpected failures can halt your critical operations, leading to downtime and frustration.

While issues like contamination or electrical faults can cause failure, persistent, unaddressed leakage is a major culprit. It forces the pump to overwork, leading to overheating and premature wear of critical components.

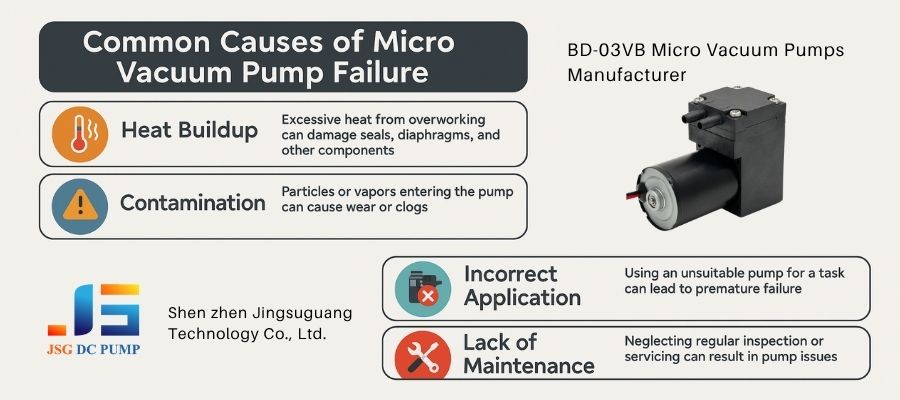

Common Causes of Micro Vacuum Pump Failure

Micro vacuum pumps are designed for reliability, but they are not immune to failure. Often, the root cause isn’t a sudden defect but rather a gradual decline exacerbated by operating conditions. I’ve seen pumps in environments that should have been clean fail surprisingly fast. One instance involved a micro pump integrated into a lab instrument used for precise liquid handling. The pump started losing its ability to generate consistent suction. It turned out that tiny particles from the processed samples were being drawn past a seal that had worn prematurely.

Leak-Induced Overheating and Wear⁴

This is a big one. When a system has leaks, the micro pump has to run longer and harder to try and compensate. This constant overexertion generates excess heat. Heat is an enemy to many pump components, especially seals, diaphragms, and valves in micro diaphragm pumps. They can degrade, become brittle, or lose their sealing ability, leading to even worse performance and eventual failure.

Contamination

If the system is not properly filtered or if leaks allow contaminants to enter, these particles can cause abrasive wear or clog small internal passages within the pump. This is particularly true for pumps handling gases with particulates or reactive vapors.

Incorrect Application or Sizing

Using a pump in an application it’s not designed for (e.g., wrong gas type, excessive pressure differential) or using an undersized pump will stress it unnecessarily, shortening its life.

Lack of Maintenance⁵

Like any mechanical device, micro vacuum pumps benefit from periodic checks. Ignoring recommended maintenance, like cleaning or replacing filters and seals (if applicable), can lead to predictable failures.

That lab instrument failure was a clear example: the premature seal wear was likely accelerated by a small, undetected leak, making the pump work harder and hotter. This allowed contamination in, which then caused the final failure. It’s often a chain reaction.

How Can I Improve My Vacuum Pump Performance?

Want to maximize the output and lifespan of your micro vacuum pump? Sub-optimal performance means wasted energy, time, and potentially compromised results.

Improve micro pump performance by diligently checking for and repairing leaks, ensuring clean filters, using short and appropriately sized tubing, and selecting low-outgassing materials. Regular maintenance is key.

Improving Micro Vacuum Pump Performance

Getting the best performance from your micro vacuum pump isn’t just about buying a quality unit; it’s about optimizing the entire system it operates within and maintaining it correctly. I once consulted for a company making miniature electronic sensors. They were struggling with inconsistent vacuum levels during a critical encapsulation process. This inconsistency led to a higher-than-acceptable reject rate for their sensors.

Regular Leak Checks and Sealing

This is fundamental. Even tiny leaks, as we’ve discussed, can drastically reduce performance. Implement a schedule for checking all connections, seals, and potential leak points. Use appropriate sealants or replace worn O-rings and gaskets.

Optimizing Tubing and Connections

Keep tubing runs as short and as wide in diameter as practically possible to maximize conductance. Minimize the number of bends and fittings, as each one restricts flow. Ensure all connections are tight and well-made.

Material Selection for Low Outgassing

If you’re designing the system, choose materials for chambers and pipework that have low outgassing characteristics, especially if you need to achieve high vacuum levels. Materials like stainless steel are generally better than many plastics in this regard.

Scheduled Maintenance Routines

Follow the manufacturer’s recommendations for your specific micro pump. This might include checking or replacing diaphragms, valves, or seals after a certain number of operating hours. Keep inlet filters clean or replace them regularly.

With the sensor company, we didn’t find one major leak. Instead, there were several tiny ones at various threaded fittings, and their vacuum lines were longer than necessary, coiling around the equipment. By systematically applying a quality thread sealant to each connection, replacing a couple of suspect O-rings, and rerouting the tubing to be shorter and more direct, we significantly improved their vacuum consistency and reduced their process cycle time. It was a powerful reminder that a series of small improvements can lead to a big overall gain in performance.

How Do You Detect Vacuum Leakage in Micro Pump Systems?

Suspect a sneaky leak is sabotaging your micro vacuum system, but can’t find it? Elusive leaks are frustrating and can halt important work.

Detecting leaks in micro systems often involves pressure decay tests (rate-of-rise). For smaller leaks, ultrasonic detectors or tracer gases like helium with a mass spectrometer are more effective methods.

Techniques for Detecting Micro Vacuum Leaks

Finding leaks in any vacuum system can be challenging, but in micro pump systems, where volumes are small and leaks can be minuscule, it requires specific approaches. I was once helping a research lab that used a micro pump for delicate sample manipulation under a high-powered microscope. They knew they leaked because the vacuum wouldn’t hold steady for their experiments, but the usual “soap bubble” trick was useless because the leak was so small and the components so intricate.

Pressure Decay (Rate-of-Rise) Testing

This is a common first step. Isolate the vacuum system (or sections of it) and pump it down. Then, close off the pump and monitor the pressure over time with an accurate gauge. A rising pressure indicates a leak. The rate of rise can give you an idea of the leak’s severity.

Ultrasonic Leak Detection⁷

For leaks that are too small for audible hissing but still significant, an ultrasonic leak detector can be very effective. These devices detect the high-frequency sound produced by gas turbulence as it enters the vacuum system through a leak. You scan the system components with the detector’s probe.

Tracer Gas Methods⁸

For very small or hard-to-find leaks, especially in critical applications, tracer gas detection is the gold standard. The system is typically evacuated, and then a tracer gas (often helium due to its small atomic size and inertness) is sprayed around suspected leak points on the outside. A mass spectrometer connected to the vacuum system (a “leak detector”) will detect any helium atoms that enter, pinpointing the leak.

Bubble Test (Limited Use for Micro Leaks)

For larger leaks, applying a soap solution to suspect joints and looking for bubbles can work, but it’s often not sensitive enough for the small leaks that plague micro systems.

In the research lab, we brought in an ultrasonic leak detector. It was quite amazing; we carefully scanned all the tubing connections and the custom-made manifold. The detector started chirping loudly when we passed over a specific joint on the manifold. Upon closer inspection under magnification, we found a hairline crack that was almost invisible to the naked eye. Without that specialized tool, they could have spent days fruitlessly searching or replacing components.

Why Is Vacuum Stability Critical in OEM Applications?

Are your OEM products experiencing field failures due to unstable vacuum performance? Inconsistency can severely damage your brand’s reputation and bottom line.

Vacuum stability is paramount in OEM applications because consistent, reliable vacuum directly impacts the end product’s precision, functionality, and lifespan. Unstable vacuum leads to unpredictable operation and costly failures.

Importance of Vacuum Stability in OEM Equipment

For Original Equipment Manufacturers (OEMs) who integrate micro vacuum pumps into their products, like medical devices, analytical instruments, or portable diagnostic tools, vacuum stability isn’t just a performance metric; it’s a cornerstone of product reliability and customer satisfaction. I’ve worked with an OEM that manufactured portable environmental monitoring devices. Their device used a micro vacuum pump for drawing air samples through sensors. In their early production runs, they experienced a higher-than-expected rate of units showing inconsistent readings in the field.

Ensuring Product Consistency and Quality

Many OEM applications rely on precise vacuum levels for tasks like fluid aspiration, sample handling, or component actuation. If the vacuum generated by the integrated micro pump is unstable (e.g., due to an intermittent leak or degrading pump performance), the end product will not perform its function reliably or accurately. This directly impacts the perceived quality.

Minimizing Field Failures and Warranty Claims

An unstable vacuum system is often a ticking time bomb. A small, developing leak can cause a pump to overwork, leading to premature failure of the pump, or the entire OEM device might cease to function correctly. This results in field failures, costly warranty claims, and product recalls, all of which significantly impact profitability.

Impact on Sensitive Processes

In applications like medical diagnostics or scientific instrumentation, even slight variations in vacuum can alter test results or compromise sensitive processes. Stability ensures that the device performs as specified, every time.

Brand Reputation and Customer Trust

Ultimately, if an OEM product is unreliable due to vacuum issues, it damages the manufacturer’s brand reputation. Customers, especially in critical fields like healthcare or research, need to trust that the equipment will work flawlessly.

For that environmental monitoring OEM, the root cause of many field issues was traced back to vacuum inconsistencies. Some were due to tiny leaks developing at connection points after assembly and shipping, while others were related to variations in pump performance over time. They had to implement much stricter quality assurance protocols for vacuum system integrity in their assembly line and even redesign some of the internal pneumatic connections to be more robust and less prone to leakage. It was a stark reminder that for an OEM, the reliability of every component, including the micro vacuum pump and its associated system, is critical to the success of the final product.

Conclusion

Vacuum leakage is a hidden threat to micro pump performance. It lowers efficiency, increases failure risk, and damages product integrity.

🔧 By investing in system design, preventive maintenance, and quality leak detection, you can protect your process and your product reputation.

At JSG DC PUMP, we specialize in engineering low-leakage micro diaphragm pumps for OEMs around the world. Our pumps are compact, oil-free, and built for vacuum stability.

📩 Need help evaluating your micro pump system or selecting the right model?

Contact our technical team (admin@dc-pump.com) for expert guidance and application-based recommendations.
