How to Choose the Right Micro Pump for Your Application: Industrial, Medical, or Smart Home?

How Do I Match Pump Parameters with My Application?

Are you finding it challenging to translate your product’s operational needs into a clear list of pump specifications? This is a frequent discussion point we have with designers, and getting it right prevents costly redesigns.

You must meticulously define your system’s required flow rate, operating pressure (including backpressure), fluid characteristics, duty cycle, physical size constraints, available power, and environmental conditions. Then, cross-reference these with pump datasheets.

When a product designer like Jacky approaches us at JSG DC PUMP, our application engineers always start by asking for a detailed breakdown of their system’s needs. We can’t recommend the right pump without this. It’s like a doctor needing symptoms before prescribing medicine.

Essential Pump Parameters to Define:

Here’s what we typically ask for to guide selection from our JSG range or to discuss a custom build:

• Flow Rate (Q):
  • Exactly how much fluid (liquid or gas) needs to be moved, and over what time (e.g., ml/min, L/hr)?
  • Is a very stable, consistent flow rate critical, or is some variability acceptable? For example, precise dosing versus general fluid transfer.
• Pressure (P) / Back Pressure:
  • What’s the maximum pressure the pump must generate or overcome in your system (e.g., kPa, psi, bar)?
  • We always remind clients to factor in all system resistances: tubing length and diameter, filters, valves, nozzles, and even fluid viscosity.
• Fluid Compatibility:
  • What specific fluid will the pump handle? Is it water, air, an aggressive solvent, a delicate biological fluid, or a viscous oil?
  • At JSG, we offer a variety of wetted materials (the parts of the pump contacting the fluid) because material choice is crucial to prevent corrosion, leaching, contamination, or premature pump failure.
• Duty Cycle:
  • Will the pump run non-stop (24/7), or will it operate intermittently (e.g., a few seconds on, minutes off)?
  • This directly influences our recommendations for motor type and overall pump construction for longevity and thermal management.
• Size and Weight Constraints:
  • What are the physical envelope dimensions and maximum weight the pump can have in your device? This is vital for portable or densely packed designs.
• Power Supply and Consumption:
  • What voltage and current are available (e.g., 3V, 5V, 12V, 24V DC)?
  • What’s the power budget? For battery-powered devices, we have a specific low-power JSG pump series.
• Operating Environment:
  • What are the ambient temperature extremes? Will there be exposure to moisture, dust, significant vibration, or any hazardous conditions?
• Noise Level:
  • What is the maximum acceptable noise level in decibels (dB)? This is especially critical for medical and smart home products, and we have a specialized quiet series at JSG.

Once these are clearly defined, we can dive into our JSG pump datasheets and performance curves (P-Q curves) with you to find the optimal match.

What Role Does Customization Play in Multi-Industry Use?

Do you find that standard catalog pumps don’t quite hit the mark for your specific or innovative application? Customization often seems like a big step, but from our experience at JSG DC PUMP factory, it’s frequently the path to peak performance.

Customization enables the adaptation of standard pump platforms to meet unique client requirements. This can involve changes to wetted materials, port types and orientations, mounting features, motor controls, or fine-tuning performance for a very specific operational point.

A significant portion of our work at JSG DC PUMP factory involves collaborating with clients on customized solutions. While our standard pump offerings are extensive, we understand that “one size fits all” doesn’t apply to many cutting-edge or specialized applications. Jacky, with his experience in product design, would likely appreciate the flexibility this offers.

When Customization is Necessary:

You might consider customization if:

• Unique Fluid Challenges: If your application involves a particularly aggressive chemical, a very sensitive biological sample, or a fluid requiring specific non-standard wetted materials.
• Optimized Performance Point: You need the pump to operate with maximum efficiency or specific characteristics (e.g., ultra-low pulsation) at a flow/pressure point not perfectly covered by a standard model’s performance curve.
• Challenging Integration: Standard pump form factors or port configurations don’t fit your device’s compact or unique mechanical design.
• Specific Control Needs: You require integrated control electronics, specific electrical connectors, encoder feedback for precise motor control, or tailored PWM response.
• Extreme Operating Conditions: The application involves temperatures, pressures, or environmental factors beyond what standard pumps are typically rated for.

Common Customization Options:

• Material Science: We can select from a wide range of polymers, elastomers, and metals for pump heads, diaphragms, and valves to ensure fluid compatibility and durability.
• Mechanical Interface: Modifying port types (barbed, Luer, threaded, manifold mount), their orientation, or designing custom mounting brackets.
• Motor & Electronics: We can offer different motor windings for specific voltages/speeds, incorporate encoders, or develop custom driver boards for advanced control.
• Performance Tuning: Fine-tuning internal pump geometry or motor parameters to optimize for a specific flow rate, pressure target, or minimize noise.

I recall a project where we worked with a medical device company that needed a pump with extremely stable, low-flow dosing. We customized one of our JSG peristaltic pump heads with a specialized roller configuration and coupled it with a precision stepper motor and custom control algorithm. The result was a solution that met their demanding specifications perfectly. So, always feel free to discuss your unique needs with a knowledgeable pump manufacturer.

What Certification or Compliance Should I Consider?

Are you navigating the complex landscape of certifications like CE, FDA, RoHS, ISO 9001, or ISO 13485? As a micro pump manufacturer, JSG DC PUMP factory deals with these daily, and we know overlooking them can halt your market entry.

The necessary certifications are dictated by your pump’s application industry and target sales regions. For instance, industrial often needs CE/RoHS, medical applications necessitate ISO 13485 adherence and potentially FDA clearance, while smart home devices usually require CE/FCC/UL. Always verify for your specific product.

At JSG DC PUMP factory, ensuring our pumps meet relevant certifications is a core part of our design and quality management process. It’s not just about compliance; it’s about ensuring safety, quality, and facilitating our clients’ access to global markets. When you choose a JSG pump, you’re often getting a component that already has many of these hurdles cleared.

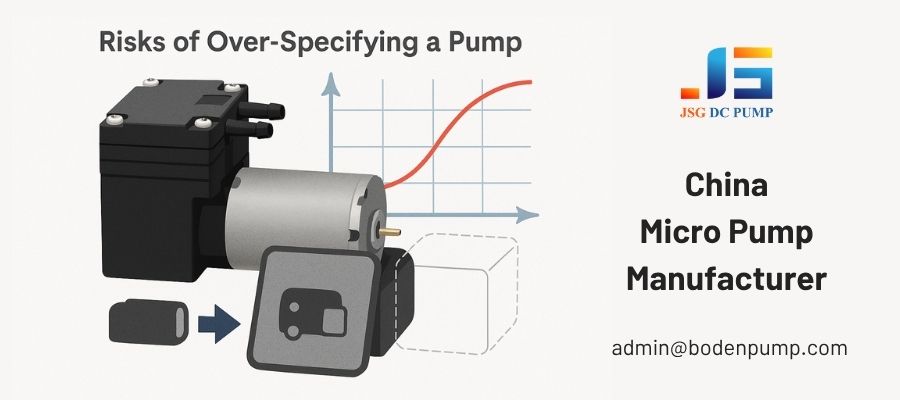

Are There Risks of Over-Specifying a Pump?

Do you lean towards selecting a pump that’s much more powerful than your application strictly needs, thinking it’s a safer bet? From our engineering perspective at JSG DC PUMP factory, this can introduce unnecessary complications and costs.

Yes, significantly over-specifying a micro pump often results in higher unit cost, a larger physical footprint, increased energy consumption, more operational noise, and potentially even a shorter operational life if the pump is consistently run far from its designed optimal efficiency point.

It’s a common instinct to build in a large safety margin. However, our application engineers at JSG DC PUMP factory often advise clients that while a sensible margin is good engineering practice, drastically over-specifying a pump can be counterproductive. We aim to help you find the “sweet spot.”

Why Over-Specifying is Problematic:

• Unnecessary Cost: Pumps with higher performance capabilities (more flow, higher pressure) inherently use more robust components or larger motors, which increases their manufacturing cost. If you don’t utilize that extra capacity, you’re paying a premium for nothing.
• Space & Weight Penalties: Generally, a more powerful pump is physically larger and heavier. In today’s increasingly compact product designs, like those Jacky might work on, this can be a major integration headache. At JSG, we strive for power density, but physics has limits.
• Excessive Power Draw: A pump rated for significantly higher performance will consume more electrical power. For battery-operated devices, this can drastically shorten runtime. Even for mains-powered devices, energy efficiency is a growing concern.
• More Noise & Vibration: Larger motors and higher flow rates can lead to increased operational noise and vibration, which is often undesirable, especially in medical or smart home applications. We work hard at JSG to minimize NVH (Noise, Vibration, Harshness), but starting with an appropriately sized pump is key.
• Operating Off-Peak: Pumps are designed to operate most efficiently within a certain range of their performance curve (Best Efficiency Point – BEP). Running a pump far below its BEP can sometimes lead to reduced efficiency, increased wear, or instability in flow.
• System Complexity: To use an oversized pump, you might need to add bypass loops, throttling valves, or more complex control schemes, adding cost and potential points of failure to your system.

We once had a client insist on a JSG pump model with nearly double their required pressure for a dispensing application. The result was a noisier system, which used more power and had to implement a complicated pressure relief system. We eventually helped them select a more suitably sized pump from our range, which improved their overall product. The goal is optimal sizing, not just oversizing.

How Do I Get Started with the Right Pump?

Feeling equipped with knowledge, but wondering about the concrete first steps to select your ideal micro pump? A structured approach, like the one we advocate at JSG DC PUMP factory, ensures you cover all bases.

Begin by meticulously documenting all your application’s functional and technical requirements. Next, research potential pump suppliers (we hope JSG is on your list!), consult with their application engineering teams, and then plan for thorough prototyping and testing within your actual system.

Okay, let’s translate all this information into a practical action plan. As an engineer at JSG DC PUMP factory, this is the process I typically guide our prospective and existing clients through to ensure they find the perfect pump solution, whether it’s a standard model or a custom development.

A Step-by-Step Guide:

1. Document Every Requirement (As Discussed Earlier):

   • This is your project blueprint. Flow rate, pressure (min/max, backpressure), fluid details (name, viscosity, temperature, chemical compatibility needs), duty cycle, target lifespan, size/weight limits, power supply (voltage, max current), max noise (dB), ambient operating conditions, and critical certifications. The more detail you provide to a manufacturer like JSG, the better we can assist.

2. Initial Research – Pump Technologies & Suppliers:

   • Based on your core needs (e.g., high precision might point to certain JSG diaphragm pumps, aggressive fluids to others with specific materials), identify suitable pump technologies.
   • Explore manufacturers. At JSG DC PUMP, we have an extensive online catalog with detailed datasheets for our various series. Look for companies with good technical support and experience in your industry.

3. Deep Dive into Datasheets & Performance Curves:

   • Focus on the P-Q (Pressure-Flow) performance curves. Will the pump deliver your required flow at your system’s actual backpressure?
   • Verify all other specs: wetted materials, dimensions, motor voltage, current draw, noise ratings.

4. Create a Shortlist:

   • Identify 2-3 pump models, perhaps from different series or even different trusted manufacturers, that look like strong contenders.

5. Engage with Application Engineers (Crucial Step!):

   • This is where JSG shines. Contact us! Our application engineers live and breathe pumps. Share your detailed requirements from Step 1. We can validate your choices, suggest alternatives you might not have considered, or discuss potential customizations. This collaborative step saves a lot of time and prevents missteps.

6. Procure Samples for Evaluation:

   • Once you and the application engineer have narrowed it down, get samples. Theory is one thing; real-world performance is another.

7. Rigorous Prototyping & Testing:

   • Integrate the sample pumps into your device or a test rig that mimics your application.
   • Measure everything: actual flow, pressure, current draw, noise. Run it through typical and extreme operating cycles. Does it meet all your criteria?

8. Refine and Finalize:

   • Based on test results, you might need to tweak your system, select a different pump, or discuss minor modifications with the manufacturer. The goal is a perfect fit.

Following these steps, especially the consultation with experienced pump engineers, is the most reliable way to select the right micro pump for your product. We at JSG are always ready to assist.

Conclusion

Choosing the right micro pump means matching its specifications precisely to your industry’s needs. Industrial, medical, and smart home applications each require distinct features to ensure optimal performance and reliability

At JSG DC PUMP Factory, we specialize in helping you find the perfect fit—reach out to our expert team anytime at admin@dc-pump.com to start your pump selection journey.
