Which Diaphragm Liquid Pump Features Matter Most in Medical Waste Liquid Applications?

Handling medical waste liquid presents unique challenges; are you confident your pumps are up to the task? Failure here isn’t just an inconvenience; it’s a contamination risk. Ensuring the right pump features are prioritized is critical.

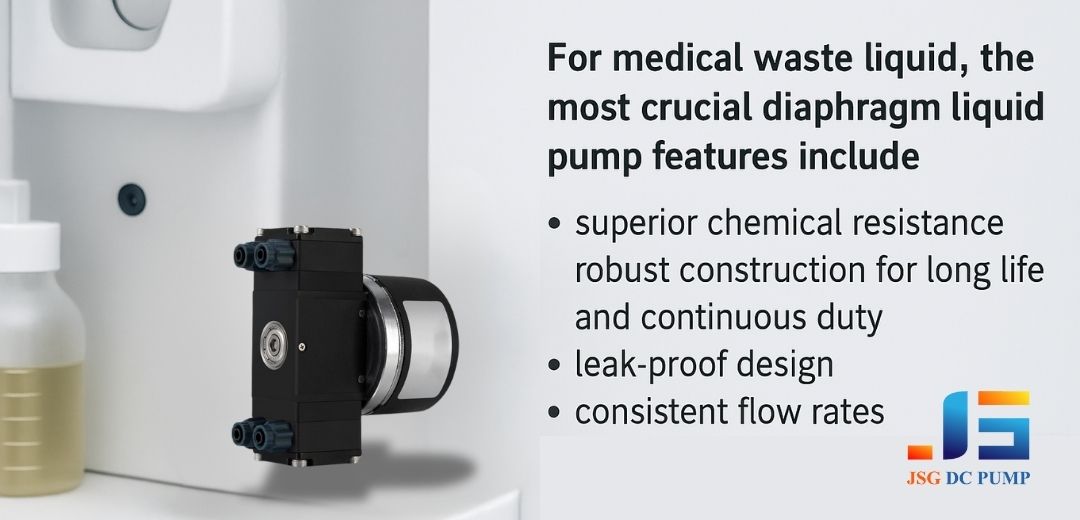

For medical waste liquid, the most crucial diaphragm liquid pump features include superior chemical resistance, robust construction for long life and continuous duty, leak-proof design, and consistent flow rates to ensure safe, reliable disposal.

Diaphragm Pump for Medical Waste

When dealing with potentially hazardous biological or chemical waste, you can’t afford to cut corners. The pump is a frontline component in protecting healthcare workers and the environment. As someone deeply involved in precision manufacturing with MoldAll, I understand the importance of every component functioning flawlessly, especially when safety is paramount. Your insight that continuous work, long life, and chemical resistance are core advantages of diaphragm pumps is spot on for this demanding field, and it’s also why they’re favored in applications like industrial inkjet printing, where reliability is key.

What Are the Different Types of Mini Diaphragm Pumps?

Wondering if all mini diaphragm pumps are created equal for your specific needs? While they share a common working principle, variations exist to suit different tasks. Understanding these types helps in selecting the most effective solution.

Mini diaphragm pumps are broadly categorized by the fluid they handle (liquid or gas) and their drive mechanism (e.g., motor-driven, solenoid-driven), each offering distinct flow, pressure, and control characteristics suitable for diverse applications.

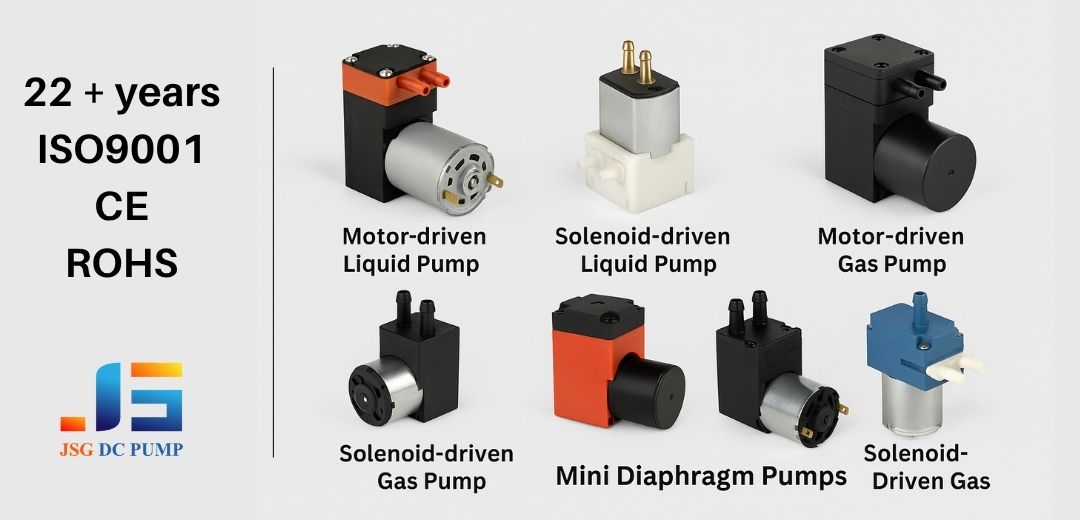

Types of Mini Diaphragm Pumps

Let’s dive deeper into the common types of mini diaphragm pumps. While our main focus here is on liquid pumps¹ for medical waste, it’s useful to understand the landscape.
The primary distinction is between mini diaphragm liquid pumps² and mini diaphragm gas pumps³.

• Liquid Pumps: These are designed to move incompressible fluids. They typically have valve systems optimized for liquids, ensuring good priming and preventing backflow. Their internal flow paths are designed to handle the viscosity and surface tension of liquids. These are our focuses for medical waste.
• Gas Pumps: These are optimized for compressible fluids (gases). They can be designed for vacuum applications (pulling gas) or pressure applications (pushing gas). Their valve design and diaphragm stroke might differ from liquid pumps to maximize gas flow efficiency.

Within these categories, especially for liquid pumps, you’ll find variations based on:

• Drive Mechanism:
  • Motor-driven⁴: Most common for continuous duty applications, using an electric motor (brushed or brushless DC) to actuate the diaphragm via an eccentric cam. Brushless motors offer longer life, essential for medical devices requiring reliability.
  • Solenoid-driven⁵: Used for more precise dosing or intermittent applications where rapid on/off cycling is needed.
• Number of Heads/Diaphragms: As we’ll discuss next, pumps can have single or multiple heads (e.g., double diaphragm) to alter flow characteristics and reduce pulsation.
• Wetted Materials⁶: The materials used for the pump head, diaphragm, and valves are crucial and vary widely based on the chemical compatibility required. For medical waste, this is a top consideration.

My work with molds at MoldAll constantly reminds me that even slight variations in design or material can drastically change performance. The same is true for these intricate mini pumps.

What Is the Difference Between a Single Diaphragm Pump and a Double Diaphragm Pump?

Puzzled by terms like single and double diaphragm pumps and how they impact performance? The number of diaphragms directly influences the pump’s output characteristics. Understanding this difference is key to matching a pump to your application’s flow and pulsation needs.

A single diaphragm pump uses one diaphragm and set of valves, often resulting in more pulsed flow. A double diaphragm pump uses two diaphragms, typically working alternately, to provide a smoother, more continuous flow and often higher flow rates.

Single vs. Double Diaphragm Pump

The distinction between single and double (or multiple) head diaphragm pumps is quite significant, especially when a consistent flow is important, as it can be in medical systems.

• Single Diaphragm Pump:

  • Mechanism: Features one diaphragm connected to a drive (e.g., motor with an eccentric). As the diaphragm moves up and down (or back and forth), it draws fluid in through an inlet check valve and expels it through an outlet check valve.
  • Flow Characteristics: The flow is inherently pulsatile because there’s a distinct suction stroke and a distinct discharge stroke for each cycle of the single diaphragm.
  • Advantages: Simpler construction, generally more compact, and can be more cost-effective for applications where flow pulsation is not a major concern.
  • Considerations for Medical Waste: For basic waste transfer where exact flow evenness isn’t critical, a single head might suffice.

• Double Diaphragm Pump (or Dual Head):

  • Mechanism: Employs two diaphragms, often driven by the same motor but out of phase (e.g., one is on its suction stroke while the other is on its discharge stroke). Each diaphragm has its own set of inlet and outlet check valves.
  • Flow Characteristics: The alternating action of the two diaphragms significantly smooths out the flow. While not perfectly pulseless, the pulsations are greatly reduced compared to a single diaphragm pump. This can lead to a more continuous and higher average flow rate.
  • Advantages: Smoother flow, potentially higher overall flow rate or pressure capabilities for a given motor size, increased reliability (if one diaphragm/valve set has an issue, the other may still provide some flow).
  • Considerations for Medical Waste: For applications requiring a more consistent transfer rate or where downstream components are sensitive to pulsation, a double diaphragm pump is often preferred. This is especially true in automated medical devices where consistent fluid movement is essential for timed processes. My experience in designing systems at MoldAll taught me that smoother operation often leads to longer life for the entire assembly.

The choice depends on the specific requirements for flow smoothness and volume in the medical waste handling system.

What Are the Pumps Used in Medical Devices?

Curious about the range of pumps that keep critical medical devices running smoothly? Medical technology relies on various specialized pumps, each chosen for its unique ability to handle sensitive fluids, ensure precision, and maintain sterility. Diaphragm pumps play a vital part.

Medical devices utilize various pumps, including peristaltic, syringe, centrifugal, and diaphragm pumps (both liquid and gas), selected for precision, sterility, material compatibility, and reliability in applications like drug delivery, diagnostics, and waste management.

Pumps in Medical Technology

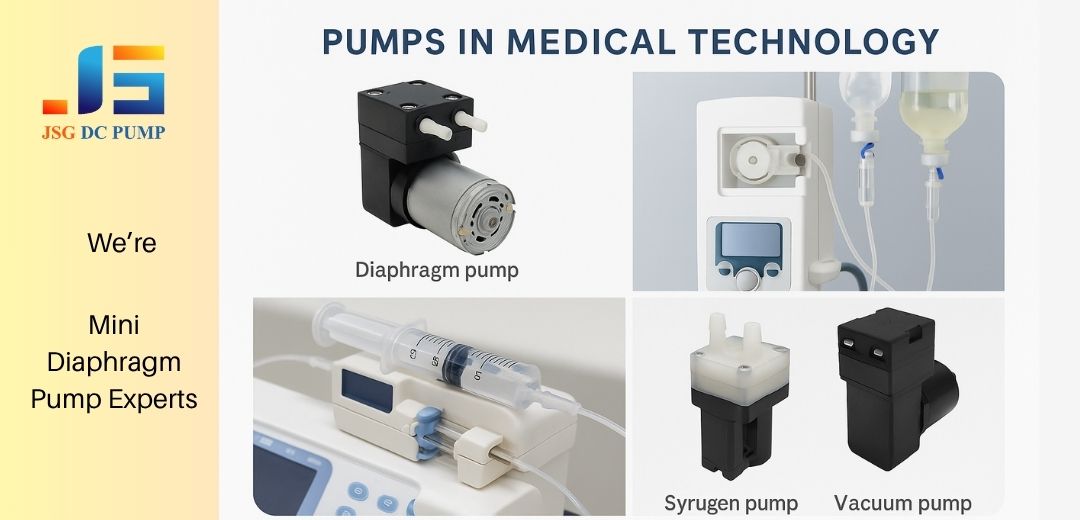

The medical field employs a fascinating array of pump technologies, each tailored to specific tasks. While our focus is on diaphragm liquid pumps for waste, it’s useful to see where they fit in.

• Peristaltic Pumps: Widely used for precise dosing and sterile fluid transfer (e.g., IV drips, dialysis). The fluid only contacts the tubing, ensuring sterility and easy replacement.
• Syringe Pumps: Offer extremely high precision for delivering very small, controlled volumes of fluids (e.g., drug infusion, microfluidics in diagnostics).
• Centrifugal Pumps: Used for higher flow applications where precise volumetric control is less critical but continuous flow is needed (e.g., heart-lung machines, blood circulation).
• Diaphragm Pumps (Liquid and Gas): This is where our interest lies.
  • Liquid Diaphragm Pumps: As we’re discussing, these are crucial for medical waste liquid handling due to their chemical resistance, ability to handle some particulates, and robust design. They are also found in diagnostic equipment for reagent transfer and sample handling. Your insight about their core application in medical waste liquid is correct.
  • Gas Diaphragm Pumps: Used for vacuum (e.g., suction devices, wound drainage) or pressure (e.g., insufflators, nebulizers, air beds). Their oil-free operation is a major advantage.

The choice of pump for any medical device, as Jacky would appreciate from his product design background, hinges on factors like:

• Fluid characteristics: Viscosity, corrosiveness, presence of particulates.
• Performance needs: Flow rate, pressure, precision, continuous or intermittent duty.
• Safety and sterility: Biocompatibility of wetted materials, prevention of contamination.
• Reliability and lifespan: Critical for patient safety and device uptime. Diaphragm pumps score well here for applications like continuous waste removal.

Diaphragm liquid pumps have carved out a niche in medical waste because they offer a good balance of robust performance, chemical compatibility, and cost-effectiveness for this less glamorous but essential task.

What Is the Function of the Diaphragm Liquid Pump?

What exactly does a diaphragm liquid pump do, and why is it suited for tasks like medical waste handling? Its core function is straightforward, but its design offers specific advantages for moving challenging fluids reliably.

The function of a diaphragm liquid pump is to transfer liquids by the reciprocating motion of a flexible diaphragm, which alternately draws fluid into a chamber and expels it, offering a sealless design ideal for leak-free operation and chemical compatibility.

Function of the Diaphragm Liquid Pump

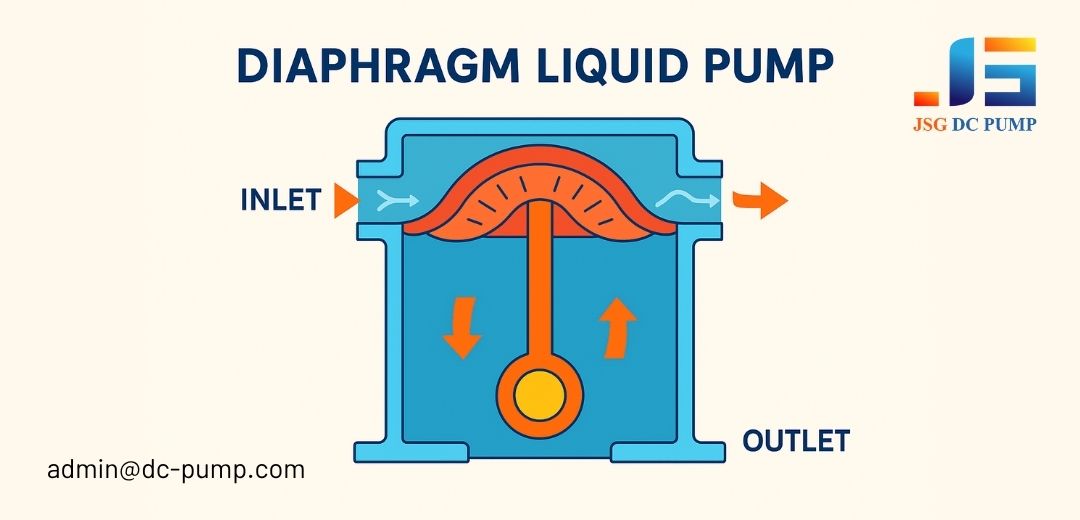

At its heart, the function of a diaphragm liquid pump is to move liquid from one point to another using a simple yet effective mechanical principle. Let’s break down how this applies to tasks like managing medical waste.

1. Fluid Transfer: The primary function is to pump liquid. In medical waste applications, this means moving potentially hazardous fluids from a collection point (e.g., a diagnostic machine’s output, a collection bag) to a disposal container or treatment system.
2. Positive Displacement: Diaphragm pumps are a type of positive displacement pump. This means they trap a fixed volume of fluid and then force (displace) that fluid into the discharge pipe. This generally results in a flow rate that is less dependent on the system’s backpressure compared to non-positive displacement pumps (like centrifugal pumps), up to the pump’s design limit.
3. Isolation of Fluid: A key functional advantage, especially for medical waste, is that the diaphragm acts as a barrier between the drive mechanism (motor, bearings) and the pumped liquid. This sealless design means:
   • Leak Prevention: Reduces the risk of hazardous waste liquid leaking out.
   • No Contamination of Fluid: The drive lubricants cannot contaminate the pumped fluid (though less critical for waste, it’s a core feature).
4. Handling Various Fluids: Diaphragm pumps can often handle liquids with some suspended solids or higher viscosity, which can be present in medical waste streams. The right choice of diaphragm and valve materials ensures chemical compatibility with diverse waste compositions. You rightly pointed out that chemical resistance is a core advantage.
5. Self-Priming Capability: Many diaphragm liquid pumps can self-prime, meaning they can lift liquid from a level below the pump and clear air from the suction line, which is useful in many medical waste collection setups.

In essence, its function is to provide a robust, reliable, and contained method for moving liquids that might be difficult or dangerous to handle with other pump types. Its suitability for continuous work and long life makes it ideal for automated waste systems in medical facilities.

What Is the Purpose of the Diaphragm and How Does It Work?

The diaphragm is the heart of the pump, but how does this flexible membrane make liquid move? Understanding its purpose and mechanics reveals why this pump type is so effective for certain applications.

The purpose of the diaphragm is to act as a reciprocating, flexible barrier that creates alternating suction and discharge phases within the pump chamber. It works by changing the chamber volume, drawing fluid in through an inlet valve, and forcing it out through an outlet valve.

How a Pump Diaphragm Works

The diaphragm itself is the star player in this type of pump. Its simple elegance belies its critical function. Let’s break down its purpose and operation:

Purpose of the Diaphragm:

1. To Create VolumeChange 7⁷: The primary purpose is to cyclically change the volume of a chamber within the pump head.
2. To Act as a Seal: It forms a hermetiseall⁸, separating the pumped liquid from the pump’s drive mechanism and the external environment. This is vital for preventing leaks of medical waste and protecting the pump’s mechanical parts.
3. To Impart Energy: It transfers mechanical energy from the motor (or solenoid) to the fluid, causing it to move.

How It Works (The Pumping Cycle):

Imagine a small chamber with an inlet and an outlet, each controlled by a one-way check valve. The diaphragm forms one wall of this chamber.

1. Suction Stroke (Intake):
   • The diaphragm is pulled away from the pump chamber (e.g., by an eccentric cam connected to a motor).
   • This movement increases the volume of the pump chamber.
   • The increase in volume creates a partial vacuum (lower pressure) inside the chamber.
   • The higher atmospheric (or upstream) pressure acting on the fluid in the suction line pushes the fluid through the inlet check valve and into the pump chamber. The outlet check valve remains closed because the pressure in the chamber is lower than the pressure in the discharge line.
2. Discharge Stroke (Exhaust):
   • The diaphragm is then pushed back into the pump chamber.
   • This movement decreases the volume of the pump chamber.
   • The decrease in volume compresses the trapped liquid, increasing its pressure.
   • This higher pressure forces the inlet check valve to close (preventing backflow into the suction line) and forces the outlet check valve to open.
   • The liquid is then expelled from the pump chamber into the discharge line.

This cycle of suction and discharge repeats continuously as long as the pump is running. The material of the diaphragm (e.g., EPDM, FKM, PTFE) is chosen based on the chemical compatibility needed for the liquid being pumped – a crucial factor for diverse medical waste streams. The reliability of this simple mechanism contributes to the long life you mentioned as a core advantage.

What Are the Disadvantages of a Diaphragm Liquid Pump?

While highly versatile, are there any downsides to using diaphragm liquid pumps? Like any technology, they have limitations. Acknowledging these helps in making an informed decision and managing expectations for your application.

Disadvantages of diaphragm liquid pumps can include a pulsatile flow (especially in single-head designs), limited pressure and flow rate capabilities compared to some other pump types, and potential wear of the diaphragm and valves over time with abrasive fluids or aggressive chemicals.

Diaphragm Pump Disadvantages

While diaphragm liquid pumps offer many advantages, especially for applications like medical waste, it’s important to be aware of their potential drawbacks:

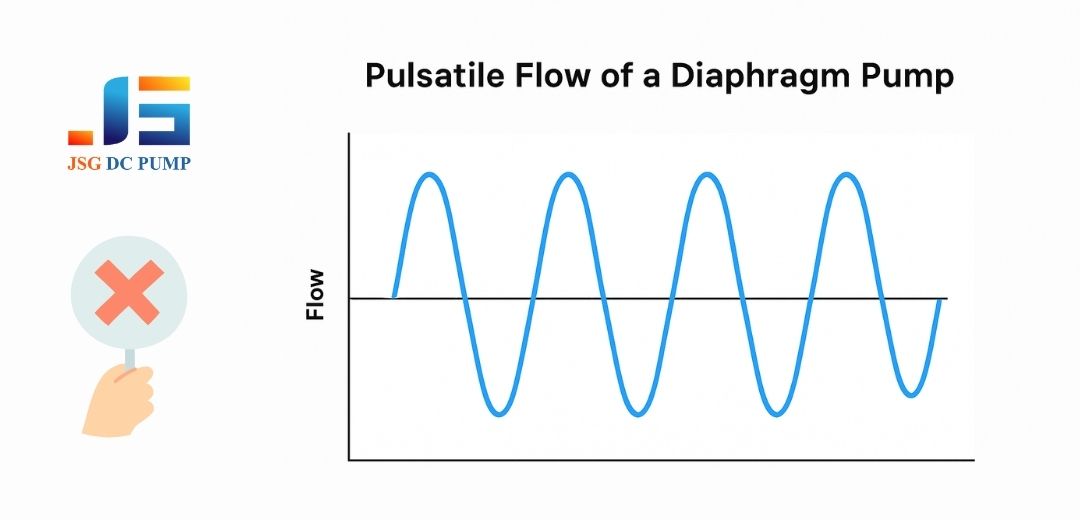

1. Pulsatile Flow:

   • As discussed, especially with single-diaphragm pumps¹⁰, the flow is not perfectly smooth. It comes in pulses corresponding to the discharge strokes. This can be an issue for applications requiring very steady flow, though for many medical waste transfer tasks, it’s acceptable. Double diaphragm pumps or pulsation dampeners¹¹ can mitigate this, but add complexity and cost.

2. Limited Pressure and Flow Rates:

   • Compared to some other pump technologies (like centrifugal or piston pumps of similar size), diaphragm pumps might have lower maximum pressure and flow rate capabilities. They are generally best for low-to-moderate flow and pressure applications.

3. Wear Components:

   • The diaphragm and the check valves are moving parts that are subject to wear over time.
   • Diaphragm Life: While robust diaphragms are designed for millions of cycles (contributing to the long life you mentioned), they will eventually fatigue or fail, especially under harsh chemical conditions or high cycle rates. Regular inspection and replacement as part of a maintenance schedule are necessary.
   • Valve Wear: Valves can wear or become clogged, especially if the fluid contains particulates. This can lead to reduced efficiency or failure to pump.

4. Sensitivity to Abrasives:

   • While they can handle some solids, highly abrasive fluids can accelerate wear on the diaphragm and valves.

5. Noise:

   • Depending on the design and motor, some diaphragm pumps can generate noticeable operational noise, which might be a consideration in quiet medical environments.

6. Not Ideal for Very High Viscosity:

   • While they can handle moderate viscosities, extremely viscous fluids can be challenging for diaphragm pumps to move efficiently.

From my perspective at MoldAll, understanding a component’s limitations is just as important as knowing its strengths. Jacky, as a product designer, would also factor in potential wear and maintenance schedules when integrating any component. For medical waste, selecting robust materials and adhering to maintenance can largely offset some of these disadvantages, ensuring the pump’s core benefits of chemical resistance and containment are realized.

How Do I Choose a Diaphragm Liquid Pump?

Facing a catalog of diaphragm liquid pumps, how do you pinpoint the perfect match for your medical waste application? A systematic approach, focusing on key performance and compatibility criteria, will guide you to the right choice.

Choose a diaphragm liquid pump by first defining the chemical nature of the waste, required flow rate and pressure, duty cycle (continuous or intermittent), and acceptable pulsation levels. Prioritize chemical resistance of wetted parts, reliability, and long life.

Choosing a Diaphragm Liquid Pump

Selecting the right diaphragm liquid pump, especially for a critical application like medical waste liquid, requires careful consideration of several factors. Here’s a practical guide:

1. Chemical Compatibility (Wetted Parts):

   • This is paramount for medical waste. Identify all potential chemicals in the waste stream (e.g., disinfectants, solvents, biological fluids).
   • Select pump head, diaphragm, and valve materials (e.g., PP, PVDF, PTFE, EPDM, FKM/Viton®) that are highly resistant to these chemicals. This directly impacts the pump’s lifespan and prevents leaks or contamination. Your insight about chemical resistance being a core advantage is key here.

2. Flow Rate and Pressure:

   • Determine the volume of waste liquid to be moved per unit of time (e.g., mL/min or L/hr).
   • Consider the system’s backpressure (e.g., from tubing length, filters, height to lift).
   • Choose a pump that can comfortably meet these requirements, ideally operating in the middle of its performance curve, not at its limits.

3. Duty Cycle and Lifespan:

   • Will the pump run continuously or intermittently? For continuous work¹² in medical waste systems, select a pump with a robust motor (brushless DC motors are excellent for long life¹³) and durable diaphragm material.
   • Check the manufacturer’s rated lifespan for the diaphragm and motor.

4. Fluid Characteristics:

   • Consider the viscosity of the waste liquid and whether it contains any particulates. Some diaphragm pumps handle solids better than others.

5. Pulsation Requirements:

   • If smooth flow is critical, consider a double-diaphragm pump or the use of a pulsation dampener. For many bulk waste transfer applications, moderate pulsation from a single-head pump might be acceptable.

6. Priming Capability:

   • If the pump needs to lift fluid from a lower level (suction lift), ensure it has good self-priming capabilities.

7. Size, Mounting, and Connections:

   • Ensure the pump fits the available space and has appropriate port connections for your tubing.

8. Maintenance and Serviceability:

   • How easy is it to replace the diaphragm or valves? Availability of spare parts is also important.

Your Insight is Key: You mentioned that core applications for diaphragm liquid pumps include medical waste liquid and inkjet printing, and that continuous work, long life, and chemical resistance are core advantages. This perfectly aligns with the selection criteria for medical waste. When choosing, prioritize these:

• Chemical Resistance: Ensures safety and longevity when handling diverse waste.
• Long Life / Continuous Work: Medical systems often run for extended periods; reliability is non-negotiable. Look for quality construction and brushless motors.

As Jacky would do when selecting components for his designs, systematically evaluating these factors against the specific demands of the medical waste application will lead to a reliable and safe pumping solution.

Conclusion

Choosing a diaphragm liquid pump with the right features – especially chemical resistance, robust design for continuous duty, and leak-proof integrity – is vital for safe and efficient medical waste liquid management.

Need help selecting the right model for your IVD or lab system? Contact us at admin@dc-pump.com for a technical recommendation.
