Which Type of Micro Pump Is Best for Cold Atomic Absorption Systems?

Struggling with inconsistent results from your cold atomic absorption system? The micro pump, though small, plays a massive role. Choosing the wrong one can compromise your entire analysis, but which type truly delivers?

For cold atomic absorption systems, precision micro liquid pumps (such as peristaltic or diaphragm types) are best suited for reagent and sample delivery, and sometimes micro gas pumps are used for carrier gas or purging, ensuring accuracy and contamination-free operation.

Micro Pumps in Analytical Systems

The accuracy of your mercury analysis hinges on many components, but the micro pumps handling tiny volumes of liquids and gases are unsung heroes. Their performance directly impacts reagent delivery, sample introduction, and system purging. As someone who’s seen the difference quality components make in manufacturing at JSG DC PUMP company, I can tell you that precision here is non-negotiable for reliable analytical results. Let’s explore why the right pump is so vital.

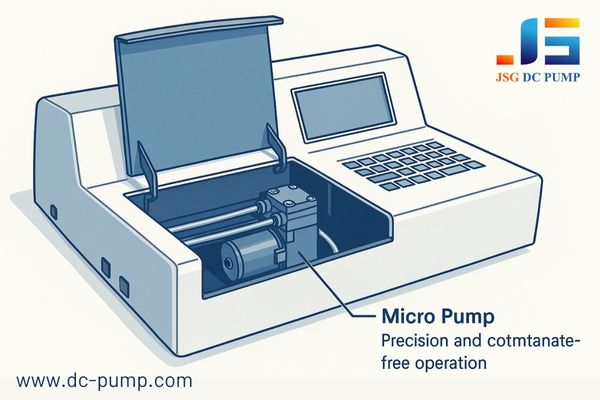

Why Do Cold Atomic Absorption Systems Need Micro Pumps?

Ever wondered why such sophisticated systems rely on tiny pumps? It’s all about control and precision at a miniature scale. These systems demand exacting fluid management that only micro pumps can deliver effectively.

Cold atomic absorption systems need micro pumps for precise, controlled delivery of small volumes of reagents, samples, and carrier gases, crucial for the chemical reactions and measurements involved in sensitive mercury detection.

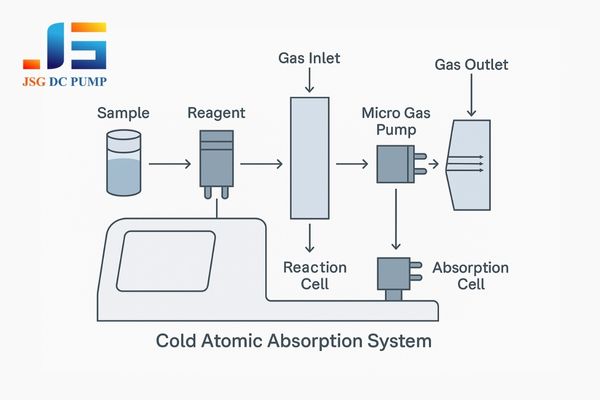

Role of Micro Pumps in AAS

Let’s dive deeper into the necessity of these miniature powerhouses. Cold Vapor Atomic Absorption Spectrometry (CVAAS) is a highly sensitive technique used, for instance, in mercury analyzers. The system converts mercury in a sample into an elemental vapor that it can detect. Micro pumps are integral to several stages here.

Key Functions Driven by Micro Pumps:

• Reagent Delivery 1: Specific reagents, like a reducing agent (e.g., stannous chloride), must be introduced in precise, consistent volumes to convert ionic mercury to elemental mercury. A micro liquid pump ensures this accuracy. Any fluctuation here can lead to incomplete reactions and, therefore, inaccurate readings.
• Sample Introduction: The sample itself, often in liquid form, needs to be precisely pumped into the reaction chamber. Micro pumps provide the low, steady flow rates required.
• Carrier Gas Flow²: An inert carrier gas (like argon or nitrogen) is used to transport the mercury vapor from the reaction/gas-liquid separation phase into the detection cell. A micro gas pump can provide the stable, pulseless flow needed for consistent signal readings.
• Purging Cleaning 3g³: After analyzing a sample, users often purge or rinse the system to prevent carry-over between samples. Micro pumps facilitate this by delivering cleaning solutions or purge gas.

I’ve seen many analytical setups in various industries, and it’s always the case that the smallest components, if not up to par, can cause the biggest headaches. For CVAAS, the micro pump’s reliability directly translates to the reliability of the final mercury concentration value.

Micro Liquid Pump: What Makes It Essential for Reagent Delivery?

Is inconsistent reagent dosing throwing off your mercury readings? The micro liquid pump is the gatekeeper of stoichiometric accuracy. Its role in delivering precise liquid volumes is fundamental to the chemistry of detection.

A micro liquid pump is essential for reagent delivery in CVAAS because it provides highly accurate, repeatable, and contamination-free transfer of small liquid volumes, critical for consistent chemical reactions and reliable analytical results.

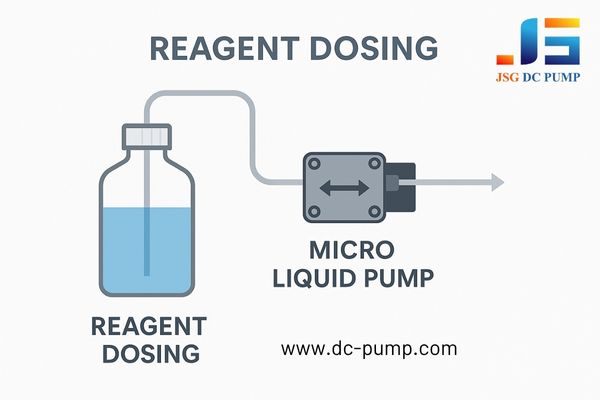

Micro Liquid Pump for Reagent Dosing

When we talk about reagent delivery in systems like mercury analyzers, we’re talking about precision at the microliter level. This is where micro liquid pumps truly shine. They design their systems to handle these minute quantities with exceptional accuracy and repeatability.

Critical Attributes for Reagent Delivery Pumps:

• Volumetric Accuracy Precision 4n⁴: The pump must dispense the exact programmed volume of reagent every single time. Even small deviations can alter the chemical reaction stoichiometry, leading to errors in the final mercury quantification. Peristaltic pumps and some diaphragm pumps are excellent choices here due to their positive displacement nature.
• ChemicCompatibility 5ty⁵: Reagents used in CVAAS can sometimes be corrosive or reactive. The wetted parts of the micro liquid pump (tubing for peristaltic, diaphragm/valves for diaphragm pumps) must be made from inert materials like PTFE, PEEK, or specific elastomers to prevent degradation of the pump and contamination of the reagent. At JSG, material selection is key for mold durability, and it’s just as critical for these tiny pumps.
• Low Pulsation: While some pulsation is inherent in many pump designs, minimizing it is important for a steady reaction rate and stable detector signal. Advanced micro pump designs incorporate features to reduce pulsation.
• Contamination-Free Operation 6: The pump must not introduce any contaminants into the reagent or sample. Peristaltic pumps are particularly good here as the fluid only contacts the tubing.

I recall a project assisting a lab that was getting erratic calibration curves for their mercury analyzer. We traced the issue back to an older, less precise reagent pump. Switching to a modern peristaltic micro pump with high-quality, chemically resistant tubing immediately tightened their calibration and improved their sample-to-sample reproducibility. It was a clear demonstration of how vital this “small” component is.

Micro Gas Pump: Why Is It Still Needed in a “Liquid-Based” System?

Thinking a system dealing mostly with liquids wouldn’t need a gas pump? In CVAAS, the journey of mercury from liquid sample to detectable vapor relies critically on controlled gas flow, making micro gas pumps indispensable.

Micro gas pumps are needed in CVAAS to provide a stable, controlled flow of carrier gas, which transports the generated mercury vapor to the detector and purges the system, ensuring signal stability and preventing sample carry-over.

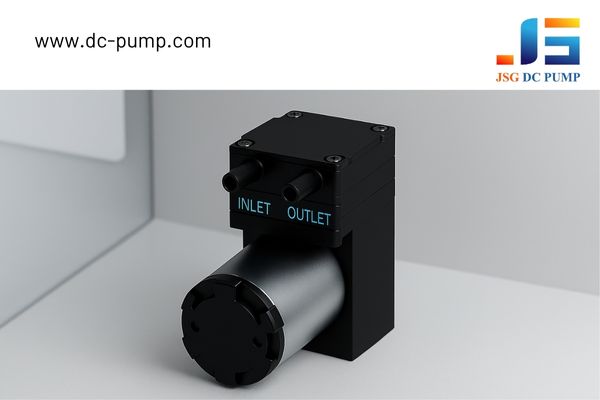

Micro Gas Pump in CVAAS

While the initial sample and reagents are liquids, the actual detection in Cold Vapor Atomic Absorption Spectrometry happens in the gas phase. The elemental mercury (Hg⁰) generated from the chemical reduction must be efficiently stripped from the liquid phase and transported to the optical cell of the spectrometer. This is where the micro gas pump plays its vital role.

Roles of the Micro Gas Pump:

1. Carrier Gas Supply (Sparging):
   • Function: A continuous, stable flow of an inert gas (commonly argon or nitrogen) is bubbled through the liquid sample after the reducing agent has been added. This process is called sparging.
   • Importance: The gas physically strips the volatile elemental mercury vapor from the solution. The efficiency of this stripping process, and thus the sensitivity of the measurement, depends on the flow rate and consistency of this gas. A good micro gas pump, often a diaphragm type for its pulseless flow and reliability, ensures this.
2. Transport to Detector:
   • Function: The same carrier gas, now laden with mercury vapor, transports the mercury to the absorption cell where the actual atomic absorption measurement takes place.
   • Importance: A steady, non-pulsating flow is crucial for a stable baseline and a smooth, measurable absorption signal. Fluctuations in gas flow can cause noise and make accurate peak measurement difficult.
3. System Purging:
   • Function: After analyzing a sample, the gas pump purges the system, clearing out any residual mercury vapor to prevent carry-over to the next one.

   • Importance: This ensures that each measurement is independent and not affected by previous samples, which is critical for low-level detection.

I remember troubleshooting a CVAAS system where the baseline was incredibly noisy. After checking the lamp and detector, we finally looked at the carrier gas supply. The old micro gas pump was producing an erratic flow. Replacing it with a new, high-quality diaphragm micro gas pump smoothed out the baseline immediately, making a huge difference to the detection limits they could achieve. It’s a reminder that even “background” components are crucial.

Can One Pump Do It All? Understanding Hybrid Use Cases

Could a single, versatile micro pump handle both liquid and gas duties in a CVAAS system? While tempting for simplicity, the distinct demands of liquid and gas handling usually mean specialized pumps are better.

Generally, one pump cannot optimally handle both precise liquid reagent delivery and stable gas flow in CVAAS due to differing requirements for pressure, flow control, chemical compatibility, and pulsation characteristics. Specialized pumps for each phase are preferred.

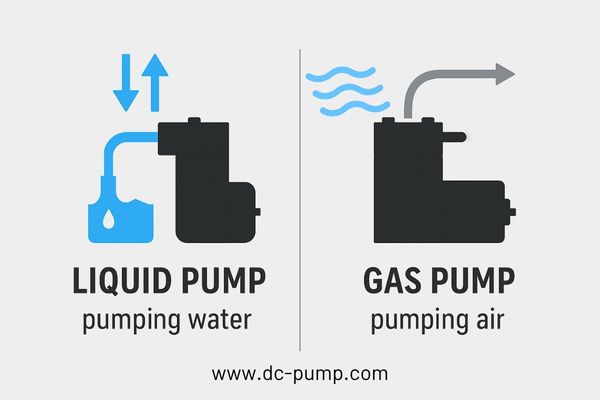

Liquid vs. Gas Pump Specialization

The idea of a single micro pump simplifying the design of a cold atomic absorption system is attractive. However, the physical properties of liquids and gases, and the specific demands of the CVAAS process make this a challenging proposition.

Why Specialization is Usually Better:

• Liquid Pumping Demands:
  • Precision Volume: Micro liquid pumps⁷ (e.g., peristaltic, precision diaphragm) are designed for accurate volumetric displacement of relatively incompressible fluids.
  • Chemical Resistance: They need wetted parts highly resistant to potentially corrosive liquid reagents.
  • Self-Priming: Often need to self-prime with liquids.
• Gas Pumping Demands:
  • Stable Flow Rate: Micro gas pumps⁸ (e.g., diaphragm) are optimized for delivering a smooth, consistent flow of compressible gases.
  • Pressure/Vacuum Capability: May need to generate slight pressure for sparging or vacuum for other system operations.
  • Oil-Free Operation: Essential to avoid contamination of the gas stream.

While some pumps might be marketed as “liquid and gas” capable, their performance is usually optimized for one phase over the other. For instance, a peristaltic pump can pump gas, but it’s not its primary design strength for providing the highly stable, pulseless flow needed for a carrier gas in CVAAS. Conversely, a diaphragm gas pump isn’t typically designed for the high-precision volumetric liquid dosing needed for reagents.

Potential (Limited) Hybrid Scenarios:

In some very simplified or specific custom applications, one might try to use a single pump for less critical, sequential tasks. For example, a robust diaphragm pump might be used for a system purge (gas) and then, with valving changes, to move a larger volume of rinsing solution (liquid) where ultra-high precision isn’t the primary concern. However, for the core analytical functions of reagent dosing and carrier gas supply in CVAAS, relying on a single pump type to do both optimally is generally a compromise too far for achieving the best analytical performance. My experience in precision manufacturing at MoldAll has taught me that using the right tool for the specific job always yields better, more reliable results.

How to Choose the Right Pump for Your Mercury Analyzer?

Facing the choice of micro pumps for your mercury analyzer can seem daunting. With various types and specifications, how do you ensure you pick the one that guarantees optimal performance and analytical accuracy?

Choose the right pump by matching its specifications (flow rate, pressure, chemical compatibility, material) to the specific CVAAS stage (reagent, sample, carrier gas), prioritizing precision, reliability, and low contamination for accurate mercury detection.

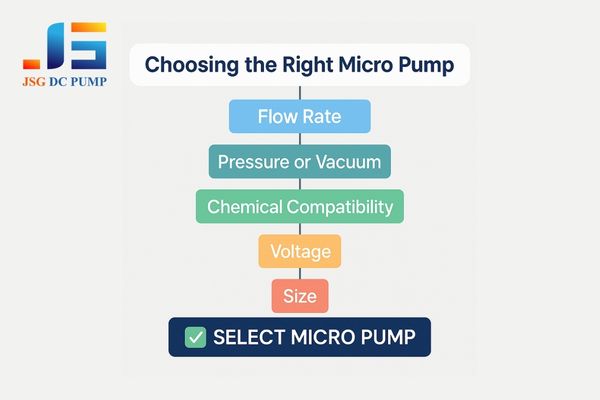

Choosing the Right Micro Pump

Selecting the ideal micro pump for each part of your mercury analyzer involves a careful assessment of the specific requirements of that function. It’s not a one-size-fits-all situation.

Here’s a more detailed breakdown of selection criteria:

Key Considerations for Pump Selection:

1. Fluid Type:

   • Liquid (Reagents, Sample):
     • Pump Type: Peristaltic pumps are excellent for precise, low-flow, contamination-free liquid delivery. Precision diaphragm liquid pumps are also a good option.
     • Key Specs: Accurate flow rate (µL/min to mL/min range), excellent repeatability, chemical resistance of wetted parts (tubing for peristaltic, diaphragm/valves for diaphragm pumps), low pulsation.
   • Gas (Carrier Gas, Purge Gas):
     • Pump Type: Engineers and manufacturers often prefer diaphragm gas pumps for their smooth, pulseless flow, reliable performance, and oil-free operation.

     • Key Specs: Stable flow rate (mL/min range), adequate pressure capability for sparging, oil-free design, long lifespan.

2. Performance Requirements:

   • Flow Rate Range: Ensure the pump can deliver the required flow rates consistently.
   • Pressure/Vacuum: Consider the backpressure in the system for liquid pumps, and the pressure needed for sparging for gas pumps.
   • Precision and Accuracy: Critical for reagent delivery.
   • Pulsation: Lower pulsation is generally better for stable signals.

3. Material Compatibility:

   • As I always stress from my experience at JSG, materials are key. The wetted parts of the pump must be compatible with the chemicals they will handle (e.g., acids, reducing agents for liquids; inert gases for gas pumps). Common choices include PTFE, PEEK, Kalrez®, specific grades of stainless steel, or specialized elastomers.

4. Operational Considerations:

   • Lifespan and Maintenance: Look for pumps known for their durability and ease of maintenance (e.g., easy tube replacement in peristaltic pumps).
   • Size and Integration: Micro pumps are small, but ensure they fit the instrument’s design.
   • Control Interface: How will the pump be controlled (e.g., analog voltage, digital signals)?

Here’s a simplified comparison of common micro pump types in CVAAS:

When I advise clients on component selection, whether for molds or parts within analytical instruments, the principle is the same: understand the exact demands of the application first. This detailed understanding guides you to the best component choice.

Conclusion

Selecting the right micro pump types for liquid and gas handling is fundamental for the accuracy, reliability, and sensitivity of cold atomic absorption systems and mercury analyzers. A properly matched micro liquid pump ensures precise reagent delivery, while a stable micro gas pump guarantees consistent Hg⁰ vapor flow for optical detection.

At JSG, we specialize in custom micro pump solutions for analytical instruments. Whether you’re upgrading an existing CVAAS system or developing a new mercury detection platform, our engineering team can help you select or customize the perfect micro liquid or gas pump to match your requirements.
