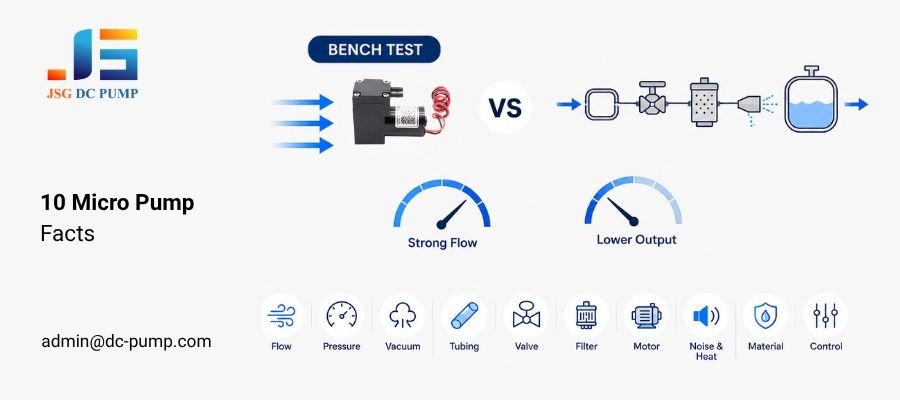

Are You Aware of These 10 Micro Pump Facts That Might Impact Your Product Design?

Your product may need a small pump, but micro pump design factors can affect much more than airflow or vacuum. Flow capacity, pressure range, sealing performance, motor type, noise, heat, materials, and control method can all influence whether the final device works reliably.

Yes, these micro pump design factors can directly affect product design because pump performance is not determined by the pump alone. Open-air flow, back pressure, vacuum sealing, tubing resistance, valve load, filter restriction, motor type, noise and heat, material compatibility, and control method all influence whether the complete device can work reliably.

Based on more than 20 years of engineering experience, many micro pump design problems are not caused by “poor pump quality” alone. In many cases, the real issue is that the pump was selected according to one attractive rated parameter, while the complete device required a more balanced system-level match.

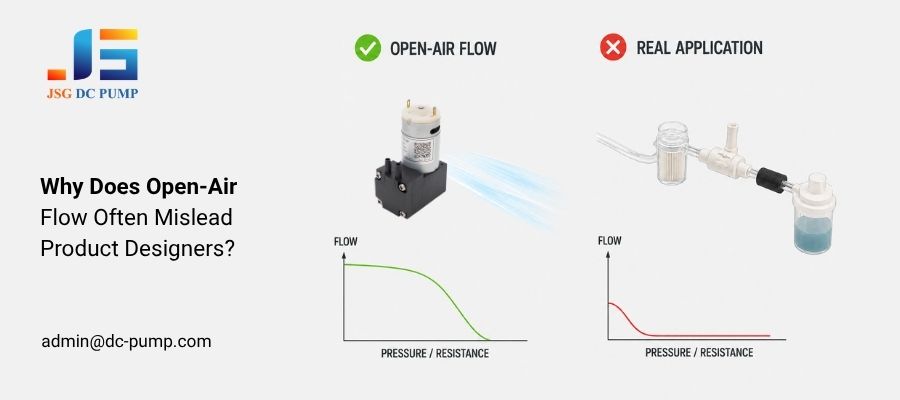

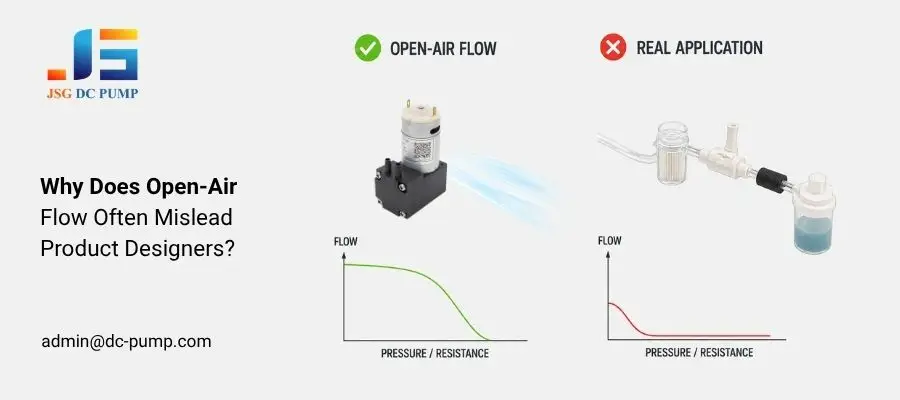

Why Do Micro Pump Design Factors Make Open-Air Flow Misleading?

Your pump may look powerful in a simple airflow test, but that number may not represent the working flow inside a real product.

Open-air flow is only a reference value. It shows how the pump performs with almost no external resistance, but it does not show how the pump will behave after the complete air path or liquid path is connected.

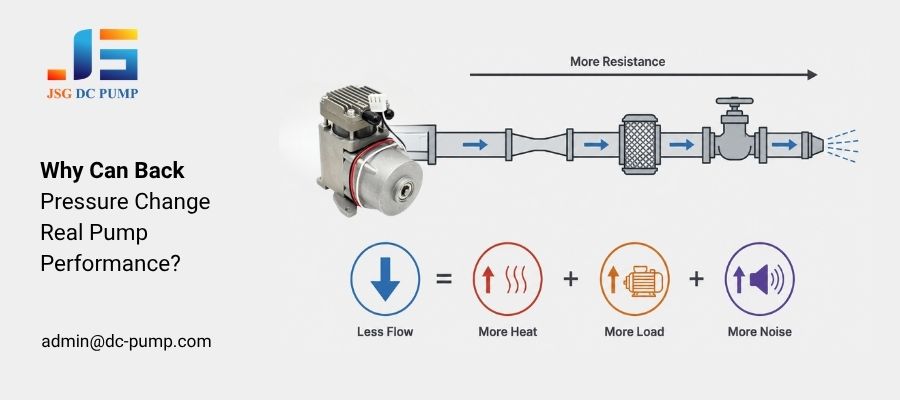

Which Micro Pump Design Factors Change Back Pressure Performance?

Your device may require stable pressure, but every restriction on the outlet side changes the pump’s operating point.

Back pressure affects the balance between flow and pressure. As outlet resistance increases, the pump usually delivers less flow, while motor load, heat, and noise may rise. A pump that performs well at zero pressure may not maintain the same output when the outlet side becomes restricted.

Key design facts to check:

• Higher pressure resistance usually means lower practical flow.
• Small nozzles can create more load than expected.
• Long or narrow tubing increases pressure loss.
• Filters and valves may add resistance even when they look small.
• Testing only the pump may hide the real pressure-side load.

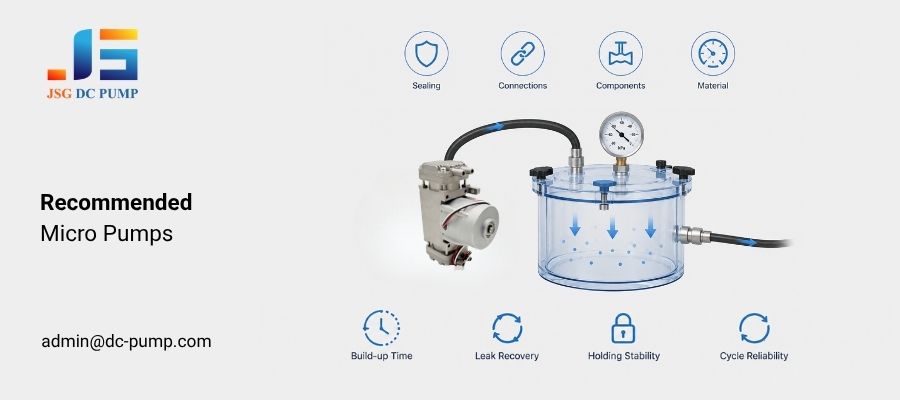

Which Micro Pump Design Factors Affect Vacuum Stability?

Your pump may have a strong rated vacuum value, but leakage, oversized chambers, or poor sealing can still weaken the final suction effect.

Vacuum performance depends on both pump capability and system structure. A high-vacuum pump can only maintain stable suction when the complete system has good sealing, suitable chamber volume, reliable valves, and compatible sealing materials.

Key vacuum system factors include:

• Leakage can reduce vacuum holding ability and slow down recovery.
• Oversized chambers require more time to build stable negative pressure.
• Loose tubing connections can weaken suction even when the pump itself is strong.
• Unstable valves may affect vacuum buildup and pressure retention.
• Unsuitable sealing materials can cause gradual leakage, swelling, or performance decay.
• Filter resistance can slow down airflow and reduce vacuum response speed.

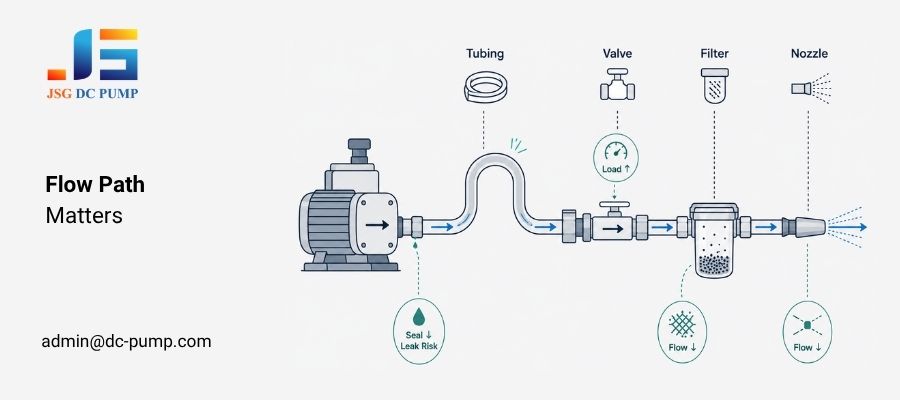

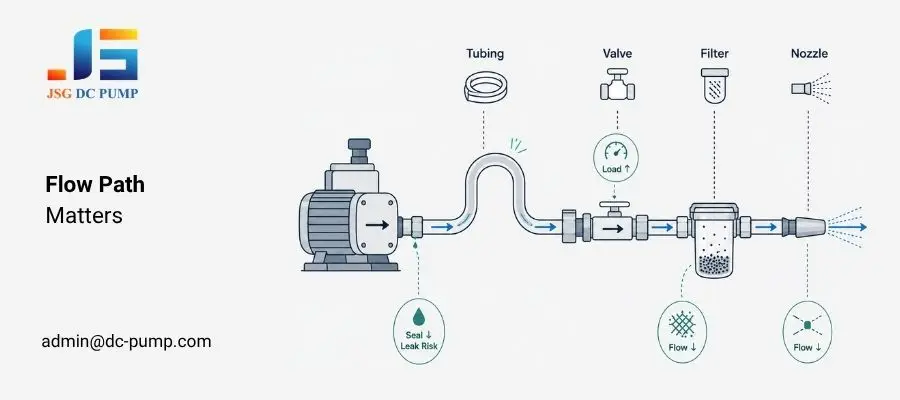

Why Do Tubing, Valves, Filters, and Nozzles Matter So Much?

Your pump may be correctly selected, but small external components may quietly change the load around it.

Tubing, valves, filters, and nozzles matter because they define the actual flow path. If these components are too restrictive, the pump must work harder, and the final output becomes less predictable.

This section covers three common hidden restrictions: tubing resistance, valve load, and filter restriction.

Common hidden design risks include:

• Tubing inner diameter is too small for the target flow.
• Filter resistance increases after dust, moisture, or particles accumulate.
• One-way valves create cracking pressure and extra resistance.
• Nozzles improve spray shape but may reduce total flow.
• Tight bends in tubing create additional pressure loss.
• Poor sealing causes unstable vacuum or pressure recovery.

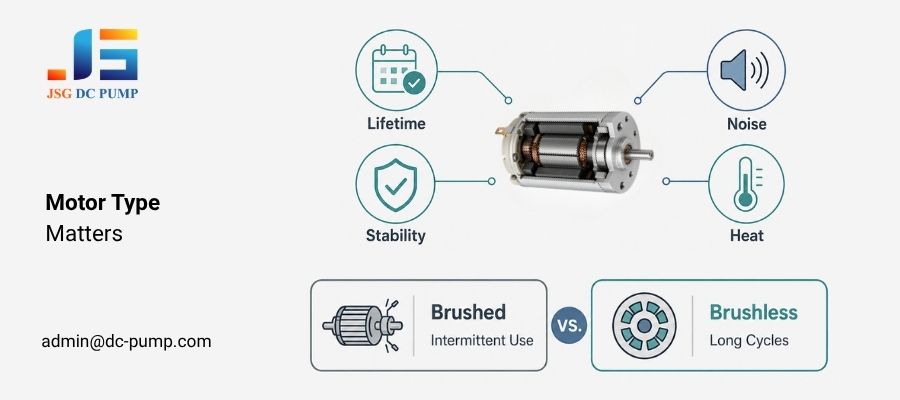

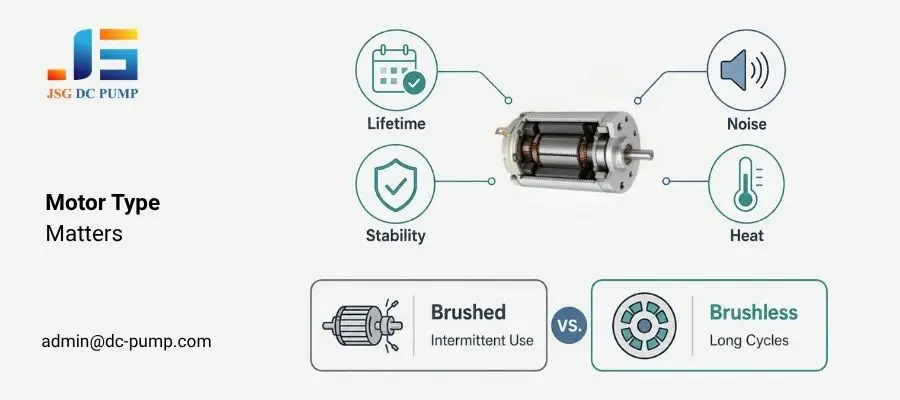

Why Can Motor Type Affect Lifetime, Noise, and Stability?

Your product may use a basic motor configuration, but motor type still affects long-term output consistency, noise, heat, and service life.

Motor type affects pump lifetime, speed control, heat behavior, noise level, and output stability. Brushed motors can be suitable for cost-sensitive or moderate-duty applications, while brushless motors are usually better for longer service life and more consistent continuous operation.

Key motor selection points include:

• Brushed motors are practical for intermittent-use devices or cost-sensitive projects.
• Brushless motors are better for frequent operation, long working cycles, and stable output requirements.
• Higher duty cycles usually require better heat control and longer motor life.
• Noise-sensitive products may benefit from smoother motor operation and better speed control.
• Applications that need repeatable performance over time should consider brushless pump options.

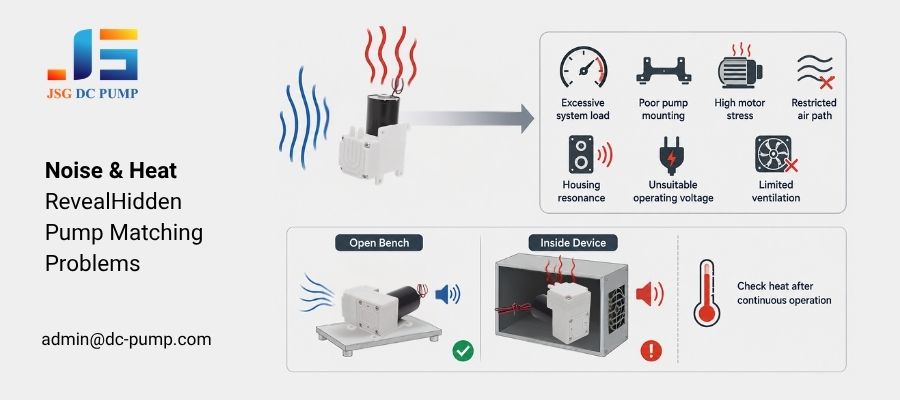

Why Can Noise and Heat Reveal Hidden Pump Matching Problems?

Your pump may meet the required flow or vacuum target, but abnormal noise or heat can show that the pump is working too close to its limit.

Noise and heat are not only comfort issues. They often reveal hidden matching problems such as:

• Excessive system load
• Poor pump mounting
• High motor stress
• Restricted air path
• Housing resonance
• Unsuitable operating voltage
• Limited ventilation inside the final device

For compact devices, engineers should test the pump inside the real housing, not only on an open bench. A pump that sounds acceptable in open air may become much louder after installation. Heat should also be checked after continuous operation because limited ventilation can affect motor temperature and long-term stability.

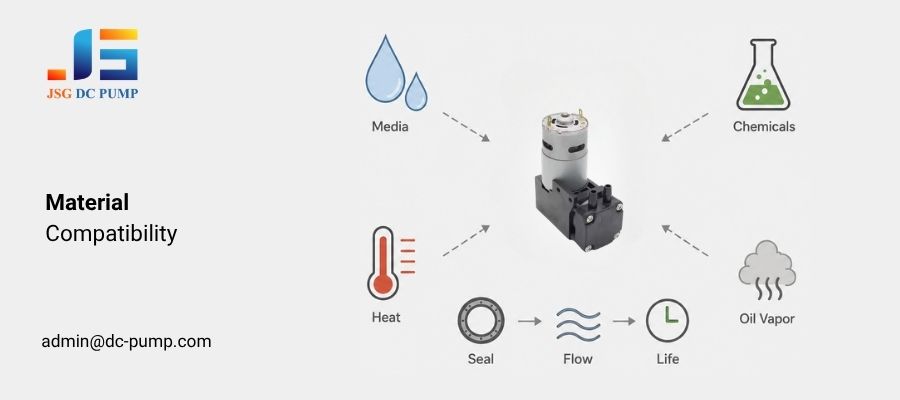

Why Should Material Compatibility Be Checked Before Final Pump Selection?

Your pump may work well at the beginning, but unsuitable materials can cause performance decay after contact with moisture, chemicals, oil vapor, gas mixtures, or high-temperature conditions.

Material compatibility should be checked because it directly affects diaphragm life, valve sealing performance, gasket stability, flow consistency, pressure retention, vacuum holding ability, and resistance to swelling, hardening, or cracking.

This is especially important for medical devices, beauty equipment, laboratory instruments, food-related systems, and gas sampling products. Before mass production, OEM projects should confirm the medium, temperature, duty cycle, and expected lifetime to avoid gradual flow, pressure, or vacuum loss.

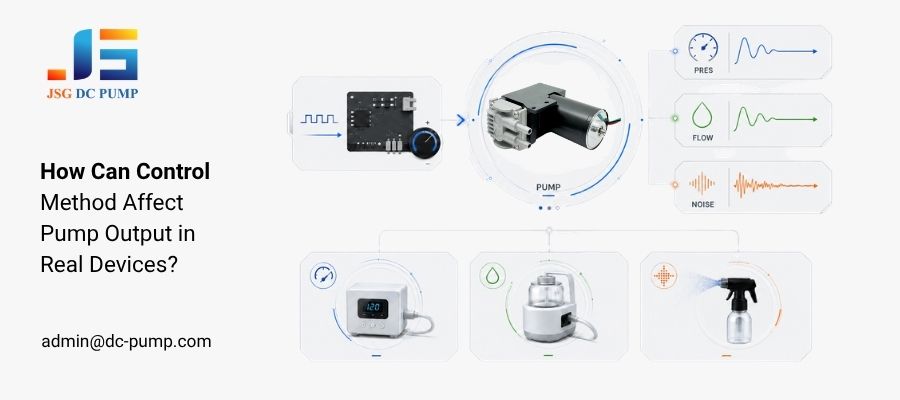

How Can Control Method Affect Pump Output in Real Devices?

Your product may use the correct pump model, but unstable voltage or unsuitable speed control can still create flow fluctuation, pressure instability, or unnecessary noise.

Control method affects how the pump starts, accelerates, responds to load, and maintains output. In some devices, simple on/off control is enough, while other systems may need PWM control, voltage regulation, soft start, or closed-loop feedback to improve pressure stability and user experience.

Common control-related design points include:

• Pressure-control devices may need smoother pump response during valve switching.
• Suction devices may need controlled negative pressure instead of only maximum vacuum.
• Spray or atomization systems may need consistent airflow to maintain uniform output.
• Portable devices may need voltage regulation to reduce flow fluctuation as battery power changes.
• Noise-sensitive products may need speed control to balance output, vibration, and user comfort.

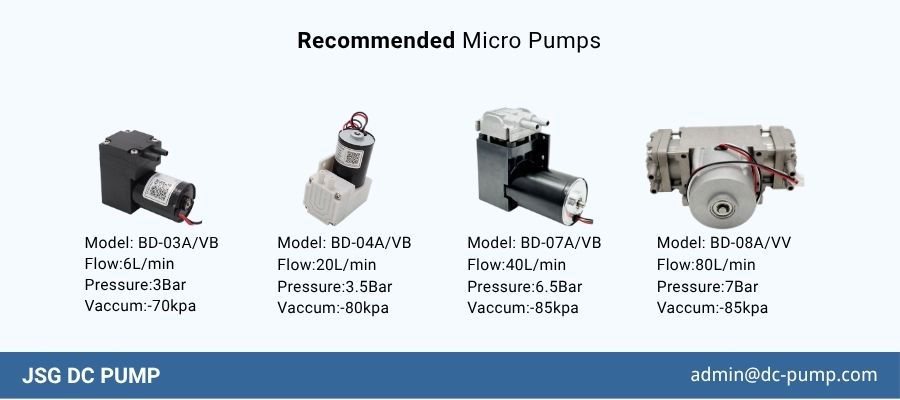

How Can You Match These Facts With a More Suitable JSG Micro Pump Direction?

Your design may not need the strongest pump; it needs a pump direction that matches the real load, duty cycle, pressure range, vacuum requirement, medium, noise target, and installation space.

A suitable micro pump choice should balance output, size, noise, voltage, lifetime, material compatibility, and integration method. For OEM product development, JSG DC PUMP can provide different air pump, vacuum pump, diaphragm pump, and piston pump directions according to the real working condition.

Conclusion

When open-air flow, back pressure, sealing, external resistance, motor type, noise, heat, materials, and control method are considered together, many pump-related design problems can be reduced before mass production. The key is to match the pump with the complete device structure instead of choosing only by the highest parameter. For micro pump selection or OEM customization support, contact JSG DC PUMP at admin@dc-pump.com.
