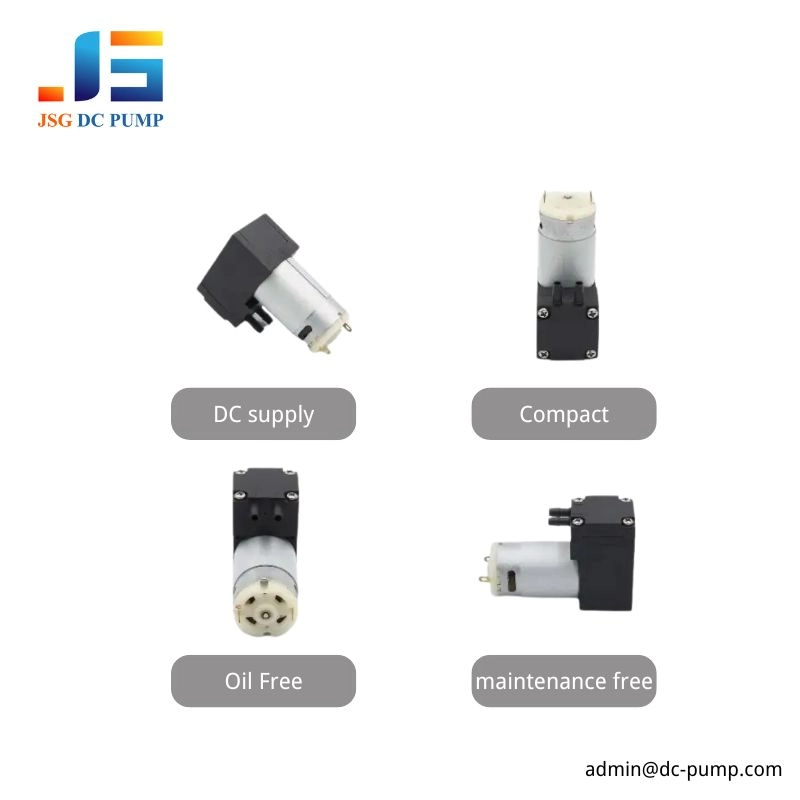

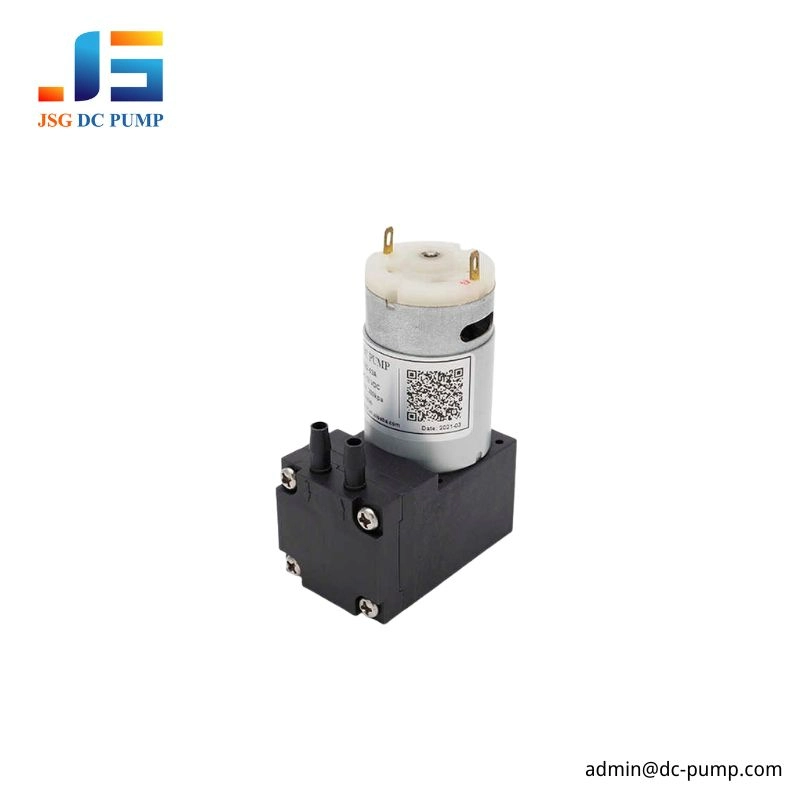

Product Overview
Compact DC Diaphragm Pump BD-03A/V is designed for small OEM equipment that needs stable airflow, practical pressure output, or reliable suction performance in limited space. Instead of using a larger pump structure, engineers can use this series to balance compact installation with useful pneumatic performance.
This series includes two functional versions:
· BD-03A → pressure type mini DC air pump
· BD-03V → vacuum type mini DC vacuum pump
In practical equipment design, BD-03A is suitable for positive pressure, air transfer, and compact pneumatic support. Meanwhile, BD-03V is used for suction, vacuum generation, and negative-pressure functions. As a result, OEM customers can develop pressure and vacuum product versions based on one compact pump family. Therefore, this platform is useful when one product series needs both airflow and vacuum options.
Core Selling Points of This Compact DC Diaphragm Pump
1. Compact Platform for Pressure and Vacuum
BD-03A/V supports both pressure and vacuum functions within one compact pump family. Therefore, OEM customers can develop different product versions without changing the basic installation logic too much.
2. Practical Flow Output for Small Devices
With 3–6 L/min flow, this pump series provides useful air transfer performance for compact equipment. In addition, the output range supports moderate pressure buildup, suction recovery, and small pneumatic modules.
3. Pressure Version for Air Pump Applications
BD-03A provides up to 3 bar pressure output for compact air-control systems. For this reason, it can be used in small pressure modules, air transfer units, and embedded pneumatic equipment.
4. Vacuum Version for Suction Applications
BD-03V provides up to -70 kPa vacuum for compact suction and negative-pressure functions. Meanwhile, its moderate flow range helps support sampling, suction recovery, and vacuum holding in limited-space devices.
5. Flexible Voltage Options for System Matching
The series supports 6V / 12V / 24V voltage options. As a result, engineers can match the pump more easily to portable devices, battery-powered systems, and fixed-power equipment.
6. Compact Structure for Embedded Installation

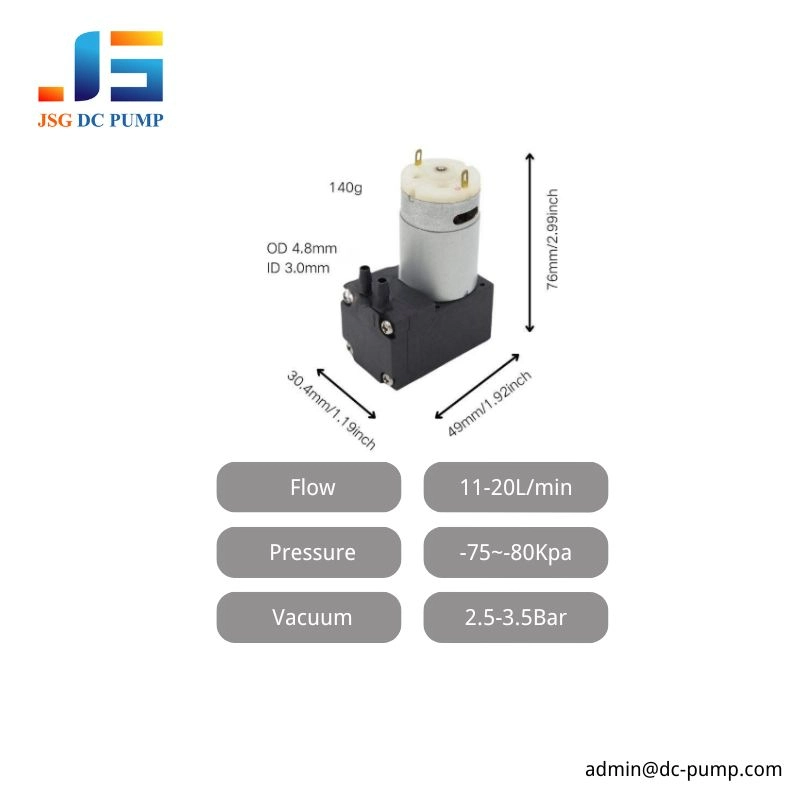

With an approximate size of 30 × 49 × 76 mm and about 140 g weight, BD-03A/V is suitable for embedded installation. At the same time, it still provides practical output for small OEM equipment that cannot use a larger pump.
What Are the Key Specifications of This Compact DC Diaphragm Pump?
| Product Model | BD-03A | BD-03V |
| Pump Type | micro diaphragm pump | |
| Voltage | 6V / 12V / 24V | |
| Max Flow | 3–6 L/min | |
| Max Pressure | 2–3 bar | / |
| Max Vacuum | / | -60 to -70 kPa |
| Power | 7–12 W | |
| Noise | 50–65 dB | |
| Motor Type | Brushed motor | |
| Life Expectancy | 1000 hours | |
| Weight | Approx. 140 g | |
| Dimensions | Approx. 30 × 49 × 76 mm | |
| Media | Air / clean gas | |
| Wetted Materials | EPDM / FKM | |
| Working Mode | Intermittent / continuous depending on load point | |
How Does This Compact DC Diaphragm Pump Perform Under Real Load?
For BD-03A pressure applications, useful output may decrease when outlet resistance, valve design, nozzle size, or back pressure increases. Meanwhile, BD-03V vacuum performance can be affected by chamber volume, sealing quality, leakage, filter condition, and vacuum recovery speed. Therefore, final validation should be tested inside the real device structure instead of only under open bench conditions.
BD-03A/V Flow vs Pressure vs Vacuum

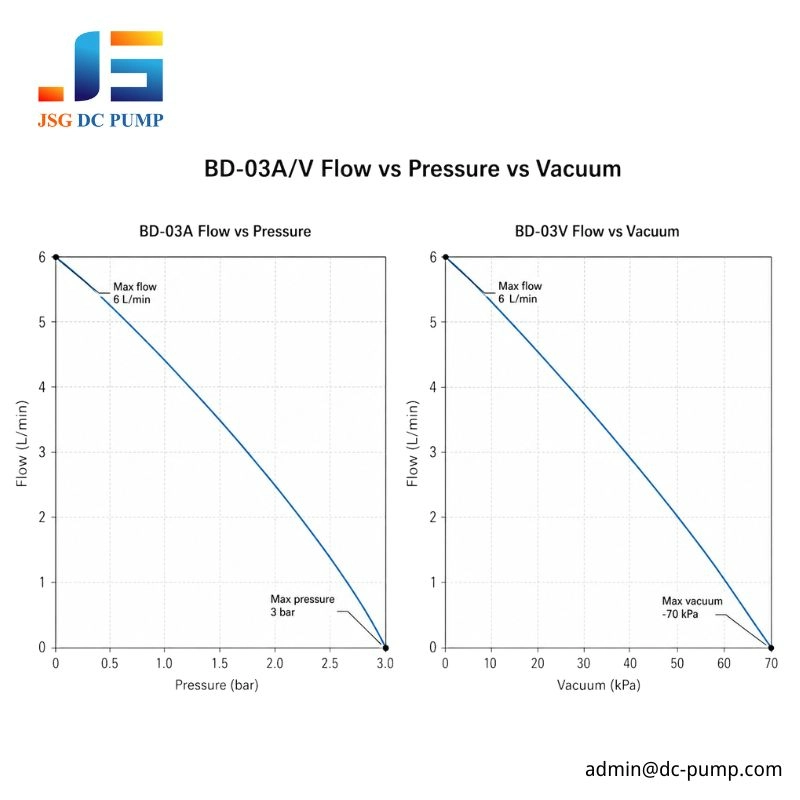

BD-03A/V flow vs pressure and vacuum curve showing BD-03A up to 3 bar pressure and BD-03V up to -70 kPa vacuum.
What Are the Dimensions and Installation Details?
Compared with very small micro pumps, this series provides stronger practical output. However, compared with larger high-flow pump platforms, it still keeps a compact body size. As a result, BD-03A/V works well as a middle-range compact pump option for small pressure or vacuum systems.
BD-03A/V Dimensional Drawing

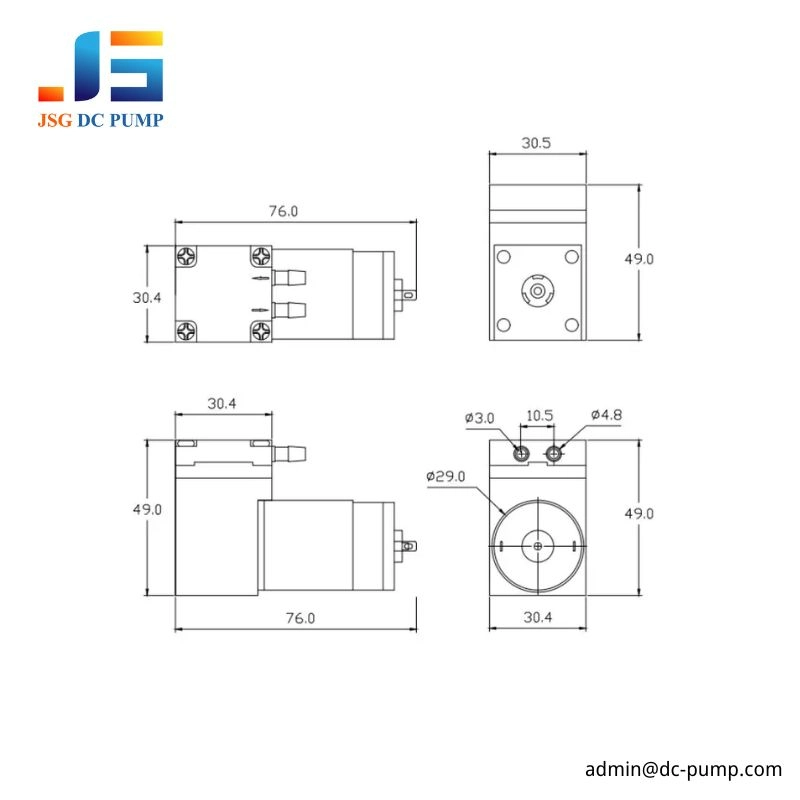

BD-03A/V dimensional drawing showing compact pump body size, mounting structure, outlet position, and installation reference dimensions.
Which Media and Materials Is This Mini Brushed Diaphragm Pump Compatible With?
For general clean air or mild humid air, standard EPDM is usually a cost-effective option. However, when better chemical resistance or higher durability is required, FKM can be considered. In addition, final compatibility should always be checked according to the real medium and working conditions.
Standard EPDM
| Media Type | Notes |
| Clean air | Standard application |
| Inert gas | Final compatibility should be confirmed by project |
| Mild moisture air | Cost-effective and suitable for general humid air conditions |
Enhanced FKM
| Media Type | Notes |
| Inert gas | Recommended when better chemical resistance is needed |
| Corrosive gas | Better chemical resistance and higher temperature resistance |
What Applications Is This Compact DC Diaphragm Pump Suitable For?
BD-03A/V is suitable for compact equipment that needs positive air pressure or negative vacuum suction. In practical use, BD-03A supports pressure, airflow, and pneumatic functions, while BD-03V supports suction, sampling, and vacuum generation. Therefore, it can be used in beauty devices, portable instruments, vacuum sampling systems, and small automation modules where space, flow, and working load must be balanced.
1. Beauty and Personal Care Devices
Beauty and personal care devices often need stable suction or gentle airflow inside a compact housing. Therefore, the pump must balance suction response, noise control, output stability, and installation space. In addition, the final selection should consider whether the device needs pressure output or vacuum suction.
Recommended configuration:
- Vacuum type: BD-03V — 5 L/min, -70 kPa for compact suction and negative-pressure beauty functions
- Pressure type: BD-03A — 3 L/min, 2 bar for gentle airflow or compact pneumatic support
- For stronger airflow or faster pressure response, BD-03A — 5 L/min, 2.5 bar can also be considered
2. Portable Medical and Laboratory Devices
Portable instruments usually require compact pumps for air transfer, vacuum generation, or pneumatic support. Meanwhile, voltage matching and stable output are important because these devices often use embedded power systems. For this reason, BD-03A/V can be selected according to real pressure or vacuum demand.
Recommended configuration:
- Pressure requirement: BD-03A — 5 L/min, 2.5 bar for compact air transfer and moderate pressure support
- Higher pressure requirement: BD-03A — 6 L/min, 3 bar for systems needing stronger pressure capability
- Vacuum requirement: BD-03V — 5 L/min, -70 kPa for stable vacuum generation in portable instruments
- For moderate suction, BD-03V — 3 L/min, -60 kPa is also a practical option
3. Vacuum Sampling Devices
Sampling equipment often needs a compact vacuum source with stable suction performance. However, the pump should not be selected only by maximum vacuum because tubing resistance, filters, and leakage can change the final result. Therefore, engineers should test the pump under the final sampling path.
Recommended configuration:
- Vacuum type: BD-03V — 3 L/min, -60 kPa for routine vacuum sampling
- Vacuum type: BD-03V — 5 L/min, -70 kPa for stronger compact suction demand
4. Small Automation and Pressure / Vacuum Modules
Small automation equipment may need pressure output, vacuum holding, or air transfer inside a limited structure. As a result, engineers should select the pump according to actual pressure or vacuum load rather than only the free-flow value. In practical use, BD-03A is better for pressure support, while BD-03V is better for compact vacuum functions.
Recommended configuration:
- Pressure type: BD-03A — 6 L/min, 3 bar for stronger compact pressure support
- Vacuum type: BD-03V — 6 L/min, -70 kPa for stronger compact vacuum functions

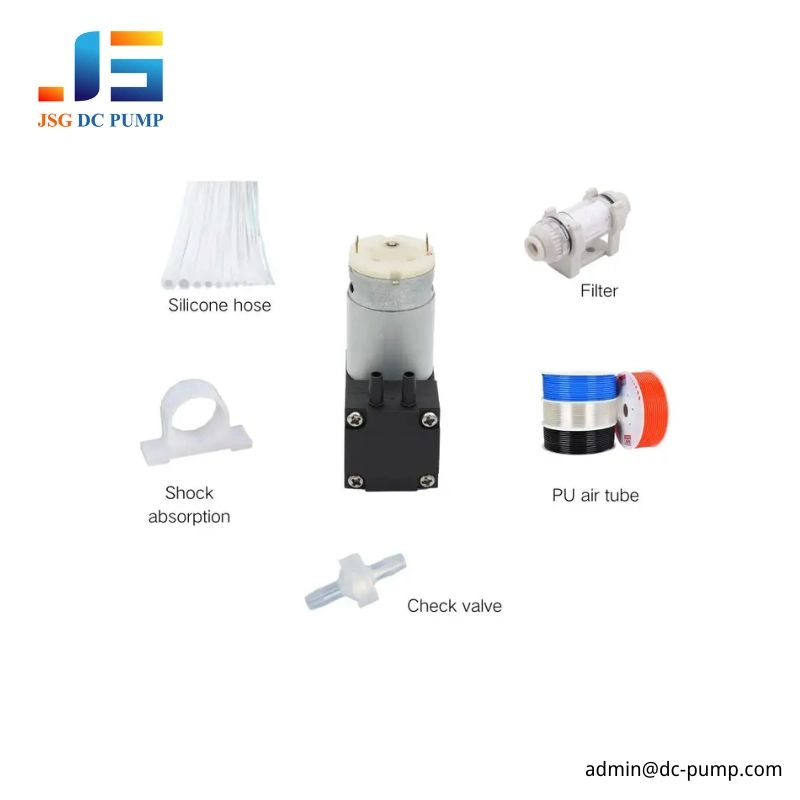

How Do I Choose the Right Version of This Custom DC Pump?
1. For lower noise requirements, consider a customized silencer.
A customized silencer can help reduce airflow noise in compact devices. Therefore, the final product can achieve better acoustic control without changing the basic pump platform.
2. For cleaner gas-path protection, add an air filter.
When the working environment contains dust or particles, an air filter can protect the internal pump structure. In addition, it helps reduce particle ingress and improves system reliability.
3. For adjustable output, use PWM control.
Some applications need different airflow, pressure, or vacuum levels during operation. In this case, PWM adjustment provides more flexible output control according to the actual working mode.
4. For easier system matching, confirm the correct voltage first.
BD-03A/V supports 6V / 12V / 24V options. As a result, engineers can match the pump to portable devices, embedded systems, or fixed-power equipment more easily.
5. For continuous operation, verify temperature rise under real load.
Continuous operation should not be judged by free-flow testing alone. Instead, the pump should be checked under final tubing layout, pressure or vacuum load, working voltage, and duty cycle.
Real Product Cases Using This Compact DC Diaphragm Pump
Case 1: Portable Pressure Therapy Device
Product background
A portable pressure therapy device usually needs a compact air pump to generate stable pressure inside a limited housing space.
Core requirement
The pump must provide practical airflow, moderate pressure, and suitable voltage matching for an embedded pneumatic system. At the same time, the structure should remain compact enough for portable product design.
Application challenge
The product cannot use an oversized pump because internal space is limited. However, the system still needs enough pressure output to maintain stable air-path support during operation.
Recommended pump solution
For this type of product, BD-03A is the more suitable version because it provides practical pressure output with balanced flow capability and compact dimensions.
Application result
As a result, BD-03A can support compact pressure equipment that requires output stability, easier installation, and practical OEM integration.
Case 2: Vacuum Beauty Device
Product background
Vacuum beauty devices often need a compact suction source for negative-pressure treatment, holding, or air extraction functions.
Core requirement
The pump must fit into a small housing while still providing useful vacuum performance and stable suction response. In addition, noise, vibration, and installation direction may also affect the final user experience.
Application challenge
If the pump is too small, suction performance may be weak. However, if the pump is too large, the product structure, noise level, and internal layout become harder to control.
Recommended pump solution
For this type of product, BD-03V is the more suitable version because it provides practical vacuum performance and moderate flow in a compact structure.
Application result
Therefore, BD-03V is suitable for personal care products that need compact vacuum generation, stable negative pressure, and easier integration into small equipment.
BD-03 Brushed Series Files and Technical Documents
Why Work With DC-PUMP as Your OEM Pump Supplier?
Professional Micro Pump Manufacturer
DC-PUMP focuses on miniature air pumps, vacuum pumps, diaphragm pumps, and piston pumps for industrial, medical, laboratory, and portable equipment. Therefore, we can support both standard models and project-based selection.
Stable Quality Control
Each pump can be checked for flow, pressure, vacuum, current, and noise before shipment. In addition, this helps customers confirm basic performance before testing.
OEM / ODM Support
We support customization of voltage, output range, sealing materials, pump structure, connection design, and project-based matching. As a result, the pump can better match real equipment requirements.
Engineering Support
Our engineers help customers select the right pump according to working pressure, vacuum level, flow demand, installation space, and application logic. Therefore, selection risk can be reduced during development.
Fast Sampling
We support fast sample preparation for testing and prototype development. Meanwhile, early testing helps confirm performance and installation fit.
Export Experience
DC-PUMP products are supplied to customers in multiple industries and export markets. For this reason, we understand OEM quality, customization, and international project support.
If you are looking for a compact DC diaphragm pump solution with balanced output, stable performance, and flexible customization, contact us at admin@dc-pump.com.
