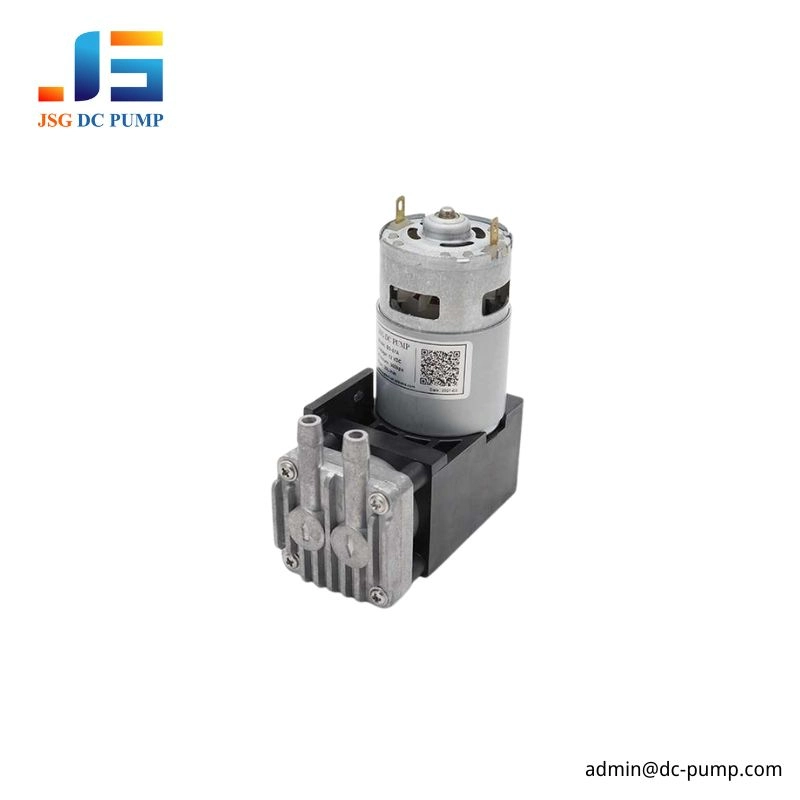

Product Overview
The BD-07A/V-M miniature DC piston pump is a compact micro brush air piston pump engineered for applications requiring stable airflow, high pressure, or reliable vacuum in limited installation spaces. Its brush piston design ensures consistent performance, low vibration, and long service life, making it suitable for portable medical devices, laboratory equipment, industrial gas sampling, and small OEM air-control systems.
This series includes two versions:
- DB-07A-M → Pressure type micro air pump
- DB-07V-M → Vacuum type mini vacuum pump
Both models feature a brushed DC motor, support customization, and provide stable performance across industrial, medical, laboratory, and portable applications.
Compared with diaphragm pumps, the piston structure offers:
- Higher pressure output and vacuum capability
- Better sealing performance for gases
- More stable flow for precision instruments
- Longer mechanical durability for continuous use

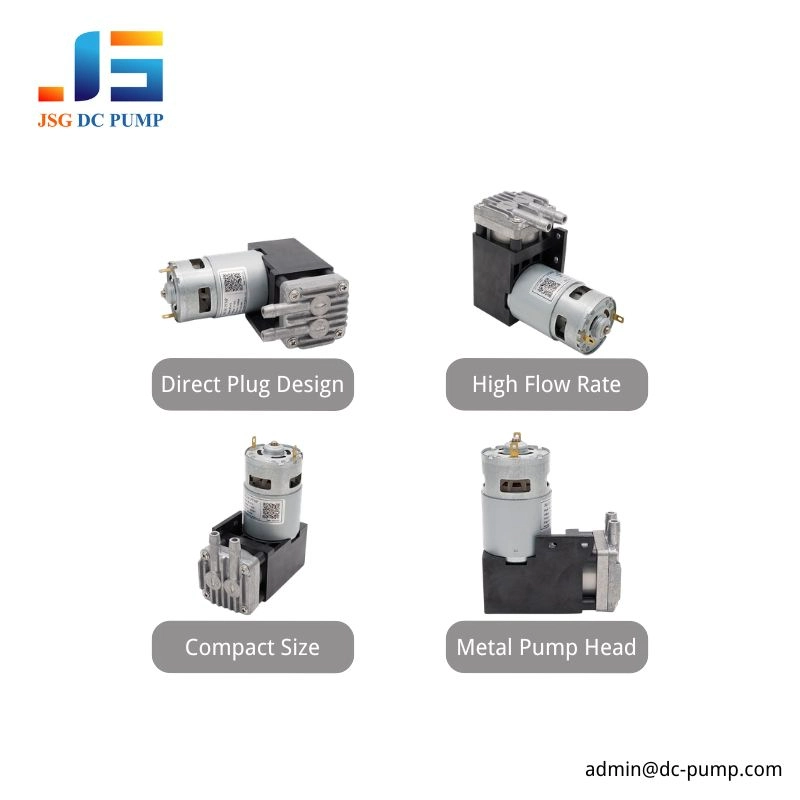

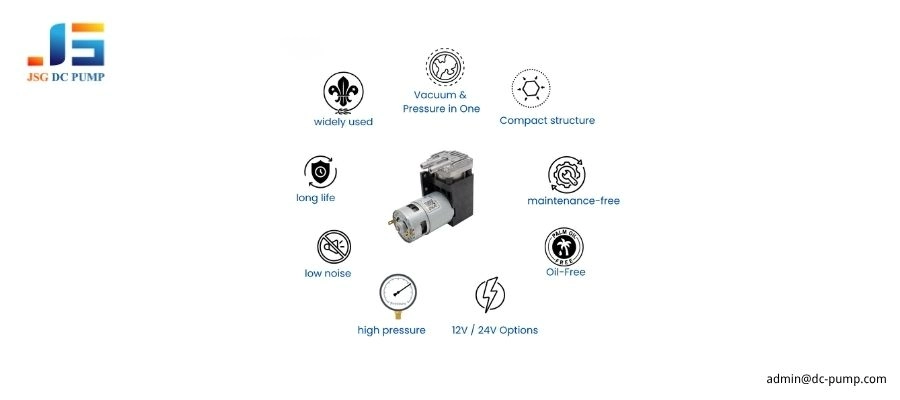

Core Selling Points of This Miniature DC piston pump
- High Pressure Output in Compact Size
The miniature DC piston pump employs a precision piston mechanism, delivering higher pressure and reliable vacuum than comparable diaphragm pumps. It is ideal for high-pressure air systems, portable gas transfer equipment, and micro industrial devices. - Stable Flow for Precision Equipment
This micro brush air piston pump provides consistent airflow with minimal fluctuation, ensuring accuracy in gas sampling, laboratory instruments, and medical devices that require precise and repeatable performance. - Durable Structure with Long Lifetime
Equipped with a high-quality brushed DC motor and robust mechanical components, the pump offers about 1000 hours of operation under normal conditions, suitable for portable medical devices, industrial monitoring systems, and laboratory automation. - Customizable Design for Various Applications
The BD-07 miniature DC piston pump supports customization including voltage, flow range, sealing materials, motor type, and mounting options, enabling flexible integration into medical devices, laboratory instruments, environmental monitoring equipment, and portable industrial systems.
What Are the Key Specifications of This Miniature DC piston pump?
| Item | Value | |
| Product Model | BD-07A-M | BD-07V-M |
| Pump Type | Brushless diaphragm pump / brushed / piston | |
| Voltage Range | 12V/24V | |
| Flow range | 15-40 L/min | |
| Vacuum range | / | -80~-85 kpa |
| Pressure range | 4.5-6.5 bar | / |
| Rated Power | 24-50 w | |
| Noise | 60-70 dB | |
| Media | Air / gas | |
| Wetted Materials | EPDM / FKM | |
| Working Mode | Continuous / Intermittent | |
| Ambient Temperature | 0~40℃ | |
How Does This Miniature DC piston pump Perform Under Real Load?
The BD-07 series functions as a multi-purpose micro pump platform. Engineers should select BD-07A-M or BD-07V-M based on specific pneumatic or suction requirements, ensuring long-term reliability and precise airflow for their medical, laboratory, or industrial devices.

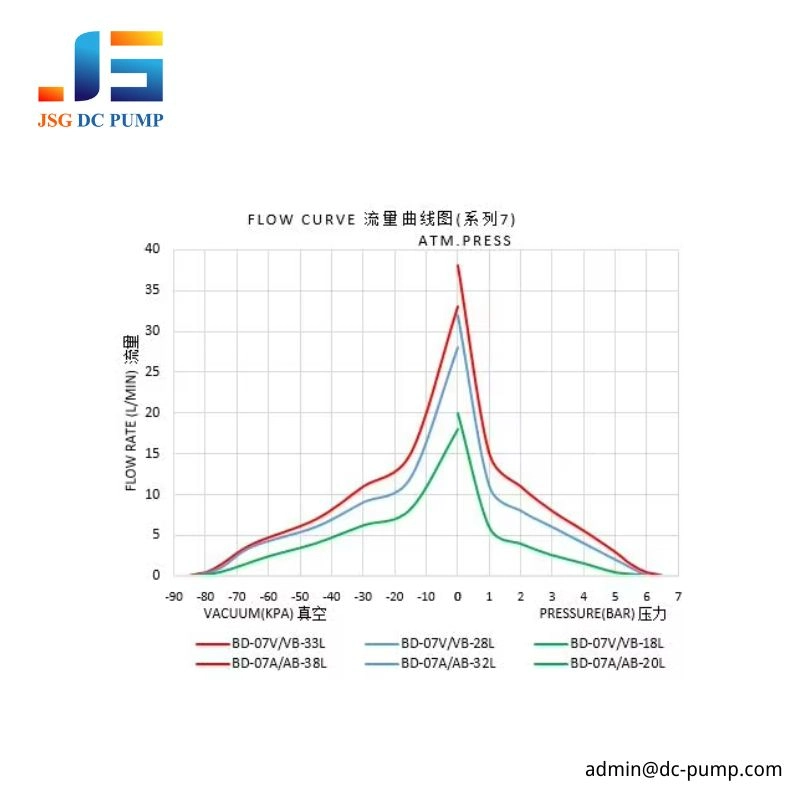

BD-07A/V-M Series Flow vs Pressure vs Vacuum

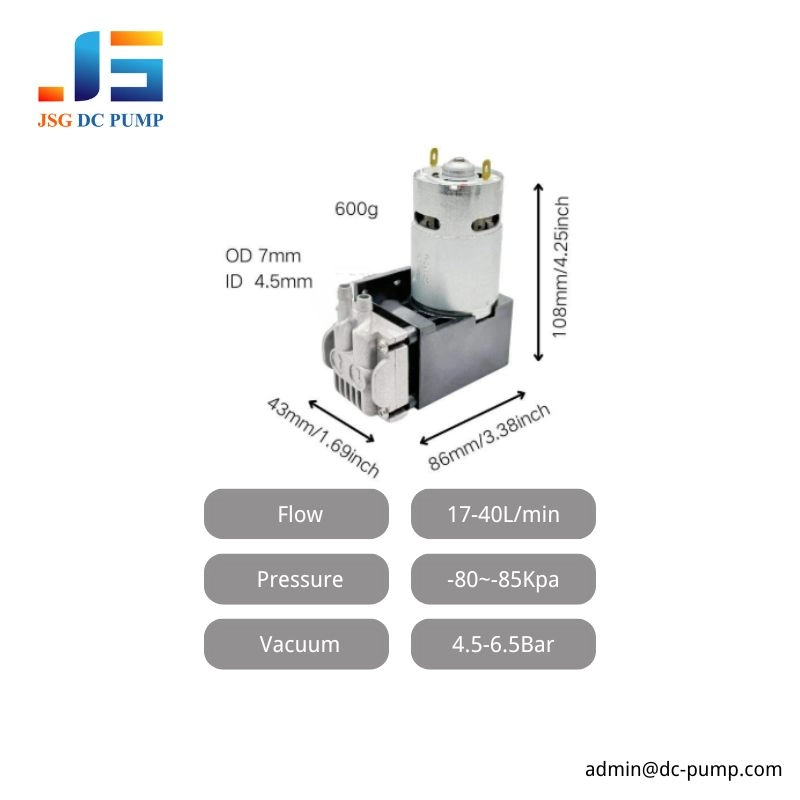

What Are the Dimensions and Installation Details?
For stable performance and long life, connect the miniature DC piston pump using short, soft silicone or PU tubing with airtight fittings and minimal bends. Horizontal installation is preferred; side mounting is allowed, but inverted installation should be avoided. Avoid heavy loads on the pump head. For reliability, add a filter for dusty air, a muffler for noise, a buffer tank for pressure stability, and a check valve for vacuum use.

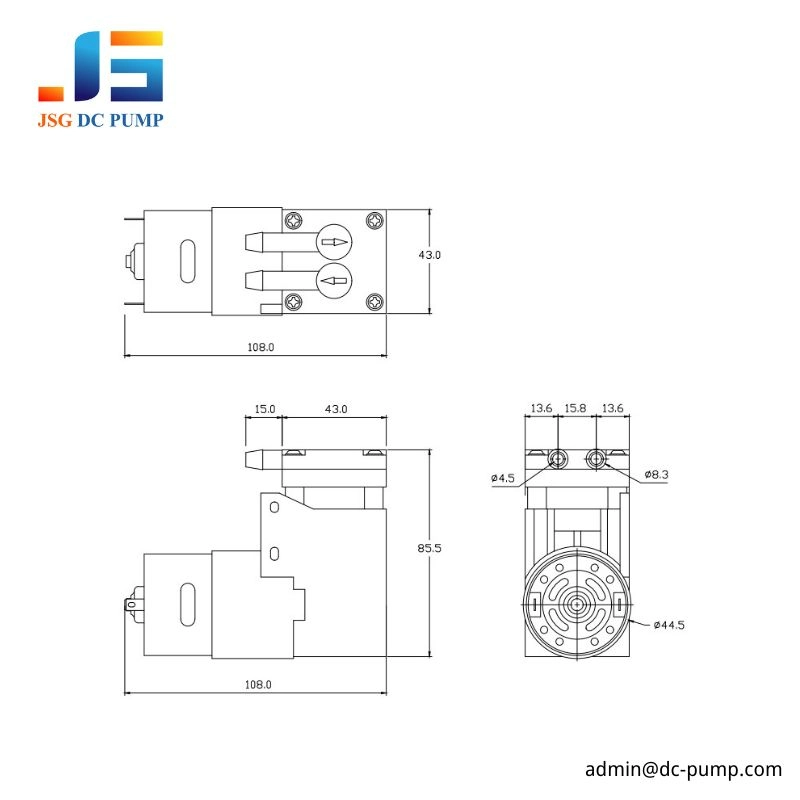

BD-07A/V-M B Dimensional Drawing
Which Media and Materials Is This Miniature DC piston pump Compatible With?
The BD-07A/V-M miniature DC piston pump can be configured with different internal materials and seals to match various gases and environmental conditions, ensuring long-term durability and stable performance.
Standard EPDM
| Media Type | Notes |
| Clean air | Standard application for most compact air and vacuum systems |
| Inert gas | Final compatibility should be confirmed by project conditions |
| Mild moisture air | Cost-effective and suitable for general humid air conditions |
Enhanced FKM
| Media Type | Notes |
| Inert gas | Recommended when better chemical resistance is needed |
| Corrosive gas | Better chemical resistance and higher temperature resistance |
| Humid or vapor-related gas path | More suitable when long-term material stability is required |
What Applications Is This Miniature DC Piston Pump Suitable For?
The Miniature DC brush piston pump BD-07A/V-M is designed for applications requiring stable airflow, reliable pressure or vacuum, and compact size.Different configurations can be selected according to pressure, vacuum, noise level, and lifetime requirements.
- Hydrogen Sampling Equipment
BD-07 miniature DC piston pumpsdeliver stable flow and reliable pressure, ensuring accurate hydrogen gas analysisin portable or stationary sampling devices.
- Key parameters:flow stability, pressure, sealingRecommended
- configuration:BD-07A-M / 24V / PWM / FKM
- Medical and Laboratory Devices
Ideal for portable medical devices, laboratory analyzers, and precision instrumentation, providing low vibration, reliable airflow, and compact integration.
- Key parameters:low noise, lifetime, clean airflow
- Recommended configuration:12V or 24V / brushless optional / low-noise / clean sealing
- Portable Vacuum and Pressure Systems
Designed for compact devices needing high pressure or vacuum, including portable vacuum pumps, small air compressors, and mini industrial equipment.
- Key parameters:pressure or vacuum, size, power consumption
- Recommended configuration:
- Pressure → BD-07A-M / 24V
- Vacuum → BD-07V-M / compact / PWM
How Do I Choose the Right Version of This Miniature DC Piston Pump?
The Miniature DC brush piston pump BD-07A/V-M can be configured with different motors, control methods, and sealing materials.
Choosing the correct version depends on lifetime, noise, control method, and working media.
For a Beauty Device
1.If you need longer lifetime, choose a brushless version.
For devices that run frequently or for long periods, lifetime becomes important.A brushless pump usually provides longer service life, lower wear, and more stable performance than a brushed motor version.
2.If you need lower cost, choose a brushed version.
For cost-sensitive products, the brushed motor version is usually more economical while still providing reliable performance for normal duty cycles.
3.If you need adjustable airflow or suction, choose PWM control.
Some devices require different working levels.A PWM control version allows flexible speed adjustment and more precise flow control.
4.If the pump may contact corrosive gas or moisture, choose suitable sealing materials.
For special gases, humid air, or chemical environment, materials such as FKM or PTFE can improve sealing performance and durability.
Real Project Cases Using This Miniature DC Piston Pump
1.Hydrogen Sampling Analyzer Project
Project background
A customer developing a portable hydrogen sampling analyzer needed a compact air pump for gas transfer.
Customer requirement
Stable flow, high pressure, and small installation size.
Challenge
The device had very limited internal space and required continuous operation during testing.
How we adjusted the pump configuration
We recommended the BD-07A-M miniature DC brush piston pump, 24V version, with PWM control and upgraded sealing material to improve stability.
Final result
The pump provided stable pressure and reliable sampling performance, and the product entered mass production successfully.
2. Vacuum Booster System Project
Project background
An industrial automation company needed a compact vacuum booster to enhance suction efficiency in a small-scale packaging machine. The goal was to increase vacuum levels without enlarging the system footprint.
Customer requirement
Stable vacuum enhancement up to -85 kPa, compact installation for a limited space, and reliable operation under continuous duty cycles.
Challenge
The booster had to operate alongside existing air handling components without introducing noise or vibration that could affect sensitive packaging processes.
How we adjusted the pump configuration
We recommended the BD-07V-M miniature DC brush piston pump, 24V version, configured with PWM control and EPDM sealing optimized for clean air. The compact pump was installed inline with a small buffer tank to maintain steady vacuum and reduce load fluctuations.
Final result
The pump provided enhanced vacuum output, low noise, and stable performance, significantly improving packaging speed and efficiency. The system successfully passed continuous operation tests and was integrated into the production line.
