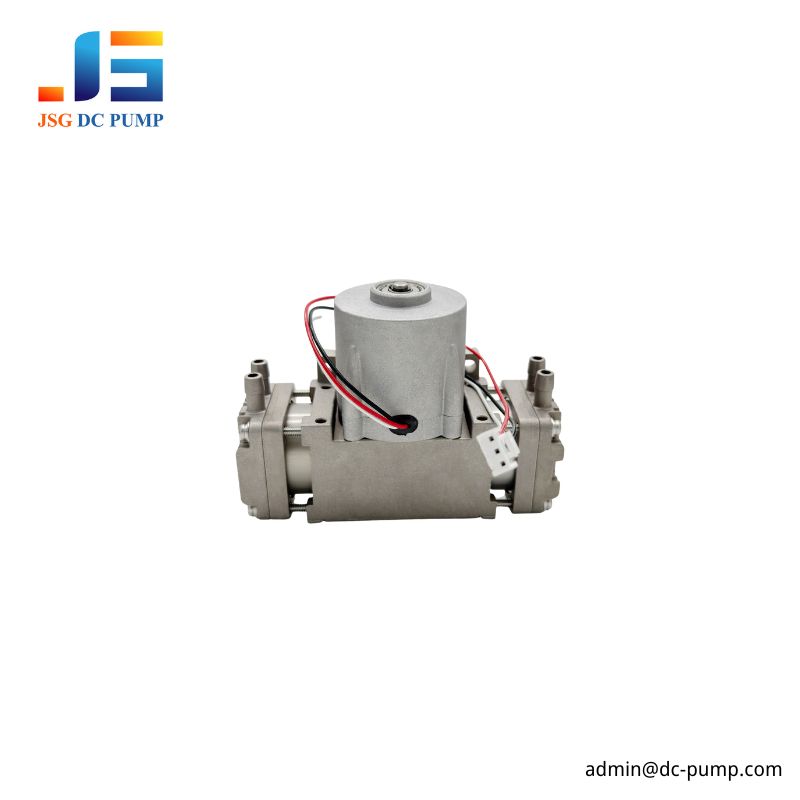

Product Overview
The BD-08A/VB-D series is built for equipment that needs more air delivery than small compact pumps can provide. With a dual-head piston structure, metal pump body, and 70–80 L/min flow range, this model is suitable for systems where airflow loss, tubing resistance, filter load, or chamber volume may affect final performance.
This series includes:
- BD-08AB-D → pressure type air pump
- BD-08VB-D → vacuum type suction pump
The pressure version supports air supply, pneumatic assistance, gas transfer, and test equipment. The vacuum version supports suction recovery, negative pressure generation, holding systems, and gas extraction. Both versions are designed for OEM projects that require stronger output while still keeping a manageable installation size.

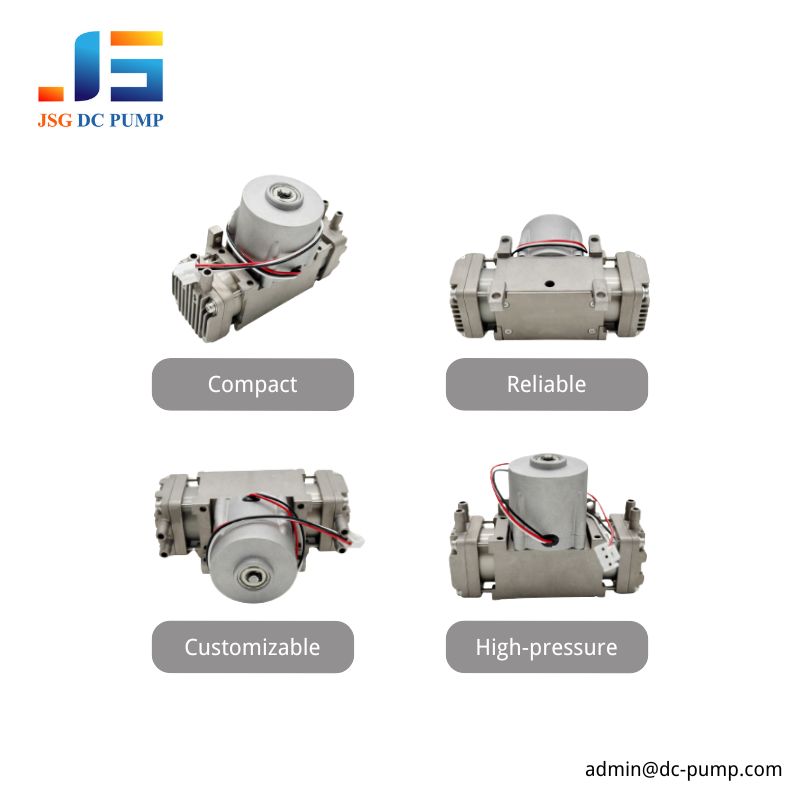

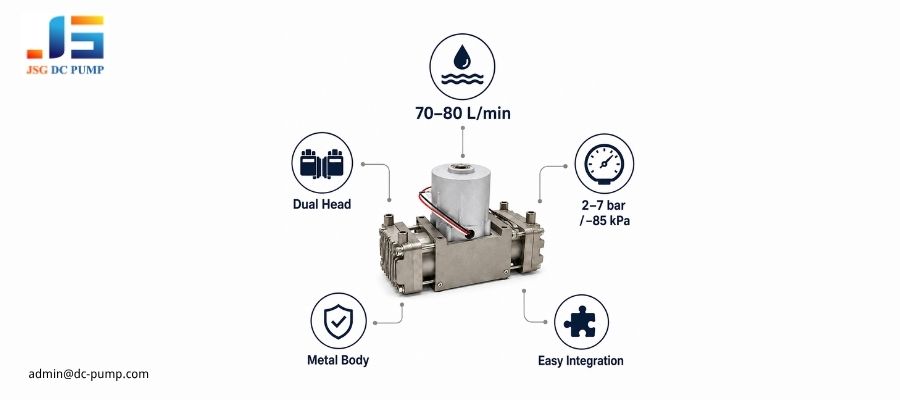

Core Selling Points of This High Flow Piston Pump
- Delivers 70–80 L/min airflow for faster gas movement and stable output.
- Dual-head pumping design improves output capacity for higher air demand.
- Supports 2–7 bar pressure or -85 kPa vacuum for pressure and suction applications.
- Metal structure improves rigidity, heat dissipation, and installation stability.

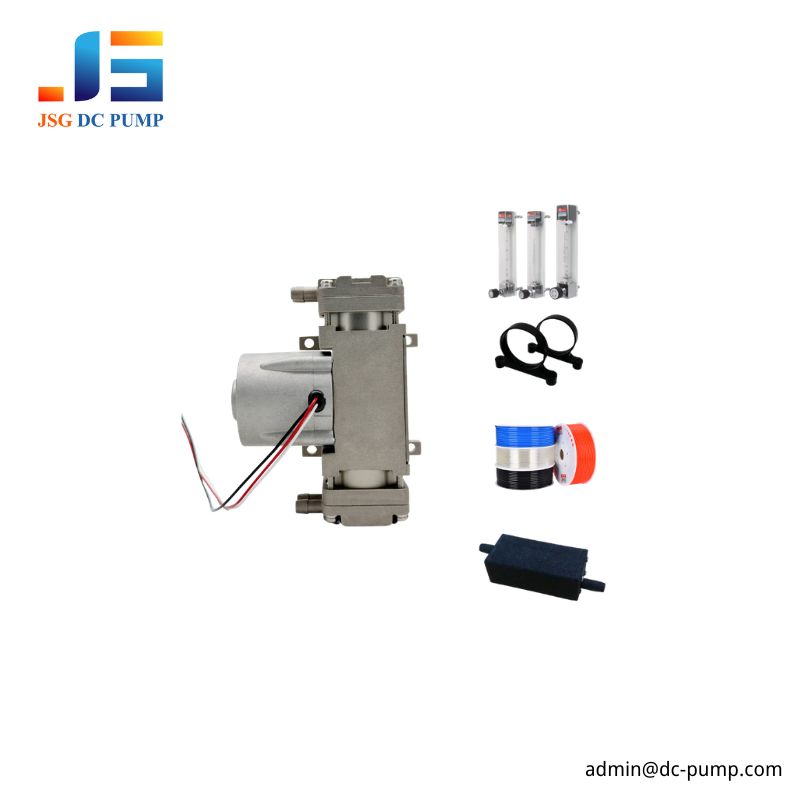

- Works with tubing, filters, and accessories for flexible pneumatic integration.

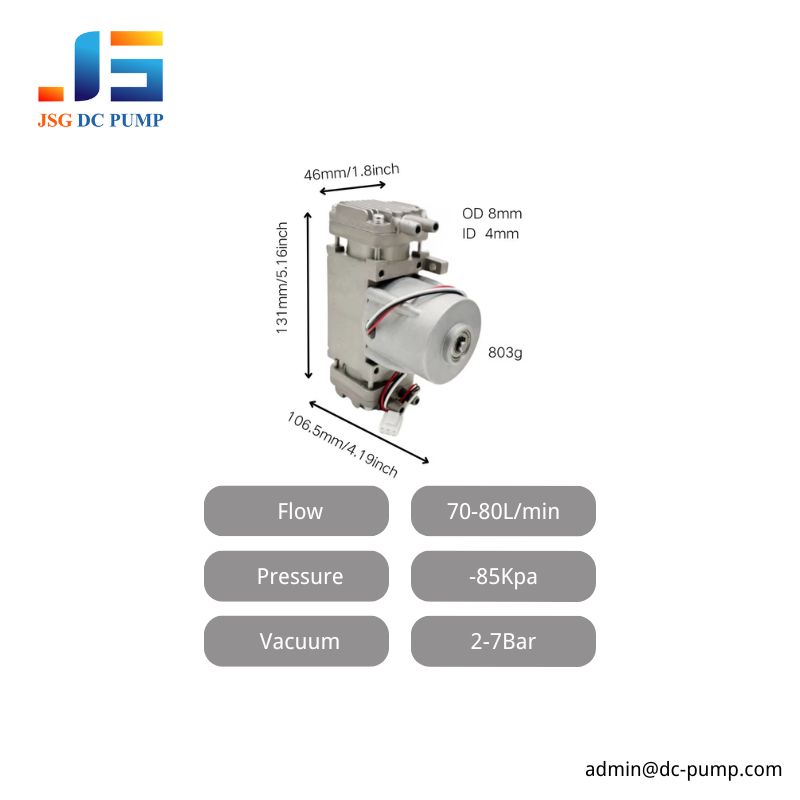

What Are the Key Specifications of This High Flow Piston Pump?
| Product Model | BD-08AB-D | BD-08VB-D |
| Pump Type | Pressure type piston air pump | Vacuum type piston suction pump |
| Voltage | 12V / 24V | |
| Max Flow | 70–80 L/min | |
| Max Pressure | 2–7 bar | / |
| Max Vacuum | / | -85 kPa |
| Motor Type | DC brushless motor | |
| Weight | About 803 g | |
| Dimensions | About 131 × 106.5 × 64 mm | |
| Media | Air / clean gas | |
| Material Options | EPDM / FKM | |
| Working Mode | Depends on load and duty cycle | |
How Does This High Flow Piston Pump Perform Under Real Load?
BD-08A/VB-D should be selected according to the actual working point, not only the open-flow value. In real equipment, tubing length, filter resistance, valves, flowmeters, and chamber size can all reduce final output.

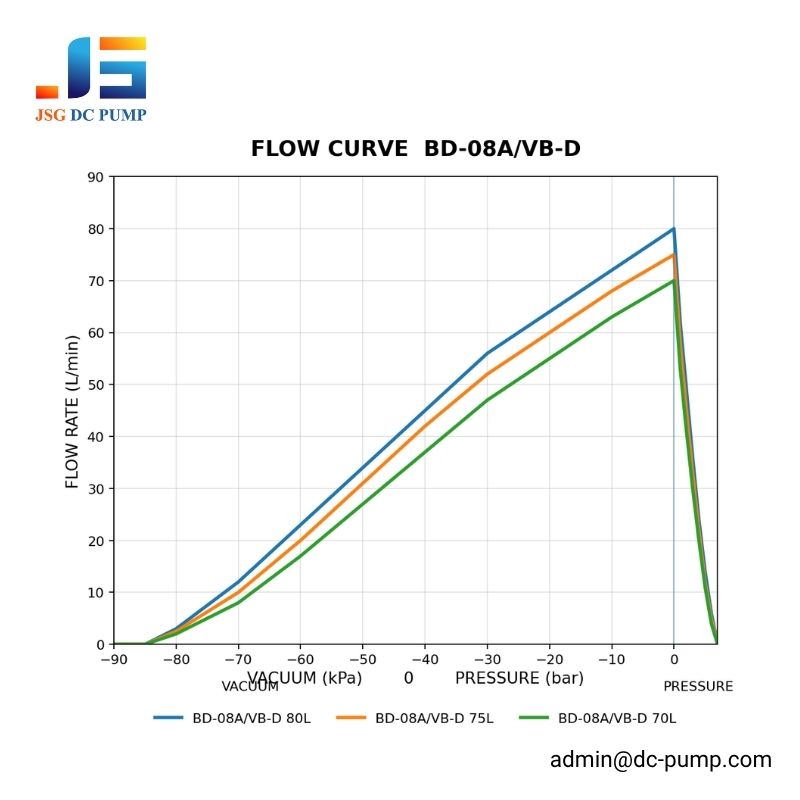

BD-08A/VB-D Series Flow vs Pressure vs Vacuum
What Are the Dimensions and Installation Details?
BD-08A/VB-D uses a horizontal dual-head layout with mounting holes for stable fixing inside equipment. During assembly, engineers should leave enough space for inlet and outlet tubing, wire routing, vibration control, and accessory connection.

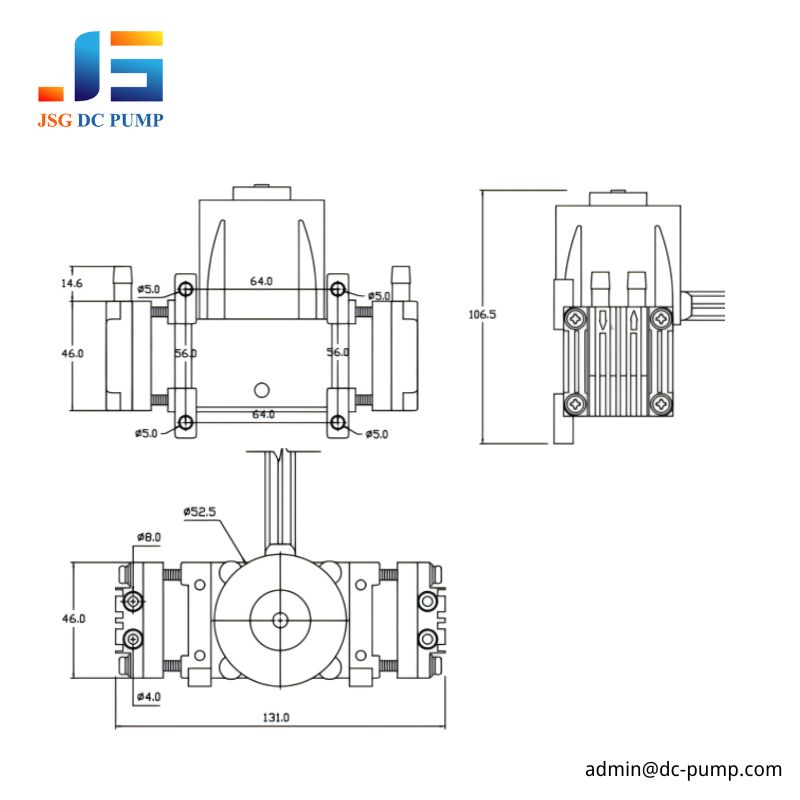

BD-08A/VB-D Dimensional Drawing
Which Media and Materials Is BD-08A/VB-D Compatible With?
BD-08A/VB-D is mainly suitable for air and clean gas transfer. The sealing material should be selected according to gas type, humidity, chemical exposure, working temperature, and durability requirements.
Standard EPDM
| Media Type | Notes |
| Clean air | Standard application |
| Inert gas | Final compatibility should be confirmed by project |
| Mild moisture air | Cost-effective and suitable for general humid air conditions |
Enhanced FKM
| Media Type | Notes |
| Inert gas | Recommended when better chemical resistance is needed |
| Corrosive gas | Better chemical resistance and higher temperature resistance |
What Applications Is This Piston Air Pump and Vacuum Pump Suitable For?
BD-08A/VB-D is suitable for OEM systems that require higher airflow, stronger pressure output, faster vacuum recovery, or stable gas movement through a complete air path.
1.Packaging Equipment
BD-08AB-D can support air supply and pressure-assisted systems in packaging equipment with tubing, valves, suction modules, or chamber structures. Its 70–80 L/min flow range provides more reserve when packaging systems need faster air movement or stable output under real load.
2.Industrial Vacuum and Pneumatic Modules
BD-08VB-D can support vacuum holding, suction recovery, packaging assistance, fixture adsorption, and negative pressure modules. Its -85 kPa vacuum capability helps the system recover suction more effectively after leakage or chamber pressure changes.
How Do I Choose the Right BD-08A/VB-D Piston Pump?
- Choose BD-08AB-D for pressure output, gas transfer, pneumatic supply, and air delivery.
- Choose BD-08VB-D for vacuum suction, negative pressure control, suction holding, and gas extraction.
- Use 24V when the system needs stronger output stability or longer working cycles.
- Confirm the real working flow after connecting tubing, filters, valves, and flowmeters.
- Select EPDM for general clean air use, and evaluate FKM for special gas-path or higher durability requirements.

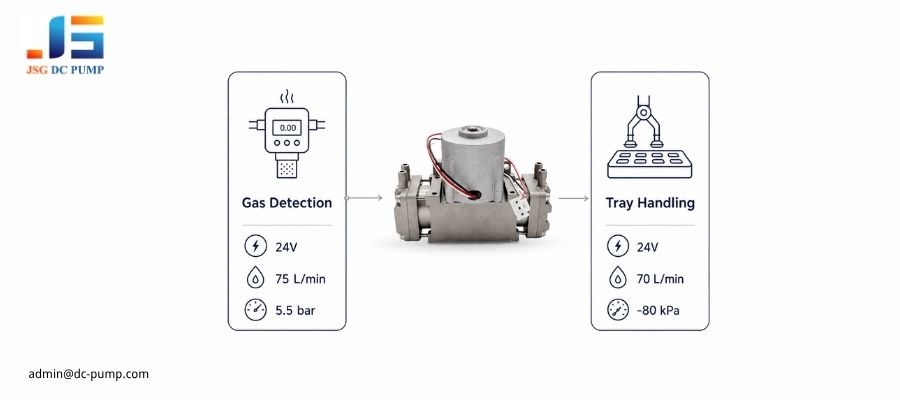

Real Project Cases Using BD-08A/VB-D High Flow Piston Pump
Case 1: Gas Detection Flow Supply Module
A gas detection equipment customer needed a stronger air source for a 24V sampling module with tubing, a flowmeter, and a filter cartridge. We recommended BD-08AB-D with a tested working flow of about 75 L/min, 5.5 bar pressure reserve, FKM sealing, and reinforced tubing connection. After installation testing, the pump helped maintain stronger air delivery and more stable gas movement through the complete detection path.
Case 2: Vacuum Tray Handling System
A packaging automation customer needed stable suction for a 24V tray handling system used to pick and transfer lightweight plastic trays. We recommended BD-08VB-D with about 70 L/min working flow, -80 kPa tested vacuum, EPDM sealing, and soft mounting to reduce vibration during repeated movement. After testing, the system achieved steadier tray pickup, fewer suction drops, and smoother transfer between packaging stations.
Files and Technical Documents
Why Work With DC-PUMP as Your OEM Pump Supplier?
Professional Micro Pump Manufacturer–DC-PUMP focuses on miniature air pumps, vacuum pumps, diaphragm pumps, piston pumps, and customized pneumatic solutions for OEM equipment.
Engineering-Based Model Selection–Our team helps customers evaluate flow, pressure, vacuum level, voltage, sealing material, installation space, noise, and real air-path resistance.
Stable Quality Control–We check pump appearance, air-tightness, operating performance, and basic output parameters to support more reliable project use.
OEM / ODM Support–We support voltage selection, connector matching, wiring adjustment, sealing material options, mounting requirements, and application-specific pump configuration.
Project Sampling Support–Customers can test samples inside the real device before mass production, especially when the system includes tubing, filters, valves, chambers, or control modules.
Export Experience–DC-PUMP supports customers in gas detection, industrial automation, laboratory equipment, pneumatic modules, vacuum systems, and customized OEM projects.
If your equipment needs a high flow piston pump for gas detection, pressure supply, vacuum suction, or industrial pneumatic control, BD-08A/VB-D can be evaluated according to your real load and installation space. For model selection or sample support, contact admin@dc-pump.com.
