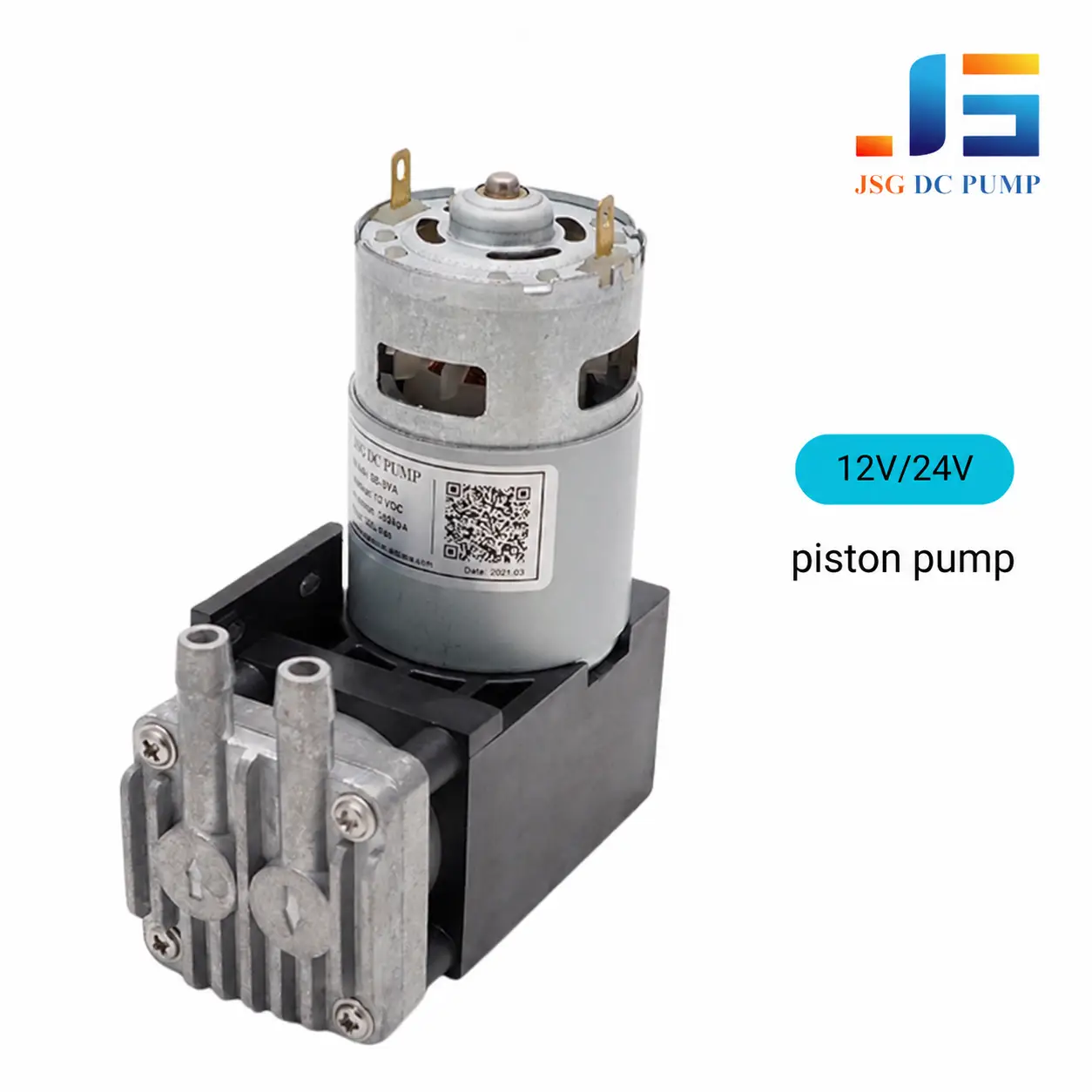

JSG-07A Micro Piston Air Pump Overview

The JSG-07A series is a compact 12V or 24V micro piston air pump for OEM systems requiring 17–40 L/min airflow and 4.5–6.5 bar pressure. Brushed and brushless configurations are available for coffee machines, packaging equipment, disinfection devices, beauty equipment, and other pneumatic applications.

This micro piston air pump should be selected according to airflow at the actual working pressure, duty cycle, power, noise, temperature rise, installation space, and expected service life. Maximum free flow and maximum pressure are endpoint values and should not be treated as simultaneous operating conditions.

JSG-07 Series Micro Piston Air Pump Specifications

• Model Options:

  • JSG-07A-M / JSG-07AB-M
    ① 17 L/min, 4.5 bar
    ② 25 L/min, 5 bar
    ③ 40 L/min, 6.5 bar

  • JSG-07V-M / JSG-07VB-M
    ① 17 L/min, -80 kPa
    ② 25 L/min, -85 kPa
    ③ 31–38 L/min, -85 kPa

• Rated Voltage: 12V / 24V DC

• Power: 24–50W

• Motor Type: Brushless motor (3000 hrs) / Brush motor (1000 hrs)

• Noise Level: 60–70 dB

• Weight: 560–600 g

• Dimensions: 107 × 85.5 × 43 mm

• Ambient Temperature: 0~40℃

• Ambient Humidity: <80%

Key Features of JSG-07 Series:

1. Custom Flow and Pressure Options: Wide flow range (15–40 L/min) and pressure up to 6.5 bar to suit multiple application scenarios.

2. Dual Motor Options: Choose between brushless (3000 hrs) and brushed (1000 hrs) motors based on cost and durability preferences.

3. Strong Vacuum Capability: Reaches vacuum levels up to -85 kPa, suitable for suction and air displacement applications.

4. Low Noise Design: Operates at 60–70 dB, balancing performance and quiet operation.

5. Modular & Compact Build: Compact footprint for integration into space-constrained systems or portable devices.

6. Long Service Life: High-quality components support continuous and reliable operation in demanding environments.

Common Applications:

• Vacuum Lifters / Suction Fixtures

• Misting and Atomization Devices

• Agricultural Sprayers (Drones, Boom Sprayers)

• Sanitizing Fogging Systems

• Medical Equipment (Suction, Transport, Sampling)

• Automotive Air Pumps (Inflators, Vacuum Assist)

• Packaging Machinery (Vacuum Sealing, Filling)

• Vacuum Therapy Devices

• Air & Gas Detection Instruments

Typical Applications


• Portable cow and sheep milker
• Medical electric aspirator
• Vacuum packaging machine
• Medical sputum aspirator
• Beauty industry devices
• Portable equipment
• Physiotherapy machines
• Balloon pumps
• Gas analysis systems
• Ventilators
• Tire pumps
• Mounters

…and more

Manufacturer Information:

• Brand: JSG DC PUMP

• Company: Shenzhen Jingsuguang Technology Co., Ltd.

• Origin: China

• Certifications: ISO9001, CE, RoHS, REACH, FCC

Established in 2003, JSG DC PUMP develops and manufactures miniature piston, diaphragm, vacuum, air, and liquid pumps for OEM equipment. We support pump selection, sample validation, customization, and mass production for medical, laboratory, industrial, beauty, and appliance applications.
