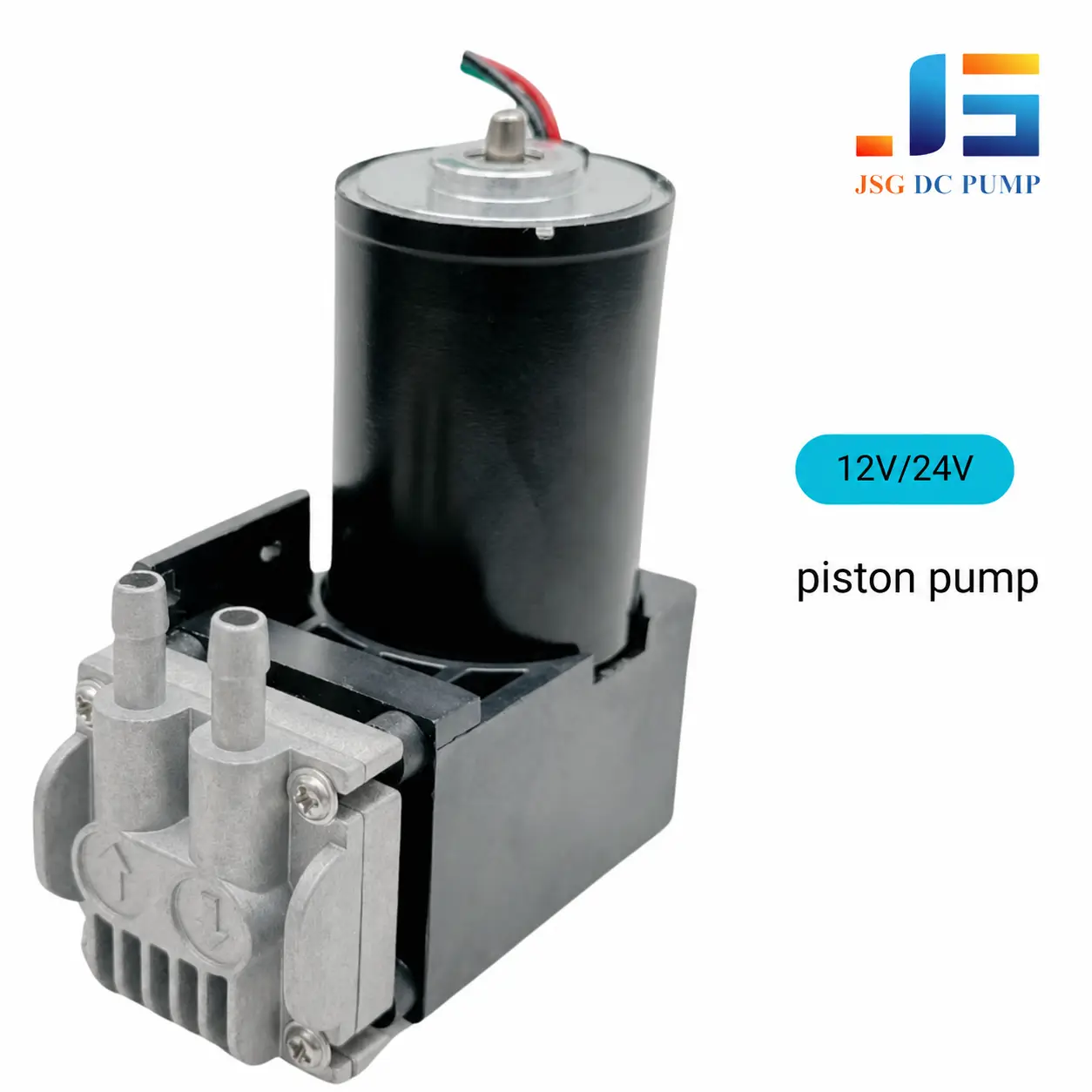

JSG-07V/VB Micro Piston Vacuum Pump
The JSG-07V/VB series is a compact 12V or 24V micro piston vacuum pump for OEM systems requiring 17–38 L/min airflow and vacuum from –80 to –85 kPa.
This micro piston vacuum pump should be selected according to airflow at the actual working vacuum, duty cycle, power, noise, temperature rise, installation space, and expected service life. Maximum free flow and maximum vacuum are endpoint values and should not be treated as simultaneous operating conditions.
JSG-07 Series Micro Piston Vacuum Pump Specifications
- Model Options:

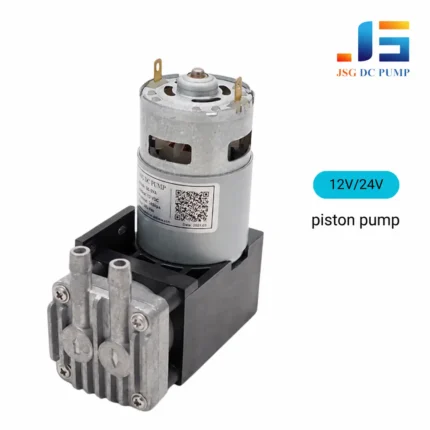

- JSG-07A-M / JSG-07AB-M
① 17 L/min, 4.5 bar
② 25 L/min, 5 bar
③ 40 L/min, 6.5 bar - JSG-07V-M / JSG-07VB-M
① 17 L/min, -80 kPa
② 25 L/min, -85 kPa
③ 31–38 L/min, -85 kPa - Rated Voltage: 12V/24V DC
- Power: 24–50W
- Motor Type: Brushless Motor (3000 hours)/Brushed Motor (1000 hours)
- Noise Level: 60–70 dB
- Weight: 560–600 g

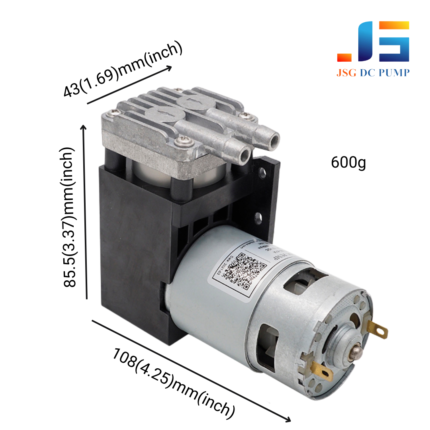

- Dimensions: 107×85.5×43 mm
- Ambient temperature: 0~40℃
- Ambient humidity: <80%
Key Features of the JSG-07 Series:
- Custom Flow and Pressure Options: Wide flow range (15-40 L/min) and pressure up to 6.5 bar suit a variety of application scenarios.
- Dual Motor Option: Based on cost and durability preferences, choose between a brushless motor (3000 hours) and a brushed motor (1000 hours).
- Powerful Vacuum Capability: Vacuum down to -85 kPa for both suction and air displacement applications.
- Low Noise Design: Operating at 60–70 dB, balances performance and quiet operation.
- Modular and Compact Construction: Compact footprint allows integration into space-constrained systems or portable devices.
- Long Life: High-quality components support continuous, reliable operation in demanding environments.
Common applications:
- Vacuum lifters/suction cups
- Sprayers and atomizers
- Water purification systems
- Agricultural sprayers (drones, boom sprayers)
- Disinfectant spray systems
- Ink circulation pumps/inkjet printers
- Closed-loop water cooling circuits
- Medical equipment (suction, delivery, sampling)
- Beverage dispensing devices
- Automotive air pumps (inflator pumps, vacuum-assisted pumps)
- Packaging machinery (vacuum sealing, filling)
- Vacuum therapy equipment
- Air and gas detection instruments
Manufacturer information:
- Brand: JSG
- Company: Shenzhen Jingsuguang Technology Co., Ltd.
- Origin: China
- Certification: ISO9001, CE, RoHS, REACH, FCC
Established in 2003, JSG DC PUMP develops and manufactures miniature piston, diaphragm, vacuum, air, and liquid pumps for OEM equipment. We support pump selection, sample validation, customization, and mass production for medical, laboratory, industrial, beauty, and appliance applications.
📧 For OEM services or custom pump solutions, visit: dc-pump.com
- Product Features:
The JSG-07 miniature piston pump is designed for air and vacuum applications and provides a 12V or 24V DC power supply. Brushed or brushless motors are optional. The flow range is 15-40 l/min, the maximum pressure can reach 6.5 bar, and the vacuum can reach -85 kPa. Its compact size is 108×85.5×43 mm, and the weight is less than 600 g. - Product Highlights
This miniature piston pump has low noise (≤70 dB), long service life (up to 3000 hours of brushless motor life), and stable output performance. The aluminum pump head and EPDM diaphragm ensure durability and chemical resistance under harsh conditions. - Selling Points
The JSG-07 series is widely used in medical suction, vacuum therapy, gas detection, laboratory instruments, beauty equipment, and beverage systems, supporting OEM customization, fast delivery, and low MOQ, and is a trusted choice for manufacturers and solution integrators.
