Product Overview

The BD-08A/V-S is a compact DC piston air pump designed for both pressure and vacuum applications. With a maximum pressure of 6 bar, a free flow rate up to 45 L/min, and maximum vacuum up to -85 kPa, this model is suitable for OEM equipment that requires strong air output, reliable suction, and long service life.

Unlike ordinary small DC air pumps, the BD-08A/V-S utilizes a brushed DC motor with PWM speed control.This enables customers to achieve precise speed regulation and stable performance in their customized systems.Its aluminum alloy pump body and FKM valve material make it suitable for demanding air and gas applications.

Core Selling Points of This Mini Compressor Vacuum Pump

• The BD-08A/V-S provides high-pressure output up to 6 bar for compact air compression and pneumatic systems.
• Its high airflow, with a free flow rate up to 45 L/min and maximum pressure up to 6 bar, provides fast inflation while maintaining a compact form factor.
• It also functions as a vacuum pump, delivering up to -85 kPa for suction and negative pressure applications.
• The PWM-controlled DC motor enables adjustable performance for OEM systems.
• Its compact aluminum alloy structure ensures durability and heat resistance while saving equipment space.
• With a rated lifetime of over 1000 hours, it provides the long-term reliability required for OEM equipment.

What Are the Key Specifications of This Mini Compressor Vacuum Pump?

What Are the Dimensions and Installation Details?

The BD-08A/V-S has a compact structure with an overall dimension of 145 × 97 × 67.4 mm and a weight of about 1000 g. It can be integrated into compact pneumatic systems, portable equipment, and customized OEM products.

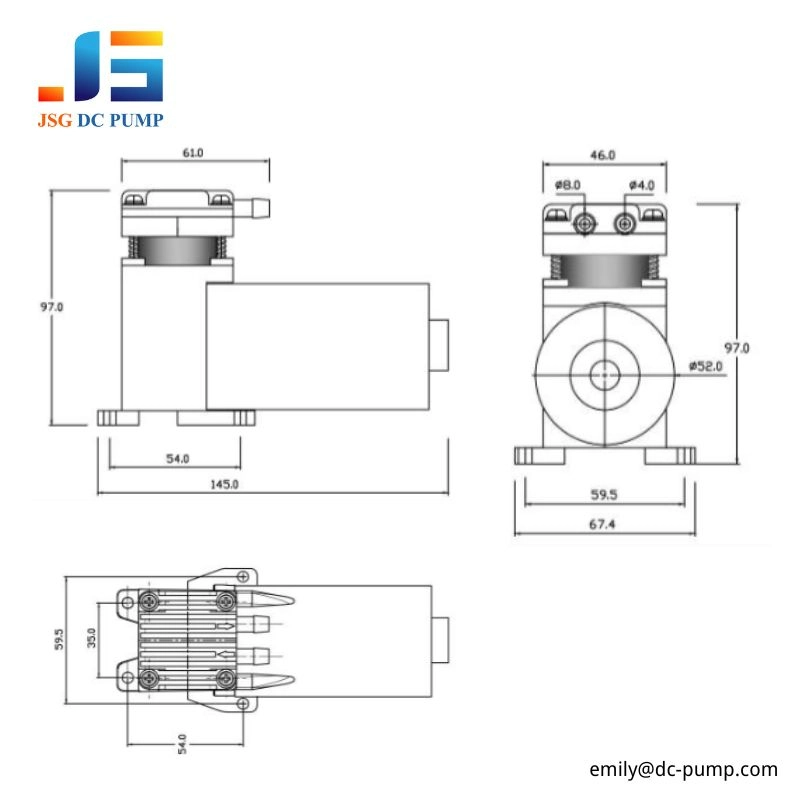

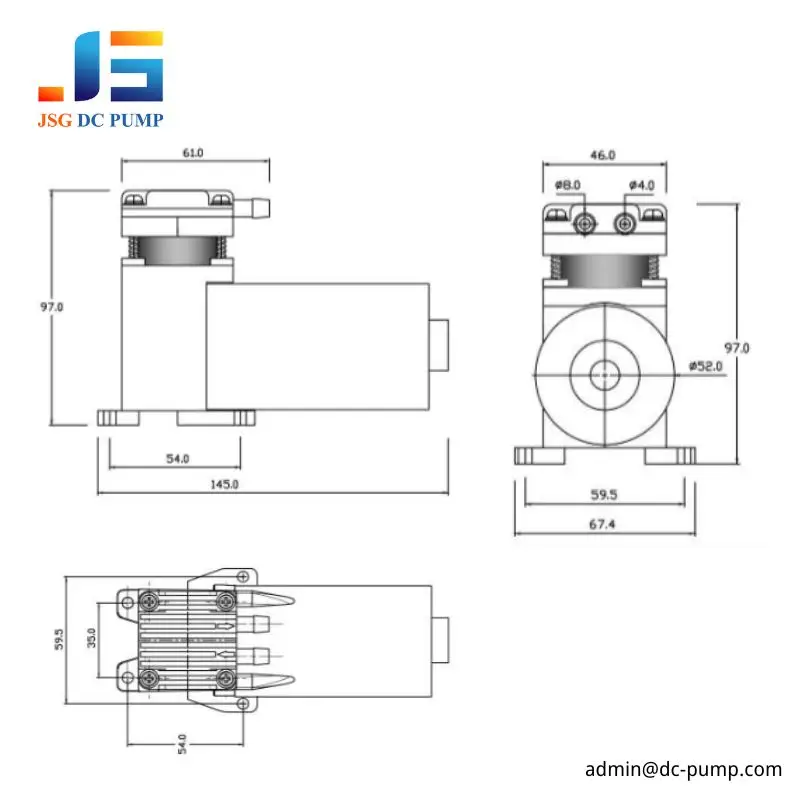

BD-08-S Dimensional Drawing

Which Media and Materials Is This Mini Compressor Vacuum Pump Compatible With?

We designed the BD-08A/V-S mainly for air and gas transfer (including pressure supply and vacuum suction) and do not recommend it for direct liquid transfer. If the working medium contains moisture, oil mist, chemical gas, or particles, confirm material compatibility and filtration before making a final selection.

Standard EPDM

Enhanced FKM

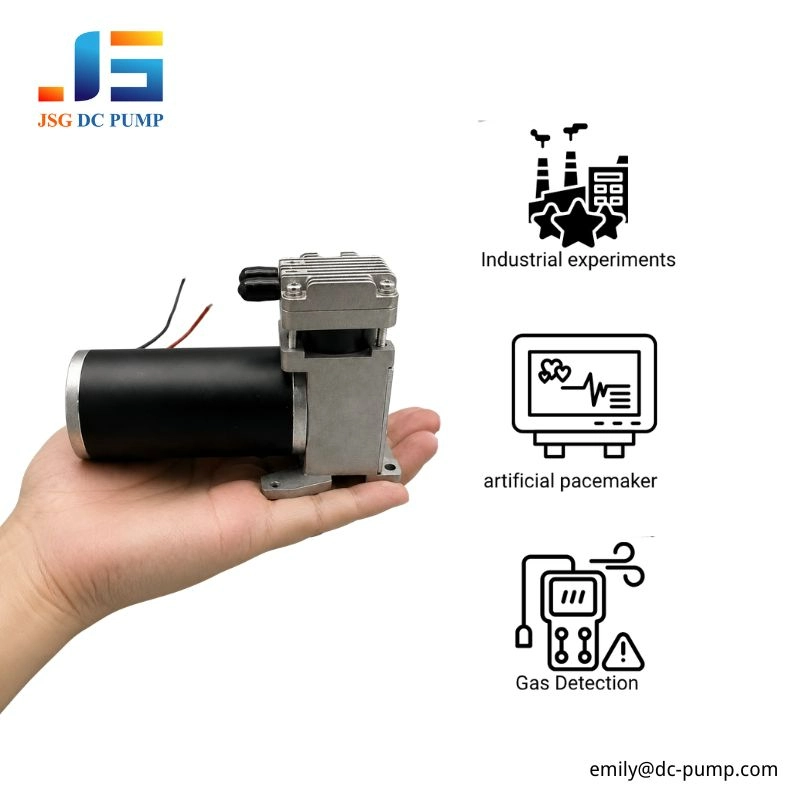

What Applications Is This Mini Compressor Vacuum Pump Suitable For?

OEM Pneumatic Equipment

The DC motor and PWM control make this pump suitable for OEM equipment that needs adjustable airflow or pressure. Customers can use the PWM function to match different working modes.

Testing and Laboratory Devices

The pump serves as a compact pressure or vacuum source. It is ideal for testing devices, pneumatic inspection equipment, and gas transfer systems that require stable air performance.

How Do I Choose the Right Version of This Pump?

1.If your application mainly needs positive pressure, fast inflation, or air compression, choose the BD-08A-S pressure version. It is suitable for systems that need up to 6 bar pressure.

2.If your application mainly needs negative pressure, suction, or air extraction, choose the BD-08V-S vacuum version. It can reach up to -85 kPa vacuum.

3.For industrial and OEM equipment, 24V is usually easier to integrate and may provide more stable system performance under load.

4.For portable products or battery-powered equipment, the 12V version can be considered, depending on the battery pack, current limit, and working duty cycle.

5.If your product needs different airflow, suction, or pressure levels, PWM control is recommended. It allows better system control and user experience.

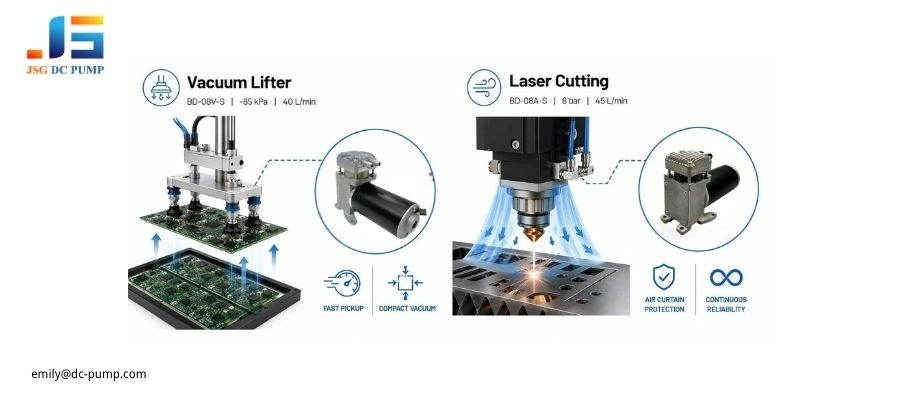

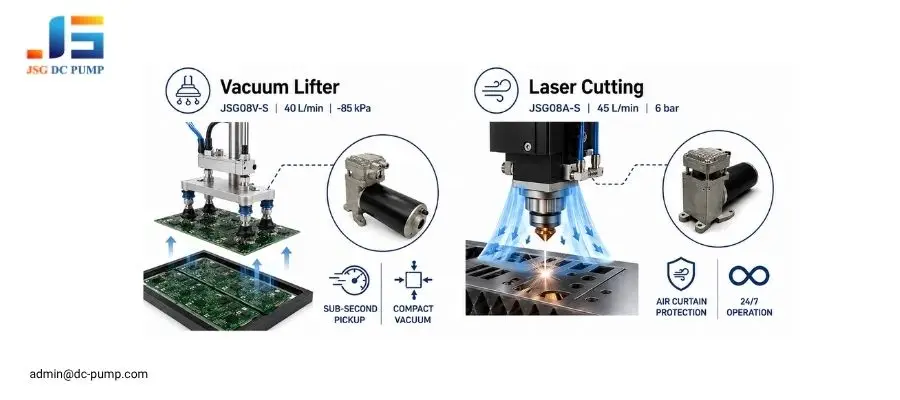

Real Project Cases Using This Mini Compressor Vacuum Pump

1.Vacuum Lifter

To power a compact, high-speed vacuum lifter for handling delicate circuit boards, a client required a pump with high vacuum and fast evacuation. We provided our BD-08V-S, a 24V DC pump with PWM control that delivers a powerful vacuum of -85 kPa at an airflow rate of 40 L/min. This solution allowed the client’s system to achieve sub-second pickup times, significantly increasing production throughput. Additionally, it met all design requirements for size and performance.

2.Laser Cutting System

A client needed to create a continuous protective air curtain for the optics in a high-precision laser cutting system. To accomplish this, they required a compact and highly durable pump capable of 24/7 operation. We provided our BD-08A-S, a 24V DC piston air pump that delivers airflow up to 45 L/min and pressure capability up to 6 bar. This solution effectively shielded expensive lenses from debris, which significantly extended their operational lifespan and reduced maintenance costs. It also perfectly met the design’s strict size and reliability requirements.

Files and Technical Documents

BD-08V-S

Why Work With JSG DC PUMP as Your OEM Pump Supplier?

Professional Micro Pump Manufacturer–DC-PUMP focuses on miniature air pumps, vacuum pumps, liquid pumps, diaphragm pumps, and piston pump solutions for OEM equipment.

Engineering-Based Model Selection–In addition, our team helps customers choose suitable pump models according to real system load, working flow, pressure, vacuum, noise, lifetime, and installation requirements.

Stable Quality Control–This allows us to verify the pump’s performance, appearance, air-tightness, and basic parameters before delivery, ensuring more reliable project use.

OEM / ODM Support–Moreover, we can support voltage selection, material options, tubing direction, wiring requirements, speed control, and other customization needs according to project conditions.

Project Sampling Support–Before mass production, customers can test samples under their real equipment structure to confirm airflow, vacuum, pressure, vibration, and working stability.

Export Experience–At the same time, DC-PUMP supplies micro pump products for medical devices, laboratory equipment, beauty instruments, industrial automation, pneumatic modules, gas systems, and other OEM applications.

Ready to integrate the high-performance BD-08 pump into your design? Our engineering team is on standby to discuss your application, provide samples for validation, and help you configure the perfect solution. Contact us today to start your OEM project. Find out more at: emily@dc-pump.com
