Product Overview

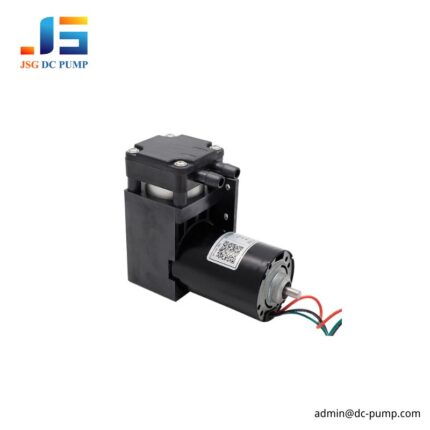

The BD-07A/VB-M series is a compact brushless micro piston pump platform for OEM projects requiring stronger pressure, deeper vacuum, stable gas transfer, and long-term output consistency.
This series includes:
BD-07AB-M → pressure type brushless DC piston air pump
BD-07VB-M → vacuum type brushless DC piston vacuum pump
The pressure version is used for air delivery, pressure generation, and pneumatic support, while the vacuum version is used for suction, gas extraction, and vacuum holding. BD-07A/VB-M provides stronger output than smaller compact pumps while keeping a practical size for gas sampling, laboratory, beauty, industrial vacuum, and OEM equipment.
Core Selling Points of This Brushless DC Piston Air Pump and Vacuum Pump
1. Reliable Brushless Motor for Repeated OEM Operation
2. Medium-High Flow Capacity for Stable Gas Movement
3. Strong Pressure Reserve for Compact Air Pump Systems
4. Deep Vacuum Capability for Suction and Holding Tasks
5. Flexible 12V / 24V Design for Different Equipment Platforms
What Are the Key Specifications of This Brushless DC Piston Pump?
| Product Model | BD-07AB-M | BD-07VB-M |
| Pump Type | Mirco Piston pump | |
| Voltage | 12V / 24V | |
| Max Flow | 15–40 L/min | |
| Max Pressure | 4.5–6.5 bar | / |
| Max Vacuum | / | -80 to -85 kPa |
| Power | 24–50 W | |
| Noise | 60–70 dB | |
| Motor Type | Brushless motor | |
| Life Expectancy | 3000 hours | |
| Weight | Approx. 560 g | |
| Dimensions | Approx. 107 × 85.5 × 43 mm | |
| Media | Air / clean gas | |
| Wetted Materials | EPDM / FKM | |
| Working Mode | Intermittent / continuous depending on load point | |
How Does This Brushless DC Air Pump and Vacuum Pump Perform Under Real Load?
BD-07A/VB-M should be selected based on real working conditions, because tubing, valves, filters, leakage, and outlet resistance can affect actual flow, pressure, vacuum recovery, heat, and noise.

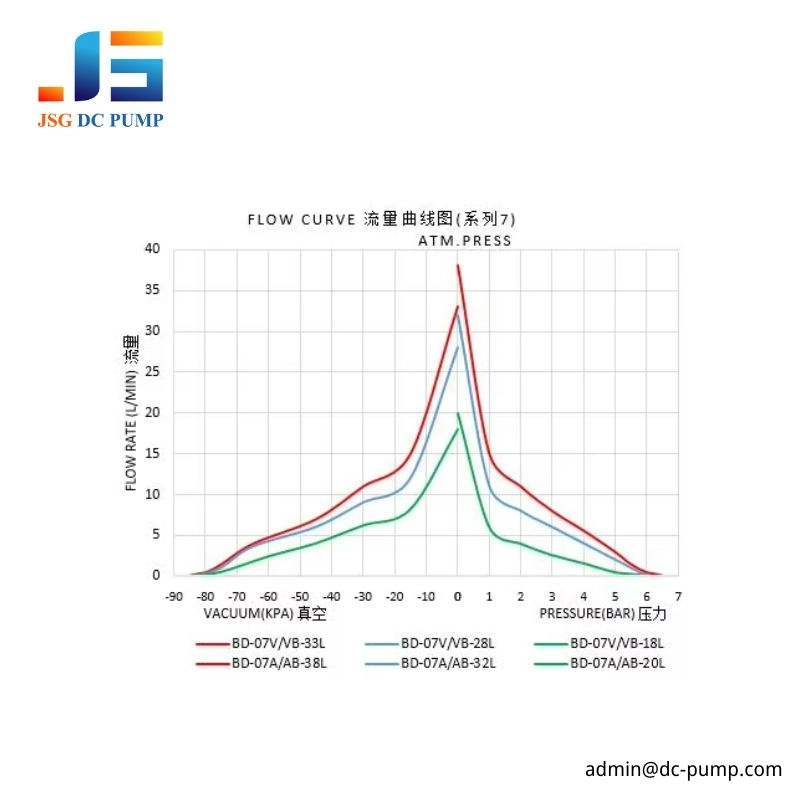

BD-07A/VB-M Flow vs Pressure vs Vacuum
What Are the Dimensions and Installation Details?
BD-07A/VB-M should be installed with enough space for tubing, wiring, airflow, and heat dissipation. Use suitable tubing, soft mounting, and inlet filtration when needed, then test noise and heat after final assembly.

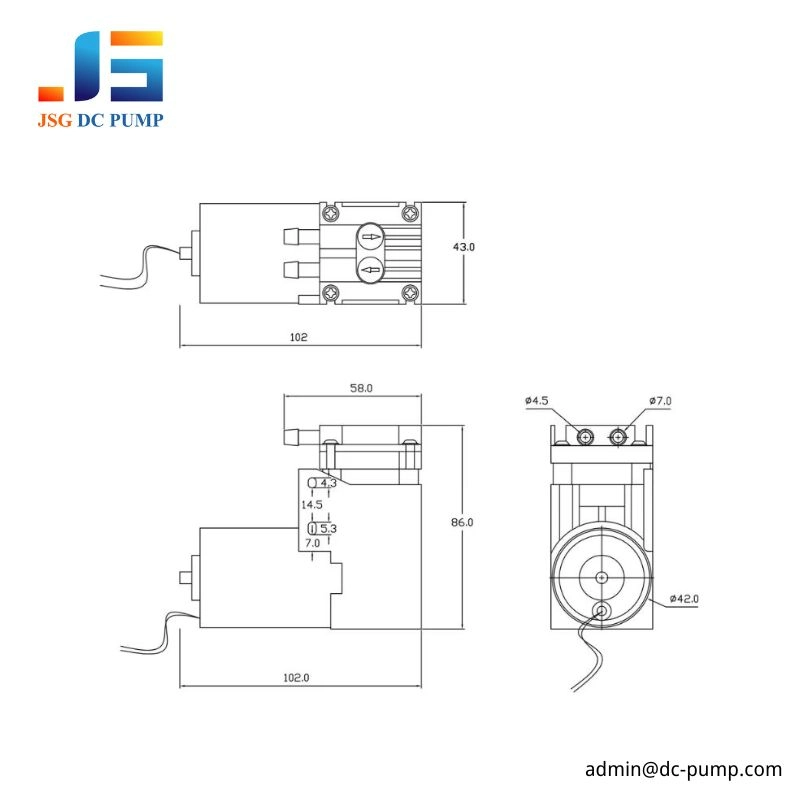

BD-07A/VB-M Dimensional Drawing
Which Media and Materials Is This Brushless DC Piston Pump Compatible With?
The BD-07A/VB-M series is mainly designed for air and clean gas transfer. It is not intended for direct liquid pumping. Before final selection, engineers should confirm gas type, humidity, temperature, chemical exposure, duty cycle, and expected lifetime.
Standard EPDM
| Media Type | Notes |
| Clean air | Suitable for normal air delivery, suction, and pneumatic systems |
| Dry gas | Suitable for many general gas-transfer applications |
| Mild moisture air | Can be considered when corrosion and swelling risk are low |
Enhanced FKM
| Media Type | Notes |
| Inert gas | Suitable when better sealing durability is required |
| Mild chemical gas | Better resistance than standard EPDM in many conditions |
| Higher temperature air path | Can improve material stability in demanding environments |
What Applications Is This Brushless DC Air Pump and Vacuum Pump Suitable For?
The BD-07A/VB-M series is suitable for OEM equipment that needs stronger pressure output, stronger vacuum suction, or more stable gas transfer than smaller compact pump platforms.
1. Industrial Vacuum and Holding Systems
Some industrial devices need vacuum suction for holding, positioning, adsorption, or small vacuum modules. BD-07VB-M provides strong vacuum capability for compact systems that need faster recovery, better suction reserve, and stable holding performance.
2. Compact Pneumatic and Pressure Equipment
BD-07AB-M is suitable for small pneumatic modules, air-assisted equipment, pressure support systems, and industrial gas transfer devices, especially when enough pressure reserve is needed to overcome valves, nozzles, long tubing, or other outlet resistance.
How Do I Choose the Right Version of This Custom DC Pump?
1. If the system needs vacuum suction, choose BD-07VB-M.
2. If the product runs frequently, choose the brushless version for better repeated-use stability.
3. If the equipment needs adjustable output, consider PWM control.
4. If the gas contains moisture, residue, or chemical components, confirm EPDM or FKM material options.
5. If the pump is installed inside a compact housing, test noise, heat, and vibration under real load.
Real Product Cases Using This Brushless DC Piston Air Pump and Vacuum Pump
Case 1: Gas Sampling Analyzer Project
An OEM customer used BD-07AB-M for a gas sampling analyzer that required stable gas transfer through tubing, filters, and sensor resistance. With its brushless motor, 12V / 24V options, 15–40 L/min flow range, and optional FKM sealing, the pump provided better output reserve and helped improve sampling stability after real tube and filter testing.
Case 2: Vacuum Suction Module for Beauty Equipment
A beauty equipment manufacturer used BD-07VB-M for a suction treatment module requiring stronger vacuum recovery and adjustable output. With up to -85 kPa vacuum, PWM control, and soft mounting, the pump helped improve vacuum buildup, suction stability, noise control, and overall treatment comfort after system-level testing.
BD-07 Files and Technical Documents
Why Work With DC-PUMP as Your OEM Pump Supplier?
Professional Micro Pump Manufacturer–DC-PUMP focuses on miniature air pumps, vacuum pumps, diaphragm pumps, piston pumps, and OEM pneumatic solutions for industrial equipment, laboratory instruments, beauty devices, gas sampling systems, and portable equipment.
Engineering-Based Model Selection–We help customers evaluate flow, pressure, vacuum, noise, heat, duty cycle, material compatibility, and installation space before final pump selection.
Stable Quality Control–Pump performance can be checked according to key output requirements such as flow, pressure, vacuum, current, noise, sealing performance, and running stability.
OEM / ODM Support–We support customization of voltage, wiring, connector type, sealing materials, pump structure, control method, and performance matching according to real equipment requirements.
Project Sampling Support–We support sample preparation for prototype testing, performance validation, and OEM project development before mass production.
Export Experience–DC-PUMP products are used by customers in different industries and export markets for long-term equipment integration projects.
If you need a brushless DC piston pump for gas sampling, vacuum suction, pressure output, or OEM pneumatic equipment, DC-PUMP can support model selection and customization. Contact us at admin@dc-pump.com.
