JSG-79 Micro Air Pump | High Vacuum Pressure

JSG-79 Micro Air Pump – High Pressure Vacuum Piston Pump

1. Product Specifications
The JSG-79 series micro air pump is a high-performance diaphragm pump offering flow rates from 40 to 50L/min. It supports up to 7Bar pressure and -85kpa vacuum. Powered by a 12V or 24V brush motor with 1000-hour lifespan, the unit weighs approximately 800g and is ideal for integration into compact devices.

2. Key Features

High Flow Rate: Delivers up to 50L/min for efficient air transfer.
Strong Vacuum: Achieves up to -85kpa for precision suction tasks.
Quiet Operation: Low noise level of 68–75dB for noise-sensitive environments.
Compact Structure: Space-saving design for easy system integration.
Versatile Voltage: Compatible with 12V and 24V power input.

3. Selling Points
This micro air pump is ideal for applications requiring consistent airflow, reliable vacuum generation, and quiet performance—such as in medical devices, laboratory instruments, vacuum fixturing systems, and air sampling equipment. Its diaphragm mechanism ensures corrosion resistance and maintenance-free operation, making it a trusted vacuum pump for industrial and research environments.

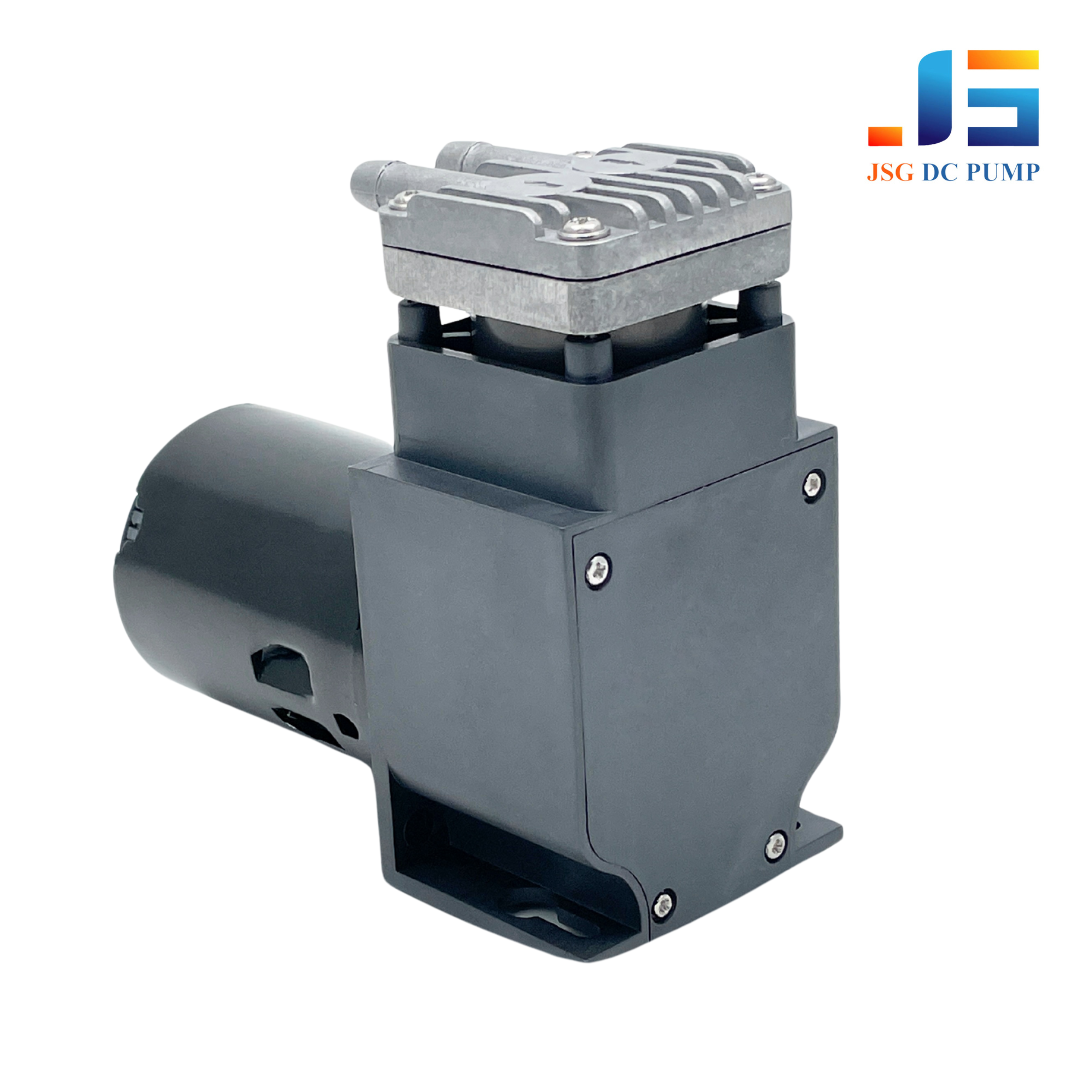

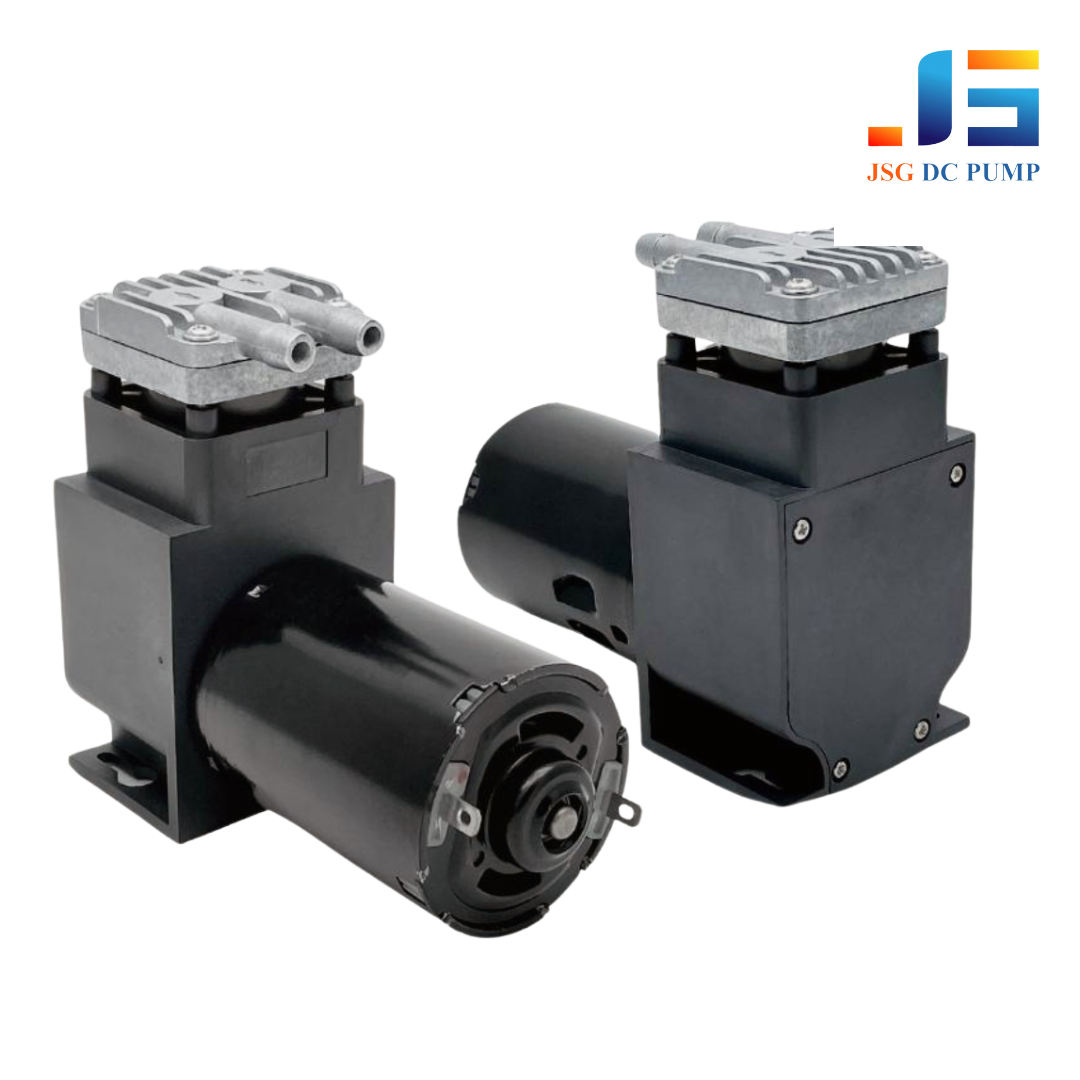

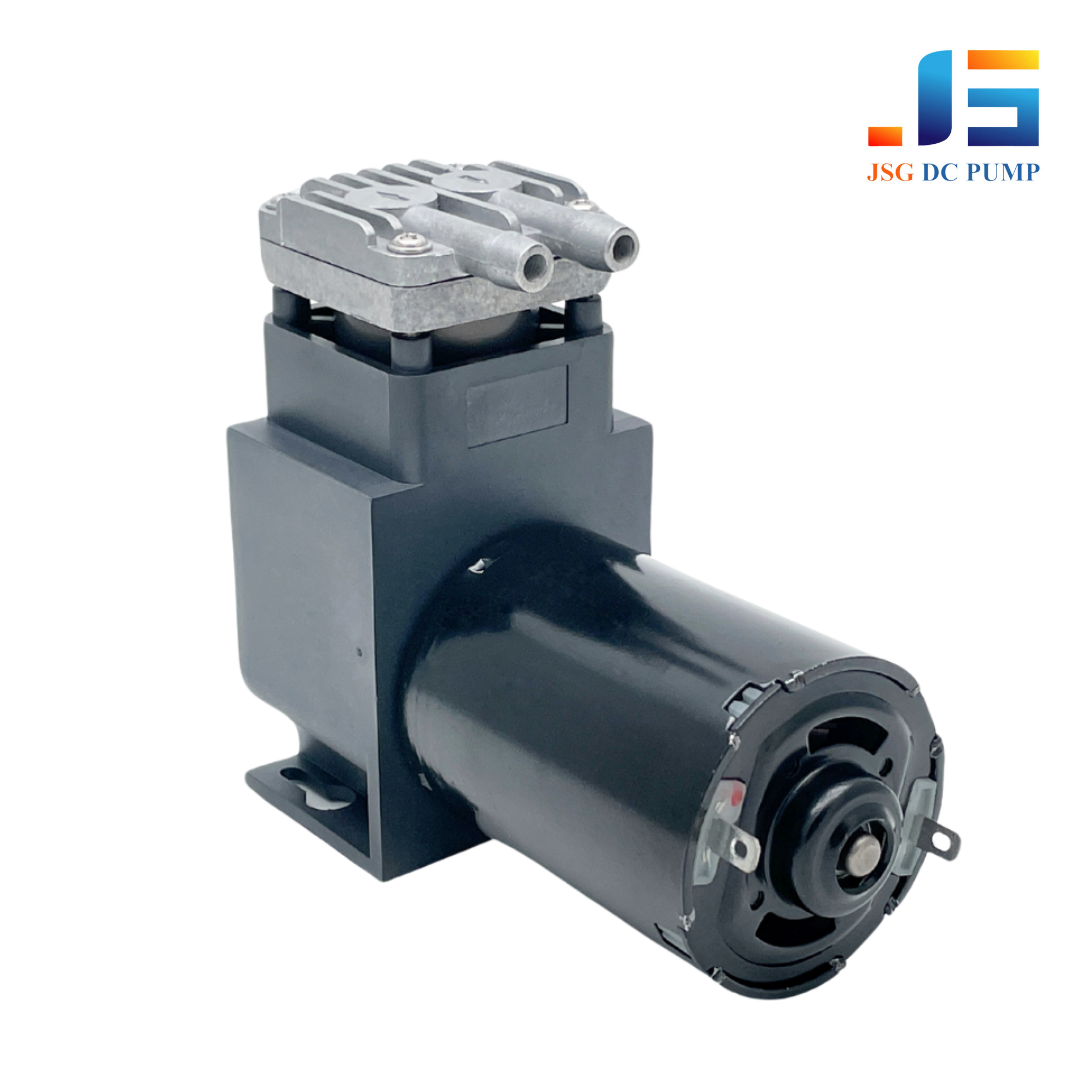

JSG-79 Series Miniature Piston Pump

The JSG-79 micro air pump is a compact and efficient solution for a wide range of air transfer applications. Engineered for reliability and low noise, it is ideal for use in medical, industrial, and consumer devices. With its lightweight design and powerful performance, the JSG-79 micro air pump ensures consistent airflow while maintaining energy efficiency. Durable construction and easy integration make it a top choice for precision-driven projects.

JSG-79 micro air pump

Customization Range: Flow 40–50L/min, Pressure 5–7bar, Vacuum -85kPa, Power 50–70W

🔧 Construction Principle

The JSG-79 series miniature piston pump uses a brushed DC motor to drive a piston through an eccentric mechanism. As the piston moves back and forth inside the cylinder, it draws in and compresses air, generating positive pressure or vacuum depending on the pump configuration.

⭐ Key Features

Feature	Specification
Flow Rate	40–50L/min
Max Pressure	5–7 bar
Vacuum Level	-85 kPa
Power	50–70 W
Motor Type	DC Brush Motor
Voltage	12V / 24V
Noise Level	68–75 dB
Lifetime	≥1000 hours
Weight	800g
Material	Nylon pump body, EPDM valve

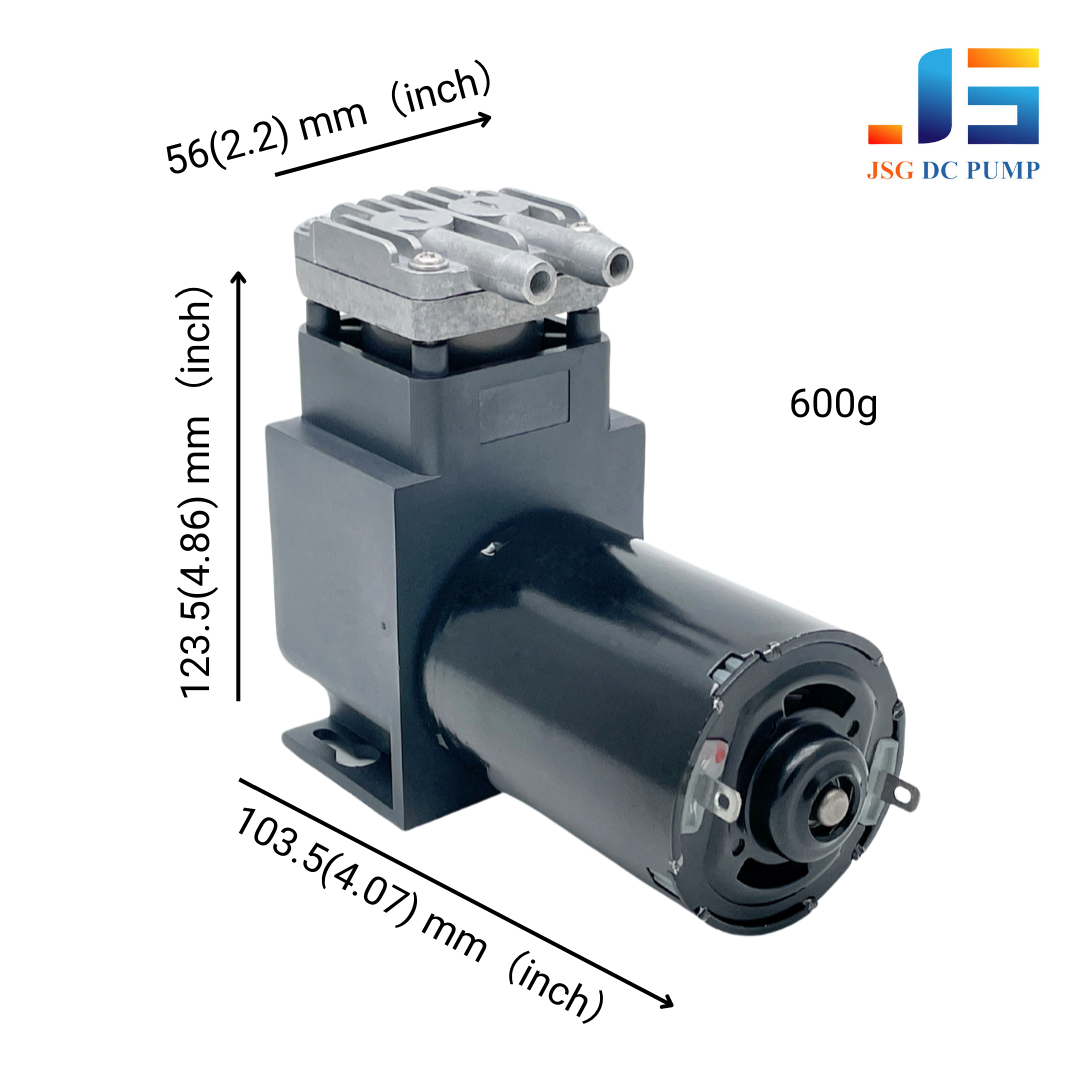

Dimensions	123 × 103.5 × 56 mm (4.86 × 4.07 × 2.20 in)

📦 Model Options

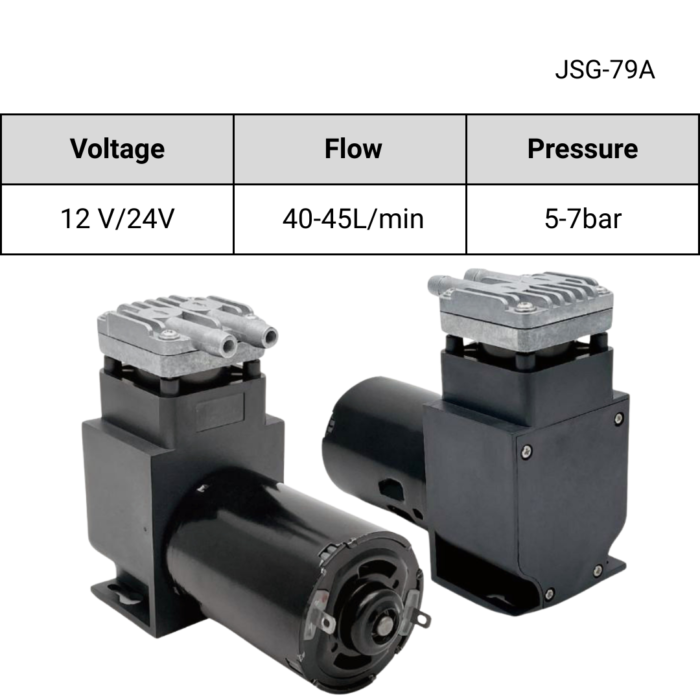

🔹 JSG-79A-M Series – Air Pump (Positive Pressure)

Model	Flow Rate (@0bar)	Max Pressure
JSG-79A-M-40L	40 L/min	7 bar
JSG-79A-M-45L	45 L/min	7 bar
JSG-79A-M-50L	50 L/min	7 bar

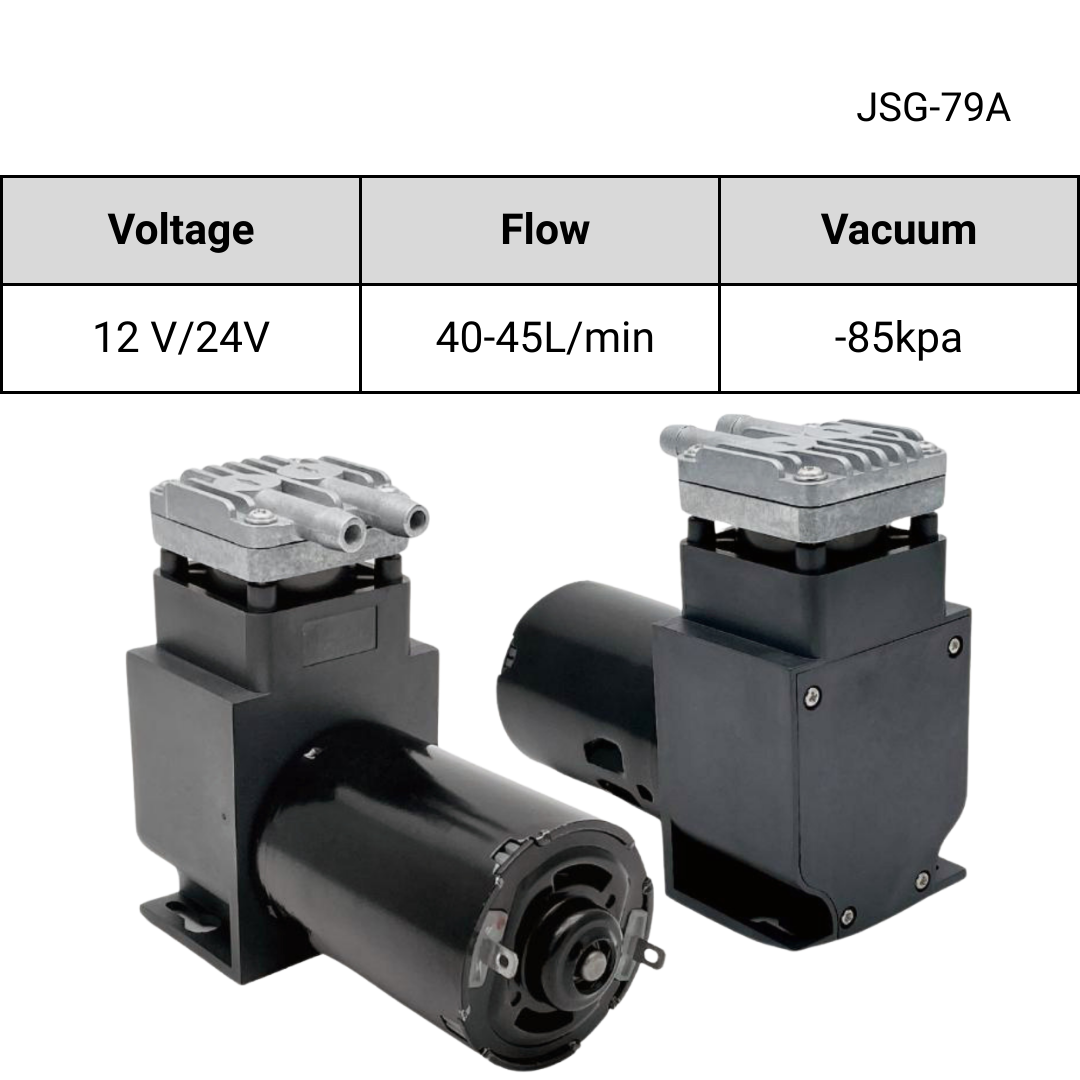

🟠 JSG-79V-M Series – Vacuum Pump (Negative Pressure)

Model	Flow Rate (@0kPa)	Max Vacuum
JSG-79V-M-35L	35 L/min	-85 kPa
JSG-79V-M-40L	40 L/min	-85 kPa
JSG-79V-M-45L	45 L/min	-85 kPa

🧩 Application Scope

Thanks to its compact design, high flow, and robust vacuum capability, the JSG-79 series is suitable for a wide range of professional and industrial fields, including:

Massage chairs & beds
Electric paint sprayers
Coffee machines, juicers, and smart cookers
Medical devices & dental instruments
Facial sprayers, nebulizers, beauty equipment
Gas detectors, analyzers
Emergency equipment & pacemakers
Vacuum suction cups & lifting systems
Smart printers, automation robotics
Cryolipolysis machines, pesticide sprayers, and sterilizers
Industrial labs, aerospace tools, and pressure calibration instruments

📞 Customization & Support

Shenzhen Precision Plastic Optical Technology Co., Ltd. offers flexible customization in terms of flow, voltage, motor type (brushed/brushless), and control (PWM optional). Feel free to contact us for tailored solutions.
