Micro Diaphragm Pump, Water Pump, JSG-03 Series, 6V/12V/24V, Flow Rate 400-700 mL/min, Max Vacuum -30kPa, 50dB Noise, EPDM/FKM Material, Suitable for Medical and Industrial Equipment

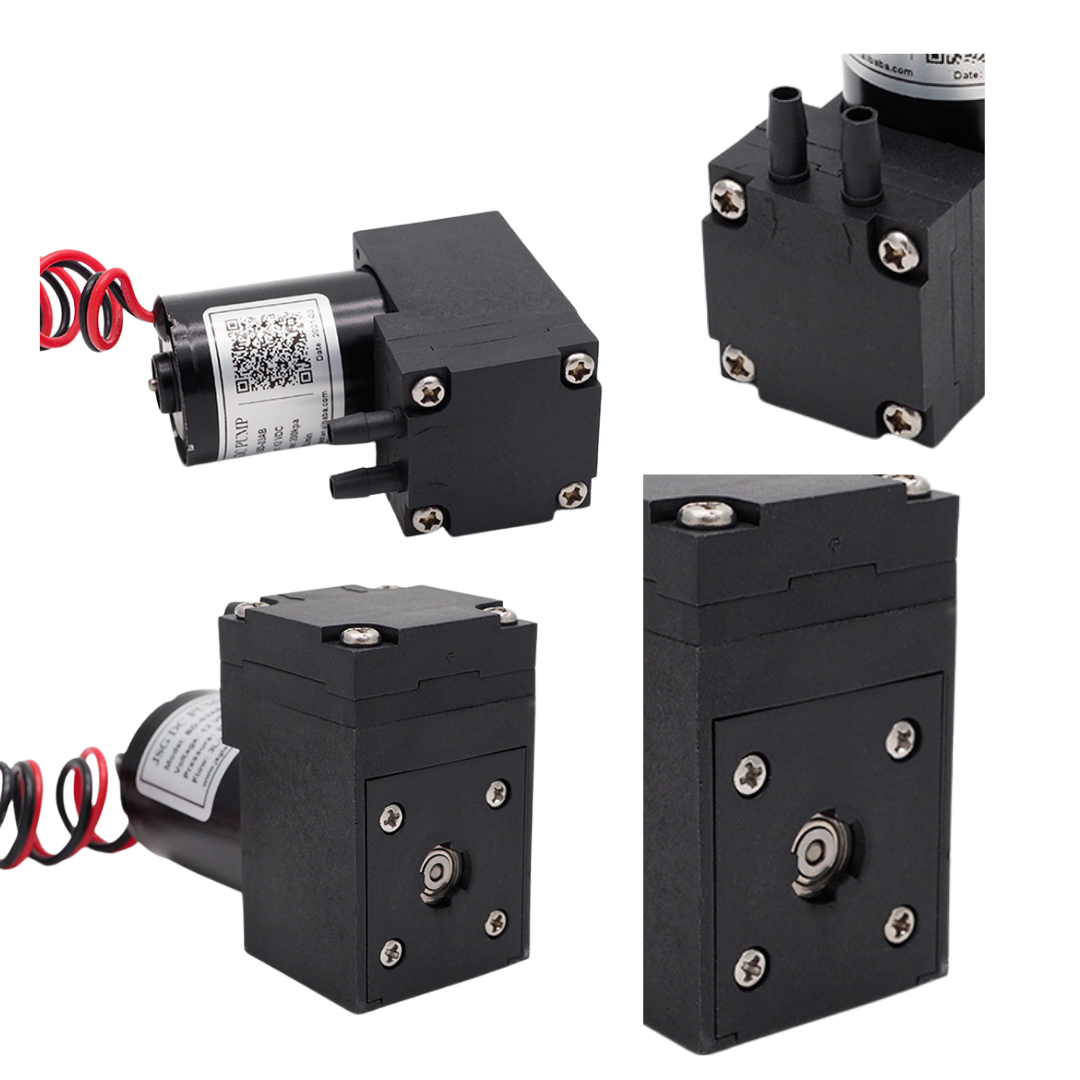

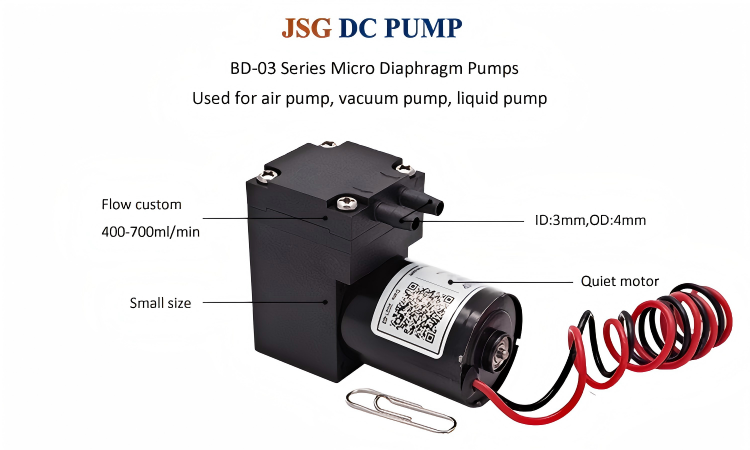

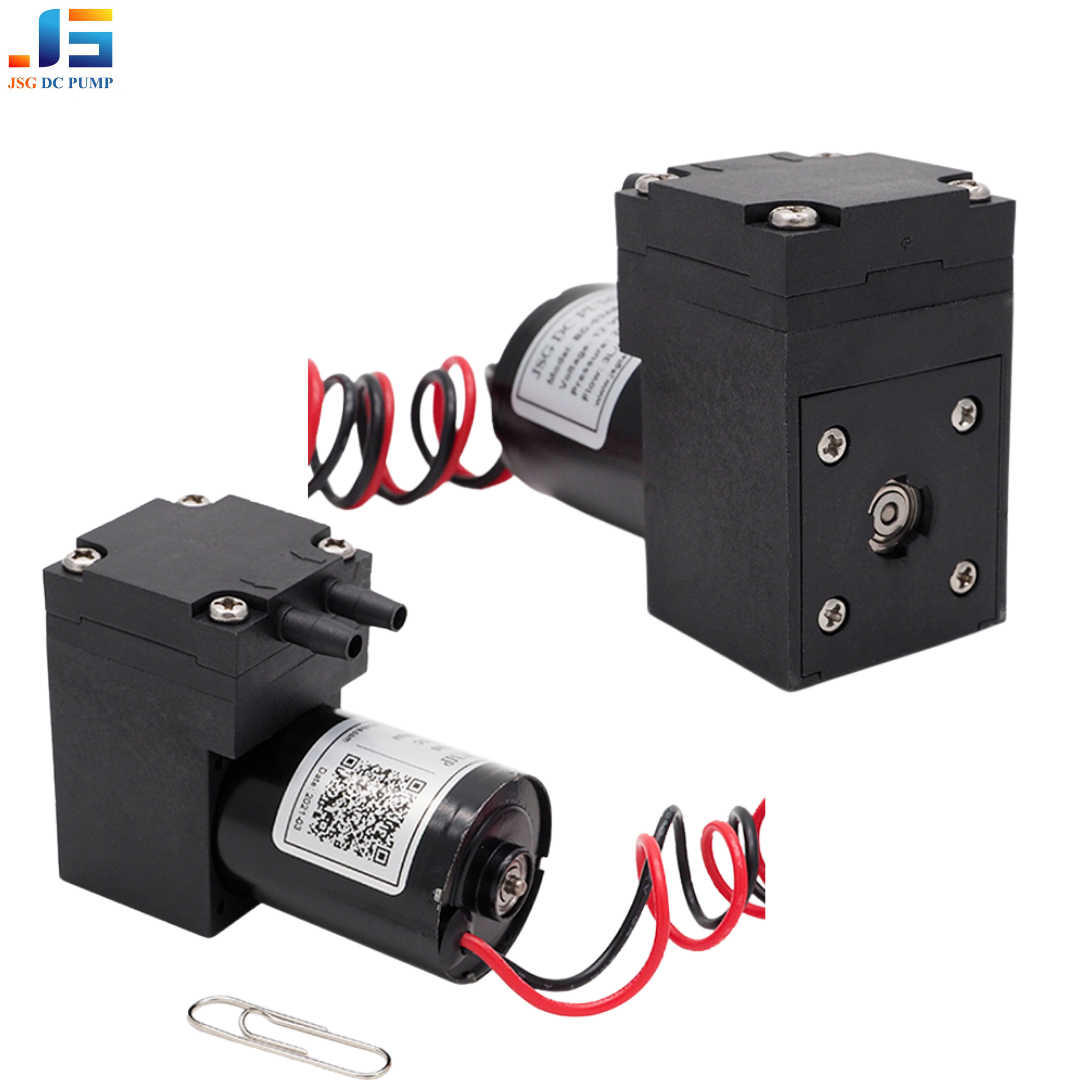

JSG-03 Series Micro Diaphragm Pumps

The JSG-03 Series Micro Diaphragm Pumps are designed for precision fluid handling across a wide range of applications. These pumps offer superior performance with their brushless motor, available in 6V, 12V, and 24V versions. Built with EPDM and FKM diaphragms, they ensure reliable performance in environments that demand low noise and high efficiency. With a max vacuum of -30 kPa and a flow range of 400-700 mL/min, the JSG-03 series is perfect for applications such as vacuum lifting, misting, water filtration, and more.

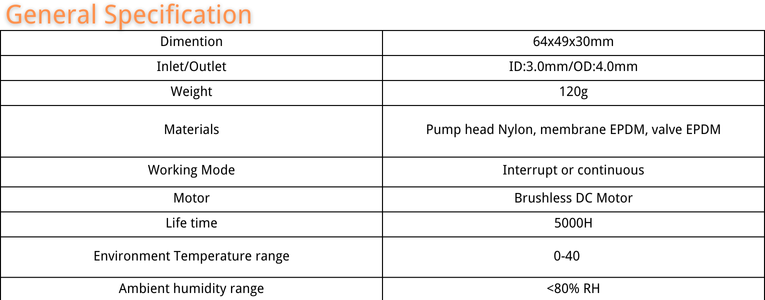

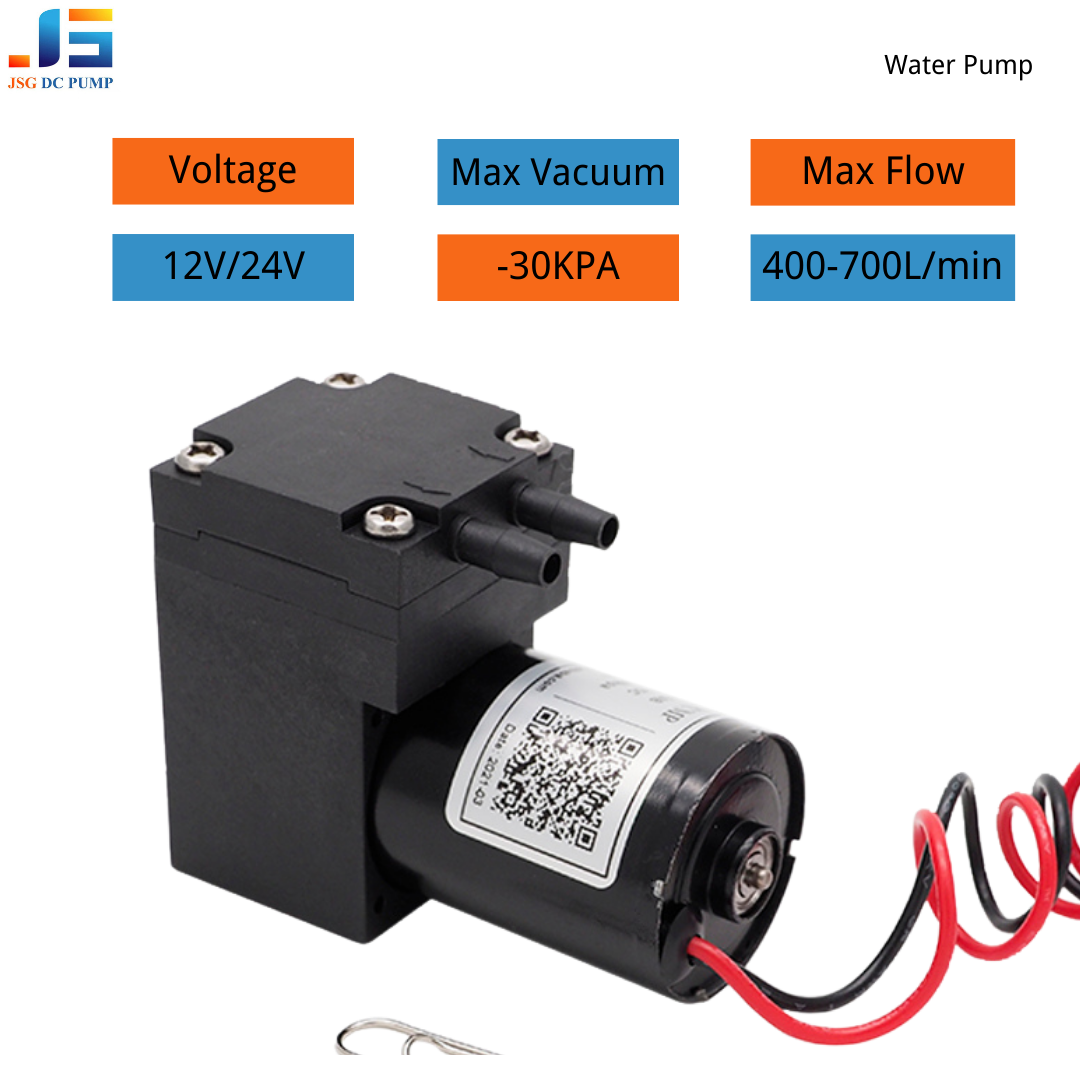

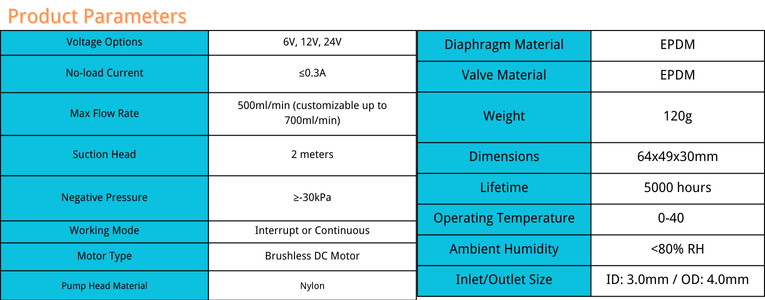

JSG-03 Series Technical Specifications:

• Name: Micro Diaphragm Pump

• Model: JSG-03W (Brush) / JSG-03WB (Brushless)

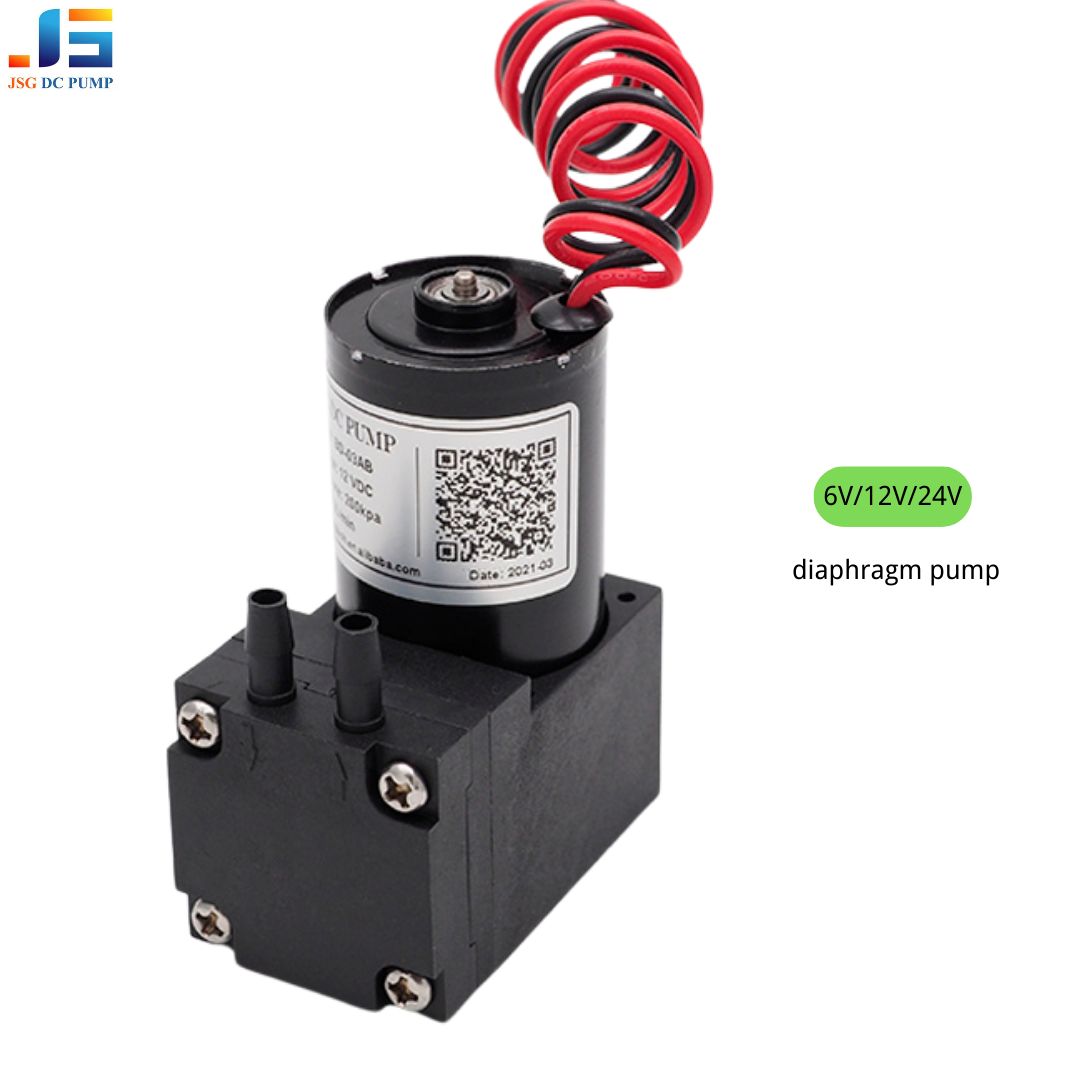

• Rated Voltage: 6V, 12V, 24V

• Current: ≤0.5A (approx.)

• Max Vacuum: ≥-30 kPa ( -0.03 MPa / -225 mmHg)

• Max Flow (Water): 400–700 mL/min

• Noise: 50 dB

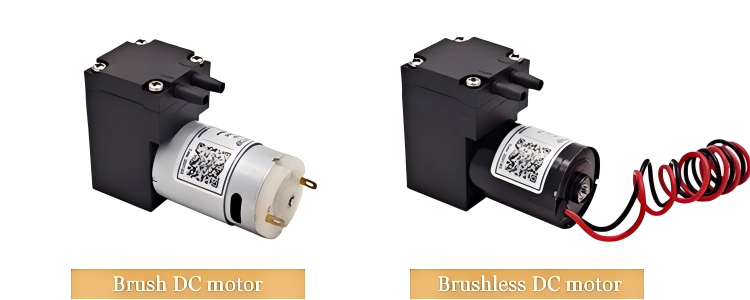

• Motor Type: Brushless motor (JSG-03W) / Brush motor (JSG-03WB)

• Diaphragm Material: EPDM, FKM

• Life Time: 5000 hours (Brushless motor) / 1000 hours (Brush motor)

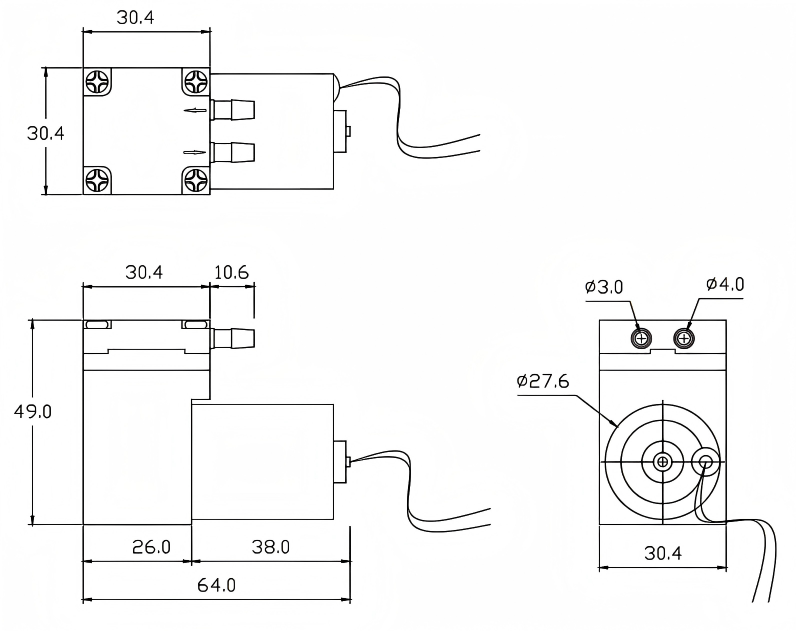

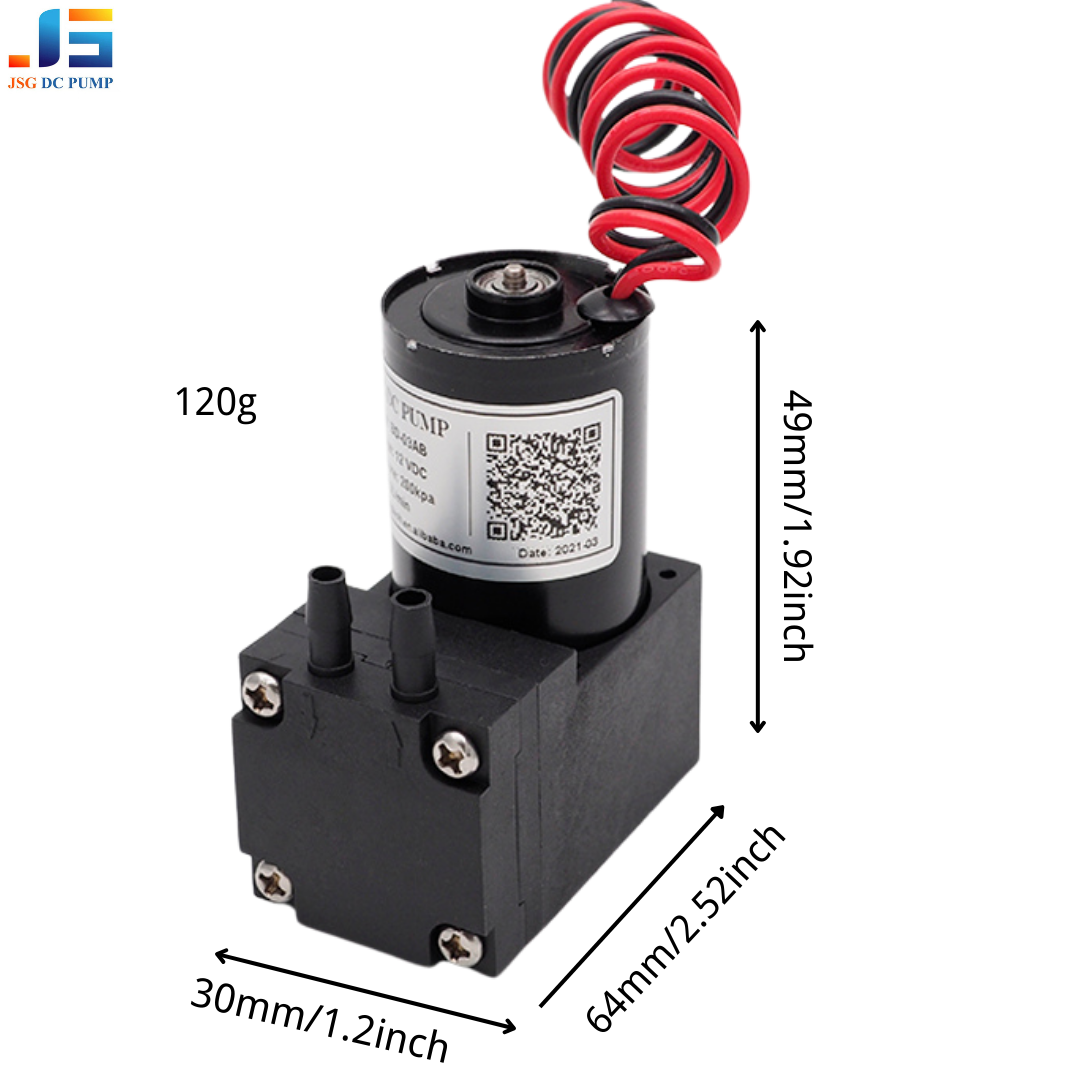

• Dimensions: 64 x 30 x 32 mm (approx.)

• Weight: 120g (Brushless) / 140g (Brush motor)

• Environment Temperature Range: 0~40°C

• Ambient Humidity Range: ＜80%

Key Features of JSG-03 Series Micro Diaphragm Pump:

1. Versatile Voltage Options: Available in 6V, 12V, and 24V to meet various system requirements.

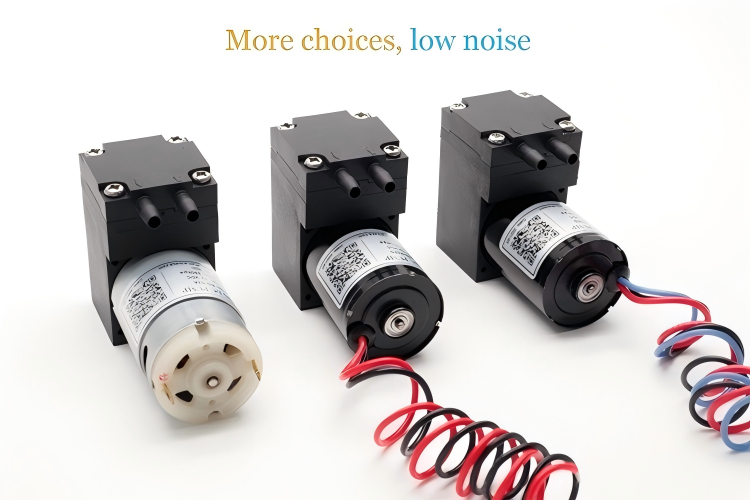

2. Low Noise Operation: Produces only 50dB, making it ideal for applications where noise reduction is critical.

3. Long Lifespan: The brushless motor offers up to 5000 hours of reliable operation.

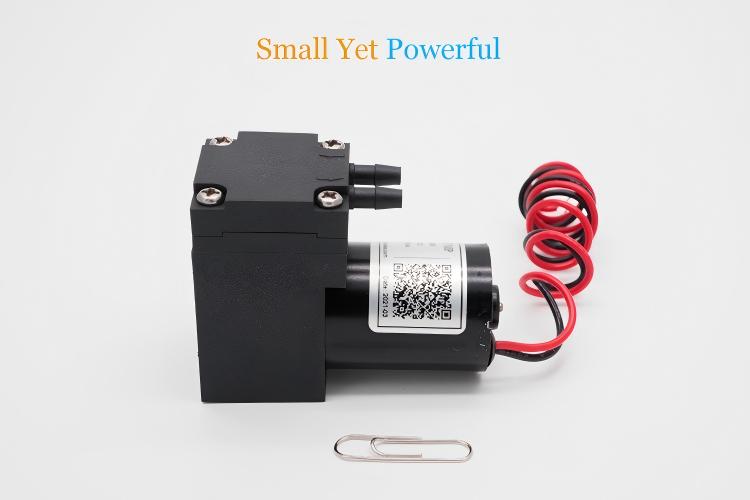

4. Compact Design: Its small footprint makes it easy to integrate into tight spaces and systems.

5. Durability and Efficiency: Built to withstand rigorous conditions with EPDM and FKM diaphragms that ensure long-lasting performance.

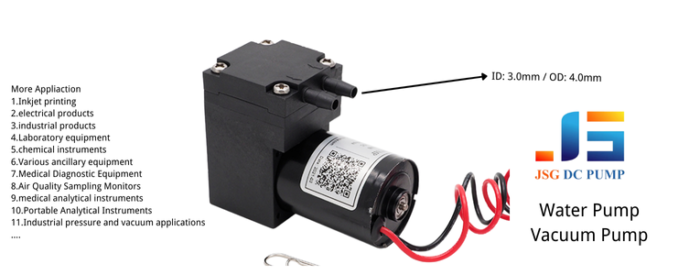

Common Applications:

• Vacuum Lifting: Ideal for material handling and lightweight item lifting.

• Misting Pumps: Perfect for fogging and humidification in industrial, medical, and beauty applications.

• Water Filtration Systems: Reliable for use in water filtration and purification devices.

• Pesticide Spraying: Used in agricultural drones and sprayers for precise chemical delivery.

• Mist Disinfection: Works in misting disinfecting systems for both industrial and medical environments.

• Ink Pumps: Essential for ink circulation in printers and printing machinery.

• Medical Devices: Powers various devices requiring fluid transfer or vacuum generation.

• Beverage Dispensers: Efficient for fluid control in drink dispensers and vending machines.

• Automotive Air Pumps: Used for tire inflation and air systems.

• Packaging Machines: Supports fluid transfer and vacuum sealing in packaging systems.

• Vacuum Therapy: Operates in medical vacuum systems for therapeutic use.

• Gas Detection: Ensures accurate sample collection and flow in gas detection devices.

• Inkjet Printers: Ideal for ink supply in printers, ensuring smooth and consistent flow.

Manufacturer Information:

• Brand: JSG (Shenzhen Jingsuguang Technology Co., Ltd.)

• Place of Origin: China

• Certifications: ISO9001, CE, RoHS, REACH, FCC

At Shenzhen Jingsuguang Technology Co., Ltd., we specialize in designing and manufacturing high-quality micro diaphragm pumps for a wide range of industries. With over 20 years of experience, our pumps are known for their durability, efficiency, and versatility. We offer custom solutions to meet specific application needs, ensuring optimal performance in demanding environments.

For custom solutions or OEM services, visit our website at dc-pump.com. Our expert team is ready to provide tailored solutions for your business needs.
