Product Overview
The BD-01A/V L series is a mini DC air pump and vacuum pump platform built for OEM devices that need gentle air pressure, compact vacuum suction, or clean gas transfer in very limited space. It is especially useful when engineers need a small 3V pump that can fit inside portable or battery-powered products.
This L series supports two functional directions while keeping the same miniaturized design logic:
BD-01A L-> pressure type mini DC air pump
BD-01V L-> vacuum type mini DC vacuum pump
For projects where size, weight, low-voltage drive, and simple integration matter more than high airflow capacity, this platform gives product teams a practical pump option for compact OEM development.

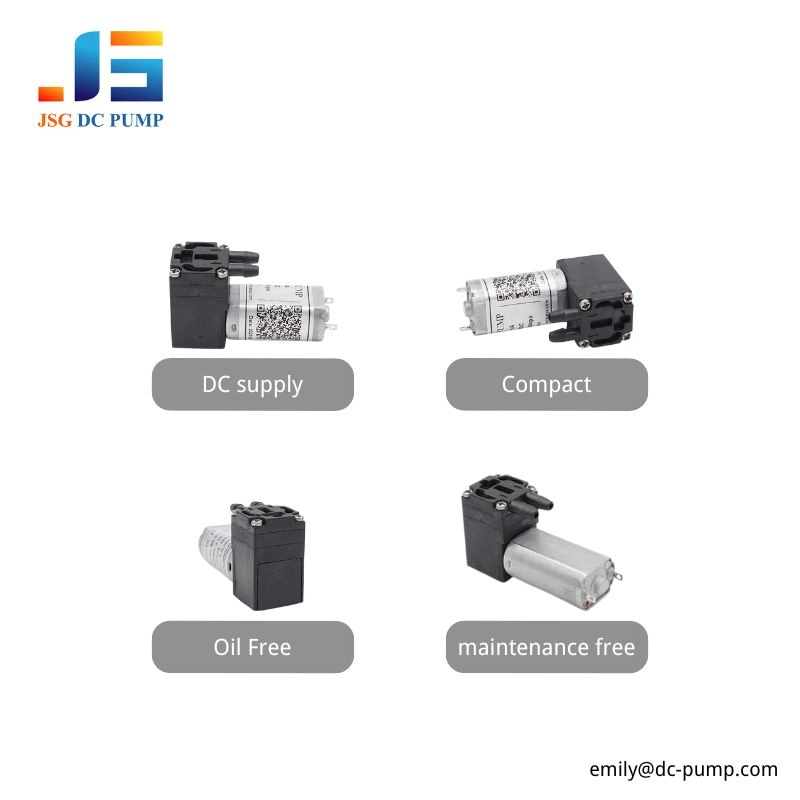

Core Selling Points of This Brushed Mini DC Air Pump and Vacuum Pump
- Ultra-Miniature Size for Tight Internal Space
- 3V Low-Voltage Drive for Battery Products
- Light-Duty Pressure and Vacuum Options
- Gentle Flow for Small Gas Paths
- Easy Fit for Handheld and Wearable Designs
- Custom Details for Miniature Product Assembly
What Are the Key Specifications of This Brushed DC Diaphragm Pump?
| Product Model | BD-01A-L | BD-01V-L |
| Pump Type | Mirco diaphragm pump | |
| Voltage | 3V / 6V / 12V | |
| Max Flow | 0.3-1 L/min | |
| Max Pressure | 0.5-1 bar | / |
| Max Vacuum | / | -30 to -60 kPa |
| Power | 1–2 W | |
| Noise | 45–60 dB | |
| Motor Type | Brushed motor | |
| Life Expectancy | 500 hours | |
| Weight | Approx.24 g | |
| Dimensions | Approx.45 × 25.5 × 15.5 mm | |
| Media | Air / clean gas | |
| Wetted Materials | EPDM / FKM | |
How Does This Brushed DC Air Pump and DC Vacuum Pump Perform Under Real Load?
Engineers should test BD-01A L under the actual pressure path and verify BD-01V L under the final suction structure. This is especially important for compact devices because small changes in tubing length, sealing, or internal housing layout can noticeably affect user experience.

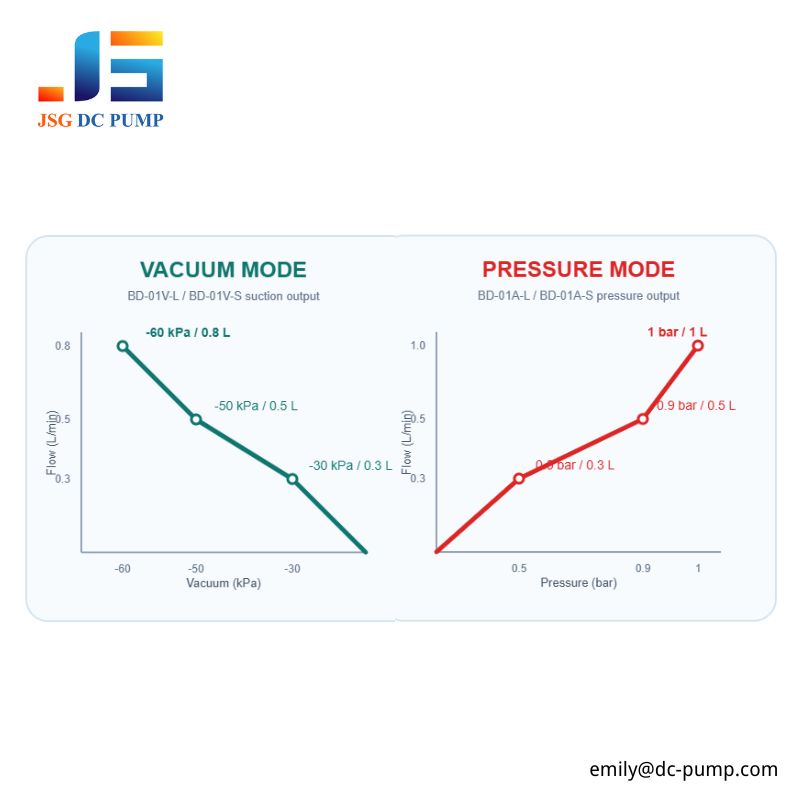

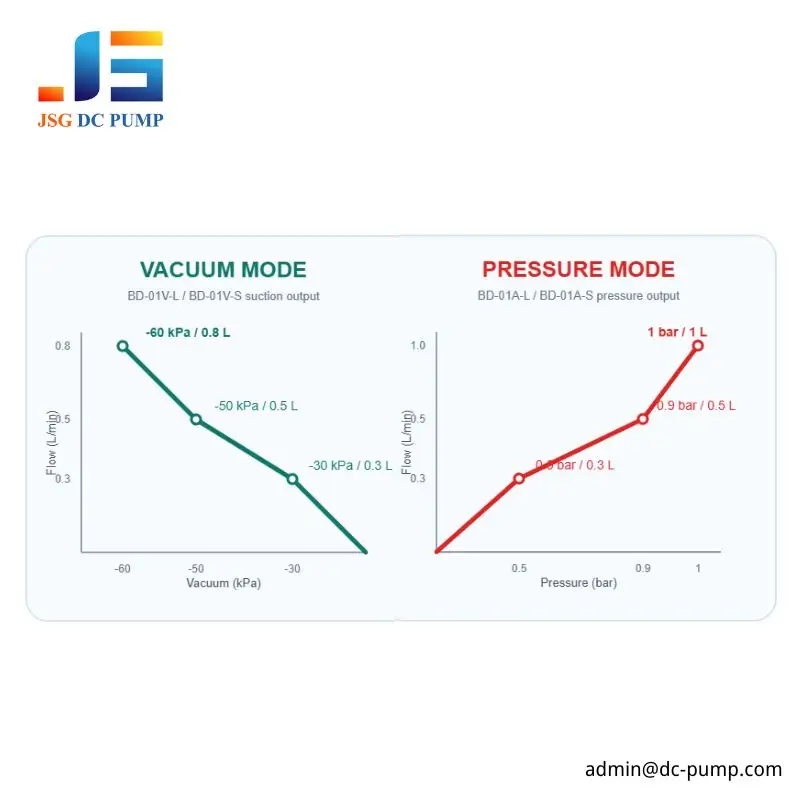

BD-01 seriesFlow vs Pressure vs vacuum
What Are the Dimensions and Installation Details?
BD-01A/V L fits miniature OEM installation and works well in small handheld devices, wearable products, and space-restricted electronic modules. Engineers should confirm pump position, port direction, wiring route, mounting clearance, and vibration isolation before finalizing the internal structure.

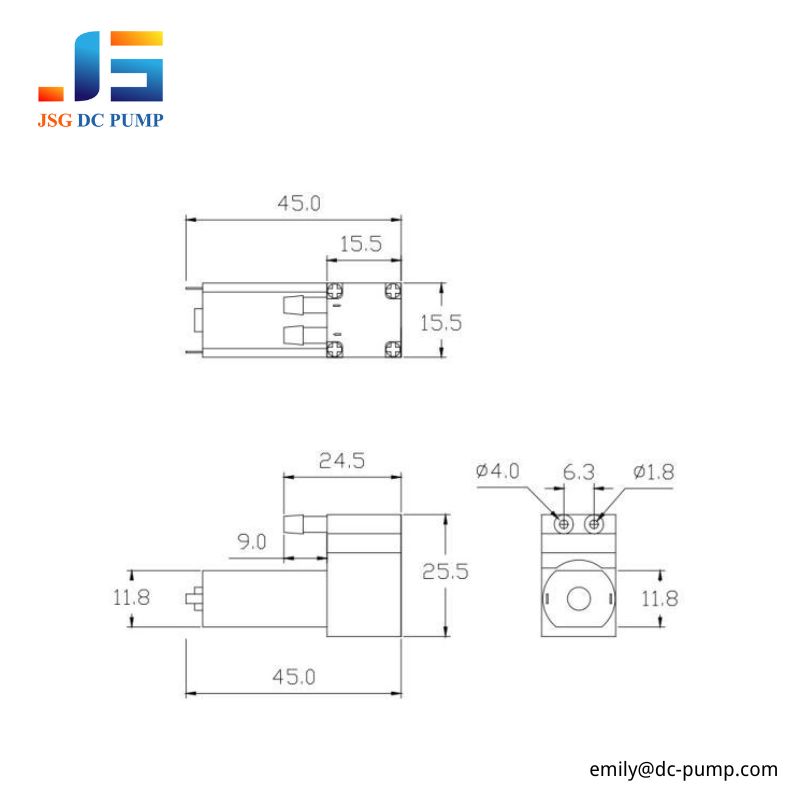

BD-01A/V L Dimensional Drawing
Which Media and Materials Is This Mini Brushed Diaphragm Pump Compatible With?
The standard BD-01A/V L platform works with air and non-corrosive gas. If the application may involve moisture, oil vapor, cleaning agent vapor, or special gas, engineers should review diaphragm, valve, and seal materials before sample testing.
Standard EPDM
| Media Type | Notes |
| Clean air | Standard application |
| Inert gas | Final compatibility should be confirmed by project |
| Mild moisture air | Cost-effective and suitable for general humid air conditions |
Enhanced FKM
| Media Type | Notes |
| Inert gas | Recommended when better chemical resistance is needed |
| Corrosive gas | Better chemical resistance and higher temperature resistance |
What Applications Is This Brushed DC Air Pump and Vacuum Pump Suitable For?
The BD-01A/V L series is suitable for compact OEM products that need a tiny pump for light pressure or vacuum functions. The following application logic helps engineers match the correct version with the final device.
- Wearable and Handheld Health Care Devices
Small health care devices need gentle airflow or suction in limited space. Engineers should check working pressure or vacuum under final tubing, user-contact structure, and battery conditions, while also reviewing voltage drop, noise, vibration, tubing bends, and internal clearance. Choose BD-01V L for miniature suction modules, BD-01A L for gentle air delivery, and soft mounting for body-contact products.
- Gas Detection and Miniature Instrument Modules
Gas detection and small instrument modules need controlled gas movement through short tubing or compact chambers. Engineers should check flow after the sensor or filter, pressure or suction under tubing resistance, voltage stability, and gas-path material compatibility. Choose BD-01A L for gentle positive airflow, BD-01V L for compact air extraction, and EPDM or FKM based on the target gas.
How Do I Choose the Right Version of This Custom DC Pump?
- When the device needs gentle positive pressure, BD-01A L is the suitable choice for light air delivery, small pneumatic assistance, and compact gas movement.
- When the product needs suction or negative pressure, engineers can use BD-01V L for compact air extraction, small suction modules, and miniature vacuum generation.
- For battery-powered devices, the 3V brushed DC configuration helps simplify power matching and supports compact low-voltage product design.
- For cost-sensitive portable products, the brushed motor configuration provides simple control and practical performance for intermittent operation.
- When moisture, oil vapor, or chemical vapor may enter the gas path, engineers should confirm material compatibility before testing.

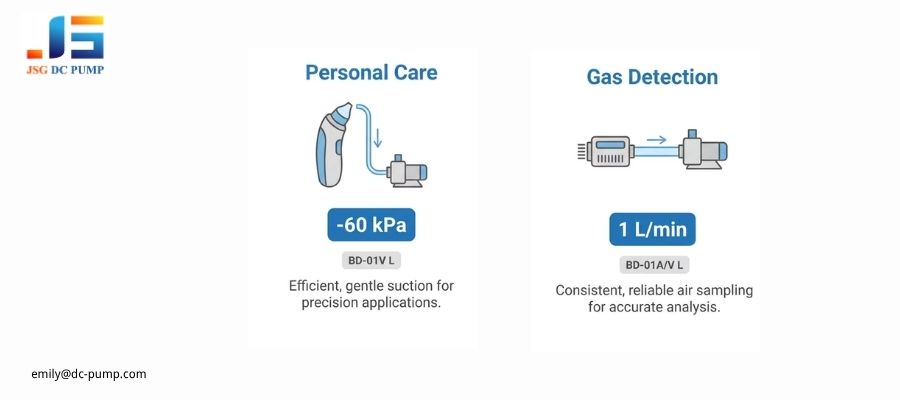

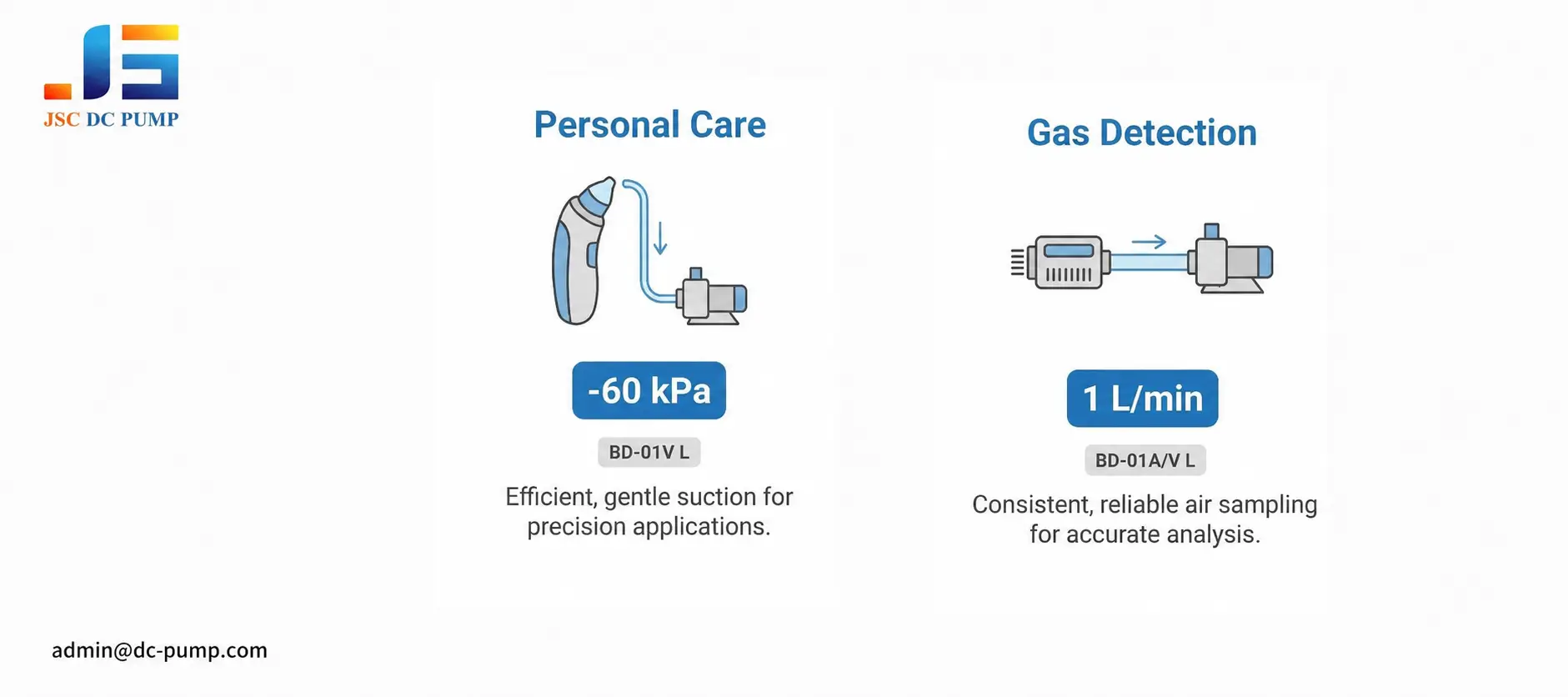

Real Product Cases Using This Brushed DC Air Pump and Vacuum Pump
Case 1: Portable Personal Care Suction Device
A personal care device manufacturer needed a tiny vacuum source for a handheld suction product. The pump had to fit into a slim shell, provide stable negative pressure, and avoid uncomfortable vibration. Since leakage, narrow tubing, and limited space could affect suction stability, engineers can evaluate BD-01V L with vacuum performance down to -60 kPa, soft mounting, and smooth tubing layout for light-duty personal care use.
Case 2: Mini Gas Detection Module
A compact detection instrument required a small pump to move gas through a short path and sensor chamber while keeping low-voltage operation and limited internal space. Since chamber resistance, tubing bends, and battery voltage changes could affect flow, engineers can choose BD-01A L for gentle positive airflow or BD-01V L for compact air extraction, with airflow up to 1 L/min, and test actual flow after integration.
Why Work With DC-PUMP as Your OEM Pump Supplier?
Professional Micro Pump Manufacturer–DC-PUMP focuses on miniature air pumps, vacuum pumps, diaphragm pumps, piston pumps, and OEM pneumatic solutions for industrial equipment, laboratory instruments, beauty devices, gas sampling systems, and portable equipment.
Engineering-Based Model Selection–We help customers evaluate flow, pressure, vacuum, noise, heat, duty cycle, material compatibility, installation space, and real system load before final pump selection.
Stable Quality Control–Pump performance can be checked according to key output requirements such as flow, pressure, vacuum, current, noise, sealing performance, and running stability.
OEM / ODM Support–We support customization of voltage, wiring, connector type, sealing materials, pump structure, control method, and performance matching according to real equipment requirements.
Project Sampling Support–We support sample preparation for prototype testing, performance validation, and OEM project development before mass production.
Export Experience–DC-PUMP products are used by customers in different industries and export markets for long-term equipment integration projects.
If you are looking for a tiny 3V brushed DC air pump or vacuum pump for compact OEM devices,DC-PUMP can support model selection, sample testing, and customization.Contact us at emily@dc-pump.com.
