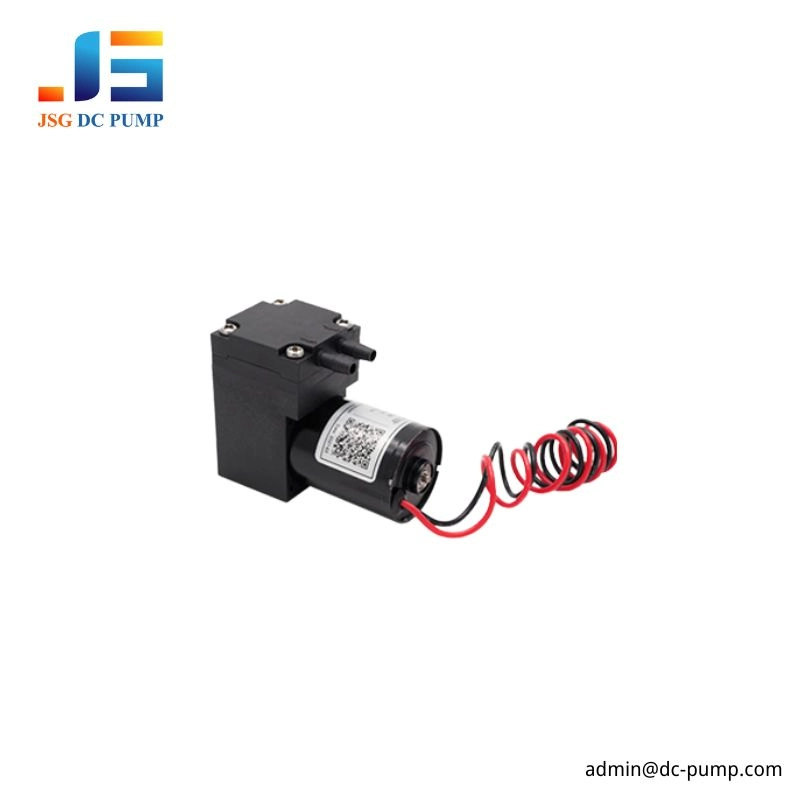

Product Overview
The BD-03A/V B series is a compact micro diaphragm pump 6L/min platform for small OEM devices that need controlled airflow, pressure output, or vacuum suction. Engineers can use this platform in applications where space, stability, and long-term operation are important.
This pump series is not limited to one industry. Medical equipment remains one key application direction. However, engineers can also apply the same platform in beauty devices, gas sampling instruments, testing equipment, compact pneumatic modules, and other small air-control systems.
The BD-03A/V B platform includes two main versions:
- BD-03AB — brushless DC air pump for positive pressure and airflow output
- BD-03VB — brushless DC vacuum pump for suction and negative pressure generation
With max flow up to 6L/min, optional 6V / 12V / 24V voltage choices, pressure capability up to 3 bar, and vacuum capability up to -70kPa, this series gives engineers a compact solution for moderate airflow, stable suction, practical pressure output, and easier device integration.

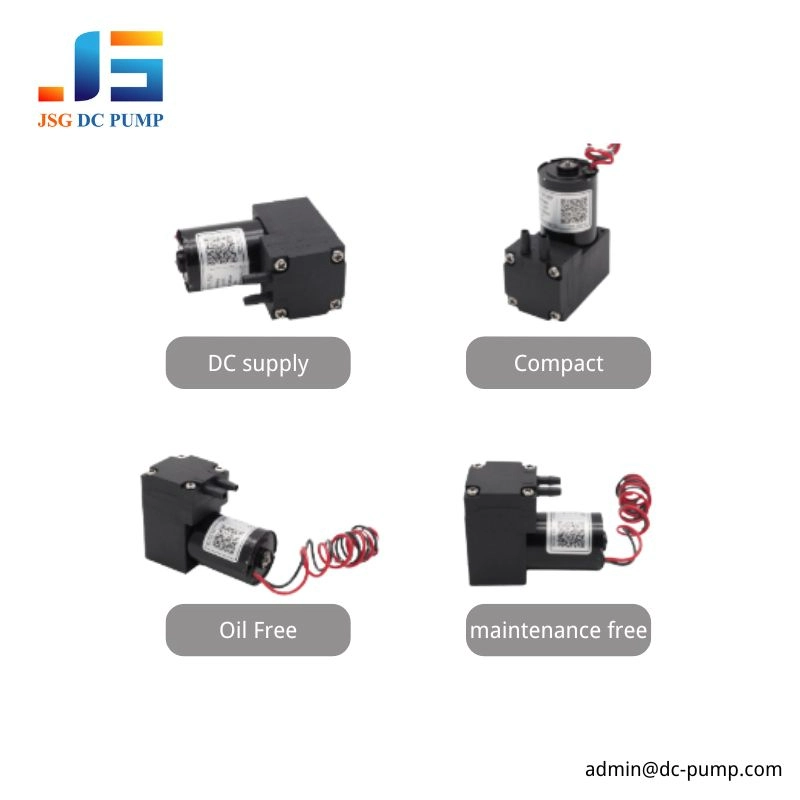

Core Selling Points of This Micro Diaphragm Pump 6L/min
1. Compact Brushless Platform for Small OEM Equipment
This micro diaphragm pump 6L/min series is designed for compact OEM equipment that needs stable air or vacuum output in limited space.
2. Pressure and Vacuum Options in One Pump Series
This series includes both pressure and vacuum versions. BD-03AB supports pressure generation and air delivery, while BD-03VB supports suction, gas sampling, and negative pressure functions. As a result, engineers can develop different product versions based on one compact pump family.
3. Max 6L/min Flow for Moderate Air Demand
With max flow up to 6L/min, this pump series fits compact systems that need moderate airflow instead of oversized output. However, final selection should not rely only on free-flow data. Engineers should also check tubing, filters, valves, chamber volume, leakage, and real working load.
4. Brushless Motor for Better Repeated-Use Stability
The brushless motor helps reduce brush-wear risk and improve output consistency during repeated working cycles. Therefore, it is more suitable for devices that require frequent start-stop use, longer service life, or better reliability than a basic brushed pump.
5. Flexible Voltage and OEM Customization Support
BD-03A/V B supports 6V, 12V, and 24V options for different power systems and control boards. In addition, OEM customization can be discussed for wires, connectors, control options, sealing materials, pump head direction, and installation requirements.
What Are The Key Specifications of This 6L/min Micro Diaphragm Pump

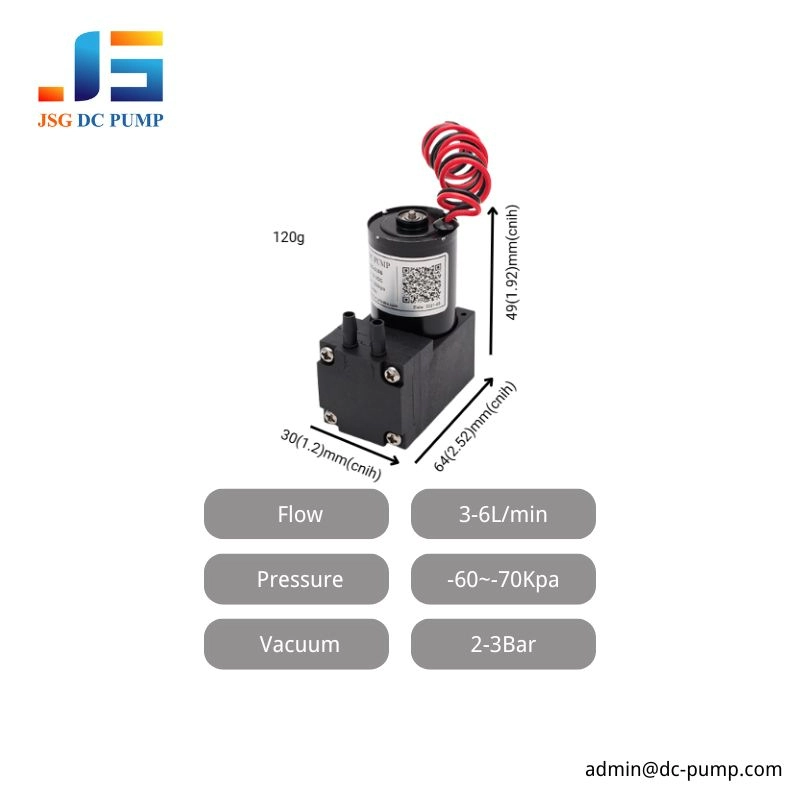

| Item | BD-03AB | BD-03VB |
|---|---|---|
| Pump Type | DC air pump / pressure diaphragm pump | DC vacuum pump / vacuum diaphragm pump |
| Motor Type | Brushless motor | |
| Voltage | 6V / 12V / 24V | |
| Max Flow | 6L/min | |
| Max Pressure | 3 bar | / |
| Max Vacuum | / | -70kPa |
| Media | Air / clean gas | |
| Wetted Materials | EPDM / FKM | |
| Working Mode | Intermittent or continuous, depending on load point | |
| Application Direction | Pressure systems, airflow systems, pneumatic support | Suction systems, vacuum holding, negative-pressure equipment |
How Does This Brushless DC Air Pump and DC Vacuum Pump Perform Under Real Load?
DC-PUMP offers the BD-03A/V B brushless series as a compact micro diaphragm pump 6L/min platform rather than a single fixed-output model. In actual project selection, engineers should match the version according to real pressure demand, vacuum demand, airflow path, tubing resistance, and duty cycle.

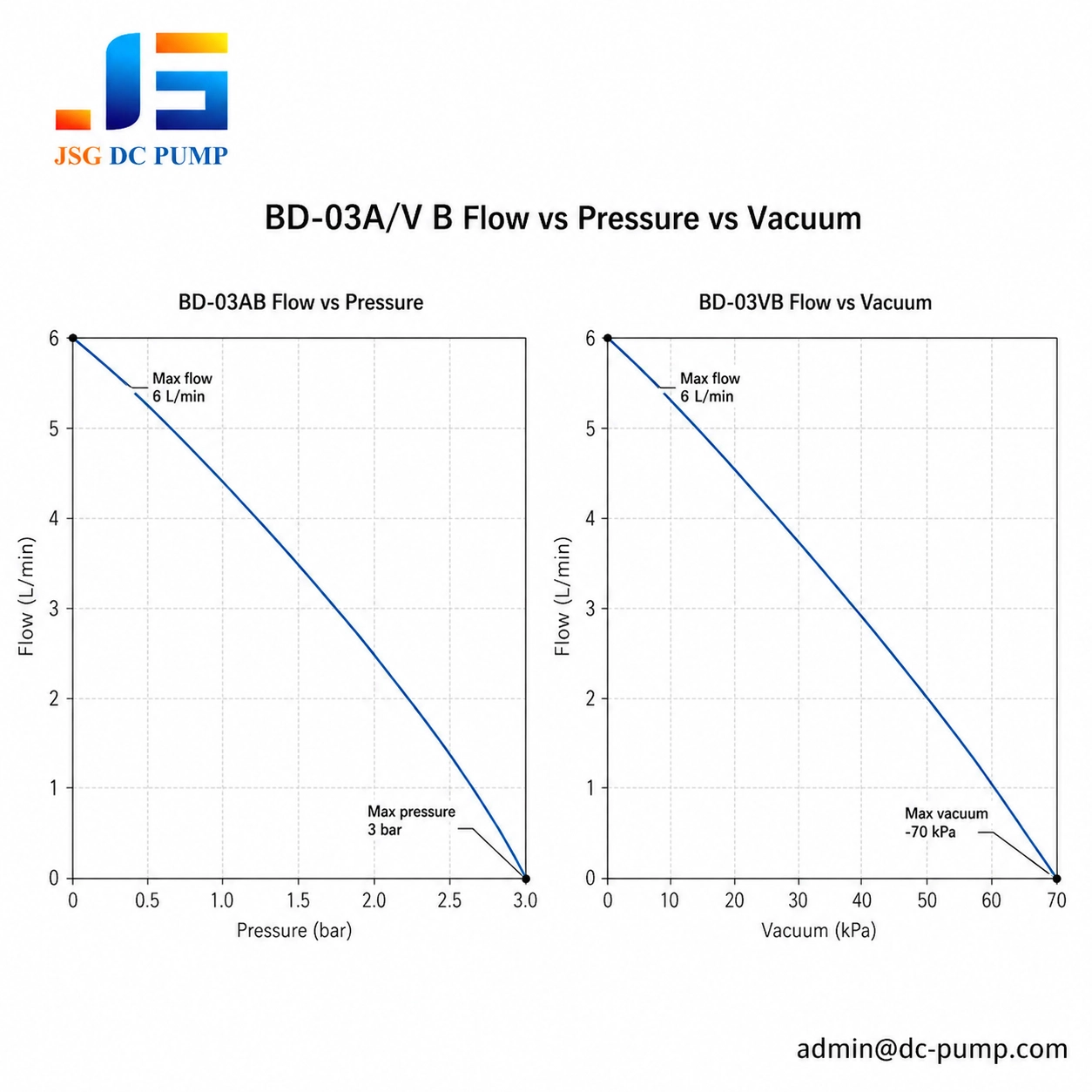

BD-03A/V B Series Flow vs Pressure vs Vacuum
Flow, pressure, and vacuum performance curve of the BD-03A/V B brushless mini diaphragm pump for compact OEM air and suction systems.
What Are the Dimensions and Installation Details?
The BD-03A/V B series fits compact OEM equipment that requires stable installation, flexible tube routing, and easier integration into small internal structures. During installation, engineers should confirm pump position, inlet and outlet direction, mounting method, wiring space, and surrounding airflow area to reduce vibration, heat buildup, and output instability.

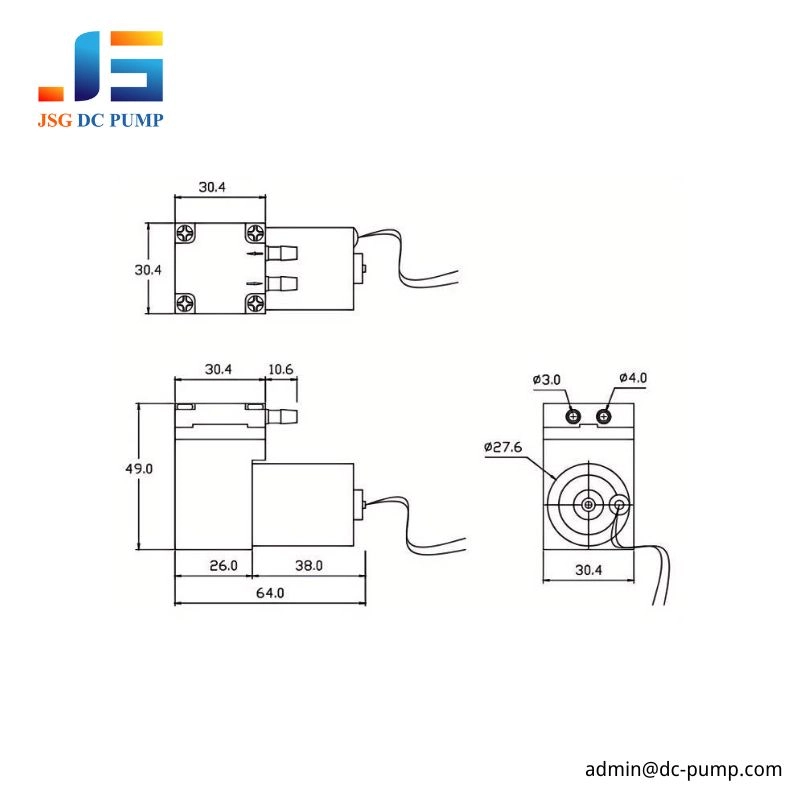

BD-03A/V B Dimensional Drawing
Dimensional drawing of the BD-03A/V B brushless mini diaphragm pump showing pump size, air ports, mounting holes, and OEM installation structure.
Which Media and Materials Is This Micro Diaphragm Pump 6L/min Compatible With?
DC-PUMP mainly develops the BD-03A/V B series for air and clean gas transfer. Engineers should choose materials according to the actual gas type, humidity level, corrosion risk, working temperature, and required service life.
Standard EPDM Material
| Media Type | Notes |
|---|---|
| Clean air | Suitable for most compact air and vacuum systems |
| Inert gas | Final compatibility should be confirmed by project conditions |
| Mild humid air | Suitable for general humid air paths and cost-sensitive projects |
Enhanced FKM Material
| Media Type | Notes |
|---|---|
| Inert gas | Recommended when better chemical resistance is required |
| Corrosive gas | Offers better chemical and temperature resistance |
| Humid or vapor-related gas path | More suitable when long-term material stability is important |
If the gas path may contain mist, vapor, chemical residue, or special media, engineers should consider FKM. However, the project team should still verify final compatibility through real application testing.

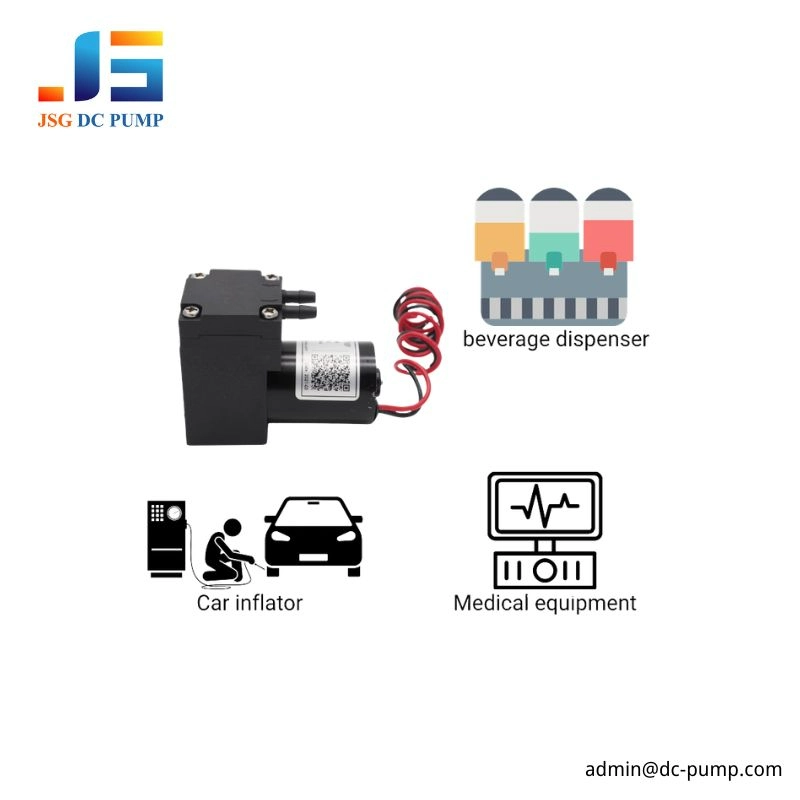

What Applications Is This Micro Diaphragm Pump 6L/min Suitable For?
Engineers can use this micro diaphragm pump 6L/min in medical equipment, beauty devices, gas sampling instruments, and compact pneumatic control systems.
1. Medical Equipment Air and Vacuum Modules
In medical-related equipment, this pump can support airflow supply, suction assistance, gas sampling, pressure control, or negative pressure functions.
For suction use, BD-03VB is the better direction. It provides max 6L/min flow and max vacuum up to -70kPa. For pressure or airflow use, BD-03AB is more suitable. It provides max 6L/min flow and pressure up to 3 bar.
2. Beauty and Personal Care Devices
Beauty devices often need compact suction, vacuum, or air pressure support inside a small housing. In these applications, noise, vibration, and user comfort are also important.
For suction-related functions, engineers can choose BD-03VB for vacuum support.For air pressure or pneumatic assistance, BD-03AB can provide compact positive pressure output.
3. Gas Sampling and Detection Instruments
Gas sampling instruments need stable suction through filters, tubing, and sensor chambers. Therefore, useful flow under resistance is more important than open-air flow alone.
BD-03VB is suitable for compact gas sampling paths that require suction, negative pressure, and stable flow through small internal channels.
4. Compact Pneumatic Control Systems
Compact pneumatic systems need controlled positive pressure for valves, chambers, or small air-control functions. Engineers can choose BD-03AB for pressure output, air delivery, and small pneumatic support.
In these applications, engineers should test the pump with the final valve structure and outlet resistance. This helps avoid pressure overshoot, unstable response, or unnecessary heat.
How Do I Choose the Right Version of This Pump?
When choosing this micro diaphragm pump 6L/min, engineers should confirm the application function, pressure or vacuum target, voltage, control method, material requirement, and real system load.
For Medical Equipment Applications
Choose BD-03VB when the device needs gas sampling, suction assistance, or negative pressure generation. Its key parameters are max 6L/min flow and max -70kPa vacuum.
Choose BD-03AB when the device needs airflow delivery, pressure support, or compact pneumatic control. Its key parameters are max 6L/min flow and max 3 bar pressure.
In addition, choose the brushless version when repeated operation, longer stability, and lower brush-wear risk are required.
For Beauty Device Applications
Choose BD-03VB for suction or vacuum treatment functions. It is suitable when the device needs compact negative pressure output.
Choose BD-03AB for air pressure or pneumatic assistance. It is more suitable when the device needs positive pressure, airflow support, or small air-control movement.
If the device needs different working levels, engineers can consider PWM control. Also, confirm EPDM or FKM material if the air path may contact moisture, mist, or cosmetic residue.
Real Project Cases Using This DC Diaphragm Pump
Case 1: Gas Detection Module for a Portable Instrument
A customer was developing a portable gas detection instrument with a small internal sampling path. The device needed stable suction through a sensor chamber while keeping the pump compact enough for a handheld housing.
At first, the air path included a small filter and narrow tubing. As a result, the pump’s real flow dropped compared with open-air testing.
BD-03VB was selected as the vacuum direction. Then, the customer tested the pump after the filter and sensor chamber instead of testing it alone. Tubing length was shortened, and the sealing point around the sensor chamber was improved.
Finally, the device achieved more consistent sampling flow under the assembled condition. The customer also avoided choosing an unnecessarily larger pump.
Case 2: Pressure Module for a Compact Control Device
Another OEM project required a compact air source for a pressure-control module inside a small device. The pump needed to provide controlled positive pressure while limiting heat and vibration inside the housing.
The first design focused mainly on maximum pressure. However, the real issue was pressure stability during valve switching.
BD-03AB was selected for the pressure direction. The customer tested airflow under actual outlet resistance and adjusted the control logic to reduce sudden pressure overshoot. Soft mounting was also used to reduce housing vibration.
As a result, the pressure response became easier to control. The pump could also be integrated without increasing the device size.

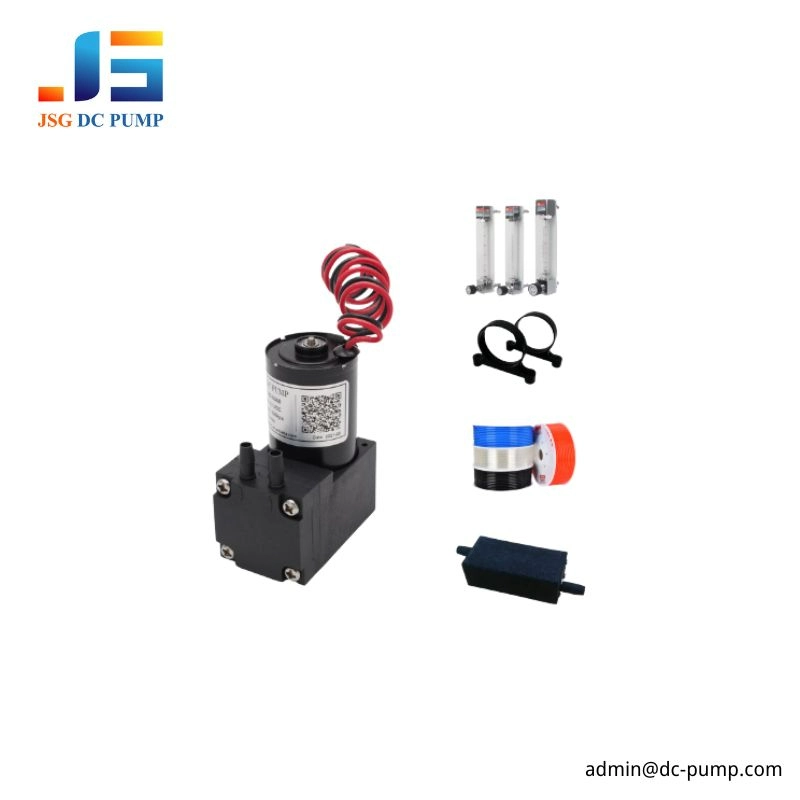

BD-03AB / BD-03VB Files and Technical Documents
Technical files can be provided for project evaluation, sample testing, and OEM design review.
Available documents may include:
- Product specification sheet
- Performance curve
- Dimensional drawing
- Wiring information
- Material options
- Customization notes
- Sample testing guidance
For accurate selection, please share your target flow, pressure or vacuum level, working voltage, duty cycle, medium, installation space, and application structure.
BD-03 Brusless Series Files and Technical Documents
Why Work With DC-PUMP as Your OEM Pump Supplier?
Professional Micro Pump Manufacturer
DC-PUMP focuses on miniature air pumps, vacuum pumps, diaphragm pumps, piston pumps, and liquid pumps for industrial, medical, laboratory, beauty, portable, and small equipment applications.
Stable Quality Control
Each pump can be checked for key output parameters before shipment, including flow, pressure, vacuum, current, noise, and operating stability.
OEM / ODM Customization Support
We support OEM and ODM customization for voltage, output range, sealing materials, pump structure, connectors, wiring method, control method, and project-based matching.
Engineering Selection Support
Our engineers help customers select the right pump according to real working pressure, vacuum level, flow demand, installation space, working medium, duty cycle, and application logic.
Lower Selection Risk for OEM Projects
This engineering support helps reduce selection risk during prototype testing, sample validation, and mass production.
Contact JSG for Pump Selection
Need a compact micro diaphragm pump 6L/min for medical air systems, gas sampling instruments, beauty devices, or small OEM equipment? Contact JSG for model selection, sample support, and OEM customization: admin@dc-pump.com.
