Why Are Silent Micro Air Pumps the Unsung Heroes of Accurate Flame Photometry?

Are inconsistent air supplies compromising your flame photometer’s precision? Noisy labs hindering concentration? A silent, stable micro air pump is the solution you need.

Silent micro air pumps are ideal for flame photometers because they provide consistent, pulse-free airflow crucial for stable flame and accurate elemental analysis, all while maintaining a quiet laboratory environment essential for focused work.

Silent Micro Air Pump for Flame Photometer

At JSG DC PUMP, we’ve seen how the right component can elevate precision instruments. For flame photometers, the air supply isn’t just a utility; it’s a cornerstone of reliable results. Many labs struggle with bulky, noisy, or inconsistent air sources. This is where the targeted design of modern micro air pumps, especially diaphragm pumps, truly shines. Let’s delve into why these compact powerhouses are becoming indispensable in analytical laboratories.

What Role Does Airflow Play in Flame Photometers?

Ever wondered how your flame photometer achieves such precise readings? The answer lies in perfectly controlled airflow, a critical yet often overlooked component.

In flame photometers, airflow is vital for nebulizing the sample into a fine aerosol and for maintaining a stable, consistent flame temperature, both essential for accurate elemental emission detection.

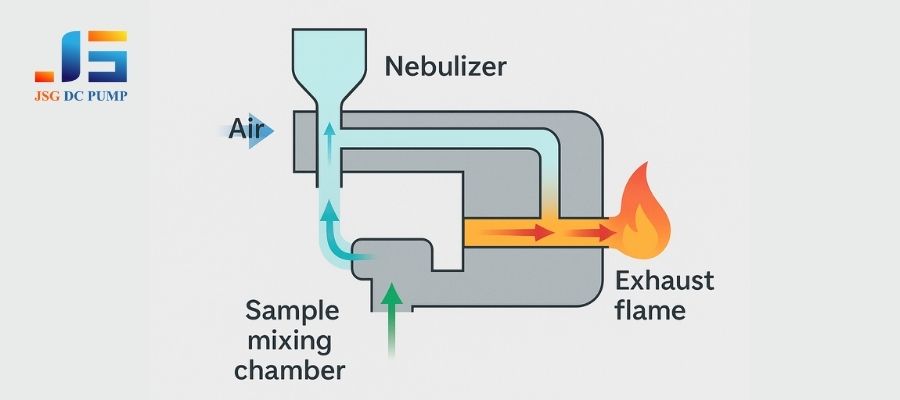

Airflow Path in a Flame Photometer

Flame photometry relies on a very specific process to measure elements like sodium, potassium, lithium, and calcium. Airflow, supplied by a pump, plays a dual, critical role here. First, it’s used in the nebulizer. The air stream draws the liquid sample and disperses it into a fine mist or aerosol. The quality and consistency of this aerosol are paramount; only a uniform mist ensures that a representative amount of the sample reaches the flame. If the airflow fluctuates, the nebulization efficiency changes, directly impacting the amount of sample analyzed and, therefore, the accuracy of your results.

Second, the air (often mixed with a fuel gas like propane or acetylene) is essential for combustion, sustaining the flame itself. The stability of this flame – its temperature, shape, and height – is directly dependent on a steady and precise airflow. Any variation can cause the flame to flicker or change temperature, leading to inconsistent excitation of the atoms and, consequently, erratic light emission readings. So, a reliable air pump isn’t just supporting the flame; it’s underpinning the entire analytical integrity of the instrument.

Why Are Silent Micro Diaphragm Air Pumps Preferred in Laboratory Environments?

Is the constant hum of equipment disrupting your lab’s concentration? The quiet operation of micro diaphragm pumps offers a welcome relief for focused analytical work.

Silent micro diaphragm air pumps are preferred in labs due to their low noise output, minimal vibration, compact size for easy integration, and oil-free operation, preventing sample contamination.

Quiet Laboratory Environment with Micro Diaphragm Pump

Laboratories are environments where precision and concentration are key. Excessive noise from equipment can be more than just an annoyance; it can be a genuine hindrance to accurate work and a source of fatigue for personnel. This is a major reason why micro diaphragm air pumps, specifically those designed for low noise, are gaining favor. Our JSG pumps, for instance, are engineered with noise reduction in mind.

Beyond just being quiet, there are other practical advantages:

• Minimal Vibration: Diaphragm pumps, especially well-balanced ones, produce very little vibration. This is important because vibrations can affect the sensitive optical components of a flame photometer or disturb other delicate experiments nearby.
• Compact Size: Laboratory bench space is often at a premium. Micro diaphragm pumps are small and can be easily integrated within the flame photometer housing or placed unobtrusively nearby.
• Oil-Free Operation: This is crucial. Diaphragm pumps are oil-free by design, meaning there’s no risk of oil vapors contaminating the air supply, the sample, or the flame, which could lead to erroneous readings or damage to the instrument.
• Low Maintenance: Generally, these pumps require minimal maintenance, contributing to the overall efficiency and uptime of the laboratory.

The combination of these factors makes them an ideal fit for the demanding yet sensitive environment of a modern analytical lab.

How Do DC Micro Air Pumps Ensure Flame Stability and Accuracy?

Struggling with fluctuating flame photometer readings? The secret to consistent results often lies in the stable, precise airflow provided by DC micro air pumps.

DC micro air pumps provide a highly consistent and controllable airflow. This ensures a stable flame for uniform sample excitation and reliable nebulization, leading directly to more accurate and repeatable analytical results.

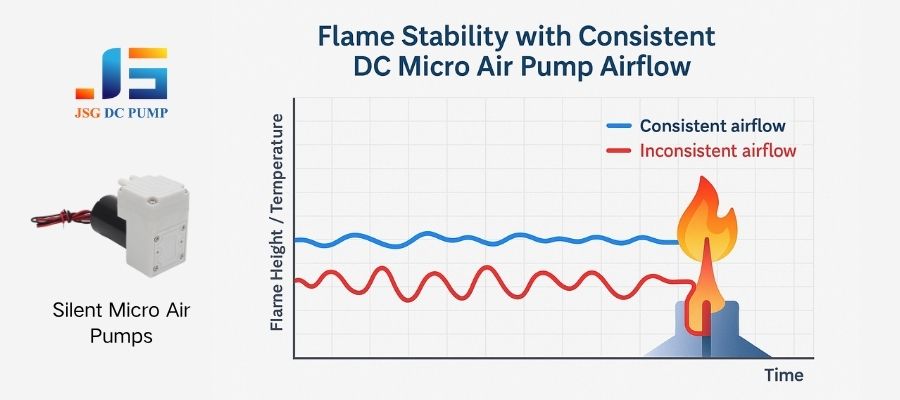

Flame Stability with Consistent DC Micro Air Pump Airflow

The “DC” in DC micro air pumps refers to their direct current operation, which allows for excellent control over pump speed and, consequently, airflow and pressure. This controllability is fundamental to ensuring flame stability and accuracy in a flame photometer. As I mentioned earlier, both nebulization and flame characteristics are highly sensitive to airflow variations. A DC micro diaphragm pump³, when properly integrated with the instrument’s control system, can deliver a pulse-free, steady stream of air.

Here’s how this directly translates to better analytical outcomes:

• Consistent Nebulization: A stable airflow⁴ ensures that the sample is aerosolized at a constant rate and with a consistent droplet size distribution. This means a predictable amount of analyte reaches the flame per unit of time.
• Stable Flame Temperature and Geometry: The flame is the heart of the excitation process. A steady air supply (mixed with fuel) results in a flame that maintains its temperature and shape. This ensures that atoms of the target elements are excited uniformly, producing a consistent light emission for detection.
• Reduced Signal Noise: Fluctuations in airflow can introduce noise into the photometric signal. A smooth, unwavering air supply minimizes this noise, leading to a better signal-to-noise ratio⁵ and more precise measurements.
• Improved Calibration Stability: Calibrations are based on the assumption of stable operating conditions. A reliable DC air pump helps maintain these conditions, meaning calibrations remain valid for longer periods.

Essentially, the precision of the pump lies at the foundation of the precision of the entire analytical measurement.

What Specifications Should You Look for in a Micro Air Pump for Flame Photometers?

Choosing a micro air pump seems complex. Focusing on key specifications like pressure, flow, and low noise will ensure optimal performance for your flame photometer.

For flame photometers, look for a micro air pump offering stable pressure (e.g., 1 bar operating), sufficient flow (e.g., 5-15 L/min), low noise/vibration, 12V/24V DC, and high reliability for consistent analytical results.

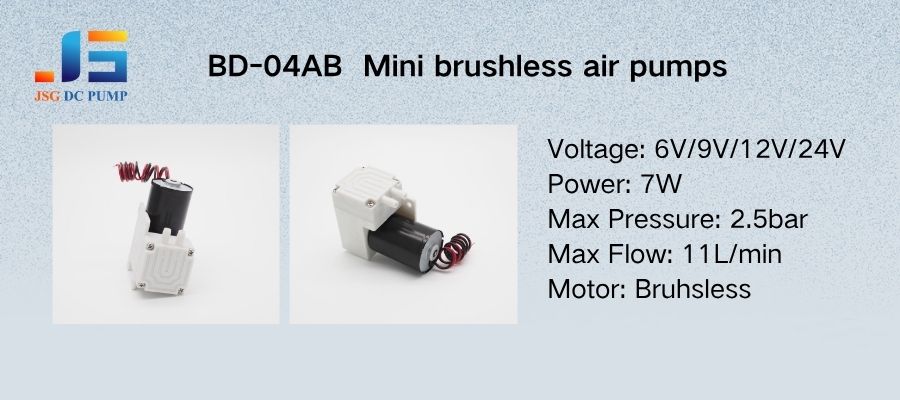

Key Specifications for Flame Photometer Micro Air Pump – BODENFLO BD-04AB

Selecting the right micro air pump is crucial for optimal flame photometer performance. Based on my experience at BODENFLO and feedback from clients in the analytical instrument sector, certain specifications are paramount. For instance, many customers find our JSG DC PUMP BD-04AB (12V DC, 0.6A, 2.5 bar max pressure, 11 L/min free flow) to be an excellent fit, especially as it’s often required to operate reliably against a 1 bar load (back pressure).

Here’s a breakdown of what to consider:

• Operating Pressure 6: The pump must consistently deliver the pressure required by your nebulizer and burner system. While the BD-04AB has a max of 2.5 bar, the ability to sustain around 1 bar continuously is often the key.
• FloRate 7e⁷: This needs to be sufficient for both nebulization and flame support. A typical range might be 5-15 L/min at the required operating pressure. The BD-04AB’s 11 L/min free flow is a good starting point, but performance at the target pressure is what matters.
• Stability and Low Pulsation: A smooth, non-pulsating airflow is essential. Diaphragm pumps inherently offer good characteristics here, but some designs are better than others.
• Noise Level: As discussed, a low noise level (e.g., <50 dB) is highly desirable in a lab setting.
• Voltage: Typically 12V or 24V DC for easy integration with instrument electronics.
• Durability and Lifetime: The pump should be rated for continuous or long-term intermittent operation. Look for high-quality diaphragms and motor bearings.
• Chemical Compatibility⁸: Ensure the wetted parts (diaphragm, valves) are compatible with laboratory air and any potential trace elements.

We always advise discussing the specific application requirements to match the best pump model, like ensuring the BD-04AB’s curve suits the 1 bar operational need.

What Makes Micro Diaphragm Pumps More Reliable Than Alternatives?

Tired of air pump failures disrupting your analyses? Micro diaphragm pumps offer superior reliability due to their simple design and oil-free, durable operation.

Micro diaphragm pumps are highly reliable due to their oil-free operation (preventing internal fouling), fewer moving parts compared to other pump types, and durable elastomer diaphragms designed for millions of cycles.

When you’re designing or using an analytical instrument like a flame photometer, the reliability of every component is key. Downtime is costly. Micro diaphragm pumps have earned a reputation for reliability for several good reasons, especially when compared to some alternatives. One of the biggest advantages is their oil-free operation. This not only prevents sample contamination but also means there’s no oil to break down, thicken, or cause seals to fail over time, which can be an issue in lubricated pump types.

Furthermore, the design itself lends to durability:

• Fewer Moving Parts 10: Compared to piston pumps or rotary vane pumps, diaphragm pumps have a relatively simple mechanism with fewer components subject to wear and tear. The main moving part is the diaphragm itself and the small valves.
• Durable Diaphragms 11: Modern elastomer technology means diaphragms can be engineered for exceptional flexibility and longevity, often rated for many thousands of hours or millions of cycles.
• No Sliding Seals: Unlike piston pumps, there are no sliding seals that can wear out and lead to loss of pressure or flow.
• Consistent Performance: They tend to maintain their performance characteristics (flow and pressure) consistently over their operational life, which is crucial for analytical instruments requiring stable conditions.

This inherent robustness means less frequent maintenance, longer operational life, and greater peace of mind for instrument designers and end-users.

How Can You Integrate These Pumps into Your Flame Photometer Designs?

Planning a new flame photometer design? Integrating a micro diaphragm pump is straightforward, thanks to its compact size, mounting options, and simple electrical connections.

Micro diaphragm pumps are easily integrated into flame photometers via various mounting options (base plates, vibration dampeners), compact footprints, and standard DC electrical connections for power and control.

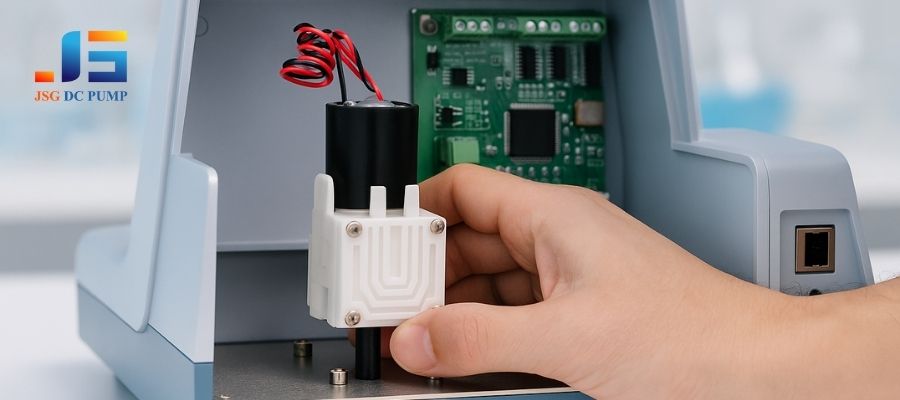

Easy Integration of Micro Air Pump into Flame Photometer

As an OEM designer or system integrator for flame photometers, the ease of incorporating components is a significant factor. Micro diaphragm air pumps are generally designed with this in mind. At JSG DC PUMP, we work with manufacturers to ensure smooth integration.

Here are common aspects to consider:

• Compact footprint 12. Their small size allows for flexible placement within the instrument housing, saving valuable space. Models like our BD-04 series are designed to be space-efficient.
• Mounting Options: Most pumps come with mounting holes or brackets. It’s also good practice to use vibration-damping mounts to further isolate any minor vibrations from the rest of the instrument, protecting sensitive optics or electronics.
• Pneumatic^{Connections 133}: Standardized barbed or threaded ports make connecting tubing for air inlet and outlet straightforward. Ensure tubing is appropriately sized for the required flow and pressure to avoid restrictions.
• Electrical Connection: Typically, these are simple 2-wire DC connections for power. For more advanced control, some pumps can be driven by PWM (Pulse Width Modulation) signals to precisely regulate speed and thus flow/pressure, allowing for dynamic adjustment by the flame photometer’s main controller.
• EMI/RFI Shielding: In sensitive analytical instruments, ensure the pump motor doesn’t create electromagnetic interference. Well-designed pumps will have this considered.

We often provide CAD models and detailed specification sheets to help engineers plan the integration process effectively.

What Are the Typical Applications Beyond Flame Photometers?

Think micro air pumps are just for photometers? Their versatility extends to numerous medical, environmental, and other analytical instruments requiring precise air/gas handling.

Beyond flame photometers, silent micro air pumps are vital in medical devices (e.g., gas analyzers, nebulizers), environmental monitoring (air sampling), and various other analytical instruments requiring precise, clean air or gas.

Diverse Applications of Micro Air Pumps

While we’ve focused on flame photometers, the utility of silent, reliable DC micro air pumps extends far beyond this specific application. Their core benefits – precision, quietness, oil-free operation, and compactness – make them suitable for a wide array of devices where controlled gas movement is essential. I’ve seen our JSG pumps used in diverse fields.

Here are some examples:

• Medical Devices:
  • Gas Analyzers: For patient monitoring (e.g., capnography, anesthesia gas monitoring).
  • Medical Nebulizers: Delivering medication in aerosol form.
  • Blood Pressure Monitors: Inflating cuffs.
  • Negative Pressure Wound Therapy (NPWT): Though this often uses vacuum, some aspects might use air.
• Environmental Monitoring:
  • Air Samplers: Drawing air through filters or sensors for pollution detection.
  • Gas Detectors: For workplace safety or emissions monitoring.
• Other Analytical Instruments:
  • Atomic Absorption Spectrometers (AAS): Similar to flame photometers for nebulization.
  • Chromatography Systems: For gas supply or sample introduction.
  • Particle Counters: For air quality assessment.

The consistent performance and reliability of these pumps make them a go-to solution whenever a small, precise, and clean air or gas source is needed.

Frequently Asked Questions (FAQ)?

Have quick questions about micro air pumps for your instruments? Let’s address some common queries to help clarify their benefits and application.

Common questions include pump lifetime, noise levels, and suitability for specific pressures. Quality micro air pumps offer long operational hours, very low noise, and models tailored to various pressure/flow needs.

When clients are considering micro air pumps for their instruments, like flame photometers, a few questions frequently come up. I’d like to address one common query here:

“How do I control the flow rate or pressure of a DC micro air pump in my instrument?”

This is a great question because precise control is often essential. For DC micro air pumps, there are primarily two methods:

1. Voltage Control: The speed of a DC motor, and thus the pump’s output, is generally proportional to the input voltage. By supplying a variable DC voltage¹⁴ (within the pump’s specified range), you can adjust the flow and pressure. Many instrument controllers can provide a variable voltage output.
2. Pulse Width Modulation (PWM)¹⁵: This is a more sophisticated and often more efficient method. Instead of varying the voltage level, a PWM controller rapidly switches the full voltage on and off. The duty cycle¹⁶ (the ratio of ‘on’ time to the total cycle time) effectively controls the average power delivered to the motor, thus regulating its speed. This allows for very fine control and is common in modern electronic designs.

Some pumps might also be paired with external regulators or proportional valves for even more precise downstream control, but direct motor control via voltage or PWM is the most common for integrated OEM solutions. At JSG DC PUMP, we can advise on the best control strategy for your specific pump model and application needs.

Conclusion

Silent, reliable DC micro air pumps, like JSG’s BD-04AB, are crucial for enhancing flame photometer accuracy, ensuring stable operation, and improving the overall laboratory environment.
