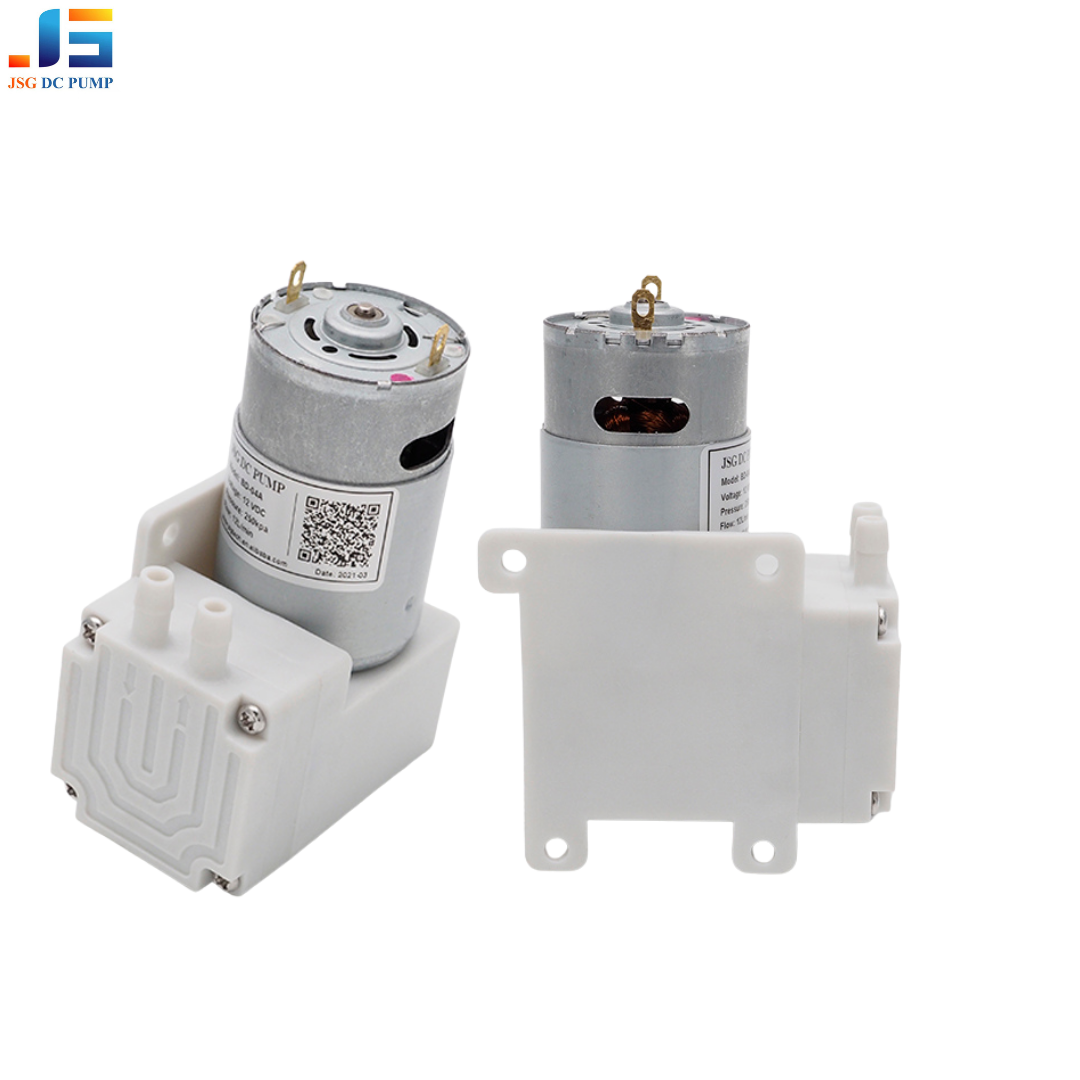

The micro vacuum pump is a compact, high-performance solution for small-scale vacuum applications. Perfect for lab experiments, medical devices, and portable vacuums, it offers low noise, energy efficiency, and reliable suction power. Its small size and durable design make it ideal for tight spaces and delicate tasks.

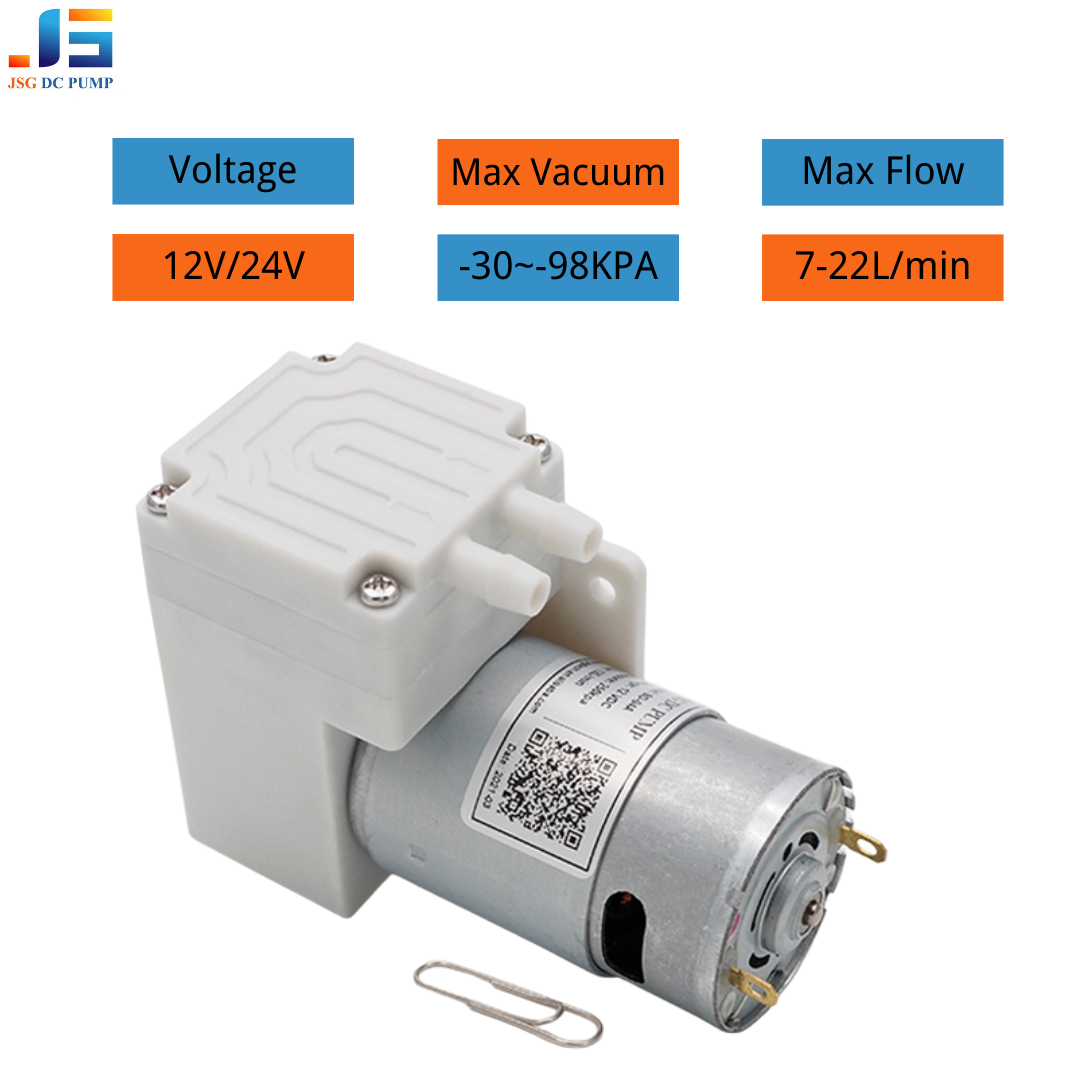

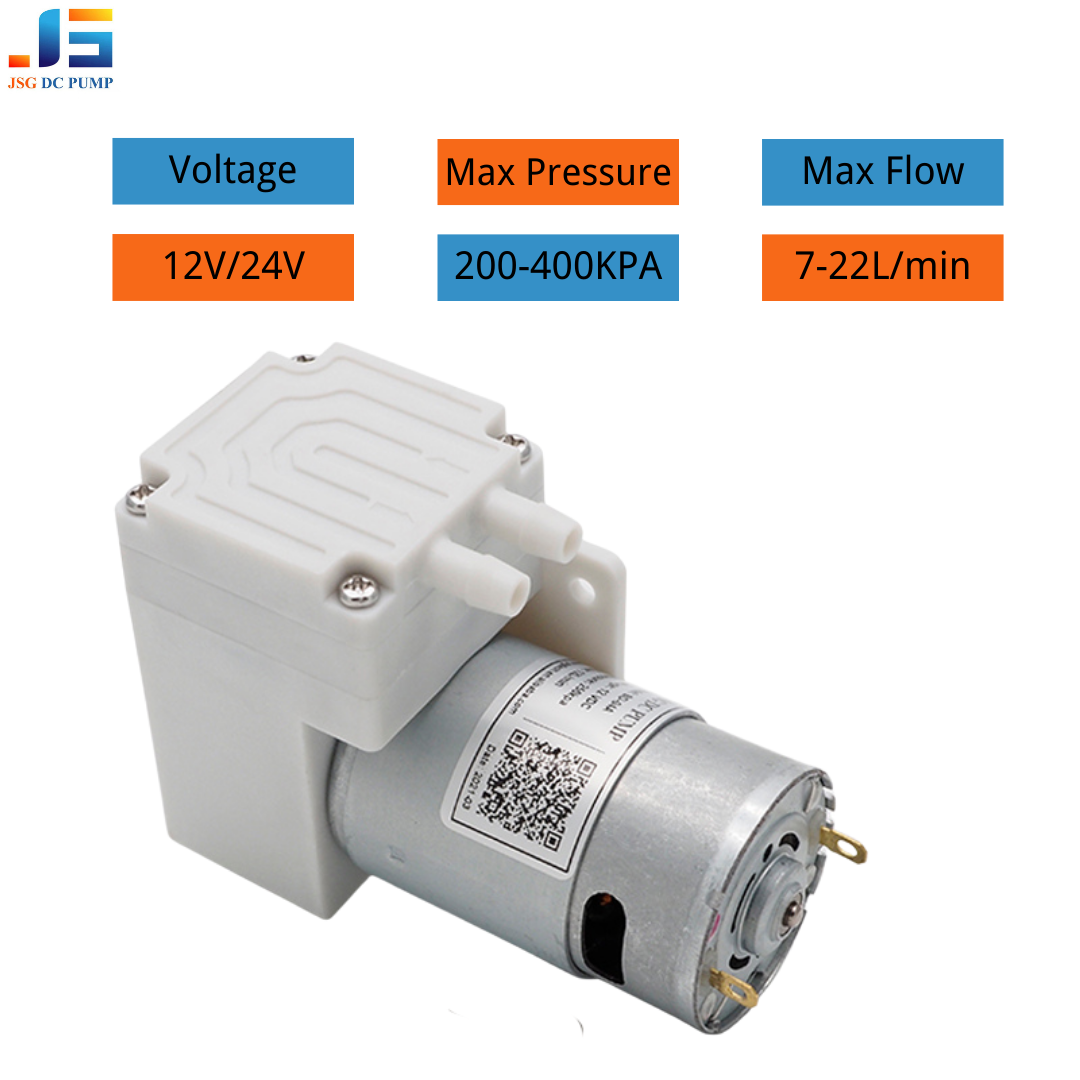

Use for Air/Vacuum Pump Parameter
| Name | Model | Voltage | No-load Current |
Max Pressure |
Max Vacuum | Max Flow | Noise |
| Air pump | BD-04A | 12V | ≤0.8A | ≥260kpa | / | ≥17L/min | low |
| ≤0.6A | ≥250kpa | / | ≥13L/min | ||||
| Vacuum pump | BD-04V | ≤0.8A | / | ≥-80kpa | ≥17L/min | ||
| ≤0.6A | / | ≥-76kpa | ≥13L/min |
Remark:
1. “A” means air pump, “V “means vacuum pump
2. Dear customer, for custom parameters, please refer to the third table
3. Pressure unit conversion:
10kpa=0.01Mpa=0.1bar=100mbar=1.45psi=75mmHg=1019.7kgf/m2
100kpa=0.1Mpa=1bar=1000mbar=14.5psi=750mmHg=10197kgf/m2
General Specification
| Dimention | 101x72x40mm |
| Inlet/Outlet | ID:6.5mm/OD:3.5mm |
| Weight | 305g |
| Materials | Pump head POM, membrane EPDM, valve EPDM |
| Working Mode | Interrupt |
| Motor | Brush DC Motor |
| Life time | 1000H |
| Environment Temperature range | 0-40℃ |
| Ambient humidity range | <80% RH |

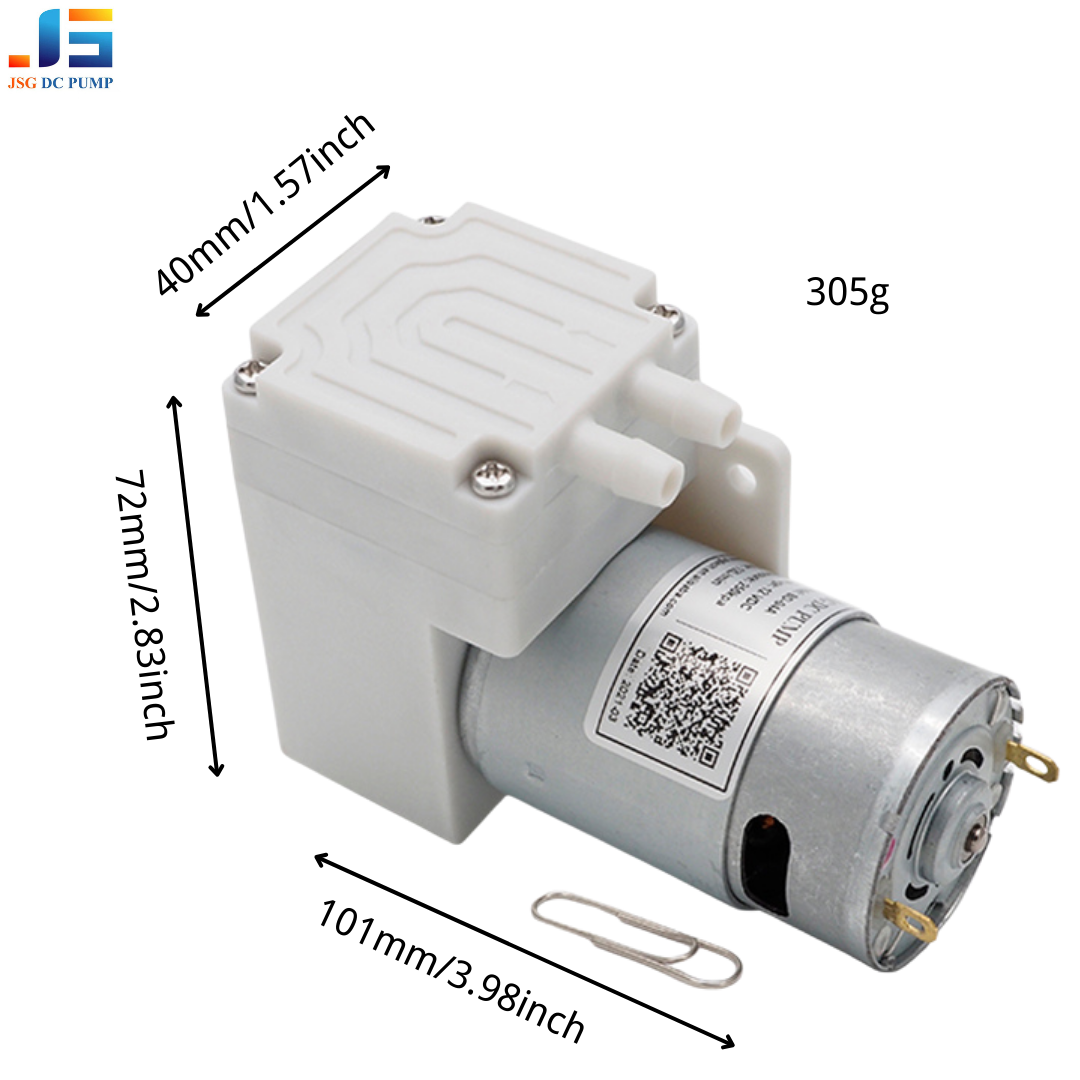

Dimention

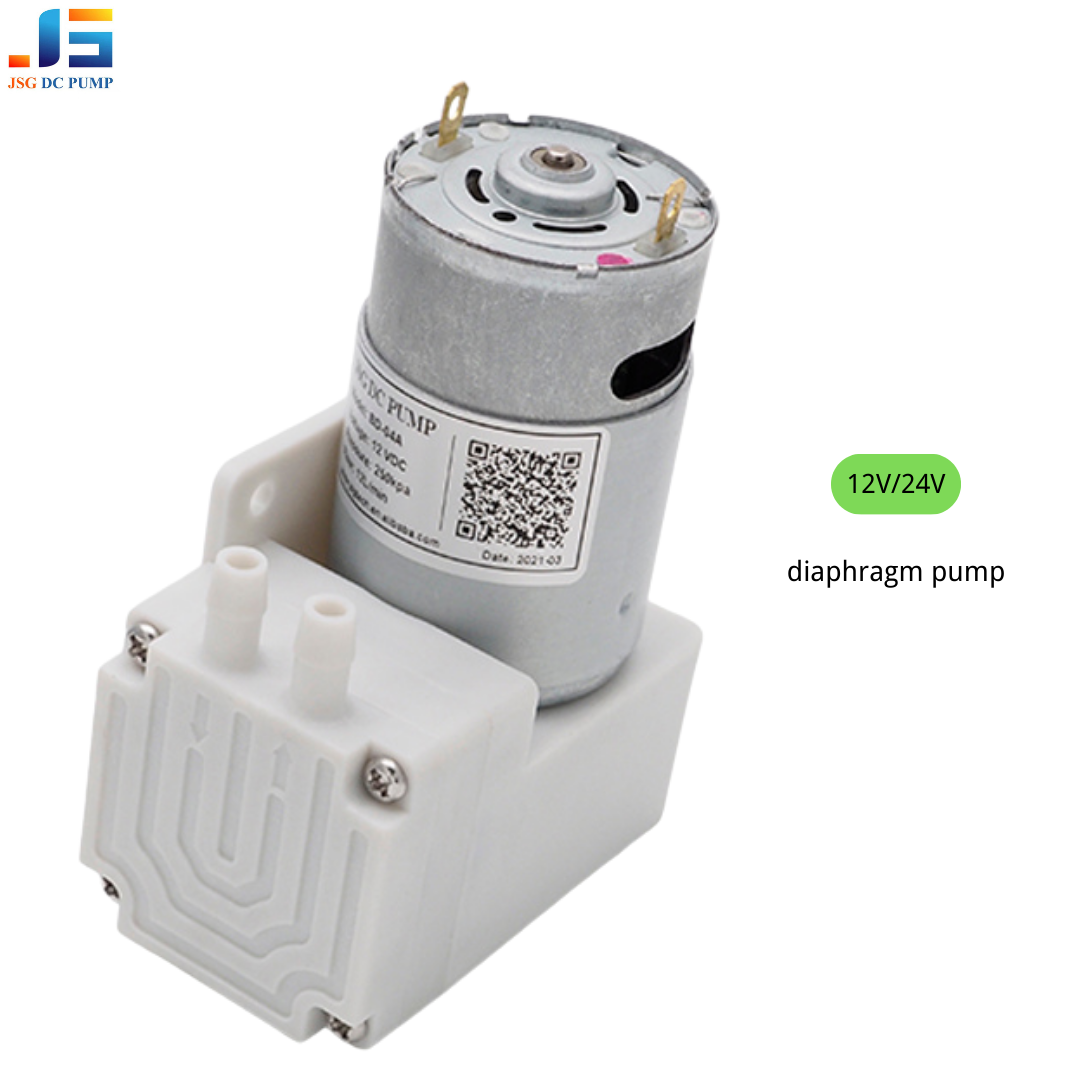

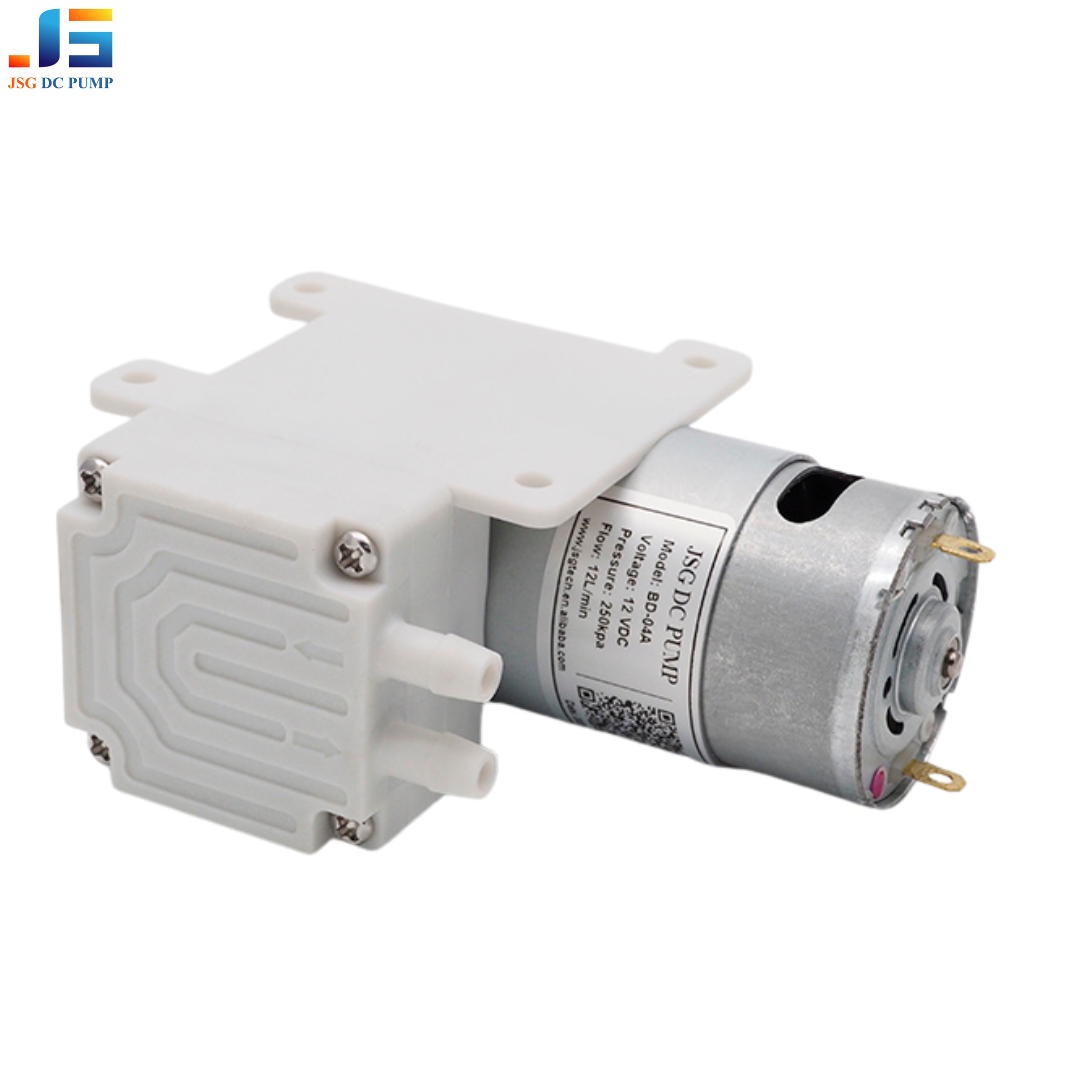

Product Details
TypicaApplicationon
More Application
1. Physiotherapy equipment (Gua Sha instrument, cupping device)
2. Beauty equipment (small bubble equipment, water replenishment equipment,
leg beauty equipment, aromatherapy machine, aromatherapy machine, beauty breast enhancement)
3. Laboratory equipment
4. Industrial pressure and vacuum applications
6. Portable Analytical Instruments
7. Medical Diagnostic Equipment
8. Air Quality Sampling Monitors
9. Respiration Monitors
10. Gas or Odor Leak Detectors
11. electrical products
12. Industrial products
13. medical analytical instruments,
14. chemical instruments
15. Various ancillary equipment
….
Custom Parameters
| Motor | Brush DC Motor | Brushless DC Motor |
| Lifetime | 1000H | 5000H |
| Voltage | 6v/9v12V/24V | |
| Positive Pressure range | 150-350kpa | |
| Negative Pressure range | 75-85kpa | |
| Air flow range | 7-22L/min | |
| Water flow range | 1.4-1.8L/min | |
| Working Mode | Continuous or intermittent | |
1. Pressure unit conversion:
10kpa=0.01Mpa=0.1bar=100mbar=1.45psi=75mmHg=1019.7kgf/m2
100kpa=0.1Mpa=1bar=1000mbar=14.5psi=750mmHg=10197kgf/m2
2 . If you are interested in our products, please contact us
Brush motor
| Lead angle | Two(+,-) |
Brushless motor
| 2 Wire | Red(+),Black(-) |
| 3 Wire | Red(+),Black(-),Green(PWM) |
| 4 Wire | Red(+),Black(-),Green(PWM),Yellow(tachometere) |

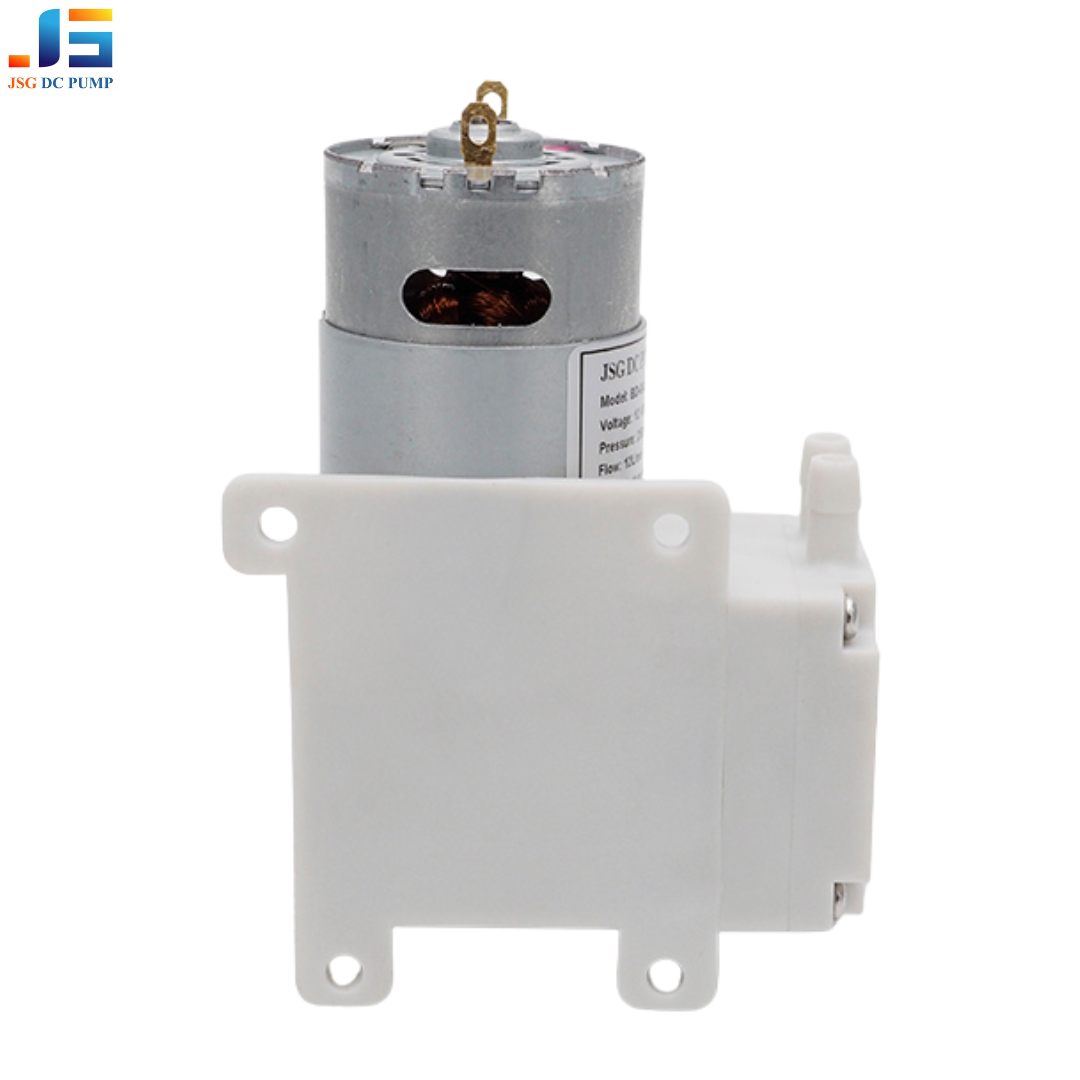

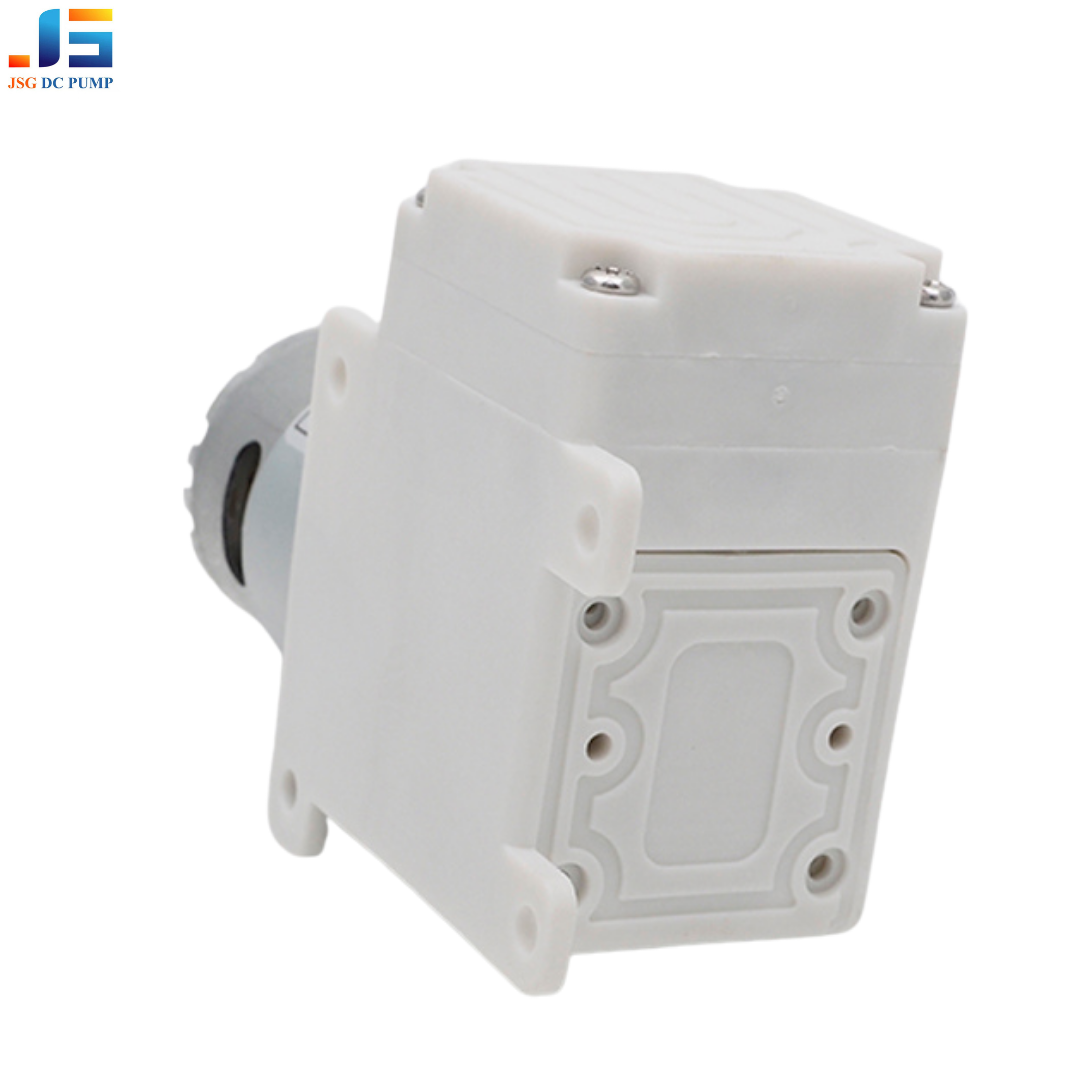

Product Detail
FAQ
1. What are your main products of your company?
We specialized in all kinds of micro pump high performance diaphragm pump,micro air pump, micro vacuum pump, micro liquid pump, micro pison pump )for over 7 years with excellent quality and competitive price.
2. How can I choose the most suitable pump?
Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you.
3. What’s the MOQ of your product?
Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more discount.
4. What’s your payment method?
Support all Ali platform payment methods such as T/T, PayPal, Western Union, etc.
5. What’s your delivery time?
The stock samples can be sent to you within 2- 3 days.
The batch order can be shipped to you in about 10- 15 days after order confirmation (by air or by sea).
