JSG-07 Series Micro Vacuum Pump 12V/24V, Flow Rate 17-40L/min, Vacuum -80~-85kPa, for Gas Detection, Lab Equipment & Beauty Devices

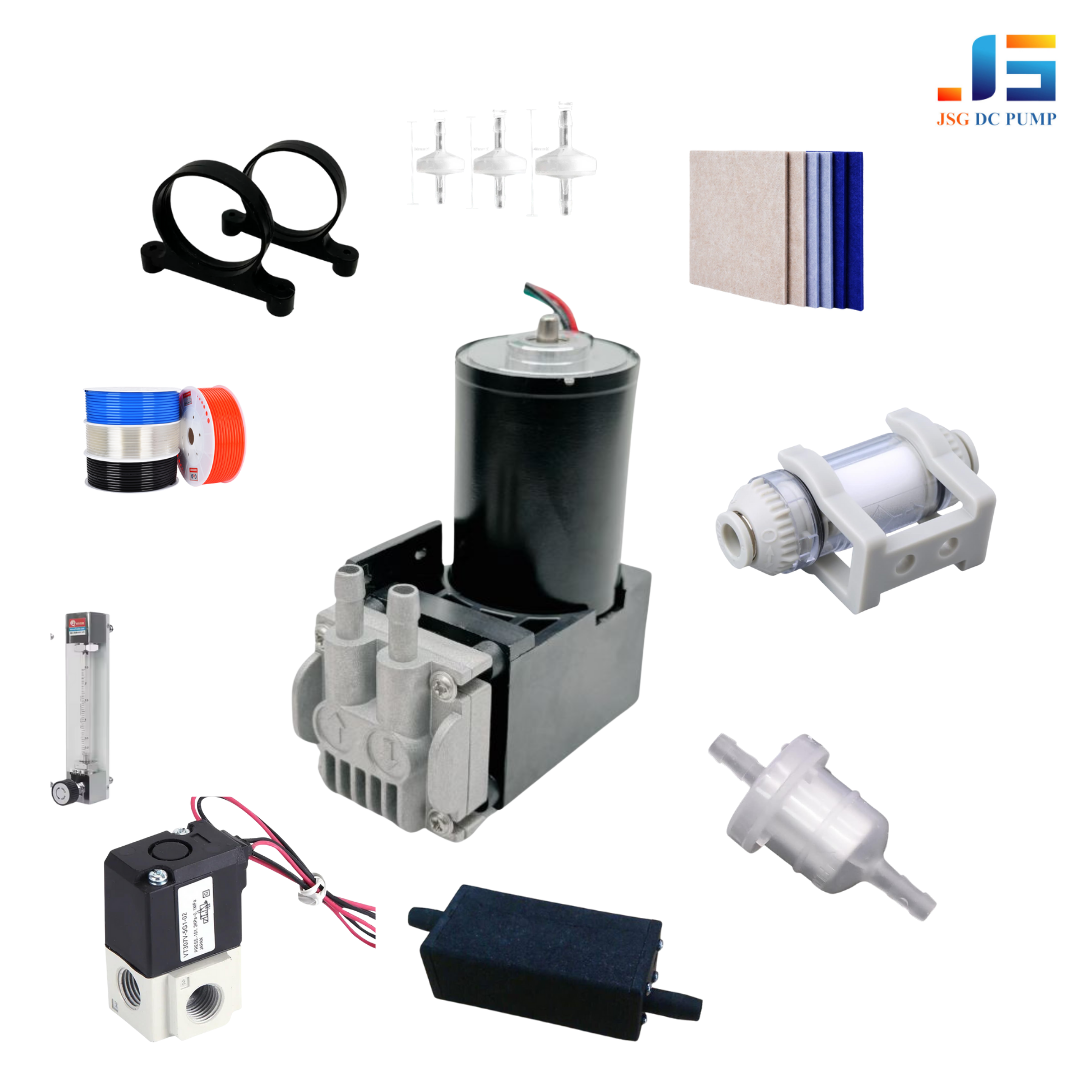

JSG-07 Series Micro Diaphragm Pump

Designed for high-performance fluid and vacuum applications, the JSG-07 series of miniature diaphragm pumps provides customizable flow rates from 15 to 40 liters/minute, pressures up to 6.5 bar, and vacuum levels up to -85 kPa. The series is designed to be flexible, supporting brushless and brushed motors, operating at 12V or 24V DC, and power between 24 and 50W. The JSG-07 series is compact, has strong suction and pressure, and is durable, making it an ideal choice for integration into automation systems, medical equipment, and industrial applications.

The micro vacuum pump is designed for compact and efficient vacuuming in small-scale applications. Perfect for use in laboratories, medical equipment, and portable devices, this micro vacuum pump offers reliable suction power while being energy-efficient and low noise. Its small form factor makes it ideal for applications with limited space, providing optimal performance for delicate tasks. Built with durable materials, this vacuum pump ensures long-lasting reliability and is easy to install and maintain.

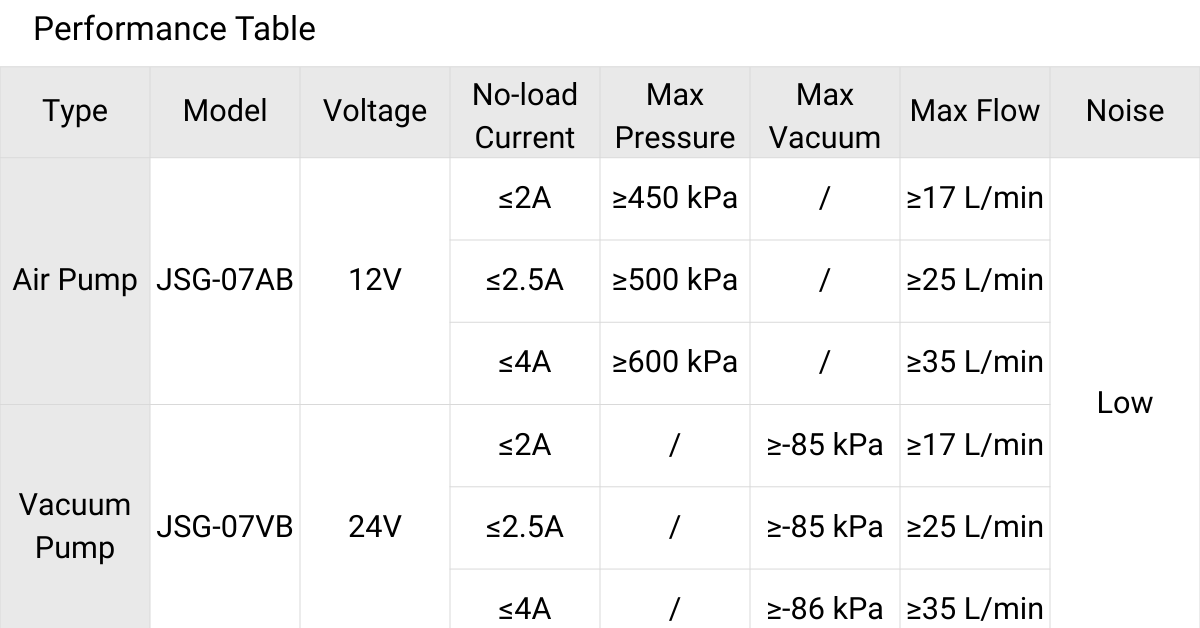

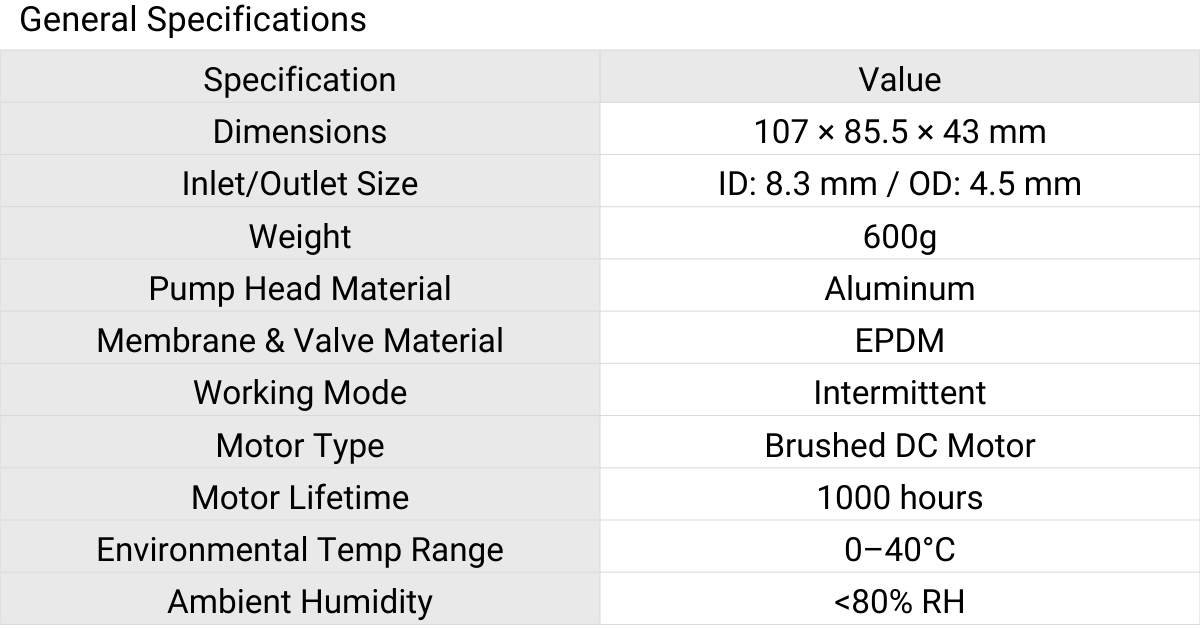

JSG-07 Series Technical Specifications

• Model Options:

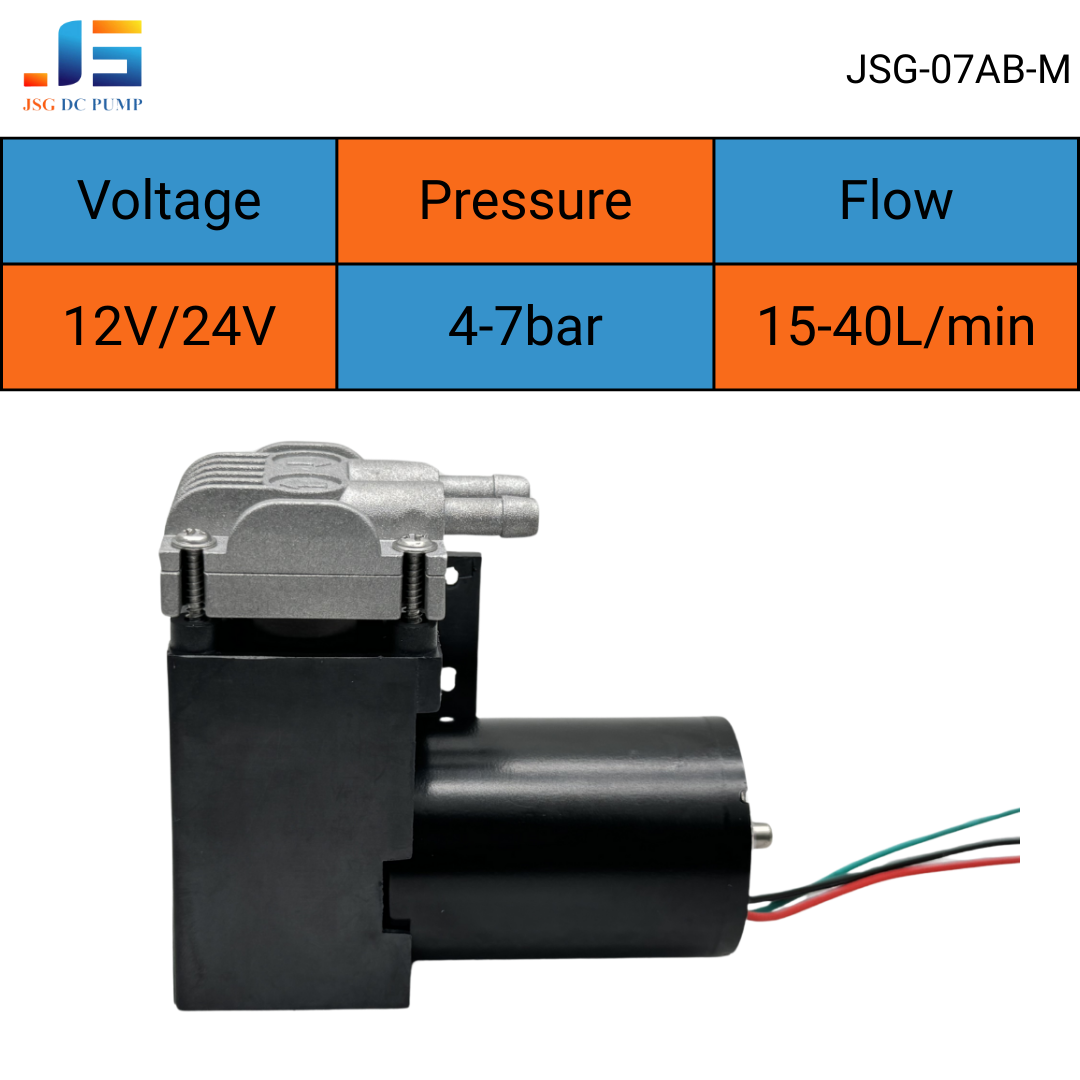

• JSG-07A-M / JSG-07AB-M
  ① 17 L/min, 4.5 bar
  ② 25 L/min, 5 bar
  ③ 40 L/min, 6.5 bar

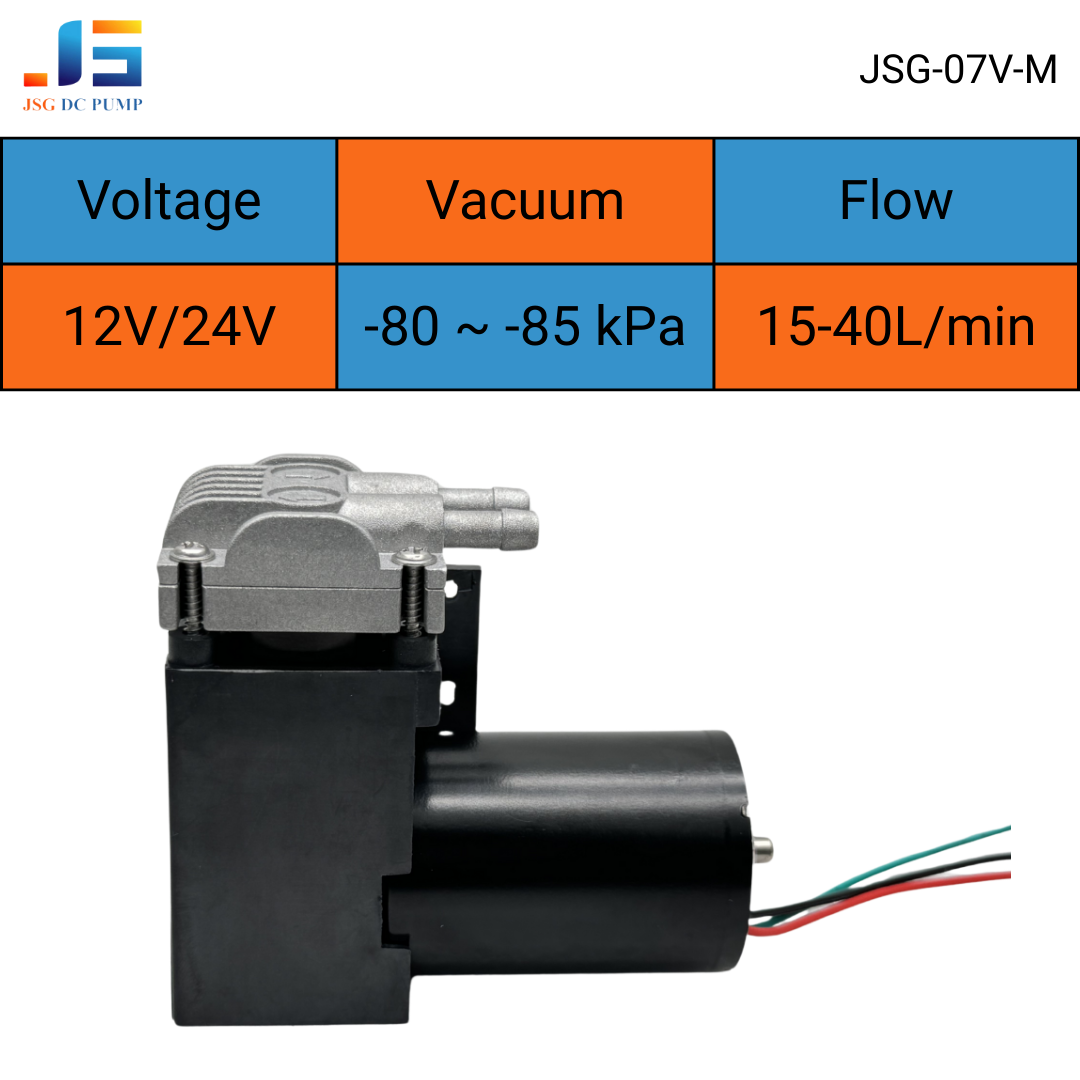

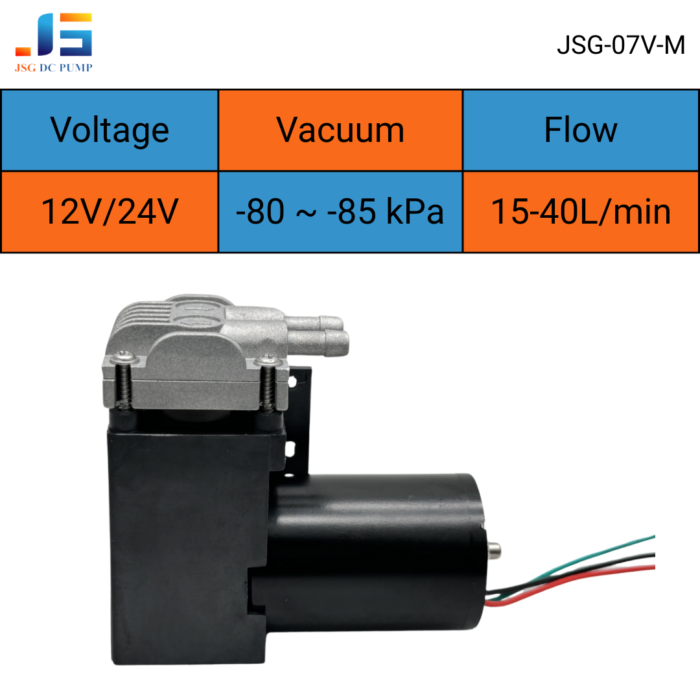

• JSG-07V-M / JSG-07VB-M
  ① 17 L/min, -80 kPa
  ② 25 L/min, -85 kPa
  ③ 31–38 L/min, -85 kPa
• Rated Voltage: 12V/24V DC
• Power: 24–50W
• Motor Type: Brushless Motor (3000 hours)/Brushed Motor (1000 hours)
• Noise Level: 60–70 dB
• Weight: 560–600 g

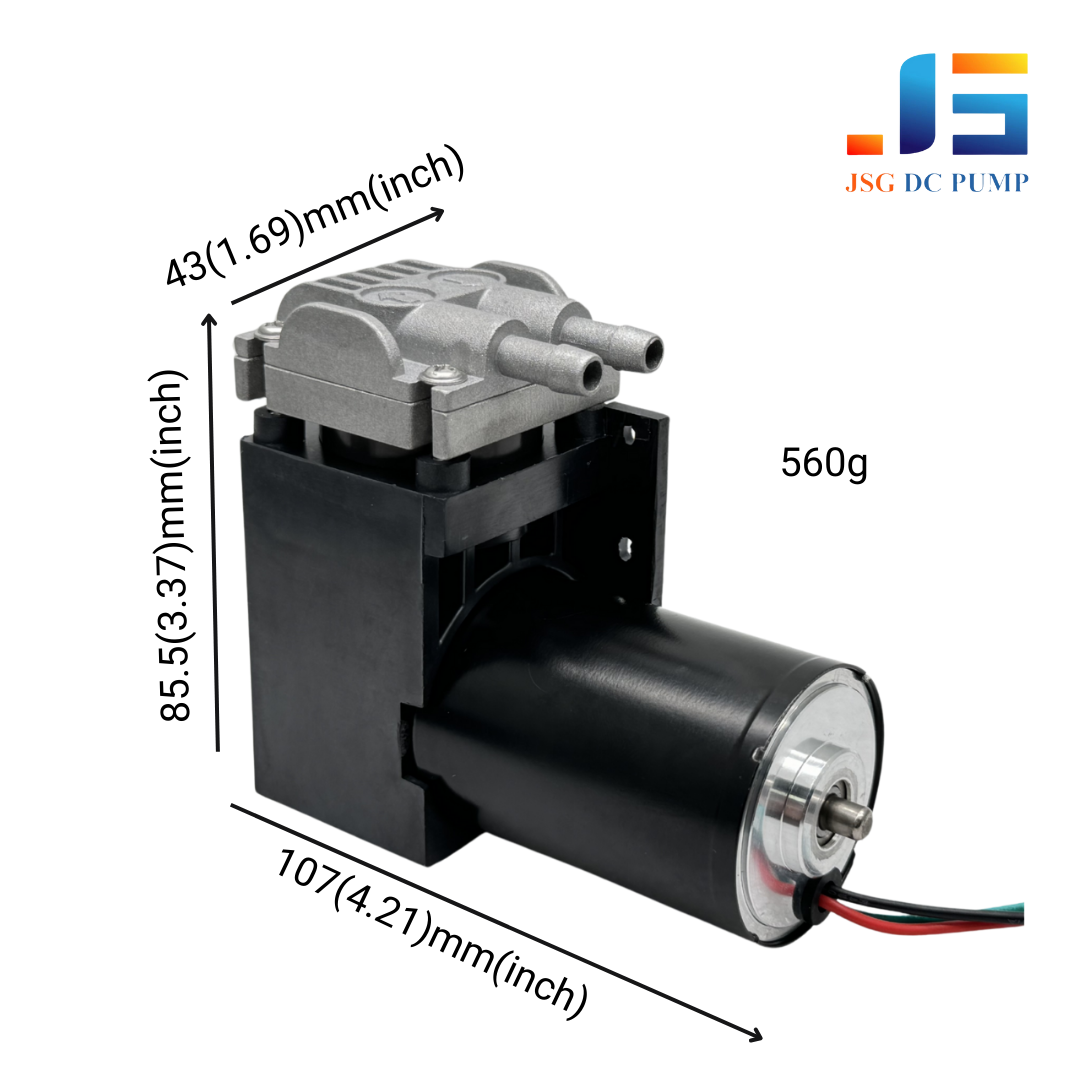

• Dimensions: 107×85.5×43 mm
• Diaphragm Material: EPDM/FKM
• Ambient temperature: 0~40℃
• Ambient humidity: <80%

Key Features of the JSG-07 Series:

• Custom Flow and Pressure Options: Wide flow range (15-40 L/min) and pressure up to 6.5 bar suit a variety of application scenarios.
• Dual Motor Option: Based on cost and durability preferences, choose between a brushless motor (3000 hours) and a brushed motor (1000 hours).
• Powerful Vacuum Capability: Vacuum down to -85 kPa for both suction and air displacement applications.
• Low Noise Design: Operating at 60–70 dB, balances performance and quiet operation.
• Modular and Compact Construction: Compact footprint allows integration into space-constrained systems or portable devices.
• Long Life: High-quality components support continuous, reliable operation in demanding environments.

Common applications:

• Vacuum lifters/suction cups
• Sprayers and atomizers
• Water purification systems
• Agricultural sprayers (drones, boom sprayers)
• Disinfectant spray systems
• Ink circulation pumps/inkjet printers
• Closed-loop water cooling circuits
• Medical equipment (suction, delivery, sampling)
• Beverage dispensing devices
• Automotive air pumps (inflator pumps, vacuum-assisted pumps)
• Packaging machinery (vacuum sealing, filling)
• Vacuum therapy equipment
• Air and gas detection instruments

Manufacturer information:

• Brand: JSG
• Company: Shenzhen Jingsuguang Technology Co., Ltd.
• Origin: China
• Certification: ISO9001, CE, RoHS, REACH, FCC

Shenzhen Jingsuheng Technology Co., Ltd. has more than 22 years of experience in the research, development, and production of micro diaphragm pumps. As a trusted manufacturer in the global industry, we focus on providing efficient, compact, and reliable pumping solutions for automation, medical, printing, and environmental systems.

📧 For OEM services or custom pump solutions, visit: dc-pump.com

• Product Features:

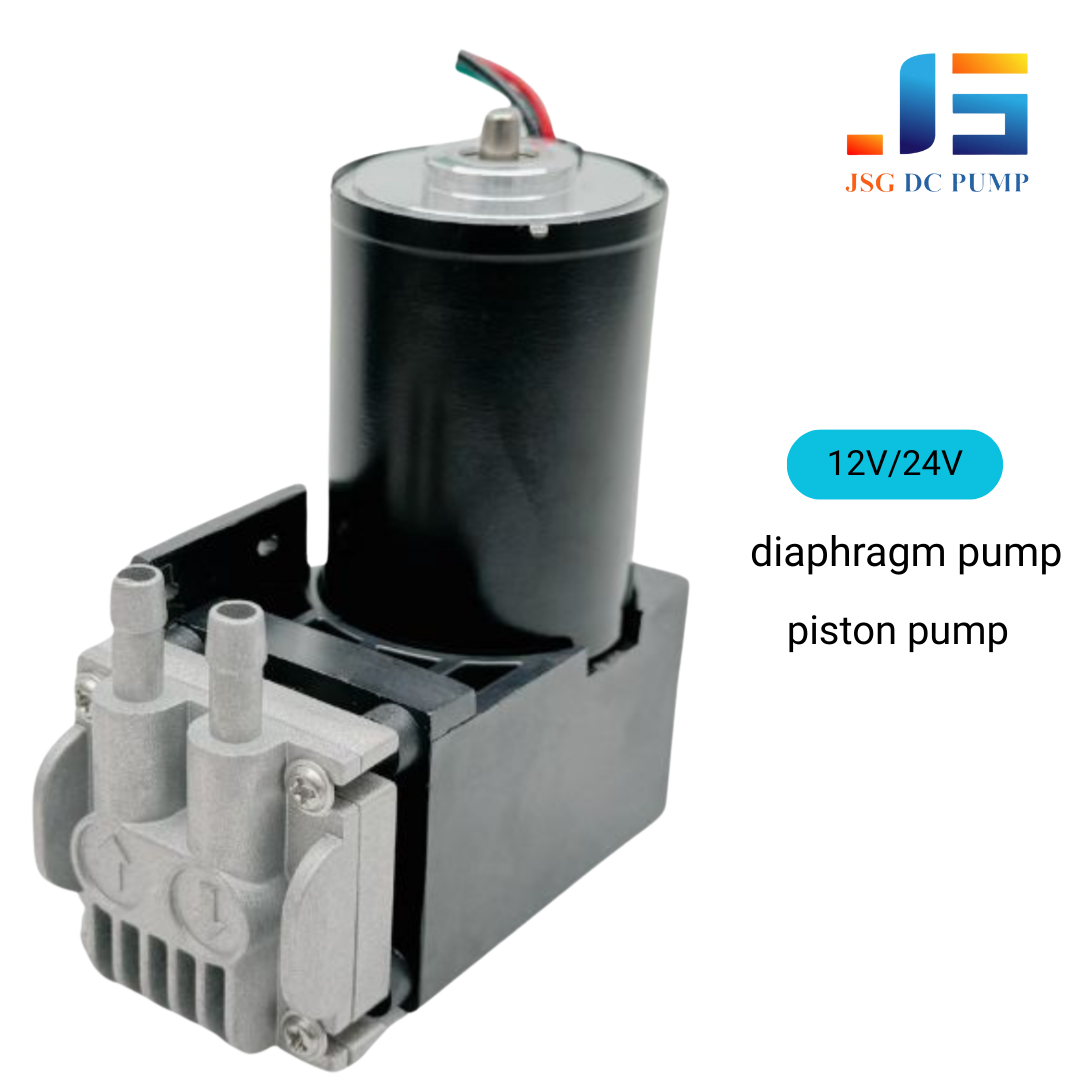

  The JSG-07 miniature diaphragm pump is designed for air and vacuum applications and provides a 12V or 24V DC power supply. Brushed or brushless motors are optional. The flow range is 15-40 l/min, the maximum pressure can reach 6.5 bar, and the vacuum can reach -85 kPa. Its compact size is 108×85.5×43 mm, and the weight is less than 600 g.
• Product Highlights
  This miniature diaphragm pump has low noise (≤70 dB), long service life (up to 3000 hours of brushless motor life), and stable output performance. The aluminum pump head and EPDM diaphragm ensure durability and chemical resistance under harsh conditions.
• Selling Points
  The JSG-07 series is widely used in medical suction, vacuum therapy, gas detection, laboratory instruments, beauty equipment, and beverage systems, supporting OEM customization, fast delivery, and low MOQ, and is a trusted choice for manufacturers and solution integrators.
