When your equipment requires stable airflow, precise pressure control, and limited installation space, choosing the right pump becomes a challenge. A poorly matched pump may create excessive noise, unstable output, or frequent maintenance issues. A small diaphragm pump provides a compact solution by delivering reliable air movement, vacuum performance, and pressure control for demanding applications.
Designed by JSG DC PUMP, the JSG-04A series combines compact size, efficient operation, and flexible voltage options. With DC 12V/24V input, up to 20L/min flow rate, and maximum pressure of 3.5 bar, this pump meets the needs of medical equipment, laboratory instruments, automation systems, and portable devices.
Why Choose a Small Diaphragm Pump for Your Equipment?
A small diaphragm pump works by using a flexible diaphragm to move air or fluids without direct contact between the motor and the pumped medium. This structure helps achieve clean operation, stable performance, and long service life.
For engineers and equipment manufacturers, the JSG-04 series offers practical advantages:

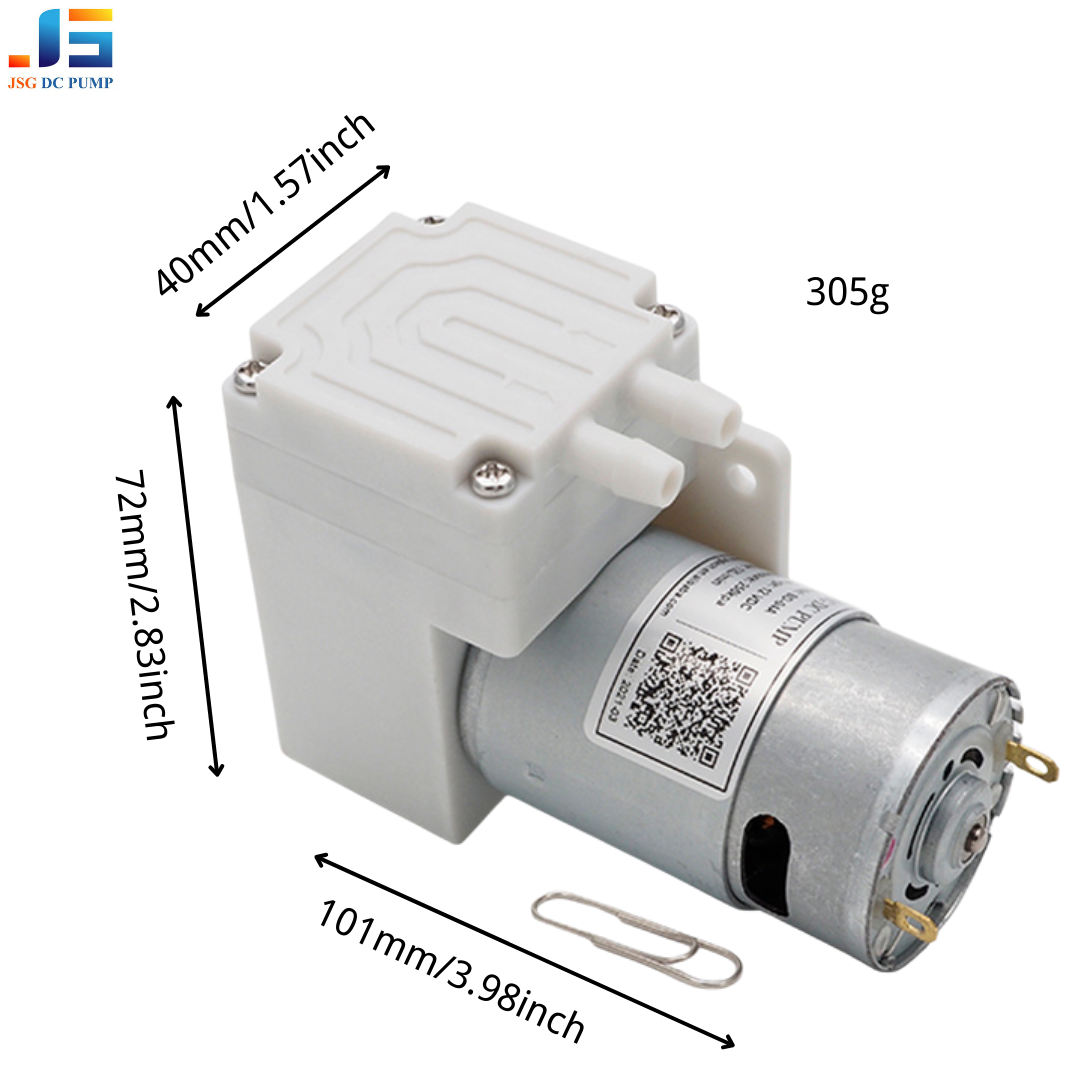

- Compact structure: The pump measures only 101 × 72 × 40 mm and weighs approximately 305g, making it suitable for space-limited systems.
- Stable output: Flow rates range from 7–22 L/min with pressure up to 3.5 bar.
- Low-noise operation: Noise levels remain between 50–65 dB for noise-sensitive environments.
- Oil-free design: No lubrication is required, supporting clean applications.
- Flexible voltage options: Available in 6V, 12V, and 24V DC versions.
Small Diaphragm Pump Technical Specifications and Performance
The JSG-04A micro diaphragm pump is designed for both pressure and vacuum applications. Depending on your system requirements, you can select different performance versions.
| Parameter | JSG-04A Pressure Model | JSG-04V Vacuum Model |
|---|---|---|
| Voltage | 6V/12V/24V DC | 6V/12V/24V DC |
| Flow Rate | 11–20 L/min | 11–20 L/min |
| Maximum Pressure | Up to 3.5 bar | – |
| Maximum Vacuum | – | Up to -80 kPa |
| Motor Type | Brushed/Brushless | Brushed/Brushless |
| Noise Level | 50–65 dB | 50–65 dB |
| Service Life | Up to 5000 hours (brushless) | Up to 5000 hours (brushless) |
Compared with traditional large pumps, this compact air pump reduces installation space while maintaining consistent performance. Therefore, it is suitable for OEM equipment manufacturers looking for efficient pumping solutions.
Applications of Small Diaphragm Pump Systems
Different industries require different airflow and vacuum solutions. The JSG-04 series supports multiple real-world applications:
Medical and Healthcare Equipment
Medical devices need clean and stable airflow. The pump can support:
- Oxygen concentrators
- Diagnostic equipment
- Medical analyzers
- Portable air systems
Its oil-free structure helps reduce contamination risks in sensitive environments.
Industrial Automation and Laboratory Systems
For automation and testing equipment, accurate pressure control is essential. The pump is commonly used in:
- Gas sampling devices
- Laboratory instruments
- Pneumatic control systems
- Environmental monitoring equipment
Beauty and Consumer Equipment
Compact equipment requires small components with reliable performance. The pump provides vacuum and pressure functions for:
- Facial care machines
- Beauty instruments
- Smart household appliances
How to Select the Right Small Diaphragm Pump
Choosing a suitable pump requires evaluating your system requirements. Follow these steps:
- Define your application purpose
Decide whether your system needs air transfer, vacuum generation, or pressure output. - Check operating voltage
Select the correct DC voltage option, such as 12V or 24V, according to your equipment design. - Calculate flow and pressure requirements
Confirm the required L/min flow rate and pressure level before selecting the pump model. - Consider environmental conditions
Review noise limits, installation space, temperature range, and operating humidity. - Discuss customization options
For OEM projects, work with a manufacturer that can provide technical support and customized solutions.
Why Work with JSG DC PUMP?
JSG DC PUMP specializes in precision micro pump development and manufacturing with more than 22 years of industry experience. The company provides air pumps, vacuum pumps, piston pumps, diaphragm pumps, and liquid dispensing systems.
JSG DC PUMP supports global customers with:
- ISO9001:2015 certified manufacturing
- CE, RoHS, and REACH compliance
- More than 300 micro pump prototypes
- OEM and ODM customization services
- Export experience covering Europe, USA, Japan, South Korea, Southeast Asia, and Australia
With professional engineering support, you can select or customize a pump solution based on your equipment requirements.
FAQ
1. What is a small diaphragm pump used for?
A small diaphragm pump is commonly used for air transfer, vacuum generation, and pressure applications. Typical industries include medical equipment, laboratories, automation systems, and consumer devices.
2. Can a small diaphragm pump work with 12V and 24V systems?
Yes. The JSG-04 series supports 6V, 12V, and 24V DC power options, allowing flexible integration into different electrical systems.
3. What makes an oil-free diaphragm pump different?
An oil-free diaphragm pump does not require lubrication during operation. This design reduces maintenance requirements and makes it suitable for clean applications.
Conclusion
Selecting the right small diaphragm pump helps you achieve stable airflow, reliable pressure control, and compact system integration. With 12V/24V DC options, low-noise operation, oil-free performance, and OEM support, JSG DC PUMP provides practical pumping solutions for medical, industrial, and commercial equipment.
For customized specifications, performance testing, or OEM projects, contact JSG DC PUMP to discuss your application requirements and receive professional pump recommendations.
