When your equipment relies on stable suction performance, contamination inside the airflow path can reduce pump efficiency and shorten service life. A properly selected vacuum air pump accessory helps maintain clean airflow and protect sensitive components in compact systems. JSG DC PUMP develops miniature pump solutions and accessories, including the Pressure/Vacuum Filter for BD-03 with 10 μm air filtration, Φ4.0 mm tubing compatibility, and a -100 to 0 kPa operating range.
For OEM engineers, selecting the right filter is not only about size. You need to consider airflow resistance, tubing design, working pressure, operating environment, and long-term reliability before integrating a component into your equipment.
Vacuum Air Pump Filter Designed for OEM Miniature Systems

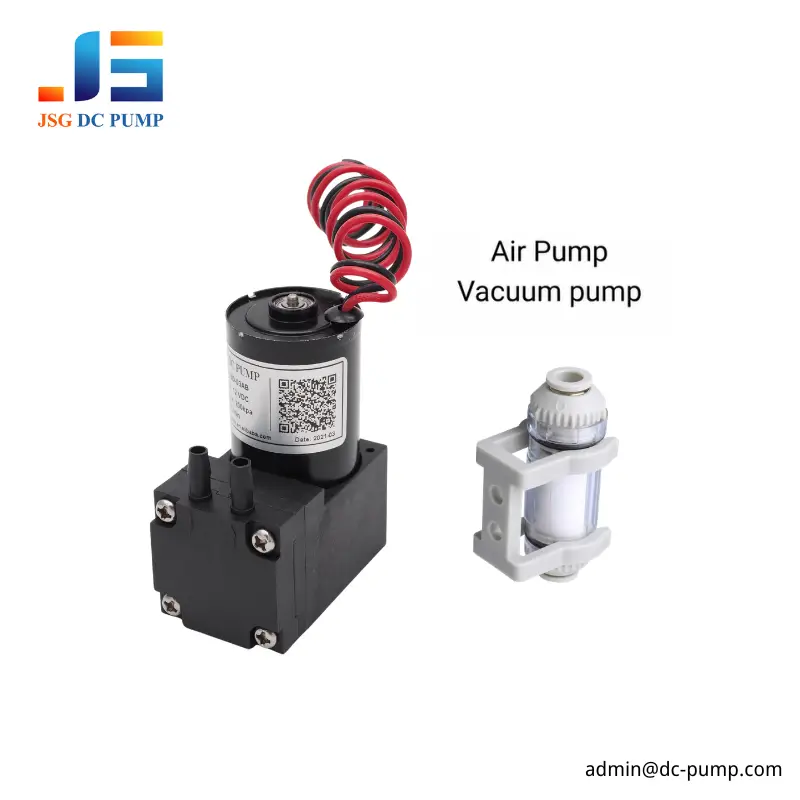

A vacuum system depends on consistent airflow performance. The Pressure/Vacuum Filter from JSG DC PUMP is designed for miniature air and vacuum applications where installation space is limited.
The filter belongs to the BD-Accessories Series and provides:
- 10 μm filtration precision for air filtration protection
- Φ4.0 mm inlet compatibility for nylon and PU tubing
- -100 to 0 kPa pressure range for vacuum applications
- 55.3 × 23 × 33.4 mm compact structure
- 15 g lightweight design for embedded equipment
Shenzhen Jingsuguang Technology Co., Ltd. (JSG DC PUMP) has developed miniature air, vacuum, diaphragm, piston, and liquid pumps since 2003. The company supports OEM customers through pump selection, sample validation, customization, and controlled production.
Why Vacuum Air Pump Systems Need Proper Filtration
A vacuum air pump often operates with continuous airflow. Without suitable filtration, dust particles and contaminants may enter the pump chamber or connected components.
A correctly matched filter helps you:
- Reduce airborne particles entering the vacuum system
- Maintain stable pump operation
- Protect valves, tubing, and internal components
- Improve equipment maintenance cycles
For example, in laboratory instruments, gas sampling equipment, and compact automation devices, airflow cleanliness directly affects system performance.
Pressure Vacuum Filter Specifications Comparison
Before choosing a vacuum accessory, engineers should compare key specifications instead of selecting only by appearance.
| Specification | Pressure/Vacuum Filter for BD-03 |
|---|---|
| Application | Vacuum air pump systems |
| Filtration precision | 10 μm |
| Tube connection | Φ4.0 mm |
| Suitable tubing | Nylon / PU |
| Fluid medium | Air |
| Pressure range | -100 to 0 kPa |
| Filter element differential pressure | 0.15 MPa |
| Operating temperature | 0–60°C |
| Weight | 15 g |
This specification-based selection method helps avoid performance problems caused by incorrect component matching.
How to Select a Vacuum Air Pump Filter for OEM Equipment
When integrating a filter into your equipment, follow these steps:
-
Define the operating conditions
Confirm vacuum level, airflow requirement, medium, temperature range, and duty cycle.
-
Check connection compatibility
Match tubing diameter, mounting position, and installation space. The BD-03 filter uses a Φ4.0 mm connection design for compact air-line installation.
-
Evaluate system resistance
Consider tubing length, valves, filters, and other airflow restrictions because they affect actual vacuum performance.
-
Validate with real equipment conditions
JSG DC PUMP recommends testing samples under your actual operating environment before mass production.
JSG DC PUMP OEM Capability for Vacuum Air Pump Applications
Choosing a supplier involves more than purchasing a single component. OEM projects require engineering support, production control, and repeatable quality.
JSG DC PUMP provides:
- Miniature pump platform selection
- Vacuum and pressure performance evaluation
- OEM and ODM customization
- Sample testing before production
- ISO 9001:2015 certified quality management
The company’s Shenzhen factory supports controlled assembly, inspection, aging evaluation, and project-based validation.
Typical application areas include:
- Medical and laboratory equipment
- Gas sampling systems
- Industrial automation equipment
- Printing and dispensing machines
- Household and commercial devices
FAQ
1. What is the purpose of a filter in a vacuum air pump system?
A filter removes particles from incoming airflow and helps protect the pump and connected components. It improves system cleanliness and supports stable operation.
2. Can this vacuum filter be used for liquid applications?
No. The Pressure/Vacuum Filter for BD-03 is designed for air only. Liquid compatibility should be evaluated with a suitable liquid pump solution.
3. How do I choose the right filter for my vacuum pump?
You should check vacuum range, airflow requirements, tubing size, filtration precision, installation space, and operating environment before selection.
Conclusion
A reliable vacuum air pump system requires properly matched airflow components, not only a pump unit. The JSG DC PUMP Pressure/Vacuum Filter provides 10 μm air filtration, Φ4.0 mm tubing compatibility, and -100 to 0 kPa vacuum performance for compact OEM equipment where clean airflow and space efficiency matter.
With experience since 2003, Shenzhen Jingsuguang Technology Co., Ltd. helps engineers develop miniature pump systems through technical selection, validation, and OEM manufacturing support.
CTA
Need help selecting a filter or vacuum air pump accessory for your equipment? Contact JSG DC PUMP with your required vacuum level, airflow, tubing size, voltage, duty cycle, and application details. Our engineering team can review your working conditions and recommend a suitable solution.
