Product Overview
The BD-04 series is a compact brushed DC diaphragm pump platform that includes both DC air pump and DC vacuum pump versions for small-space equipment requiring stable output and flexible voltage selection.
This brushed series includes:
- BD-04A→ pressure type mini DC air pump
- BD-04V→ vacuum type mini DC vacuum pump
Both versions are designed for compact systems that need balanced flow performance, easier integration, and practical pressure or vacuum capability without moving to a much larger pump structure.
The BD-04 brushed series offers:
- Flow:11–20 L/min
- Pressure type:5–3.5 bar
- Vacuum type:-75 to -80 kPa
- Voltage:6V / 12V / 24V
- Power:7–16 W
- Noise:50–65 dB
- Brushed motor life:1000 hours
Why This Small Brushed DC Diaphragm Pump Series Fits Compact OEM Equipment
The BD-04 brushed platform is designed for products where pump size, stable output, and practical integration matter more than simply chasing the highest catalog number.
For many OEM devices, the real requirement is not only pressure or vacuum. The system also needs:
- stable airflow or suction
- practical voltage matching
- compact mounting structure
- reliable output in real working conditions
- easier integration into embedded equipment
That is why the BD-04 brushed series works well as a shared compact platform for both pressure and vacuum versions in portable and built-in equipment.
Core Selling Points of This Brushed Mini DC Air Pump and Vacuum Pump
1. One Brushed Platform for Pressure and Vacuum
The BD-04 series includes both BD-04A and BD-04V, making it easier for OEM customers to develop pressure and suction variants based on one compact pump family.
2. Balanced Flow Output for Small Devices
With 11–20 L/min flow, the series provides practical output for compact equipment that needs stable air transfer, pressure buildup, or suction recovery.
3. Reliable Pressure Option for Air Pump Applications
The BD-04A version provides 2.5–3.5 bar output, suitable for compact pressure systems, air transfer modules, and small pneumatic equipment.
4. Stable Vacuum Option for Suction Applications
The BD-04V version provides -75 to -80 kPa vacuum, making it suitable for compact suction systems, vacuum holding, and personal care devices.
5. Multiple Voltage Options for Easier System Matching
The brushed series supports 6V / 12V / 24V, helping customers match the pump to portable, battery-powered, or fixed-power equipment platforms.
6. Compact Structure for Embedded Installation

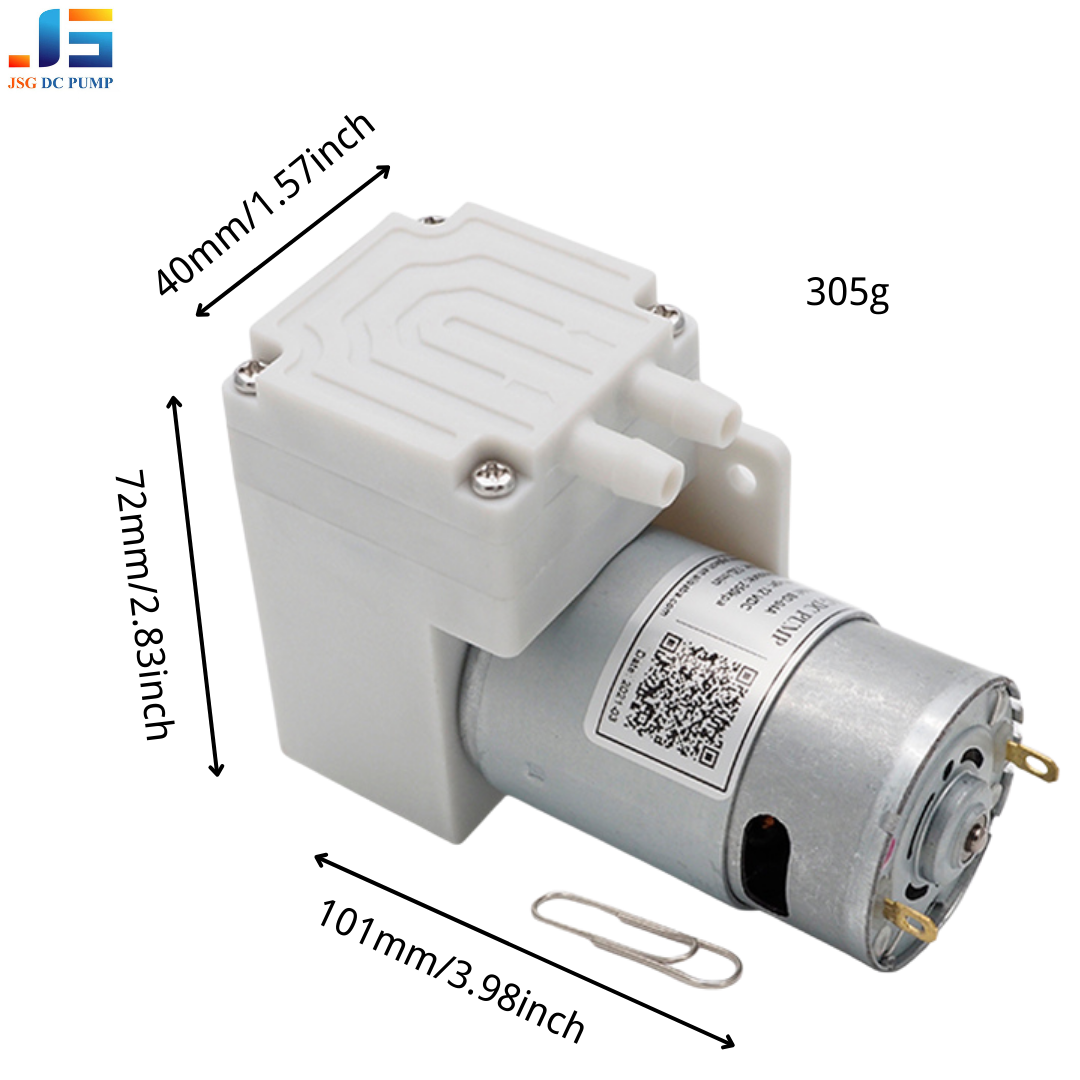

The catalog shows the BD-04 brushed version at about 40 × 72 × 101 mm and 305 g, which helps OEM customers use it in compact products without sacrificing too much output.
What Are the Key Specifications of This Brushed DC Diaphragm Pump?
| Item | BD-04A | BD-04V |
| Product Model | BD-04A | BD-04V |
| Pump Type | micro diaphragm pump | |
| Voltage | 6V / 12V / 24V | 6V / 12V / 24V |
| Max Flow | 11–20 L/min | 11–20 L/min |
| Max Pressure | 2.5–3.5 bar | N/A |
| Max Vacuum | N/A | -75 to -80 kPa |
| Power | 7–16 W | 7–16 W |
| Noise | 50–65 dB | 50–65 dB |
| Motor Type | Brushed motor | Brushed motor |
| Life Expectancy | 1000 hours | 1000 hours |
| Weight | Approx. 305 g | Approx. 305 g |
| Dimensions | Approx. 40 × 72 × 101 mm | Approx. 40 × 72 × 101 mm |
| Media | Air / clean gas | Air / clean gas |
| Wetted Materials | EPDM / FKM / PTFE optional | EPDM / FKM / PTFE optional |
| Working Mode | Intermittent / continuous depending on load point | Intermittent / continuous depending on load point |
How Does This Brushed DC Air Pump and DC Vacuum Pump Perform Under Real Load?
What Are the Dimensions and Installation Details?
Which Media and Materials Is This Mini Brushed Diaphragm Pump Compatible With?
The BD-04 series is intended mainly for air and clean gas transfer. Material selection should be based on actual media, humidity level, corrosion risk, and durability target.
Media Compatibility
| Media Type | Suitable | Notes |
| Clean air | Yes | Standard application |
| Inert gas | Yes | Confirm final compatibility by project |
| Mild moisture air | Yes | Recommend suitable sealing material |
| Corrosive gas | Optional | Recommend FKM or PTFE upgrade |
| Dusty air | Not recommended | Add filter if unavoidable |
| Oil vapor | Not recommended | May reduce sealing life |
| Liquid | Not recommended | This series is mainly for air and gas transfer |
Material Options
| Material | Suitable For | Notes |
| EPDM | General air, mild moisture | Cost-effective |
| FKM | Corrosive gas, higher temperature | Better chemical resistance |
What Applications Is This Brushed DC Air Pump and Vacuum Pump Suitable For?
1. Beauty and Personal Care Devices
Compact beauty devices often require stable suction or airflow in a small installation space. The key concern is usually controllability, smooth operation, and integration flexibility rather than only peak output.
Key parameters: compact size, stable suction or airflow, smooth response, low-noise system integration
Recommended configuration:
- Vacuum type: BD-04V
- Pressure type: BD-04A
2. Portable Medical and Laboratory Devices
Portable instruments need compact pumps that support stable air transfer, vacuum generation, or pneumatic support in embedded systems.
Key parameters: compact size, stable output, voltage matching, media compatibility
Recommended configuration:
- Pressure requirement: BD-04A
- Vacuum requirement: BD-04V
3. Small Industrial and Analytical Equipment
Compact industrial systems often need moderate pressure or vacuum with limited space and easier wiring options.
Key parameters: flow stability, pressure or vacuum level, installation space, working mode
Recommended configuration:
- Pressure system: BD-04A
- Vacuum system: BD-04V
How Do I Choose the Right Version of This Custom DC Pump?
- If you need quieter and more stable operation, choose a brushless version.
For beauty devices used close to the face or skin, low noise and stable performance are very important. A brushless pump is usually the better choice because it offers smoother operation, longer life, and a better user experience.
- If you need adjustable suction or airflow, choose a PWM control version.
Many beauty devices require different working levels for different treatment modes. A PWM-controlled pump makes it easier to adjust suction or airflow and achieve more precise control.
- If the pump may contact moisture, mist, or chemical residue, choose suitable wetted materials.
For beauty applications involving humid air, skincare residue, or special media, selecting appropriate materials such as EPDM, FKM, or PTFE can improve durability and reduce the risk of early failure. - If your working media includes moisture or aggressive gas, upgrade sealing materials.
EPDMand FKMshould be selected according to the actual medium and environment. This follows the material-selection logic required by your page planning document. - If your system must run continuously, verify temperature rise and real load point.
Continuous operation should always be checked under final tubing, pressure, or vacuum load conditions.
Real Product Cases Using This Brushed DC Air Pump and Vacuum Pump
Case 1: Portable Pressure Therapy Device
Product background
This type of device needs a compact air pump to generate stable pressure in a limited internal space.
Core requirement
The pump must provide practical airflow, moderate pressure, and easier voltage matching for an embedded pneumatic system.
Application challenge
The product structure is compact, so the pump cannot be oversized. At the same time, the system still needs enough pressure output for stable air-path support.
Recommended pump solution
For this type of product, BD-04A is the more suitable brushed version because it can provide 2.5–3.5 bar pressure with 11–20 L/min flow in a relatively compact structure.
Application result
It is suitable for compact pressure-support products that need a balance of output capability, installation flexibility, and practical OEM integration.
Case 2: Beauty Suction Device
Product background
Beauty and personal care devices often need a compact vacuum source for suction, holding, or negative-pressure treatment functions.
Core requirement
The pump must fit into a small housing while still providing useful vacuum performance and stable suction response.
Application challenge
If the pump is too small, suction may be weak. If the pump is too large, the product structure, noise, and layout become harder to control.
Recommended pump solution
For this type of product, BD-04V is the more suitable brushed version because it provides -75 to -80 kPa vacuum with 11–20 L/min reference flow, which fits compact suction systems better than a larger pump platform.
Application result
It is suitable for personal care products that need compact vacuum generation, stable negative pressure, and easier integration into small equipment.
