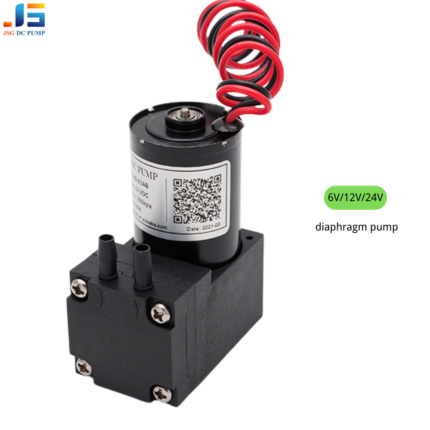

The BD-07WB is a compact brushless DC diaphragm pump designed for liquid pressurization and transfer in OEM equipment. It delivers up to 1 L/min maximum flow and 10 bar maximum pressure, with a working flow of at least 0.5 L/min at 5 bar. Its compact design supports integration into industrial and automated liquid handling systems.
1. Product Features
- Quiet Operation: Uses advanced diaphragm technology to minimize noise, ideal for medical, laboratory, and industrial applications.
- Liquid Pressurization: Designed to deliver pressurized liquids in compact OEM systems, with a working flow of at least 0.5 L/min at 5 bar.
- High-Quality Materials: Adopts EPDM diaphragm, has excellent heat and corrosion resistance, and is equipped with food-grade plastic valve seat to ensure safety.
- Industrial Durability: Polypropylene pump body has high strength and chemical resistance, suitable for industrial fluid transfer, automotive applications and food processing.
2. Specifications
| Scope | Detail |
|---|---|
| Brand | JSG DC PUMP |
| Model | BD-07WB |
| Drive Type | Electric (12V DC) |
| Maximum outlet pressure | 10 bar |
| Maximum flow rate | 1 L/min |
| Rated lift | 4 m |
| Maximum lift | 6 m |
| Inlet size | 6.5 mm |
| Outlet size | 4.0 mm |
| Pump body material | Polypropylene (PP) |
| Diaphragm material | EPDM |
3. Applications
- Industrial fluid transmission systems
- Automotive water circulation equipment
- Medical and food-grade equipment
- Laboratory liquid handling equipment
- Scientific fluid handling
4. Main selling points
✅Ultra-quiet operation, suitable for medical and precision equipment
✅Reliable liquid pressurization to meet diverse industry needs
✅Durable, high-quality materials ensure long-lasting performance
✅Small and lightweight, easy to install, suitable for a variety of applications
